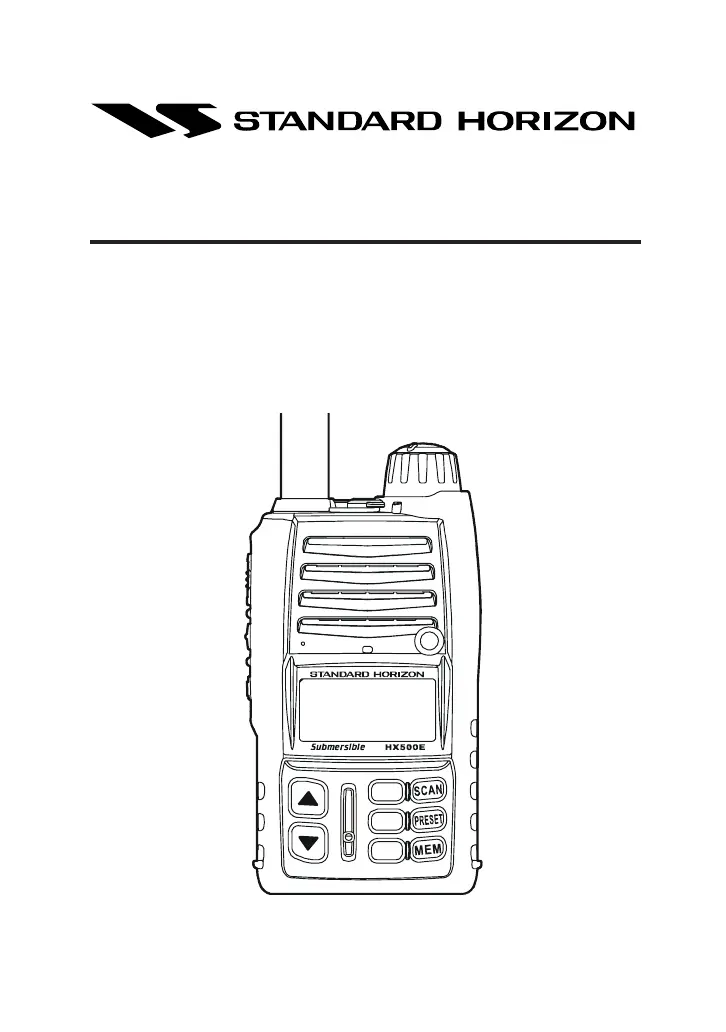

HX500E
VHF/FM Marine Handheld Transceiver
Owner's Manual
16/9
DW
H/L
HX500E
TABLE OF CONTENTS
ABOUT VHF MARINE BAND ........................................................................................................ 1
1. GENERAL INFORMATION ........................................................................................................ 2
1.1 INTRODUCTION ................................................................................................................. 1
2. ACCESSORIES .......................................................................................................................... 3
2.1 PACKING LIST ..................................................................................................................... 3
2.2 OPTIONS ............................................................................................................................. 3
3. GETTING STARTED .................................................................................................................. 4
3.1 BATTERIES AND CHARGERS ........................................................................................... 4
4. CONTROLS AND SWITCHES ................................................................................................... 8
5. BASIC OPERATION ................................................................................................................. 11
5.1 INITIAL SETUP .................................................................................................................. 11
5.2 RECEPTION ....................................................................................................................... 11
5.3 TRANSMISSION ................................................................................................................ 12
5.4 PRESET CHANNELS (0 ~ 9) ............................................................................................. 13
5.5 ENABLING S.O.S STROBE OPERATION ........................................................................ 13
6. ADVANCED OPERATION ON THE MARINE BAND .............................................................. 14
6.1 USA, CANADA, AND INTERNATIONAL CHANNELS ...................................................... 14
6.2 MEMORY SCAN ................................................................................................................. 14
6.3 PROGRAMMABLE PRIORITY SCAN ............................................................................... 15
6.4 DUAL WATCH .................................................................................................................... 16
6.5 TRI WATCH ........................................................................................................................ 16
6.6 EMERGENCY CHANNEL 16 ............................................................................................. 16
6.7 CHANNEL 9 ........................................................................................................................ 17
6.8 OPERATING ON CHANNEL 13 ........................................................................................ 17
6.9 OPERATING ON CHANNEL 67 ........................................................................................ 17
6.10 SIMPLEX/DUPLEX CHANEL USE .................................................................................. 17
7. OPERATING PRACTICE ......................................................................................................... 23
7.1 EMERGENCY (CHANNEL 16 USE) .................................................................................. 18
7.2 CALLING ANOTHER VESSEL (CHANNEL 16 OR 9) ...................................................... 18
7.3 OPERATING ON CHANNEL 13 AND 67 ........................................................................... 19
8. MENU (“SET”) MODE ............................................................................................................. 20
9. INSTALLATION OF OPTIONS ................................................................................................. 22
9.1 FBA-25A ALAKLINE BATTERY TRAY .............................................................................. 22
10. MAINTENANCE ...................................................................................................................... 23
10.1 GENERAL ......................................................................................................................... 23
10.2 TROUBLESHOOTING CHART ...................................................................................... 23
11.VHF MARINE CHANNEL ASSIGNMENT ...............................................................................34
12. SPECIFICATIONS .................................................................................................................. 30
HX500E Page 1
Congratulations on your purchase of the HX500E! Whether this is your first
portable marine VHF transceiver, or if you have other STANDARD HORIZON
equipment, the STANDARD HORIZON organization is committed to ensur-
ing your enjoyment of this high performance transceiver, which should pro-
vide you with many years of satisfying communications even in the harshest
of environments. STANDARD HORIZON technical support personnel stands
behind every product sold, and we invite you to contact us should you re-
quire technical advice or assistance.
We appreciate your purchase of the HX500E, and encourage you to read
this manual thoroughly, so as to learn and fully understand the capabilities of
the HX500E.
ABOUT VHF MARINE BAND
The radio frequencies used in the VHF ma-
rine band lie between 156 and 158 MHz with
some shore stations available between 161
and 163 MHz. The marine VHF band provides
communications over distances that are es-
sentially line of sight Actual transmission
range depends much more on antenna type,
gain and height than on the power output of
the transmitter. A portable 5W radio transmis-
sion expected distance can be greater than 5
miles “line of sight.”
The user of a Marine VHF radio is subject
to severe fines if the radio is used on land.
The reasoning for this is you may be near an
inland waterway, or propagation anomalies
may cause your transmission to be heard in a
waterway. If this occurs, depending upon the
marine VHF channel on which you are trans-
mitting, you could interfere with a search and
rescue case, or contribute to a collision be-
tween passing ships. For VHF Marine chan-
nel assignments refer to page 24 section 11.
16/9
DW
H/L
