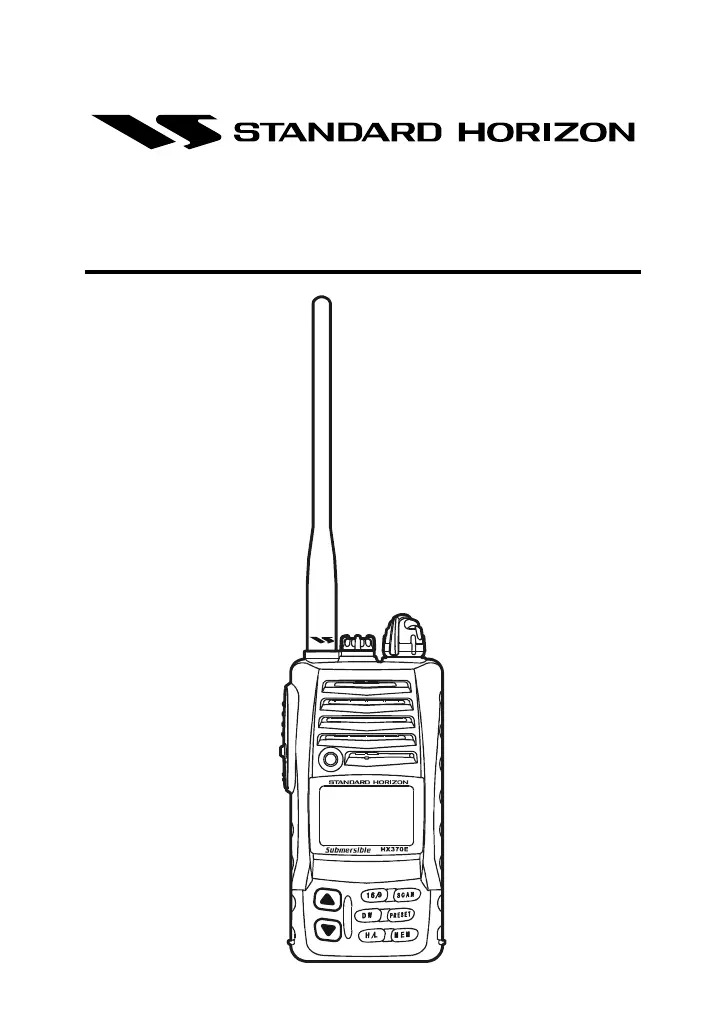

HX370E
HX370E
VHF/FM Marine
Handheld Transceiver
Owner's Manual
HX370E
TABLE OF CONTENTS
1. GENERAL INFORMATION ........ 2
2. ACCESSORIES .......................... 3
2.1 PACKING LIST ........................................ 3
2.2 OPTIONS ................................................ 3
3. BATTERY ................................... 4
3.1 BATTERY CHARGING ........................... 4
3.2 BATTERY REMOVAL/INSTALLATION ... 4
3.3 USING THE NC-88
BATTERY CHARGER ..... 5
3.4 FBA-25A ALKALINE BATTERY CASE .... 5
3.5 BATTERY SAFETY ................................. 6
4.
CONTROLS AND INDICATORS .....
7
4.1 CONTROLS and CONNECTIONS ......... 8
4.2 INDICATORS ........................................ 10
5. OPERATION ............................. 12
5.1 INITIAL SETUP ..................................... 12
5.2 RECEPTION ......................................... 13
5.3 TRANSMISSION ................................... 14
5.4 TRANSMIT TIME-OUT TIMER (TOT) ... 14
5.5 USA, CANADIAN, AND
INTERNATIONAL BANDS .... 15
5.6 SCAN .................................................... 15
5.7 PROGRAMMABLE PRIORITY SCAN .. 16
5.8 DUAL WATCH ....................................... 16
5.9 EMERGENCY (CHANNEL 16 USE) ..... 17
5.10 CALLING ANOTHER VESSEL
(CHANNEL 16 OR 9) ... 17
5.11 OPERATING ON CHANNEL 13 .......... 18
5.12 OPERATING ON CHANNEL 67 .......... 18
5.13 PRESET CHANNELS (1 ~ 8):
INSTANT ACCESS .... 19
5.14 SIMPLEX/DUPLEX CHANNEL USE ... 20
5.15 ENABLING S.O.S
STROBE OPERATION ..... 20
5.16 VOICE SCRAMBLER UNIT ................ 21
5.17 SETUP MODE .................................... 22
5.18 CLONING ............................................ 25
6. MAINTENANCE ........................ 26
7. CHANNEL ASSIGNMENTS ..... 27
8. SPECIFICATIONS .................... 34
RF Exposure Safety Statement
SAFETY INFORMATION
Your wireless handheld portable transceiver contains a low power transmit-
ter. When the Push-to-Talk (PTT) button is pushed, the transceiver sends
out radio frequency (RF) signals. In August 1996, the Federal Communica-
tions Commission adopted RF exposure guidelines with safety levels for
hand-held wireless devices.
This device is authorized to operate at a duty factor not to exceed 50% (this
corresponds to 50% transmission time and 50% reception time).
WARNING: To maintain compliance with the FCC’s RF exposure guidelines,
this transmitter and its antenna must maintain a separation distance of at
least 1 inch (2.5 centimeters) from your face. Speak in a normal voice, with
the antenna pointed up and away from the face at the required separation
distance.
If you use a headset accessory for this radio, with the radio worn on your
body, use only the STANDARD HORIZON belt clip for this transceiver, and
ensure that the antenna is at least 1 inches (2.5 centimeters) from your body
when transmitting.
Use only the supplied antenna. Unauthorized antennas, modifications, or at-
tachments could damage the transmitter, and may violate FCC regulations.
HX370E
Congratulations on your purchase of the HX370E! Whether this is your first
portable marine VHF transceiver, or if you have other STANDARD HORIZON
equipment, the STANDARD HORIZON organization is committed to ensur-
ing your enjoyment of this high-performance transceiver, which should pro-
vide you with many years of satisfying communications even in the harshest
of environments.
We appreciate your purchase of the HX370E, and encourage you to read
this manual thoroughly, so as to learn and understand the capabilities of the
HX370E fully.
Page 1
ABOUT VHF MARINE RADIO
The radio frequencies used in the VHF marine band lie between 156
and 158 MHz with some shore stations available between 161 and 163
MHz. The marine VHF band provides communications over distances
that are essentially “line of sight” (VHF signals do not travel well through
objects such as buildings, hills or trees). Actual transmission range de-
pends much more on antenna type, gain and height than on the power
output of the transmitter. The approximate distance a portable 5W radio
may communicate is about 5 miles in if there are no obstructions (build-
ings, hills etc.) restricting line of sight transmission.
ABOUT LMR CHANNELS
The HX370E is capable of PC programming 40 LMR (Land Mobile Ra-
dio) channels by a dealer. The frequency range is 137 to 174MHz which
may be setup for 25kHz (wide) or 12.5kHz (narrow) channel stepping
with CTCSS and DCS signaling. Contact your dealer for further details.
Attention in Case of Use
This transceiver works on frequencies which are not generally permitted.
For frequency allocation, apply for a licence at your local spectrum man-
agement authority.
For actual usage contact your dealer or
sales shop in order to get your trans-
ceiver adjusted to the allocated fre-
quency range.
List of the practicable area
AUT BEL DNK FIN
FRA DEU GRC ISL
IRL ITA LIE LUX
NLD NOR PRT ESP
SWE CHE GBR
