Seite 1/9

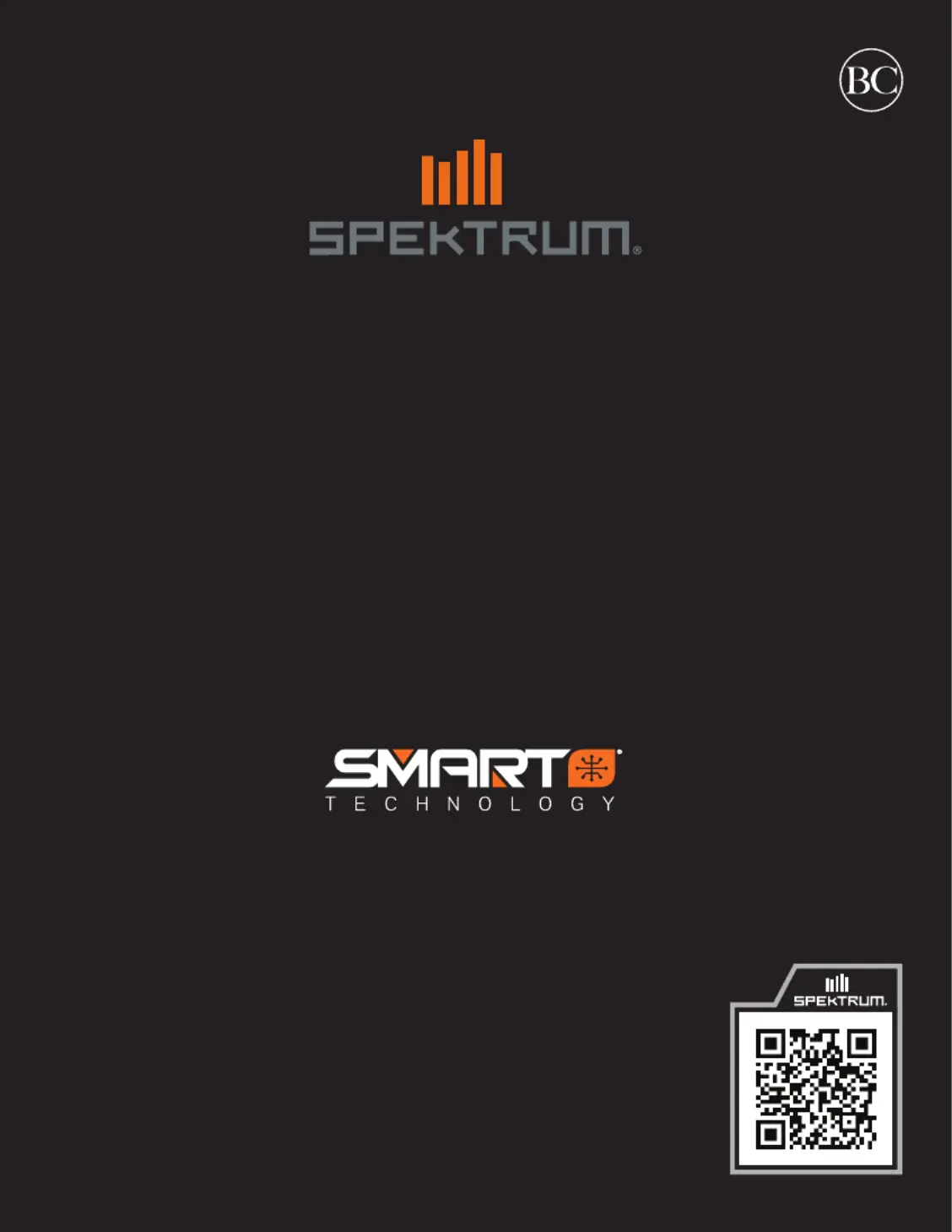

Instruction Manual
Bedienungsanleitung
Manuel d’utilisation
Manuale di Istruzioni
S2100 G2 AC Smart Charger (2 x 100W)
Scan the QR code and select the Manuals and Support quick links from the
product page for the most up-to-date manual information.
Scannen Sie den QR-Code und wählen Sie auf der Produktseite die Quicklinks
Handbücher und Unterstützung, um die aktuellsten Informationen zu Handbücher.
Scannez le code QR et sélectionnez les liens rapides Manuals and Support sur la
page du produit pour obtenir les informations les plus récentes sur le manuel.
Scannerizzare il codice QR e selezionare i Link veloci Manuali e Supporto dalla
pagina del prodotto per le informazioni manuali più aggiornate.
2
EN
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to
operate the product correctly can result in damage to the product, personal property and cause serious injury.
This is a sophisticated hobby product. It must be operated with caution and common sense and requires some basic mechanical ability.
Failure to operate this product in a safe and responsible manner could result in injury or damage to the product or other property.
This product is not intended for use by children without direct adult supervision. Do not attempt disassembly, use with incompatible
components or alter product in any way without the approval of Horizon Hobby, LLC. This manual contains instructions for safety,
operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup
or use, in order to operate correctly and avoid damage or serious injury.
The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product:
WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury
OR create a high probability of superficial injury.
CAUTION: Procedures, which if not properly followed, create the probability of physical property damage AND a possibility of serious injury.
NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury.
NOTICE
All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-
to-date product literature, visit horizonhobby.com or towerhobbies.com and click on the support or resources tab for this product.
Meaning of Special Language
Age Recommendation: Not for children under 14 years. This is not a toy.
General Charging Warnings
WARNING: Failure to exercise caution while using this
product and comply with the following warnings could
result in product malfunction, electrical issues, excessive heat,
FIRE, and ultimately injury and property damage.
• NEVER LEAVE CHARGING BATTERIES UNATTENDED DURING
USE.
• NEVER CHARGE BATTERIES OVERNIGHT.
• Never attempt to charge dead, damaged or wet battery packs.
• Never attempt to charge a battery pack containing different
types of batteries.
• Never allow children under 14 years of age to charge battery
packs.
• Never charge batteries in extremely hot or cold places or place
in direct sunlight.
• Never charge a battery if the cable has been pinched or shorted.
• Never connect the charger if the power cable has been pinched
or shorted.
• Never connect the charger to an automobile 12V battery while
the vehicle is running.
• Never attempt to dismantle the charger or use a damaged
charger.
• Never attach your charger to both an AC and a DC power source
at the same time.
• Never connect the input jack (DC input) to AC power.
• Always use only rechargeable batteries designed for use with
this type of charger in the correct programming mode.
• Always inspect the battery before charging.
• Always keep the battery away from any material that could be
affected by heat.
• Always monitor the charging area and have a fire extinguisher
available at all times.
• Always end the charging process if the battery becomes hot
to the touch or starts to change form (swell) during the charge
process.
• Always connect the charge cable to the charger first, then con-
nect the battery to avoid short circuit between the charge leads.
Reverse the sequence when disconnecting.
• Always connect the positive red leads (+) and negative black
leads (–) correctly.
• Always disconnect the battery after charging, and let the charger
cool between charges.
• Always charge in a well-ventilated area.
WARNING: To reduce the risk of fire or electric shock, carefully follow these instructions.
NOTICE: This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3EN
F
G
H
C
C
C
A
E
J
L
I
MK
D
2S
3S
4S
5S
6S
B
Specifications
Diagram
Output Port Connector IC3®/IC5® selectable
(EC3
™/EC5™ compatible)
Input Voltage
100–240V AC
Charge Current 0.1 - 12.0A
Discharge Current 0.1 - 1.5A
USB Output 5V / 2A
Max. Charge Power 2 x 100W
Max. Discharge Power 10W
Balance Current 1.5A/cell
Balance Cells 2–6S
Supported Battery Types*
(cell count)
LiFe/LiIon/LiPo/LiHv (1–6S)
NiMH/Cd (1–16S)
Pb (1–12S)
Display 2.4" 320 × 240 IPS LCD
Operating Temperature 0–40°C (32–104°F)
* Spektrum G2 Smart chargers are compatible with all Spektrum
Smart batteries.
• Always terminate all processes and contact Horizon Hobby if the
product malfunctions.
• Charge only rechargeable batteries. Charging non-rechargeable
batteries may cause the batteries to burst, resulting in injury to
persons and/or damage to property.
• The socket-outlet shall be installed near the equipment and shall
be easily accessible.
• For indoor use, do not expose to rain or moisture.
• Never impact or alter the batteries.
WARNING: Never leave charger unattended, exceed
maximum charge rate, charge with non-approved
batteries or charge batteries in the wrong mode. Failure to
comply may result in excessive heat, fire and serious injury.
CAUTION: Always ensure the battery you are charging
meets the specifications of this charger and that the
charger settings are correct. Not doing so can result in excessive
heat and other related product malfunctions, which can lead to
user injury or property damage. Please contact Horizon Hobby or
an authorized retailer with compatibility questions.
ADisplay screen
BCharge ports (IC3®, IC5® selectable; EC3®, EC5® compatible)
CBalance ports
DUSB port
EUpgrade port
FAC power input (AC 100–240V)
GPower switch
HCooling fan
IChannel 1 button
JChannel 2 button
KBack button
LScroll buttons
MSelect button
