1
T
TV
VI
IH
HD
D
– TVI to HDMI Converter
Speco Technologies’ TVIHD can convert TVI, CVI or AHD cameras to an HDMI, VGA or Composite Video signal for a
cost-effective solution to view your High-Definition analog camera on a standalone monitor. There is also a loopout
available for simultaneous connection to a recorder.
Features:
• Converts HD-TVI/AHD/HDCVI/NTSC/PAL/960H signals to HDMI, VGA or Composite Video.
• Supports: 720p@25/30/50/60, 1080p@25/30Hz.
• Built-in loopout.
• Built-in LED lights on unit to indicate selction
• OSD displayed on monitor to indicate input/output settings.
• Includes 12V power supply
Applications:
• Shopper camera awareness
• Simultaneous monitoring
• Entry cameras
• Any installation where HD-analog cameras need to be viewed but not necessarily recorded

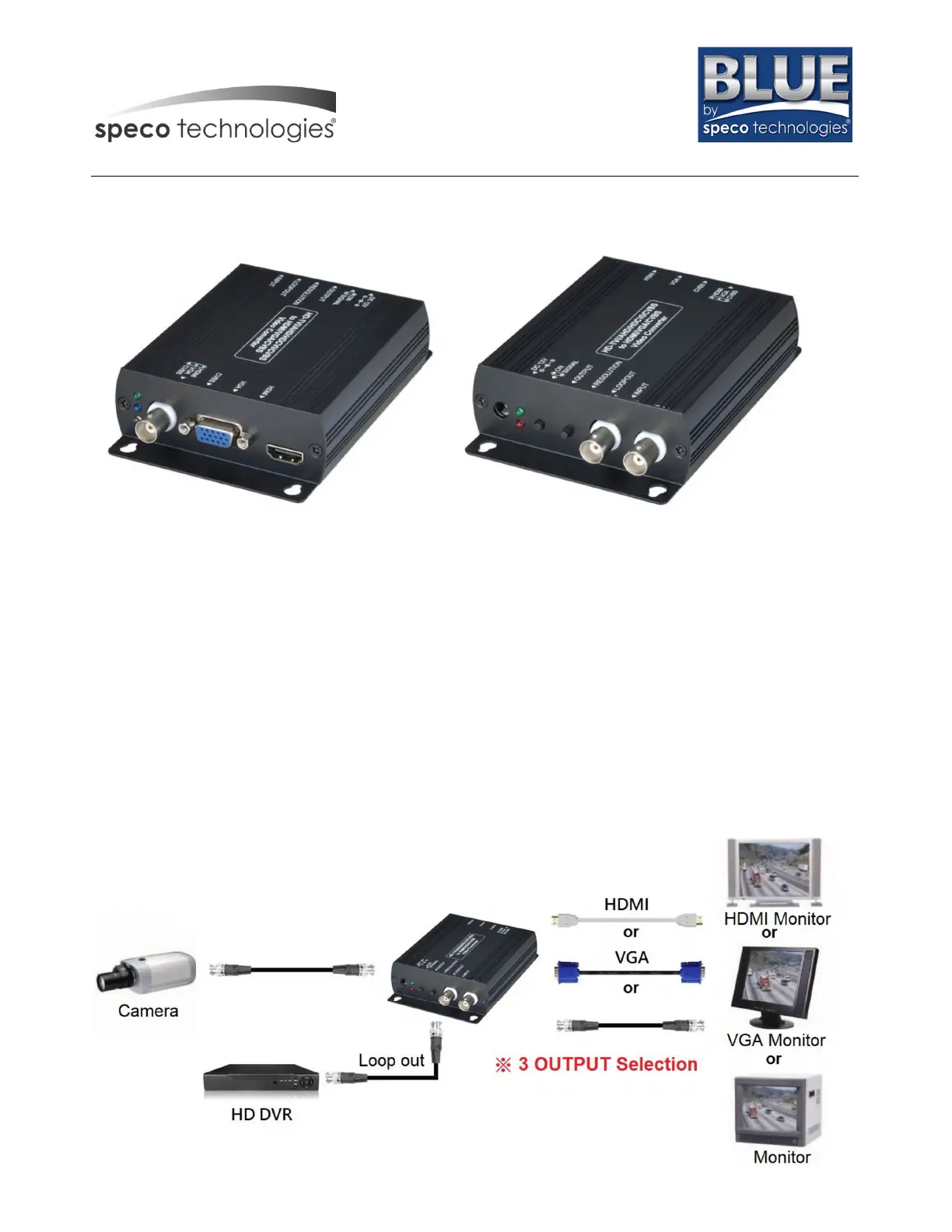

Installation View:
Coax
Coax
2
1. Selectable monitor outputs : HDMI/CVBS/VGA (Only one monitor output can be used at a time)
2. Selectable monitor output resolutions:
a. HDMI 720p/60, 1080p/60
b. CVBS NTSC, PAL
c. VGA 800x600/60, 1024x768/60, 1280x720/60, 1280x1024/60, 1360x768/60, 1440x900/60,
1600x1200/60, 1680x1050/60, 1920x1080/60
3. When no input signal is detected, your monitor will display a colored stripe and OSD will indicate: “No Signal”.
4. When an Input signal is detected OSD will display input signal format, resolution, and frequency.
Specifications:
Video Input HD-TVI/AHD/HD-CVI 720p@25/30/50/60Hz, 1080p@25/30Hz, NTSC/PAL/960H
Video Output HDMI: 720p/60, 1080p/60
VGA: 800x600/60, 1024x768/60, 1280x720/60, 1280x1024/60, 1360x768/60,
1440x900/60, 1600x1200/60, 1680x1050/60, 1920x1080/60
Input Connector BNC (75 1Vpp) x 1 Ω
Loop Connector BNC (75 1Vpp) x 1 Ω
Output Interface HDMI Type-A x 1, D-SUB 15 x 1, BNC (75 1Vpp) x 1 Ω
Switch Tact Switch x 2
Power Supply 12V 500mA
Power Consumption 250mA (Max)
Temperature Operating: 32° to 131°F (0° to 55°C), Storage: -4° to 185°F (-20° to 85° C)
Humidity Up to 95%
Dimensions L x W x H 3.5” x 5.1” x 1.2”
Weight 0.6 Lbs.
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies 200 New Highway Amityville NY 11701 â—Ź â—Ź â—Ź â—Ź â—Ź www.specotech.com
Rev. 04/01/20
