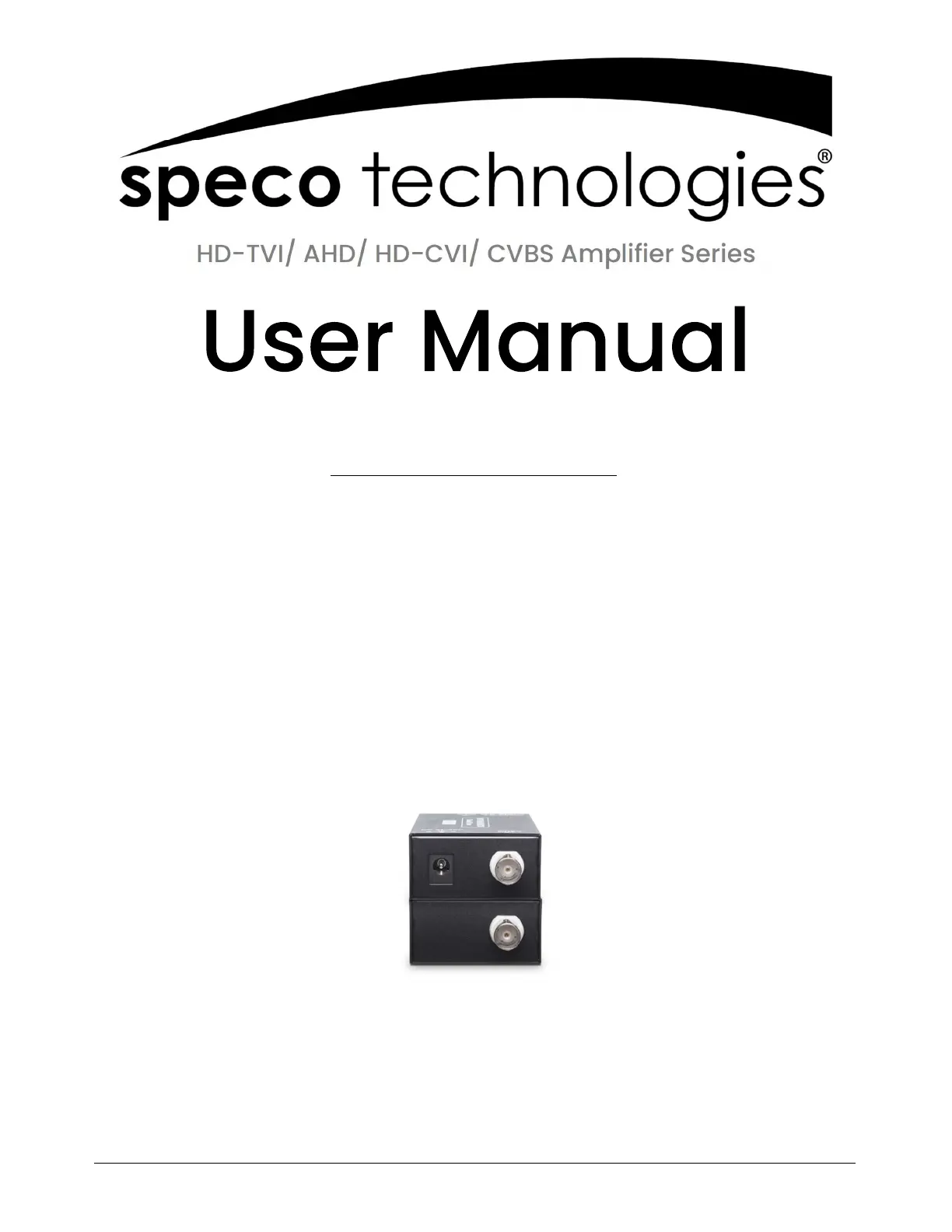

Model : TVICOAXVP
Active HD-TVI Video with Power Balun over Coax
1
User Manual
TVI
COAX
VP
Introduction
TVICAT5VP is a video amplifier designed to use an RG59 coaxial cable to send a video signal and power
source with a transmission distance up to 1000M. It also allows you to use one power adapter for
multiple amplifiers —— a jumper is needed to extend power.
Features
Supports HD-TVI, AHD, HD-CVI video formats.
HD-TVI Signal extension up to 984’ (300M)
Supports DC 24V to 40V power input
Frequency and brightness adjustable.
Installation View
To avoid any damage, before powering on please make sure your coax cable is connected with the
included transmitter and receiver.
T mrans ission Distance C art based on Power Input Volta e Current h g /
The output current will be slightly different based on different cable. It’s important to ensure you have
enough mA to power your camera at the end of the run.
Cable Type TVICOAXVP Receiver
Power Input
Distance TVICOAXVP Transmitter
DC12V Output for Camera
RG59 DC24V 1.25Amp
164’ (
50
M
)
DC12V
370
mA
328’ (1
00
M
)
35
0mA
492’ (
150
M
)
3
2
0mA
656’ (
200
M
)
30
0mA
984’ (
300
M
)
190
mA
1312’ (
400M
)
140
mA
Cable Type TVICAT5VP Receiver
Power Input
Distance TVICAT5VP Transmitter
DC12V Output for Camera
RG59
DC
40
V
1
Amp
164’ (
50
M
)
DC12V
650
mA
HD-TVI 300 M (MAX.)
AHD/HDCV
/CVBS 400 M
(
MAX.
)
2
User Manual
TVI
COAX
VP
328’ (1
00
M
)
650
mA
492’ (
150
M
)
63
0mA
656’ (
200
M
)
60
0mA
984’ (
300
M
)
57
0mA
1312’ (
400M
)
4
7
0mA
Panel View
TVICOAXVPT
TVICOAXVPR
Cable
We strongly recommend using high quality RG59 or RG6U cable. Poor quality cable or improper
construction will cause unstable connections, video or sound disruptions, and picture noise can appear.
Note
1. Input/output power cord DC jack is 2.0mm.
2. Before sending power, please make sure the voltage polarity and input/output terminal are
installed correctly.
Packa e Includes g
TVICAT5VPT x 1pcs
TVICAT5VPR x 1pcs
DC24V 1.25Amp power adapter x 1 or DC40V 1Amp
DC plug to bare wire power cord x 1
Mounting screw pack x 1
