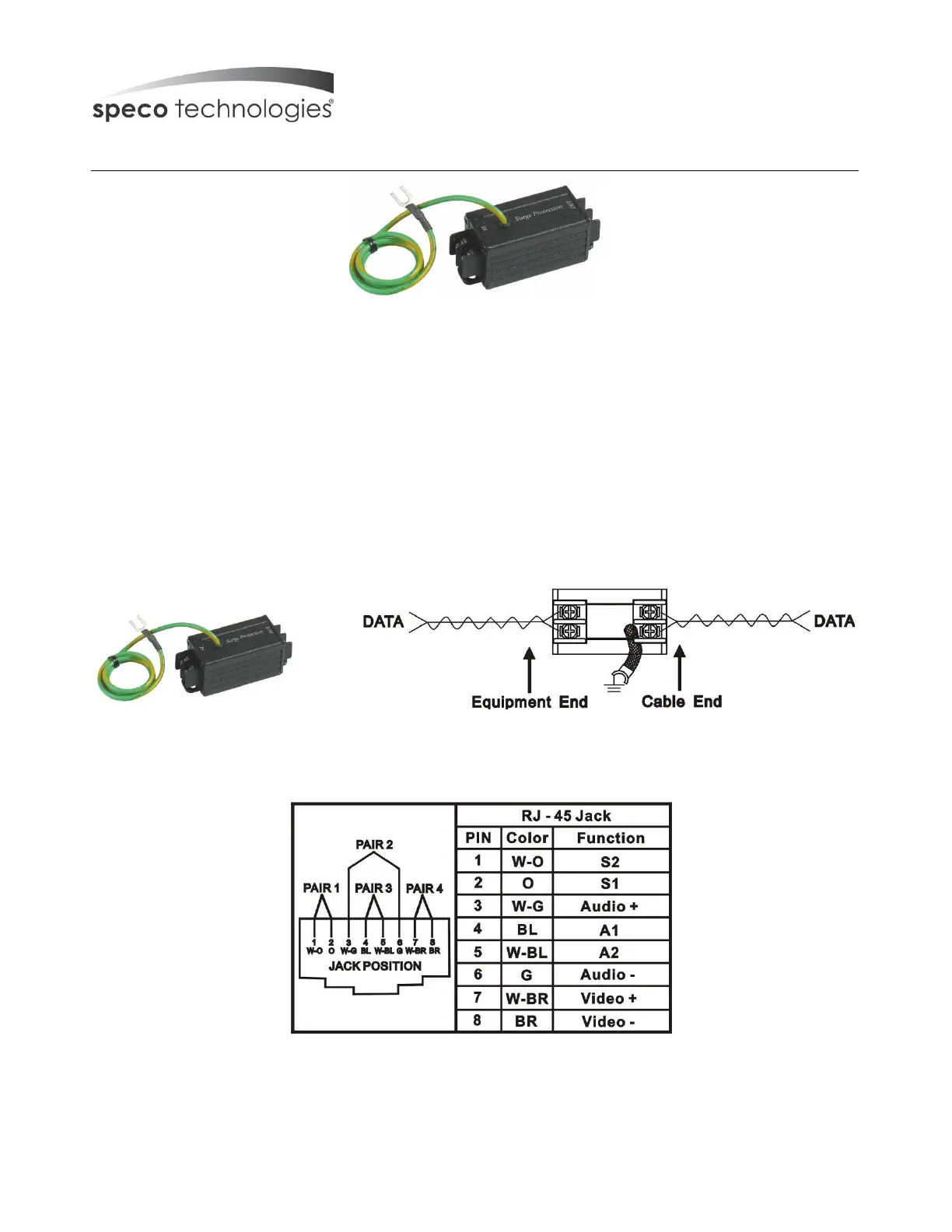

SPUTPVD Unshielded Twisted Pair (UTP) Surge Protector for Video/Data
Thank you for your choice of Speco Technologies’ surge protector. This unit is designed to provide a sturdy option for SPUTPVD
protection from high voltage surges, such as those that may be caused by lightning strikes. Because of the physical length of
ground wires, unprotected UL grounding systems may appear as an open circuit to lightning-caused high frequency surges and
would normally provide little or no protection from these surges getting into a home or business and destroying CATV
converters, TV sets, DVRs, Cameras, etc. This unit can complement UL grounding requirements for coaxial cable and offers
protection from hazardous voltages that may occur on the shielding.
Features:
Performs a complementary function to grounding requirements.
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: 130V, AC/DC 12V
Wide range of applications: CCTV systems, antennas, satellite receivers, FM receivers, video cameras, monitors,
multiplexers & quad processors, recorders, etc.
Installation View:
2
APPLICATIONS
Cable TV systems
Antennas
Video Cassette Recorders
FM receivers
Video Cameras and monitors
Multiplexers and Quad Processors
SPECIFICATIONS
ITEM NO.
S
P004
Surge Protection Attack Time
1 ns
Maximum Surge
Voltage
Surge Life
300 surges of 100Amps
Normal Resistance Across Coax
10,000 M
Ω
Surge Resistance
Approx. 0Ω
Band Pass
0~1 GHZ
Power Passing Capability
130V AC / DC
, 65 Vrms at10 Amps
Insertion Loss
Less than 0.2 dB
Return Loss (75 ohms)
16dB
Power Input
AC 40V(MAX)
,
DC56V(MAX)
Connectors
Terminal
Dimensions
(
W x H x D
)
2.6 x 1 x 1
(
65x25x25
mm)
Weight
0.14 lbs
(
65
g)
Speco Technologies is constantly developing and improving products.
We reserve the right to modify product design and specifications without notice and without incurring any obligation.
Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com
Rev. 04/21/20
Note:
To ensure the unit can protect
equipment, the cable must be
connected to ground.
