In Ceiling Mounting-
Quick Start Guide
Thank you for purchasing our product. This m anual is applicable to the in-ceiling bracket. All pictures in this
manual are for reference only.

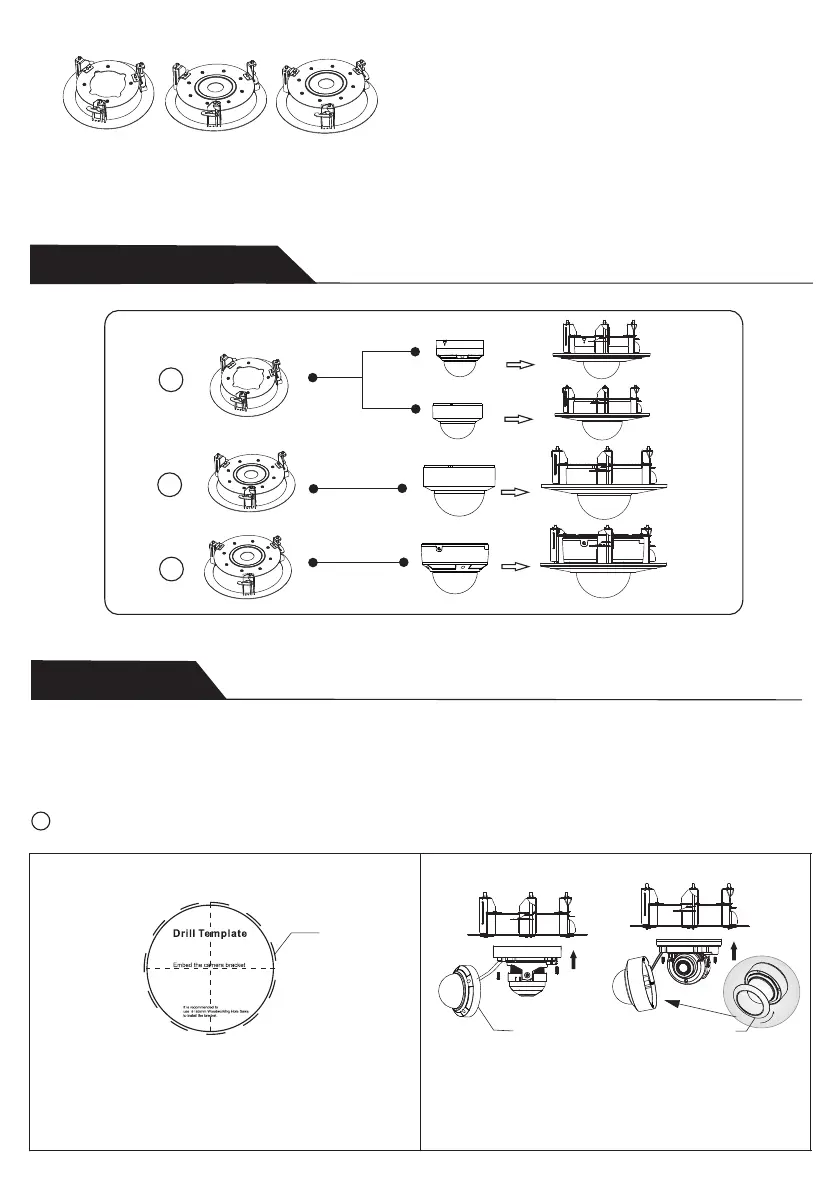

Mounting Examples
Fixed dome camera
Varifocal dome camera
1
1
2
3
Before installation, please make sure that (1) the height of the space above the ceiling must be more than 250mm; (2) the
thickness of the ceiling must range from 5mm to 40mm; (3) the ceiling must be strong enough to withstand more than four
times the weight of the dome camera and the accessories. The follo wing pictures are for reference only.
Installation
12
In Ceiling Mounting for Fixed Dome Camera-
Ø180mm
Attach the drill template to the ceiling where you want to
install the dome camera. Then cut a hole according to the drill
template. Note that +2mm of the circle diameter is allowed.
Type A
Type B
Type A Type B
Remove the lower dome of the camera. Then place the in-ceiling
bracket on the dome camera and tighten the screws provided to fix
the bracket and the dome camera. (For type B, you shall rotate the
trim ring anticlockwise to remove it. Then you can remove the lower
dome by loosening the screws.)
Lower dome Trim ring
Page 1
2In Ceiling Mounting for Varifocal Dome Camera-
12
Attach the drill template to the ceiling where you want to
install the dome camera. Then cut a hole according to the
drill template. Note that +2mm of the circle diameter is
allowed.
Rotate the trim ring anticlockwise to remove it. Then remove the
lower dome of the camera by loosening the screws. After that, place
the in-ceiling bracket on the dome camera and make sure the screw
holes of the dome camera is aligned with the screw holes of the
bracket marked with “A”. Then fix the camera to the bracket with
screws.
Ø212mm
A
Trim ring
Lower do me
Tighten the lock screws with the screwdriver and the locks
will automatically rotate outwards to secure the dome camera
to the ceiling. Then adjust the view angle of the camera.
Install the magnetic ring of the bracket.
CeilingMounting hole
Ceiling Ceiling
4
Locks
Screws
3
56
Type A Type B
Install the lower dome back to the camera. (For type B, after
installing back the lower dome, please put the trim ring onto
the lower dome and rotate it clockwise until it is locked.)
Route the cables through the ceiling and connect the cables.
Then push the dome camera with the bracket into the
mounting hole in the ceiling.
Magnetic ring
Trim ring
Page 2
3In Ceiling Mounting for Varifocal Dome Camera-
12
Attach the drill template to the ceiling where you want to
install the dome camera. Then cut a hole according to the
drill template. Note that +2mm of the circle diameter is
allowed.
Loosen the screws to open the lower dome and then loosen the fixed
screw to remove the mounting base. After that, make sure the screw
holes of the mounting base are aligned with the screw holes of the
bracket marked with “B” and then fix them with screws.
Ø212mm
Tighten the lock screws with the screwdriver and the locks
will automatically rotate outwards to secure the dome camera
to the ceiling. Then adjust the view angle of the camera.
Ceiling Ceiling
Ceiling
Locks
Screws
Route the cables through the ceiling and connect the cables.
Then push the dome camera with the bracket into the mounting
hole in the ceiling.
Install the magnetic ring of the bracket.
4
3
56
Magnetic ring
Trim ring
B
Fixed screw
Lower do me
Screws
Mounting base
Mounting hole
Install the lower dome back to the camera. Then put the trim
ring onto the lower dome and rotate it clockwise until it is
locked.
Page 3
