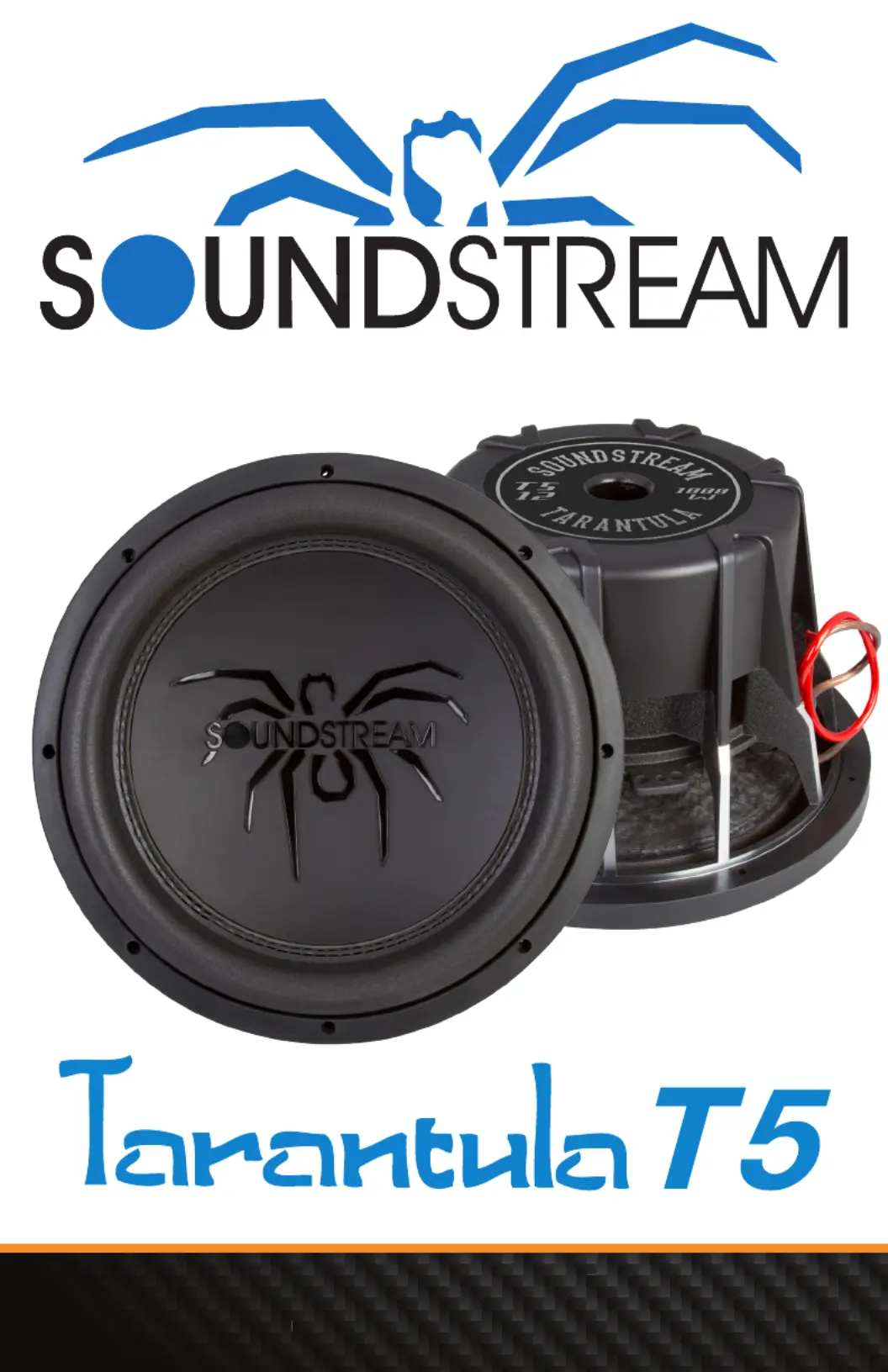

OWNERS MANUAL
In recent years, Tarantula subwoofers have evolved to meet various
peformance and placement goals, keeping your, the Soundstream fanatic,
suggestions in mind. However, more often than not, we hear your calls to
bring back a legend. For 2015, we’re proud to re-introduce the old favorite,
Tarantula T5.
For this next generation, we made a few changes and several improvements.
Improvements include direct connect wire leads, over satturated 12mm top
plate and t-yoke, & double-stitched cone to high density polyether foam
surround for improved sound quality. Key components that you expect from
T5 still remain; 3” voice coil, tripple-stack magnet structure, high density
Spruce pulp sub-cone, and the iconic black-on-black Soundstream spider.
FEATURES, PARAMETERS, & SPECIFICATIONS
Specification T5.102 T5.104 T5.122 T5.124 T5.152 T5.154
Fs (Hz) 39.8 40.5 34.6 35.8 34.9 32.6
Qms 7.889 6.000 7.061 6.562 7.244 6.46
Vas (ft3) 0.39 0.37 0.73 0.75 1.57 2.31
Cms (mm/N) .055 .050 .0516 .0600 .0465 .0700
Mms (g) 250.200 247.700 401.323 334.400 445.883 408.500
Xmax (mm) 14 16.5 16.5
Xmech (mm) 38 37.5 53.5
Qes 0.601 0.666 0.685 0.748 1.108 0.763
Re (Ω) 3.6 7.2 3.6 7.2 3.6 7.2
Z (Ω) 4 8 4 8 4 8
BL (Tm) 18.609 20.041 20.682 26.700 18.609 25.430
MAX Power 1,800w 2,000w 2,600w
RMS Power 900w 1,000w 1,300w
Qts .559 .599 .624 .672 .892 .682
NO (%) .145 .120 .125 .150 .180 .280
Efficiency (1w/1m) 83.6dB 83.5dB 83.0dB 84.6dB 84.6dB 86.6dB
Impedance DVC 2 Ω DVC 4 Ω DVC 2 Ω DVC 4 Ω DVC 2 Ω DVC 4 Ω
Overcompensating Motor Sturcture for Increased Magnetic Strength
12mm T-Yoke & Top Plate Improve Low Frequency Dynamics
Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
Non-Magnetic Non-Resonate Die-Cast Aluminum Frame
3” 4-Layer Voice Coil w/ Direct Connect Wire Increases Power Handling
High-Temperature Tollerance Adhesives Resist Thermal Failure
Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
Sitched and Glued Surround/Cone Joints for Strongest Bond
Extended Excursion Polyether Foam Surround w/ UV & Chemical Protection
Dual Poly-Cotton Suspension Dampen Violent Accelerations
1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included
OWNERS MANUAL
Vehicle conditions, amplifier, music preferences, & other variables make it
difficult to give you exact dimensions for an enclosure deisgn. For enclosure
designs tailored to your specific needs, please contact us at tech-support@
soundstream.com, or 1-800-724-1377.
All enclosures should be made of .75” (3/4”) material only. When possible, make
the baffle 1.5” (1 ½) thick and add .75” (3/4”) to the depth of the enclosure to
compensate. All volumes INCLUDE vent/port and subwoofer displacements.
DO NOT change the volume unless you plan on adding a substantial amount
of bracing. For added performance, applying a coat of fiberglass resin to
the interior walls will greatly improve sealing the enclosure. Adding a thin
layer of poly-fill will improve response by smoothing out reflections within
the enclosure.
Below are recommended enclsoure designs and their expected performance:
T5.10 Recommended Sealed Enclosures T5.10 Recommended Ported Enclosures
Volume (ft3) QTC Tuning (Hz) Volume (ft3) Round Port Tuning (Hz)
Min. 0.50 .878 49.7 1.00 3” x 14”L 34.0
Opt. 0.75 .756 47.5 1.25 3” x 11.5”L 31.1
Max. 1.00 .694 47.2 1.50 3” x 10”L 29.2
T5.10
T5.12 Recommended Sealed Enclosures T5.12 Recommended Ported Enclosures
Volume (ft3) QTC Tuning (Hz) Volume (ft3
) Round Port Tuning (Hz)
Min. 0.75 .884 52.5 1.75 4” x 15.25”L 33.3
Opt. 1.00 .785 50.3 2.00 4” x 14.5”L 31.1
Max. 1.25 .725 49.5 2.25 4” x 14”L 29.3
T5.12
T5.15 Recommended Sealed Enclosures T5.15 Recommended Ported Enclosures
Volume (ft3) QTC Tuning (Hz) Volume (ft3) Round Port Tuning (Hz)
Min. 1.50 .914 44.3 3.00 (2) 3” x 9.75”L 31.3
Opt. 2.00 .812 42.3 4.00 28.5(2) 4” x 15.75”L
Max. 2.50 .749 41.6 5.00 (2) 4” x 13”L 26.8
T5.15
