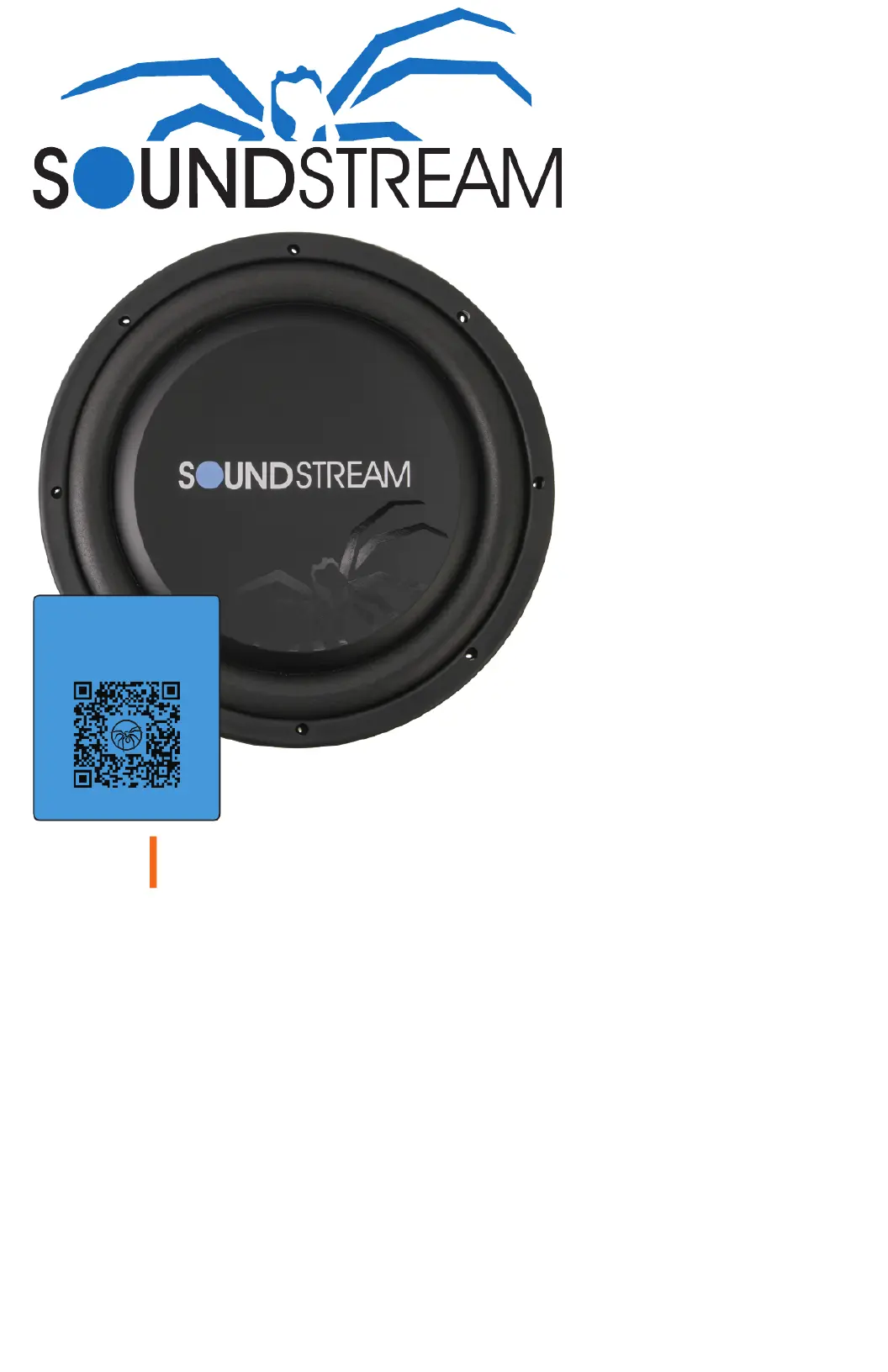

PSW PICASSO SERIES
Shallow Mount Car Stereo Subwoofer
REGISTER YOUR WARRANTY
FOR THIS SOUNDSTREAM
PRODUCT ONLINE AND
RECEIVE SPECIAL OFFERS &
NEW PRODUCT UPDATES!!!
soundstream.com/product
A new addition for 2017, Picasso shallow subwoofers combine performance
and value. These shallow subwoofers perform best in small sealed
enclosures, with minimal power requirements, thanks to efïŹciencies in
cone and suspension design.
FEATURES, PARAMETERS, & SPECIFICATIONS
Pressed Spruce Pulp Cone w/
Polypropylene Coating Protection
High Density Polyether Foam Surround
w/ UV & Chemical Protection
2.00â 4-Layer 4-ohm Voice Coil w/ Large
Gauge Wire Increases Power Handling
Nickel Plated 8ga Spring-Loaded
Compression Wire Terminals
Poly-Cotton Composite Suspension
Dampen Violent Accelerations
Formed Steel Subwoofer Frame with
Black Powder Coat Finish
1-pc Gasket Trim Ring w/ Concealed
Mounting Holes Included
Stitched Voice Coil Leads Prevent
Potential Damage
High-Temperature Tolerance Adhesives
Resist Thermal Failure
6mm T-Yoke & Top Plate Improve Low
Frequency Dynamics
SpeciïŹcation PSW.104 PSW.124
Fs (Hz) 49.54 32.60
Qms 8.312 6.728
Vas (ft3) 0.59 1.58
Cms (mm/N) .104 .119
Mms (g) 99.09 200.67
Xmax (mm) 10
Xmech (mm) 15
Qes 1.201 .954
Re (Ω) 3.20 3.20
Z (Ω) 4 4
BL (Tm) 9.07 11.74
MAX Power 500w 600w
RMS Power 250w 300w
Qts 1.049 .836
EfïŹciency (1w/1m) 84.2dB 84.0
Impedance 4Ω 4Ω
PSW.104
PSW.124
1.50â
2.00â
3.50â
6.25â
12.25â
11.00â
1.25â
2.00â
3.25â
6.00â
10.25â
9.00â
3.75â
4.125â
ENCLOSURE DESIGN & WOO
LIMITED 90-DAY CONSUMER WARRANTY
LIMITED TWO-YEAR CONSUMER WARRANTY WITH PURCHASE AND INSTALLATION BY A SOUNDSTREAM
AUTHORIZED RETAILER
Soundstream promises to the original purchaser, to repair or replace this product with a new or refurbished
unit (at Soundstreamâs sole and absolute discretion) should it prove to be defective in workmanship or material
under normal use, for a period of two-years from the date of purchase from the Soundstream authorized
retailer, PROVIDED the product was purchased and installed by a Soundstream authorized retailer. During this
two-year period, there will be no charge for product repair or replacement, PROVIDED the unit is returned to
Soundstream, return shipping pre-paid, along with the required proof of installation, the bill of sale or other
dated proof of purchase, and the consumerâs contact information.
If the unit is installed by anyone other than a Soundstream authorized retailer, the warranty period will be
90-days from the date of purchase. This warranty is nontransferable and does not apply to any unit that has
been modiîed or used in a manner contrary to its intended purpose, and does not cover damage to the unit
caused by installation or removal of the unit. During this 90-day period, there will be no charge for the repair
or replacement PROVIDED the unit is returned to Soundstream, return shipping prepaid, along with the bill of
sale or other dated proof of purchase and the consumerâs contact information.
This warranty is void if the product has been damaged by accident or unreasonable use, neglect, improper
service or other causes not arising out of defects in materials or construction. This warranty does not cover the
elimination of externally generated static or noise, or the correction of antenna problems or weak reception,
damage to speakers, accessories, electrical systems, cosmetic damage or damage due to negligence, misuse,
failure to follow operating instructions, accidental spills or customer applied cleaners, damage due to
environmental causes such as îoods, airborne fallout, chemicals, salt, hail, lightning or extreme temperatures,
damage due to accidents, road hazards, îre, theft, loss or vandalism, damage due to improper connection
to equipment of another manufacturer, modiîcation of existing equipment, or Product which has been
opened or tampered for any reason. Units which are found to be damaged by abuse resulting in thermally
damaged voice coils are not covered by this warranty but may be replaced at the absolute and sole discretion
of Soundstream. Unit must be returned to Soundstream, postage pre-paid, with bill of sale or other dated
proof of purchase bearing the following information: consumer's name, telephone number, and address,
authorized retailerâs name and address, and product description. Please contact Soundstream warranty oîce
at 800-724-1377, email to repairs@soundstream.com, or visit Soundstream.com/warranty to obtain a Return
Authorization Number prior to shipping the product.
Note: This warranty does not cover labor costs for the removal and reinstallation of the unit. IN ORDER FOR THE
TWO-YEAR WARRANTY TO BE VALID, YOUR UNIT MUST BE SHIPPED WITH PROOF OF PURCHASE & INSTALLATION
BY A SOUNDSTREAM AUTHORIZED RETAILER. ALL UNITS RECEIVED BY SOUNDSTREAM FOR WARRANTY REPAIR
WITHOUT PROOF OF SOUNDSTREAM AUTHORIZED DEALER INSTALLATION AND PURCHASE WILL BE COVERED
BY THE LIMITED 90-DAY WARRANTY.
BY PURCHASING THIS PRODUCT, ALL WARRANTIES INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY,
IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE, AND WARRANTY
OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY ARE EXPRESSLY EXCLUDED TO THE MAXIMUM EXTENT
ALLOWED BY LAW, AND SOUNDSTREAM NEITHER ASSUMES NOR AUTHORIZES ANY PERSON TO ASSUME FOR
IT ANY LIABILITY IN CONNECTION WITH THE SALE OF THE PRODUCT. SOUNDSTREAM HAS ABSOLUTELY NO
LIABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS.
BY PURCHASING THIS PRODUCT, THE CONSUMER AGREES AND CONSENTS THAT ALL DISPUTES BETWEEN
THE CONSUMER AND SOUNDSTREAM SHALL BE RESOLVED IN ACCORDANCE WITH CALIFORNIA LAWS IN LOS
ANGELES COUNTY, CALIFORNIA. Some states do not allow limitation on how long an implied warranty lasts. In
such states, the limitation or exclusions of this Limited Warranty may not apply. Some states do not allow the
exclusion or limitation of incidental or consequential damages. In such states, the exclusion or limitation of this
Limited Warranty may not apply to you. This Limited Warranty gives you speciîc legal rights, and you may have
other rights which vary from state to state.
