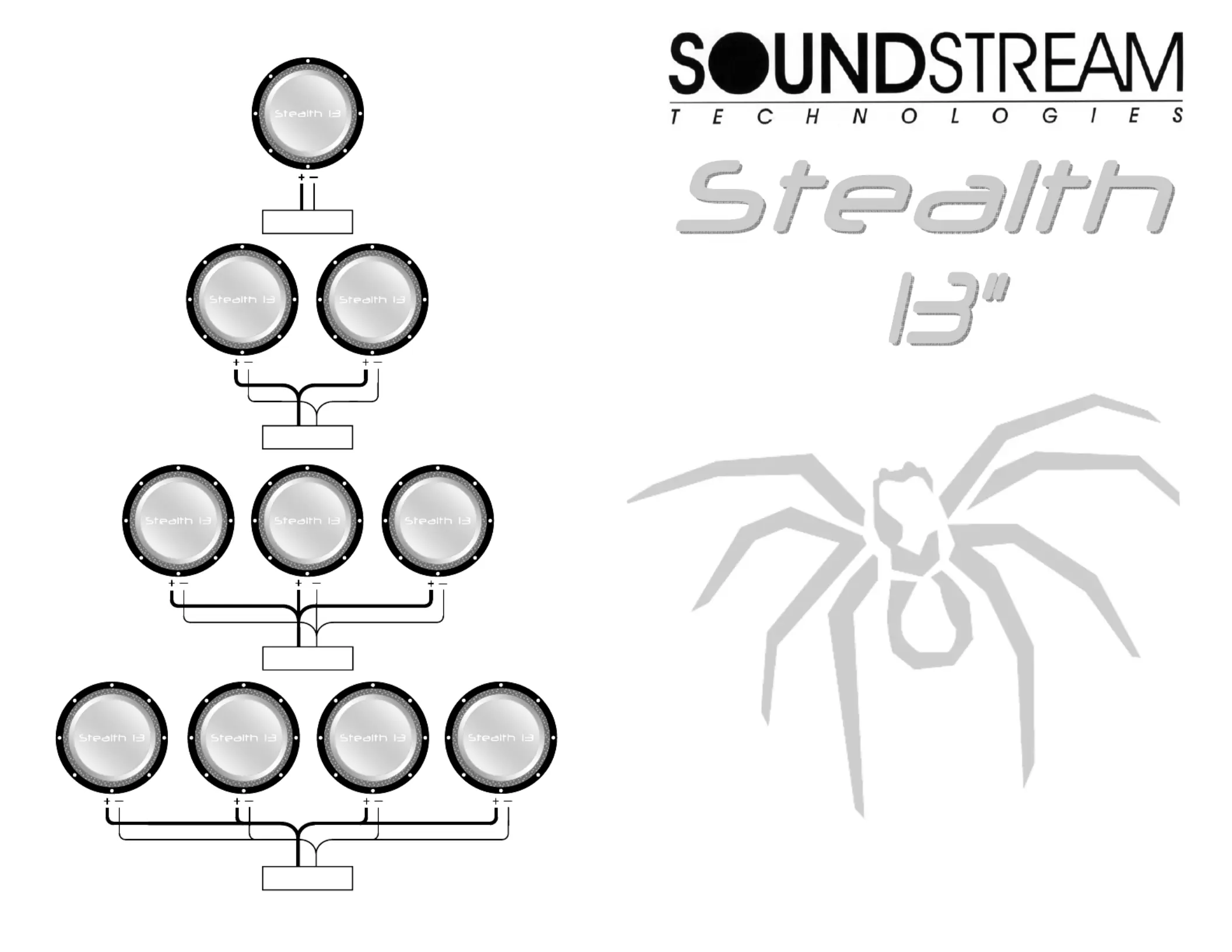

2 ohm
4 ohm
1.33 ohm
1 ohm
Parameters & Enclosure
Parameters & Enclosure
Parameters & Enclosure
Parameters & Enclosure Parameters & Enclosure
Recommendations
Recommendations
Recommendations
RecommendationsRecommendations
WWW.SOUNDSTREAM.COM
Congratulations on your new So
Congratulations on your new So
Congratulations on your new So
Congratulations on your new SoCongratulations on your new SoundStrea
undStrea
undStrea
undStreaundStream subwoofer purchase! We greatly appr
m subwoofer purchase! We greatly appr
m subwoofer purchase! We greatly appr
m subwoofer purchase! We greatly apprm subwoofer purchase! We greatly appreciate your
eciate your
eciate your
eciate your eciate your
business. This may look like a run-of-the-mill ca
business. This may look like a run-of-the-mill ca
business. This may look like a run-of-the-mill ca
business. This may look like a run-of-the-mill cabusiness. This may look like a run-of-the-mill cardboard box, but it’s actually
rdboard box, but it’s actually
rdboard box, but it’s actually
rdboard box, but it’s actuallyrdboard box, but it’s actually a protective
a protective
a protective
a protective a protective
barrier over one of the finest engineer
barrier over one of the finest engineer
barrier over one of the finest engineer
barrier over one of the finest engineerbarrier over one of the finest engineered and assembled subwoofers availa
ed and assembled subwoofers availa
ed and assembled subwoofers availa
ed and assembled subwoofers availaed and assembled subwoofers available!
ble!
ble!
ble! ble!
Harmonic Indulgence… Listen and Feel
Features, Parameters & Dimensions
Parameter Stealth-13
Fs (Hz) 30.2
Qms 1.92
Vas (FtÂł) 1.49
Cms (mm/N) .0977
Mms (g) 282
Rms (kg/s) 28.9
Xmax (mm) 6
Sd (in²) 85.49
Qes 1.52
Re (Ω) 3.6
Z ( ) Ω 4.00
BL (Tm) 11.27
Rms Power (watts) 200
Qts .85
1w/1m SPL (dB) 80.8
Voice Coil 5” SVC 4Ω
Overall Diameter (in) 13.25
Overall Height (in) 2.5
Mounting Depth (in) 2
Cutout Diameter (in) 11.375
Motor Diameter (in) 9.375
Motor Height (in) 1.25
Flange Width (in) .875
Flange Height (in) .625
Xmech (mm) 9
Piston Diameter (in) 10.43
2.8V SPL (dB) 84.3
M-Vd (ft. 3) .061
Weight (lbs) 9.5
Custom Cast Aluminum Basket
Inverted Motor Assembly
Solid Aluminum Cone
2” Mounting Depth
5” Voice Coil
12 ga. Direct Wire Terminal
Aluminum Voice Coil Former
Semi-Circular Basket Venting
The concept behind the STEALTH 13 was not only to have the shallowest subwoofer on the
market, but to also have a driver uniquely engineered to perform superior to all other drivers,
in less space than all other drivers. A typical 10” subwoofer yields a -3dB down-point (F3) of
55Hz-ish in ½ cubic foot/14 liters. A typical 12” may have an F3 at 48Hz -50Hz in ¾
cubic foot/21 liters. The STEALTH 13 will yield an F3 of 44Hz in ½ cubic foot/14 liters!
While the driver is not intended for SPL use and excessive bass amplitudes, it is in a category
all by itself. It is shallower than any driver on the market. It plays lower than any similar size
driver, in the same enclosure, on the market. This is a great engineering achievement and
can definitely be appreciated by people with convertibles or other topless vehicles that cannot
get any low bass without transfer function. And it sound phenomenal – taut, smooth and
tonally accurate. For even more bottom end extension, the STEALTH 13 can be installed
into an enclosure up to 1 cubic foot.
Engineering Concepts
Typical subwoofer enclosures are made of ¾ ”/19mm MDF. Building an enclosure for this
driver may be quite tricky. For instance, if it’s going behind the seat of truck, the enclosure
may have to fabricated out of fiberglass. If this is the case, please use proper bracing on the
largest sides to eliminate flexing and sacrificing the sound. If the driver is going to be put
into an MDF enclosure, the size will be so small that ¾ ” MDF may not be required. It is
okay to use ½ ”/13mm or 5/8”/16mm MDF. For optimum results, coat the insides walls
with Fiberglass resin to seal the wood. Also, use bracing wherever necessary to eliminate
flexing. Simple pieces of 2x2 can make all the difference in the world. There are a lot of
myths and thoughts regarding the use of Poly-fill within the enclosure. Simply put, using
Poly-fill in the enclosure will improve the quality of sound reproduction and we strongly
suggest you do so.
Enclosure Construction
Enclosure Recommendations
The STEALTH is NOT
The STEALTH is NOT
The STEALTH is NOT
The STEALTH is NOTThe STEALTH is NOT recommended
recommended
recommended
recommended recommended
for use in a ported enclosure!!!
for use in a ported enclosure!!!
for use in a ported enclosure!!!
for use in a ported enclosure!!! for use in a ported enclosure!!!
Stealth-13
Vol. (ft.3) Qtc Freq. (Hz)
Min 0.5 1.6 44.3
Opt 0.75 1.4 38.5
Max 1 1.3 35.5
