Seite 1/6

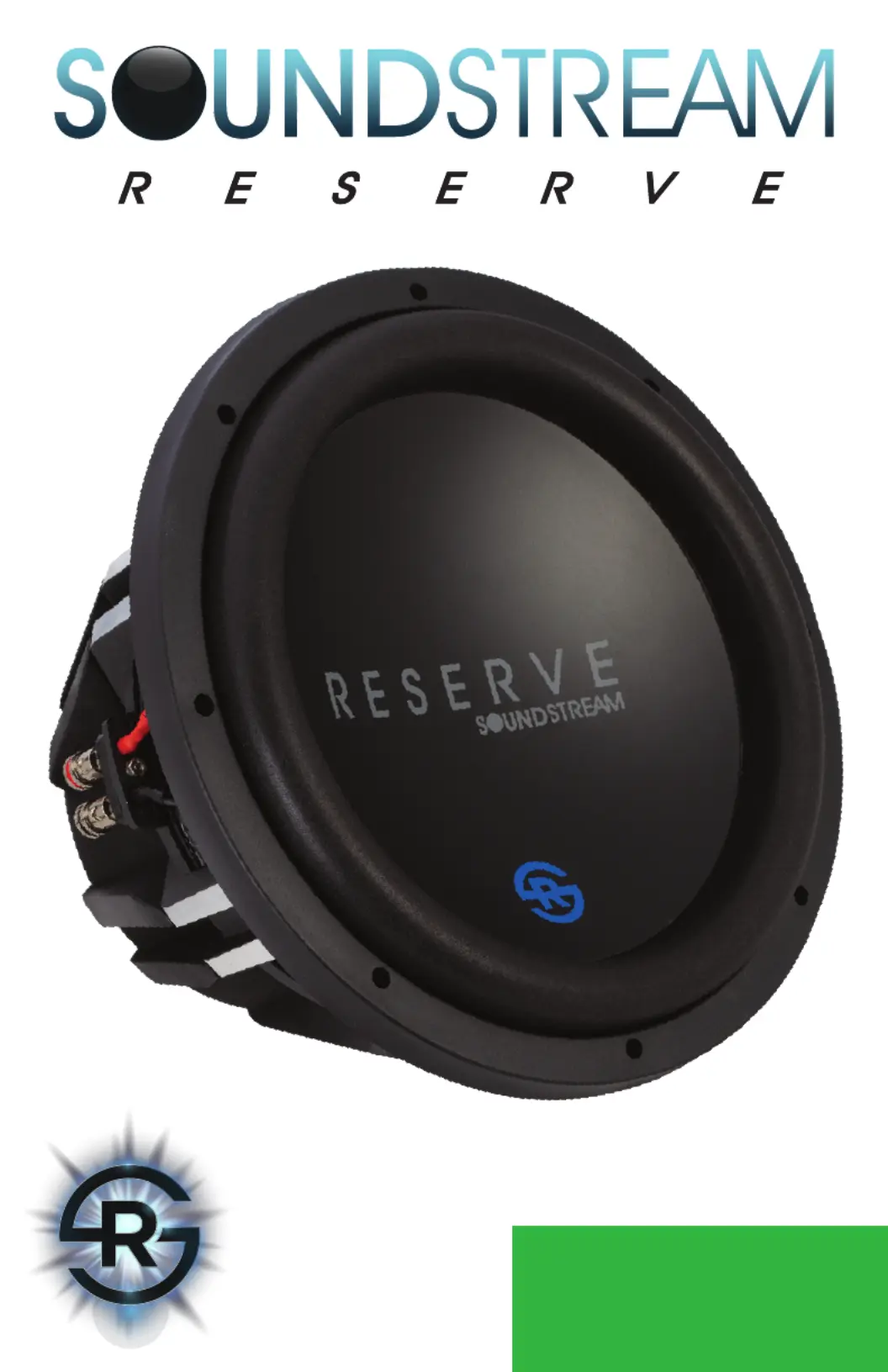

R E S E R V E
C A R A U D I O
SUBWOOFER
RSW.122 / RSW.152
Thank you for choosing Soundstream subwoofers, designed & engineered in the
U.S.A. This product combines innovative technology with the finest materials to
consistently deliver absolutely state of the art performance, sound quality, reliability,
and value. This Reserve subwoofer reflects our commitment to offer you unparalleled
performance and quality for years of dependable service and listening enjoyment.
In recent years, our subwoofers have evolved to meet various performance and
placement goals, keeping your, the Soundstream fanatic, suggestions in mind.
New for 2020, we introduce Reserve subwoofers, available exclusively to our
Soundstream Reserve dealers. Premium materials & performance characteristics
include over saturated 12mm top plate and t-yoke, high density poly-ether foam
surround, & a massive 900w 3” voice coil. High density Spruce pulp cone and double
polycotton blend suspension hold everything together. These behemoths are not for
the faint-hearted....
FEATURES, PARAMETERS, & SPECIFICATIONS
Specification RSW.122 RSW.152
Fs (Hz) 30.3 26.0
Qms 7.262 6.446
Vas (ft3) 1.21 3.08
Cms (mm/N) .05710 .08939
Mms (g) 322.5 419.8
Xmax (mm) 16.5 16.5
Xmech (mm) 37.5 53.5
Qes .897 1.046
Re (Ω) 3.6 3.6
Z (Ω) 4 4
BL (Tm) 8.268 10.860
MAX Power 2,000w 2,600w
RMS Power 1,000w 1,300w
Qts .799 .900
NO (%) .103 .142
Efficiency (1w/1m) 82.1dB 83.5dB
Impedance DVC 2 Ω DVC 2 Ω
Overcompensating Motor Structure for Increased Magnetic Strength
12mm T-Yoke & Top Plate Improve Low Frequency Harmonics
Vented T-Yoke & Frame Reduces Voice Coil Heat Build-up
Non-Magnetic Non-Resonate Die-Cast Aluminum Frame
3” 4-Layer Voice Coil w/ Spring Loaded Wire Terminals
High-Temperature Tolerance Adhesives Resist Thermal Failure
Non-Transfer Spruce Pulp Cone w/ UV & Chemical Protection
Stitched and Glued Surround/Cone Joints for Strongest Bonding
Extended Excursion Poly-ether Foam Surround w/ UV Protection
Dual Poly-Cotton Suspension Dampen Violent Accelerations
1-pc Gasket/Trim Ring w/ Concealed Mounting Holes Included
R E S E R V E
C A R A U D I O
S U B W O O F E R
RSW.122 / RSW.152
Vehicle conditions, amplifier, music preferences, & other variables make it
difficult to give you exact dimensions for an enclosure deisgn. For enclosure
designs tailored to your specific needs, please contact us at tech-support@
soundstream.com, or 1-800-724-1377.
All enclosures should be made of .75” (3/4”) material only. When possible, make
the baffle 1.5” (1 ½) thick and add .75” (3/4”) to the depth of the enclosure to
compensate. All volumes INCLUDE vent/port and subwoofer displacements.
DO NOT change the volume unless you plan on adding a substantial amount
of bracing. For added performance, applying a coat of fiberglass resin to
the interior walls will greatly improve sealing the enclosure. Adding a thin
layer of poly-fill will improve response by smoothing out reflections within
the enclosure.
Below are recommended enclsoure designs and their expected performance:
RSW.12 Recommended Sealed Enclosures RSW.12 Recommended Ported Enclosures
Volume (ft3) QTC Tuning (Hz) Volume (ft3) Round Port Tuning (Hz)
Min. 0.75 .884 52.5 1.75 4” x 15.25”L 33.3
Opt. 1.00 .785 50.3 2.00 4” x 14.5”L 31.1
Max. 1.25 .725 49.5 2.25 4” x 14”L 29.3
RSW.12
RSW.15 Recommended Sealed Enclosures RSW.15 Recommended Ported Enclosures
Volume (ft3) QTC Tuning (Hz) Volume (ft3) Round Port Tuning (Hz)
Min. 1.50 .914 44.3 3.00 (2) 3” x 9.75”L 31.3
Opt. 2.00 .812 42.3 4.00 28.5(2) 4” x 15.75”L
Max. 2.50 .749 41.6 5.00 (2) 4” x 13”L 26.8
RSW.15
R E S E R V E
C A R A U D I O
S U B W O O F E R
RSW.122 / RSW.152
