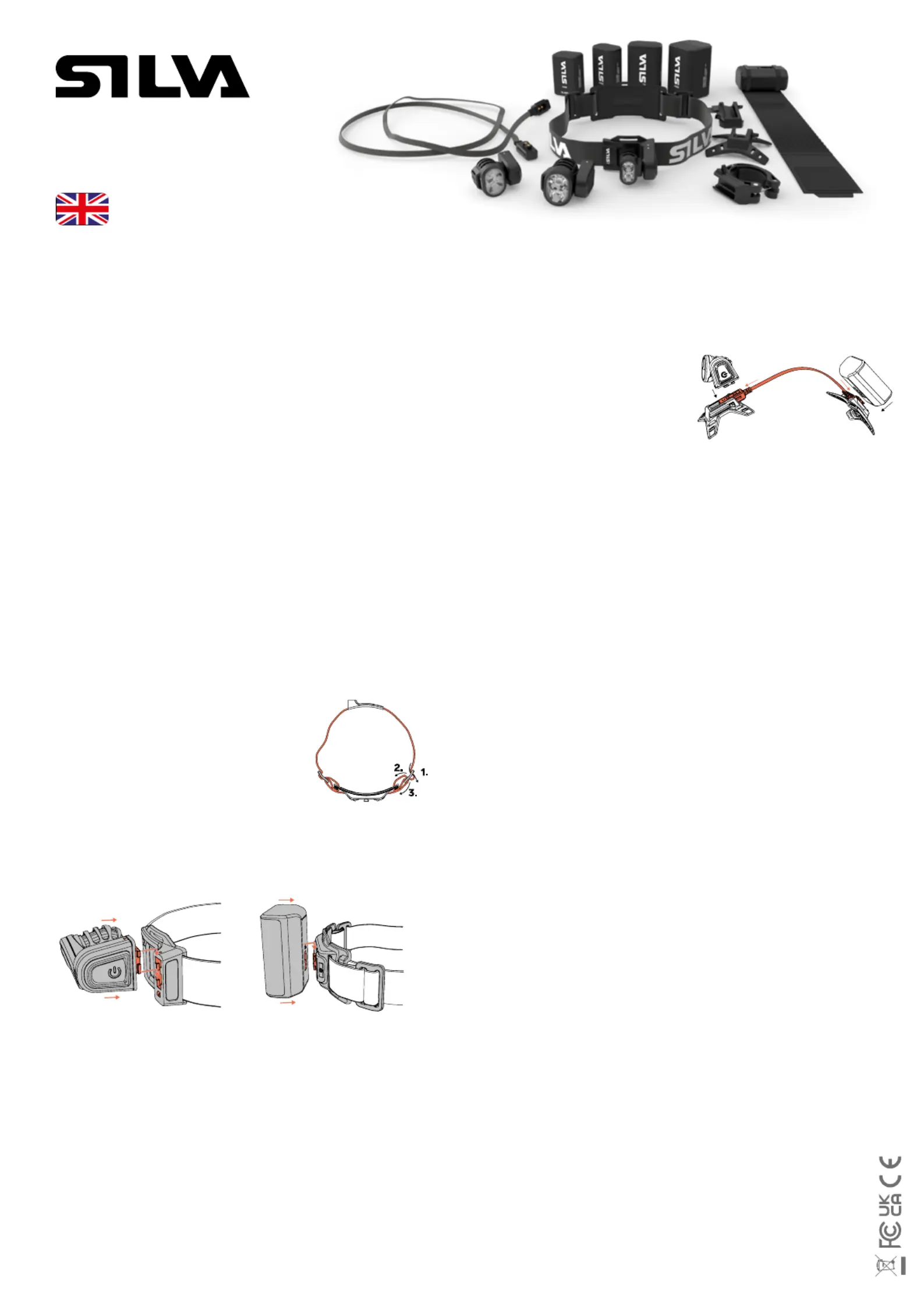

PRODUCT OVERVIEW
ONE LAMP FOR ALL YOUR ACTIVITIES
Silva Free is a lamp series with the possibility to create your ideal lamp according to your
needs and your dierent activities. The series range includes 3 dierent lamp units, 4 batter-
ies and several mount accessories. All parts are interchangeable, so you don’t need to buy a
new lamp for your dierent activities.
FREE TECHNOLOGY: LESS HASSLE - MORE COMFORT
Silva Free has the power cord integrated in the headband. You never need to bother with
distracting cords ever again. Feeling free is now a more comfortable experience.
AIRFLOW TECHNOLOGY: LESS HEAT - MORE LIGHT
Cooling is essential for how well the lamp performs. The Free Airflow technology is designed
together with experts within thermodynamics. The result is an optimized aluminum cooler
together with a protective plastic case that provides maximum ventilation and cooling, even
when standing still. This gives you great light regardless of the activity, even if the airflow or
cooling conditions are not optimal.
MODULAR TECHNOLOGY: LESS COMPLEXITY – MORE FLEXIBILITY
All parts and accessories are interchangeable which means that you can complement or
upgrade your lamp with a dierent battery, lamp unit or mount kit. The lamp unit and battery
can easily be disconnected from the headband to instead be mounted on your helmet, your
bike bar or frame.
BEFORE USE
CHARGE THE BATTERY
The battery needs to be charged before first use.
1. Remove the protective film from the battery connector before charging it the first time.
2. Disconnect the battery from any accessory (headband, extension cable, lamp unit).
3. Connect the battery to a USB-port (either from a computer, car or a USB charger/adapter)
using the included USB-charge cable.
4. Connect the charger to the wall outlet.
5. On the battery, there are 5 LEDs showing battery status during charging:
• Green light (all 5 LEDs) = battery is fully charged
• Red light blinking = battery is charging
Approximated charge time (depending on input source): See Technical specifications.
Note! When the battery is fully charged the charger automatically switches to maintenance mode.
Note! Never leave a battery unattended during charging.
Note! The battery can not be charged while connected to the accessories.
ADJUST THE HEADBAND
The headband is ergonomically shaped to give
comfortable fit. Use the 2 buckle adjustments to fit it
perfectly to your head. Adjustment is easiest when not
wearing the headband on the head. To tighten: Pull the
headband through the buckles following step 1,2,3 in the
illustration. To loosen: follow the steps in reverse order.
ATTACH THE LAMP UNIT
Align the white arrow on the lamp with the white arrow
on the headband front bracket. Attach the lamp unit by sliding the connector part into the
snap-in socket of the headband. To detach - slide the lamp unit up and out of the socket.
ATTACH THE BATTERY
Make sure to remove the protective film from the battery connector.
Align the white arrow on the battery with the white arrow on headband rear bracket. Slide
the battery connector socket onto the connector of the headband bracket. To detach - slide
the battery up and o the connector.
Note! Read more under "Accessories and mount options" about alternative ways to mount
the lamp and battery .
Note! Do not leave connected while not in use.
ACCESSORIES AND MOUNT OPTIONS
Free is designed for multiple activities and can easily be switched between the dierent
mount accessories. The battery can also be carried in multiple ways by using the dierent
battery accessories and cables. The included accessories vary between the dierent Free
model kits. All accessories can be bought separately.
HEADBAND
The Free Headband has the power cord integrated in the textile for a smoother experi-
ence without distracting cords or tangled wires. The headband has silicone on the inside to
prevent it from slipping. The double sided adjustment allows for a perfect fit and the foam
padding on the front and back plate ensures good comfort. The headband is developed to be
ergonomic and comfortable to wear even with a larger battery at the back of your head. The
front and back connection interface is compatible all lamp units/batteries in the Free series.
A rear safety light is integrated in the back of the headband. Read more about how to oper-
ate the light under "Rear safety light".
TOP BAND
When having a medium or bigger sized battery attached to the rear bracket of the headband,
or when wearing a beanie or if you need extra support during fast paced activities - the top
band can be attached to the headband for extra stability.
EXTENSION CABLES 130/40 cm
The Free Extension cable is made from textile and is flat, soft and flexible. It gives you extra
cable length - allowing you to place the battery where you want it. By carrying the battery in
your pocket - you keep the weight on your head to a minimum but also increase the battery
time by keeping the battery warm.
The extension cable transmits power from the
battery but also works as a link for attaching the
lamp and battery to the dierent accessories.
Please note that the cable has a female side that
fits the lamp units and a male side that fits the
batteries. Align the white arrows on each part to
connect. The extension cable also has a second-
ary interface that snaps into all the accessories.
The cables are available in two adjustable lengths; 50-130 cm and 22-40 cm.
Compatible with all lamp units, batteries and accessories in the Free series.
BAR MOUNT
The bar mount is designed to fit bars with a diameter of 31.8-35 mm. Attach the bar mount by
placing it around the bar, screw the lever until it has the right tension and then snap the lever
into position (no tools needed). The bar mount can be used either with or without the rubber
inserts to better adapt to the specific bar diameter. Once the bar mount is attached to the
bar - slide the female connector of the extension cable into the bar mount, pull the cable
through the cable guide clip on the back of the bar mount and then snap the lamp into the
socket of the extension cable. To release the extension cable from the bar mount - use the
lever on the side of the bar mount.
The bar mount is compatible with all lamp units in the Free series.
Note! Learn about below to get the most out of the lamp when "Deactivated Flow Light"
using the bar mount.
FRAME MOUNT
The battery sleeve lets you mount the battery to your bike frame or wherever you find suit-
able. It can be attached in various ways to fit most frames and configurations. The sleeve is
made of neoprene and it has silicone friction prints on the inside to stay in place.
1. Connect the battery to the extension cable before placing the battery in the frame mount.
2. Wrap the 2 small elastic straps around the battery.
3. Wrap the large strap of the frame mount around battery and the frame. Tighten the strap
and make sure that it is locked into place with the Velcro closing.
The frame mount is compatible with all batteries in the Free series.
HELMET MOUNT KIT
Use the Free helmet mount kit to mount your Free lamp unit and battery onto your helmet.
The kit includes:
• 1 x helmet bracket for the lamp unit (with male Velcro)
• 1 x helmet bracket for the battery (with male Velcro)
• 2 x adhesive pad (with female Velcro)
• 1 x extension cable (40 cm)
The helmet mount is soft and flexible and adapts to most helmet types.
The following procedure applies to both the lamp bracket (placed in the front of the helmet)
and the battery bracket (placed in the back of the helmet).
1. Make sure that the Velcro part of the bracket is attached to the Velcro part of the adhe-
sive pad.
2. Make sure that the surface of the helmet is clean and dry.
3. Remove the protective film from the adhesive pad and firmly press the bracket in correct
position onto the helmet. For optimal eect - you should leave the attachment in this
state for at least 24 hours before using it.
Once the brackets are in place, the extension cable is slided into each of the brackets. Then
the lamp unit/battery can be slided in and out of the snap socket of the extension cable with
just a click. To release the extension cable from the bracket, use the small lever on the side.
The helmet mount kit is compatible with all lamp units and batteries in the Free series.
G Po ro MOUNT KIT
Use the Free GoPro mount kit to mount your Free lamp unit onto a standard GoPro interface
and to mount your battery onto your helmet.
The kit includes:
• 1 x GoPro adapter for the lamp unit
• 1 x helmet bracket for the battery (with male Velcro)
• 1 x adhesive pad (with female Velcro)
• 1 x extension cable (40 cm)
The adapter makes the interface of the Free series fit into the interface of a GoPro mount.
The helmet mount is flexible and adapts to most helmet types.
1. Snap the GoPro adapter into a standard GoPro interface.
2. Once the adapter is in place - slide the female connector of the extension cable into the
adapter.
3. Now the lamp unit can be slided in and out of the snap socket of the extension cable with
just a click.
4. To release the extension cable from the adapter - use the small lever on the side.
For mounting the helmet bracket for the battery: read more under "Helmet mount kit".
Compatible with all lamp units/batteries in the Free series and standard GoPro camera
mounts.
MANUAL
FREE SERIES
MANUAL
FREE SERIES
DURING USE
Note! Do not leave connected when unattended.
Note! Do not cover or place in a pocket/ bag while connected - risk of fire.
Note! Be careful when handling the lamp unit with bare hands since it gets very hot.
Do not touch the lens.
SILVA INTELLIGENT LIGHT
Intelligent Light optimizes the light pattern by the unique combination of a long reach spot
light and a close flood light. With less head movements and a clear view of near as well as far
obstacles, you gain the balance and confidence it takes to move fast and perform better.
SILVA FLOW LIGHT (FREE 2000 AND FREE 3000 MODELS)
Flow Light takes the optimization even further by providing seamless tuning of the light
pattern for your favourite sport. Simply tilting the light downwards makes the beams wider
to brighten up slower activities. When tilting the lamp upwards, the light reaches longer to
provide perfect vision when you move fast.
Deactivated Flow Light
Flow Light deactivated means that the light distribution image remains unchanged even if
the lamp is tilted up or down. This might be useful when the lamp is mounted on a helmet or
a bike handlebar.
SWITCH THE LAMP ON
Note! Make sure to remove the protective film from the lens before switching the lamp on.
Note! Before starting - read about Flow Light above.
On the side of the lamp body there is a push button which controls the light modes.
• To start the lamp with Flow Light activated: press the push button with a short press (<0.5 s)
• To start the lamp with Flow Light deactivated: press and hold the push button for 1 second.
• To cycle between the dierent brightness levels - use short presses (<0.5 s).
• To turn the lamp OFF; press and hold button for more than 1 second.
MAX
SHORT PRESS LONG PRESS
OFF OFF OFF
MED MIN
FLOW LIGHT ACTIVATED
FLOW LIGHT DEACTIVATED
REAR SAFETY LIGHT
Built into the rear bracket of the headband, there is an integrated rear red light for extra vis-
ibility and safety. The light is controlled by a push button located on the bracket.
• Use a short press (<0.5 s) to switch the rear light ON.
• Use short presses to cycle between constant red and flashing red light.
• To turn the light OFF; press and hold button for more than 1 second.
TEMPERATURE CONTROL
The temperature of the lamp body will increase during use and cooling is an essential part of
how well the lamp performs. The temperature of the lamp is aected by the brightness level,
ambient air temperature and airflow (speed).
The lamp unit is equipped with a temperature control sensor that prevents the lamp body
from overheating by reducing the power to the LEDs.
Free airflow technology:
Keeping the LEDs cool will keep them running at higher lumen levels and to manage the heat
Free is designed with the Airflow system:
The electronics for the lamp is located in the lamp arm which gives a lot of space for the alu-
minum cooler in the lamp body. The integrated aluminum cooler has a lot of surface that will
dissipate heat away from the LEDs. When performing high speed activities, such as running
or biking, the Airflow system optimizes the natural airflow to get the temperature down. The
cooler on the Free series is constructed to be ecient even at lower speeds where there is
no airflow. The lamp body is covered in a plastic mesh for a comfortable touch without hav-
ing to feel the heat of the cooler inside. The main gain with the optimal cooling is that you get
more light output from a cooler lamp.
Why does the light dim down for no apparent reason?
If the cooling is not sucient, for instance if used while standing still, indoors or in high
temperatures, then the light will automatically be reduced until acceptable surface tempera-
ture on the lamp body is reached. This means that the lower the ambient temperature, the
stronger the light output.
Note! The lamp can get very hot!
• Always make sure to disconnect the battery when the lamp is stored in a closed compart-
ment such as in a bag, pocket or similar.
• Keep away from children.
• Make sure that the lamp does not come in contact with sensible of flammable materials.
• The front glass or heat sink must not be covered with dirt or other materials while the
lamp is switched on.
• Never look directly into the lamp while switched on.
LOW BATTERY WARNING
During operation, there will be a low battery warning when 10% of the battery energy
remains. This is indicated by the lamp flashing once. The lamp will automatically switch to
power reserve mode after this.
POWER RESERVE
During operation, the lamp will go into reserve mode (80 lm) when 10% of the battery energy
remains. The lamp will flash once before it goes into this mode.
It is not possible to switch to the higher brightness levels once the lamp has entered power
reserve mode. The power reserve gives approximately 1 hour of light (depending the on lamp/
battery combination).
BATTERY STATUS INDICATION
When the lamp is switched on - the LED indicators on the battery will show the current bat-
tery status for 4 seconds. To check battery status during use, the lamp needs to be switched
OFF and then back ON again.
The LED indicators on the battery indicates the following:
• 5 green LEDs = Fully charged
• 4 green LEDs = 80% of the battery remains
• 3 green LEDs = 60% of the battery remains
• 2 green LEDs = 40% of the battery remains
• 1 green LED = 20% of the battery remains
• 1 red LED = 10% of the battery remains
To get as much power as possible out from your battery, keep it away from low temperatures
during use.
AFTER USE
MAINTENANCE
To make sure you get maximum performance from your lamp, clean it regularly with a damp
cloth. Make sure that there is no dirt in the heat sink or on the front glass. Textile details can
be rinsed in warm water.
TECHNICAL SPECIFICATIONS
Lumen / Burn time / Light distance: See matrix below
Weight (lamp unit 1200 / 2000 / 3000): 31 g / 41 g /61 g
Battery types: Li-ion 14.4 Wh / 2.0 Ah / 7.4 V / 116 g / 4 h charging
Li-ion 24.1 Wh / 3.35 Ah / 7.2 V / 149 g / 4.5 h charging
Li-ion 36 Wh / 5.0 Ah / 7.2 V / 202 g / 6 h charging
Li-ion 72 Wh / 10.0 Ah / 7.2 V / 367 g / 12 h charging
Water resistance: IPX5
Operative temperature range: -20 - (+)50˚C
Storage temperature range: -30 - (+)60˚C
MANUAL
FREE SERIES
ABOUT LI-ION BATTERIES
The battery should be stored in a dry environment within the temperature range of
-30˚C and +60˚C.
If you would like to store your battery for a longer period (more than 30 days) the battery
should not be fully charged. Recommended charge level for storing is 30%.
You can always charge a half full battery without damaging its characteristics.
Do not expose the battery for extreme temperatures which may cause fire or explosion.
To get the most out of your battery - do not expose it to low temperatures during use.
Do not disassemble or mistreat the battery; risk for chemical burn.
Keep away from children.
Do not submerge the batteries in water. Do not short circuit the contacts.
Always disconnect the battery when the lamp is not in use.
PROTECTING THE ENVIRONMENT.
Lamp unit, batteries and packaging are recyclable. Please dispose these items at designated
recycling stations.
WARRANTY
Silva warrants that, for a period of two (2) years, your Silva Product will be substantially free
of defects in materials and workmanship under normal use. Silva’s liability under this war-
ranty is limited to repairing or replacing the product. This limited warranty extends only to the
original purchaser.
If the Product proves defective during the Warranty Period, please contact the original place
of purchase. Make sure to have your proof of purchase on hand when returning the product.
Returns cannot be processed without the original proof of purchase. This warranty does not
apply if the Product has been altered, not been installed, operated, repaired, or maintained in
accordance with instructions supplied by Silva, or has been subjected to abnormal physical
or electrical stress, misuse, negligence or accident. Neither does the warranty cover normal
wear and tear. Silva is not responsible for any consequences, direct or indirect, or damage
resultant from use of this product. In no event, will Silva’s liability exceed the amount paid by
you for the product. Some jurisdictions do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you. This
Warranty is valid and may be processed only in the country of purchase.
For more information please visit www.silvaweden.com
PERFORMANCE DATA
Values are measured and specified according to the ANSI FL1 STANDARD.
Lumen and burn time values are measured for normal usage.
The burn time is aected by speed (airflow) and the ambient air temperature and may vary in
dierent conditions. The burn time is therefor presented as a span between the lowest and
highest value achieved in dierent conditions.
For more information on how dierent factors aect the burn time and light output;
have a look at our headlamp guide at: www.silvasweden.com
Produktspezifikationen
| Marke: | Silva |
| Kategorie: | Lampe |
| Modell: | Free 3000 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Silva Free 3000 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Lampe Silva
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
Bedienungsanleitung Lampe
- Lampe Samsung
- Lampe G3 Ferrari
- Lampe Tristar
- Lampe BenQ
- Lampe Gembird
- Lampe Hama
- Lampe Nedis
- Lampe Niceboy
- Lampe Philips
- Lampe SilverCrest
- Lampe Sony
- Lampe Trust
- Lampe Brennenstuhl
- Lampe Cotech
- Lampe LG
- Lampe Camry
- Lampe Bosch
- Lampe Flex
- Lampe Thule
- Lampe Klarstein
- Lampe OK
- Lampe Velleman
- Lampe Powerfix
- Lampe Eminent
- Lampe IKEA
- Lampe Schwaiger
- Lampe Alecto
- Lampe Beurer
- Lampe Bresser
- Lampe Denver
- Lampe EMOS
- Lampe König
- Lampe Medisana
- Lampe Ryobi
- Lampe Blaupunkt
- Lampe Black Diamond
- Lampe Rocktrail
- Lampe Hilti
- Lampe Einhell
- Lampe Pyle
- Lampe Xiaomi
- Lampe BeamZ
- Lampe Stairville
- Lampe Abus
- Lampe Avidsen
- Lampe Elro
- Lampe Smartwares
- Lampe Hikoki
- Lampe Livoo
- Lampe Hazet
- Lampe Metabo
- Lampe Stanley
- Lampe Steinel
- Lampe Güde
- Lampe Livarno
- Lampe Workzone
- Lampe Varta
- Lampe Goobay
- Lampe AccuLux
- Lampe Ansmann
- Lampe American DJ
- Lampe Lightway
- Lampe Lupine
- Lampe Nitecore
- Lampe Petzl
- Lampe Wetelux
- Lampe Honeywell
- Lampe Dedra
- Lampe Karma
- Lampe Carson
- Lampe Smart
- Lampe Silverline
- Lampe Florabest
- Lampe Kodak
- Lampe Hansa
- Lampe Logik
- Lampe Adj
- Lampe Runtastic
- Lampe AFX
- Lampe Zuiver
- Lampe Brandson
- Lampe Thermaltake
- Lampe GAO
- Lampe Qazqa
- Lampe Eurolite
- Lampe Topeak
- Lampe Hayward
- Lampe Milwaukee
- Lampe Toolcraft
- Lampe Eglo
- Lampe Westinghouse
- Lampe Unilux
- Lampe In-Lite
- Lampe Konstsmide
- Lampe Lucide
- Lampe Massive
- Lampe Maxim
- Lampe Näve
- Lampe Nordlux
- Lampe Osram
- Lampe Paulmann
- Lampe Ranex
- Lampe Steinhauer
- Lampe XQ-Lite
- Lampe V-TAC
- Lampe Melinera
- Lampe Genie
- Lampe Royal Sovereign
- Lampe Innoliving
- Lampe Sylvania
- Lampe HQ
- Lampe Craftsman
- Lampe Levenhuk
- Lampe Digitus
- Lampe IVT
- Lampe Akasa
- Lampe EasyMaxx
- Lampe Ozito
- Lampe Elation
- Lampe Godox
- Lampe Cameo
- Lampe GVM
- Lampe ARRI
- Lampe Ibiza Sound
- Lampe Vemer
- Lampe Hähnel
- Lampe Dörr
- Lampe Oecolux
- Lampe Elgato
- Lampe Nanlite
- Lampe Duronic
- Lampe Globo
- Lampe Luxform
- Lampe Martin
- Lampe Media-tech
- Lampe Mission
- Lampe Neewer
- Lampe Steren
- Lampe Elinchrom
- Lampe Vimar
- Lampe Ozone
- Lampe Trio Lighting
- Lampe Hatco
- Lampe Sonoff
- Lampe Esotec
- Lampe Olight
- Lampe Profoto
- Lampe Futurelight
- Lampe Livarno Lux
- Lampe Omnilux
- Lampe Neo
- Lampe Brilliant
- Lampe Konig & Meyer
- Lampe Werma
- Lampe Aputure
- Lampe Chauvet
- Lampe Ledlenser
- Lampe SLV
- Lampe Westcott
- Lampe Goal Zero
- Lampe Gravity
- Lampe APA
- Lampe Bolt
- Lampe Laserworld
- Lampe Angler
- Lampe Luxo
- Lampe Heitronic
- Lampe ActiveJet
- Lampe Honeycomb
- Lampe ETC
- Lampe Sagitter
- Lampe Auray
- Lampe Megatron
- Lampe Adviti
- Lampe Casalux
- Lampe Briloner
- Lampe NUVO
- Lampe NEO Tools
- Lampe Kanlux
- Lampe SecoRüt
- Lampe Gewiss
- Lampe Amaran
- Lampe DPM
- Lampe NightStick
- Lampe Meross
- Lampe Kartell
- Lampe Videx
- Lampe Zafferano
- Lampe WiZ
- Lampe ArmyTek
- Lampe Fuzzix
- Lampe ATN
- Lampe Paul Neuhaus
- Lampe Impact
- Lampe Artemide
- Lampe Ozocozy
- Lampe DLG
- Lampe Polarlite
- Lampe Broncolor
- Lampe UMAGE
- Lampe Markslöjd
- Lampe Velamp
- Lampe Lalumi
- Lampe Graypants
- Lampe Rutec
- Lampe Rotolight
- Lampe Lightaccents
- Lampe SIGOR
- Lampe King Mungo
- Lampe Integral LED
- Lampe Luctra
- Lampe Lowel
- Lampe Airam
- Lampe Lirio By Philips
- Lampe Fabas Luce
- Lampe Dainolite
- Lampe Signature Design By Ashley
- Lampe Kind LED
- Lampe Altman
- Lampe Setti+
- Lampe Jinbei
- Lampe XCell
- Lampe Perfect Christmans
- Lampe Xline
- Lampe ET2
- Lampe Quoizel
- Lampe Golden Lighting
- Lampe Ridem
- Lampe Fredrick Ramond
- Lampe Crystorama
- Lampe Sonneman
Neueste Bedienungsanleitung für -Kategorien-
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
13 Oktober 2024
12 Oktober 2024
7 Oktober 2024
7 Oktober 2024
7 Oktober 2024
4 Oktober 2024
4 Oktober 2024
