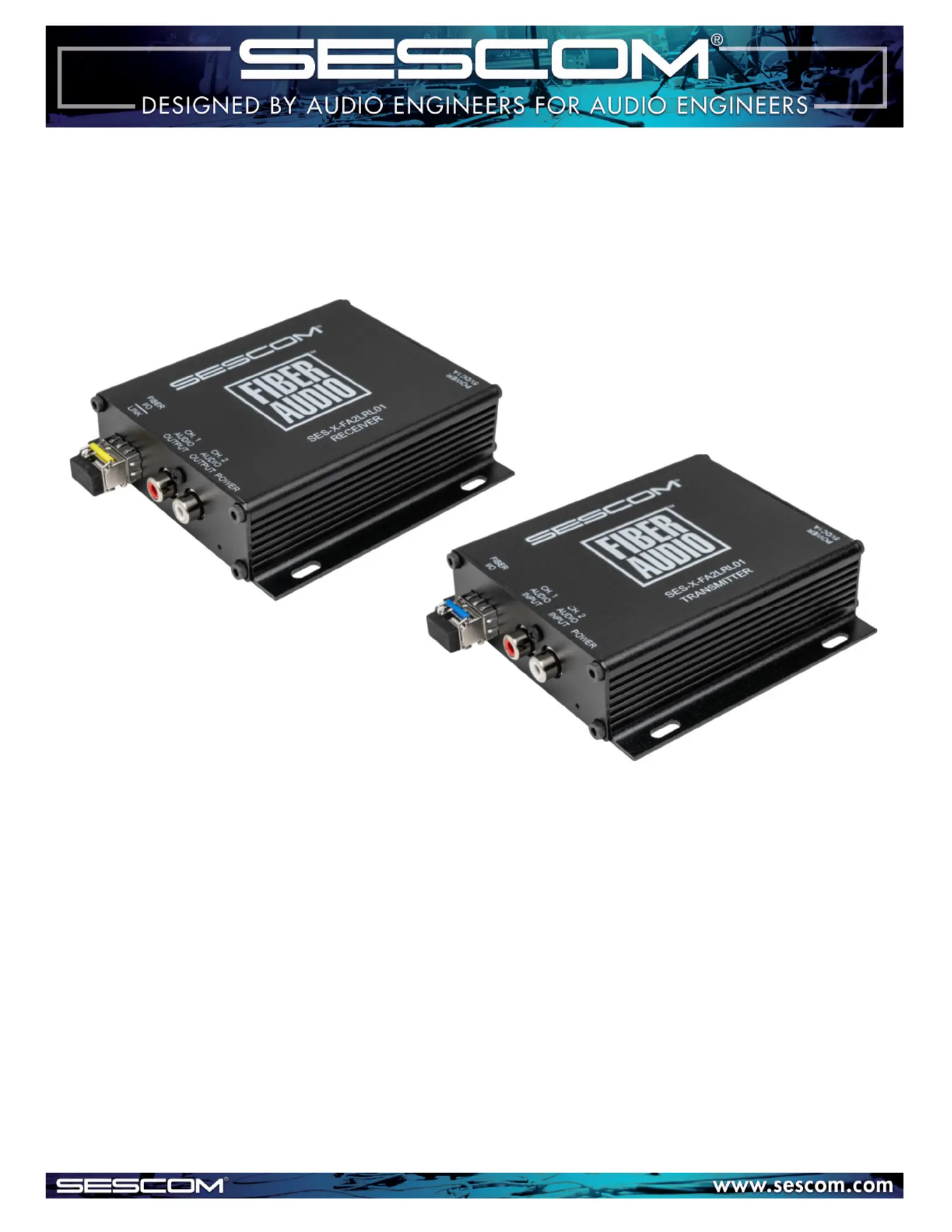

SES-X-FA2LRL01 2 CH Unbalanced RCA Line Level
Audio over Fiber Extender
FEATURES
ï‚·ï€ 2-Channel RCA Audio over Single Fiber Transmission
ï‚·ï€ Simplex LC Fiber Connectors
ï‚·ï€ 24-Bit Digitally Encoded Analog Audio
ï‚·ï€ Transmission Distance: up to 12.4 miles over Singlemode Fiber and
up to 984ft. via Multimode Fiber
ï‚·ï€ No Loss in Signal Quality
ï‚·ï€ Adjustment Free Plug & Play Operation
ï‚·ï€ Enable Cascaded Audio Setups
ï‚·ï€ Line Level Unbalanced Audio Operation
ï‚·ï€ Indicator LEDs Monitor Fiber Link and Power
ï‚·ï€ Housed in Rugged Aluminum Enclosures
ï‚·ï€ FCC & RoHS Compliant
Set Up Instructions
1. Secure the units in a safe location, where they will not be subject to impact and where there is room around the
unit so nothing will interfere with the fiber optic cabling causing it to bend sharply in a tight radius in any way that
can severely affect the signal transfer.
2. Use proper cable management and handling for routing fiber optic cable.
3. Carefully connect your source(s) to the transmitter input(s) and the receiver unit output(s) to your receiving device
input(s) using the RCA connectors on the transmitter and on the receiver unit.
4. CLEAN* the LC fiber optical cable contacts that will be used for connecting the Tx and Rx units and attach the fiber
cable to the LC connections and secure.
5. Connect the included power supplies to the transmitter and receiver units, and plug them both into an AC power
source (100-240VAC 50/60Hz).
* CLEAN: All fiber optical cable contacts require cleaning each time before inserting into a device’s outputs or
inputs. Failure to clean the contacts can damage the unit’s optics over time and can also permanently damage
the cable and the device.
Use cleaning kits designed specifically for fiber optics.
SES-X-FA2LRT01 AUDIO FIBER EXTENDER
SPECIFICATIONS
Unity Gain 0dB In, 0dB Out
Total Harmonic Distortion <0.05%
Signal to Noise Ratio > 90dB Ref. 4dBu, A Weighting
Maximum Balanced Input Signal 7dBu
Max Line Input/Output Voltage 5Vp-p
Optical Wavelength 1310nm
Frequency Response 20Hz—20KHz
Sample Rate 48KHz, 24K bit rate
Input Power 5VDC/1A
Unit Dimensions Each Unit 4.125 x 4.25/5.0 with fiber connectors x 1.25 in
Power Consumption <1W
Includes (2) 5VDC/1A Power Adapters, (2) LC Simplex SFPs 1310nm
OutputImpedance(Rx) 10 Ohms
Input Impedance (Tx) 100k Ohms
TRANSMITTER
RECEIVER

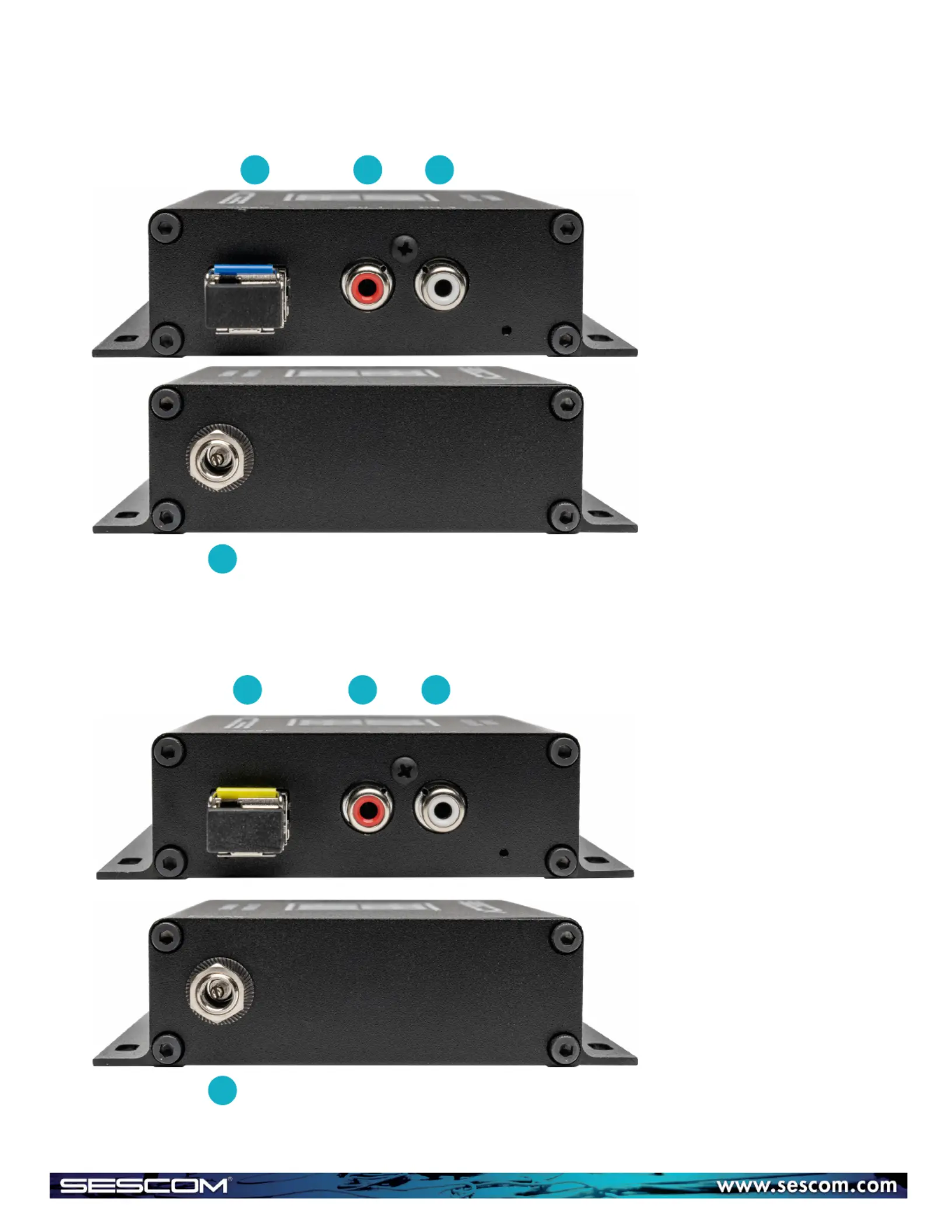

1 LC Simplex Fiber Output
2 Right Analog Unbalanced Audio
RCA Input
3 Left Analog Unbalanced Audio
RCA input
4 5VDC / 1A 2.5mm DC Power
Input Jack
SES-X-FA2LRT01 AUDIO FIBER EXTENDER
3
4
2 1
3
4
2 1
1 LC Simplex Fiber Input
2 Right Analog Unbalanced Audio
RCA Output
3 Left Analog Unbalanced Audio
RCA Output
4 5VDC / 1A 2.5mm DC Power
Input Jack
