For details on managing security for
Lyve Mobile devices, go to
www.seagate.com/lyve-security.
1Connect power
Views
A Place the adapter plug for your location into the channel
on the power supply. Slide it down to lock it in place.
B Connect the power adapter to a live power outlet.
C Connect the power cable to the power port on the side
of Padlock.
Front
Side
Mounting installation
Mounting options include:
• DIN-mount
• VESA-mount
• Wall-mount
Visit www.onlogic.com for mounting accessories and
instructions for safe use and installation.
Parts list
Lyveâ„¢ Mobile Padlock
DC-in
power jack
LED
USB 2.0 port Power button
USB 3.0 ports
LAN2 connector (RJ45) /
DHCP server
LAN1 connector (RJ45) /
DHCP client
Power adapter (12V, 3A)
US
EU
UK
AU/NZ
C
A
B
Front
Side
Top
Recommended clearance zones RequirementsConnection types
82 mm
115 mm
125 mm
92 mm
34 mm
82 mm
92 mm
34 mm
44 mm
115 mm
125 mm
44 mm
USB external drive with Lyve token file
Lyve Mobile Padlock lets you unlock Lyve Mobile Arrays using
an encrypted Lyve token file stored on a USB external drive. A
product admin must provide you with a token file authorizing
your Padlock to access Lyve Mobile devices.
Copy the Lyve token file to an external storage device capable
of connecting via a USB Type A connector. The Lyve token file
must be copied to the root level of the USB storage device to be
detected by Lyve Mobile Padlock.
Direct connection
Padlock’s LAN2 (DHCP server) port can be directly connected to an
Ethernet port on PCIe Adapter or Rackmount Receiver. Padlock
can unlock only one device connected to the Ethernet port.
PCIe Adapter Padlock
Rackmount Receiver Padlock
Padlock
Network connection
In network environments, PCIe Adapter and Rackmount Receiver
Ethernet ports are connected to a network switch. Padlock’s
LAN1 (DHCP client) port can be connected to the same network
switch to communicate with the devices.
Important: The network must provide DHCP addressing.
Lyve Mobile Array User Manual
www.seagate.com/lyve-mobile-array
Lyve Mobile PCIe Adapter User Manuals
www.seagate.com/pcie-adapter
www.seagate.com/pcie-adapter-front-loader
Lyve Mobile Rackmount Receiver User Manual
www.seagate.com/rackmount-receiver
External storage device is not included with Lyve Mobile
Padlock. Most drive formats are supported APFS except
and ReFS.
Connect Lyve Mobile Array
Before configuring Lyve Mobile Padlock to automatically unlock
a Lyve Mobile Array, you must set up Lyve Mobile Array with
your host device. Make certain to make all physical connections
to the relevant ports.
Lyve Mobile Padlock unlocks Lyve Mobile Arrays using the
following interfaces:
• PCIe Adapter in Lyve Mobile Mount
• Fibre Channel or SAS via Lyve Mobile Rackmount Receiver
Padlock does not support iSCSI connected devices.
Shown above: Padlock connected to Slot B’s Ethernet port. If Lyve Mobile
Array is in Slot A, connect the Ethernet cable to Slot A’s Ethernet port.
Unidentified ports are intentionally disabled.
If Lyve Mobile Padlock does not turn on automatically
upon connection to a live outlet, press the power button.
204594000
Connect external USB drive
to Padlock
2
Connect the external USB drive containing a Lyve token file
to one of the USB 3.0 ports on the front of Padlock.
ACT
Slot A
ACT
A
Slot B
FCC DECLARATION OF
CONFORMANCE
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
CLASS A
NOTE: This equipment has been tested
and found to comply with the limits for a
Class A digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protection
against harmful interference when the
equipment is operated in a commercial
environment. This equipment generates,
uses, and can radiate radio frequency
energy and, if not installed and used in
accordance with the instruction manual,
may cause harmful interference to radio
communications. Operation of this
equipment in a residential area is likely
to cause harmful interference in which
case the user will be required to correct
the interference at his own expense.
© 2023 Seagate Technology LLC. All rights reserved. Seagate, Seagate Technology and the
Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or
other countries. Lyve is either a trademark or registered trademark of Seagate Technology LLC or
one of its affiliated companies in the United States and/or other countries. The PCIe word mark
and/or PCIExpress design mark are registered trademarks and/or service marks of PCI-SIG. All
other trademarks or registered trademarks are the property of their respective owners. Complying
with all applicable copyright laws is the responsibility of the user. Seagate reserves the right to
change, without notice, product offerings or specifications.
Seagate Technology LLC., 47488 Kato Road, Fremont, CA 94538 USA www.seagate.com
Seagate Technology NL B.V., Tupolevlaan 105, 1119 PA Schiphol-Rijk NL
Seagate Technology NL B.V. (UK Branch), Jubilee House, Globe Park, 3rd Ave, Marlow SL7 1EY, UK
Seagate Singapore International Headquarters Pte. Ltd., 90 Woodlands Avenue 7 Singapore 737911
PN: 204594000 07/23

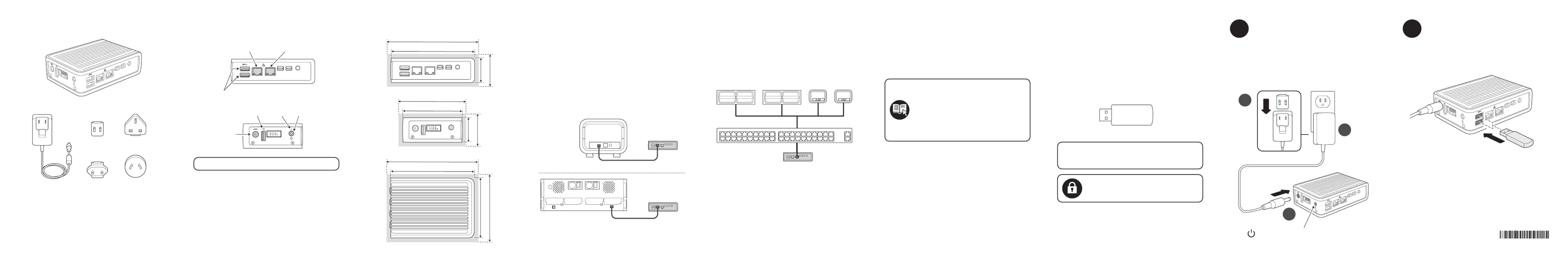

QUICK START GUIDE
Mobile Padlock
A direct connection only supports one Lyve Mobile Array. Make sure the
Ethernet cable is connected to the correct Ethernet port on the back of
Rackmount Receiver.
3
Connect Padlock
Direct connection
A Connect an Ethernet cable to an Ethernet management
port on PCIe Adapter or Rackmount Receiver. (Ethernet
cable not included.)
Padlock can unlock only one device via Direct connection.
Network connection
A Connect an Ethernet cable to an Ethernet switch for the
network that includes PCIe Adapters and/or Rackmount
Receivers. (Ethernet cable not included.)
Important: The network must provide DHCP addressing.
B Connect the other end of the Ethernet cable to the LAN2
port (DHCP server).
B Connect the other end of the Ethernet cable to the LAN1
port (DHCP client).
A
LAN2
B
LAN1
B
The LED on Lyve Mobile Array changes from solid orange
to solid green, indicating that Padlock has successfully
unlocked the device.
You can connect a single Lyve Mobile Array using Direct
connection as well as multiple Lyve Mobile Arrays using
Network connection. Padlock supports simultaneous
Direct and Network connections.
The LED on Lyve Mobile Array changes from solid orange
to solid green, indicating that Padlock has successfully
unlocked the device.
A
Ensure device detection Padlock web interface
If a Lyve Mobile Array’s storage is not detected by the host
computer, you may need to scan for new hardware.
You can monitor Lyve Mobile Padlock or add a device manually
from a Windows PC.
On your Windows PC, open a file browser and click on Network.
Click on the Padlock icon under . The Padlock Other Devices
interface will launch in your default web browser.
The web interface can be helpful if one or more authorized Lyve
Mobile Arrays remain locked. You can:
• Confirm that Padlock has detected locked devices.
• Add a device manually using its IP address and
serial number.
Windows®
1. On the Windows host computer, open Device Manager.
2. Right-click Disk drives Scan for hardware and select
changes.
Linux®
1. On the Linux station, open a terminal session.
2. Enter the following:
rescan-scsi-bus.sh
