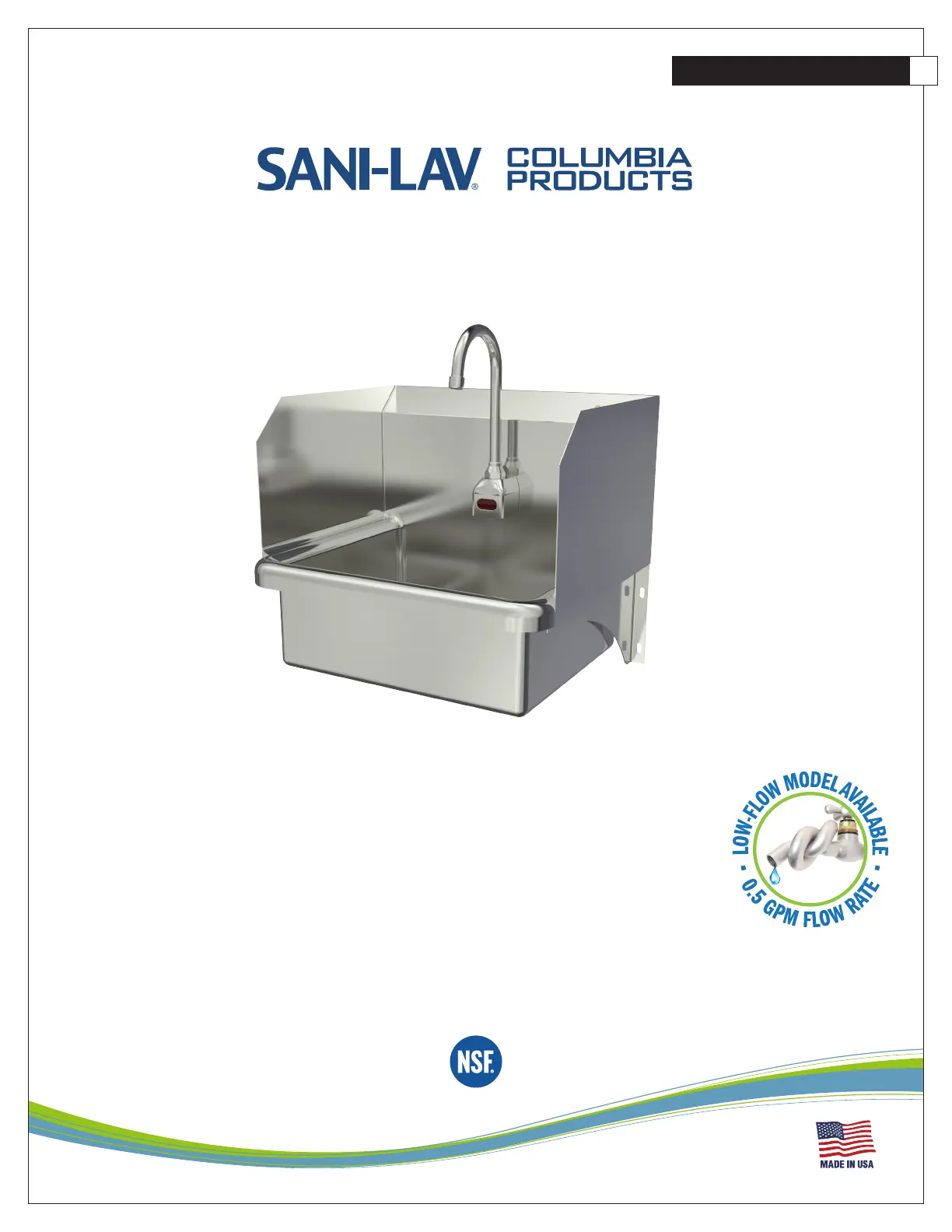

A C O R B AT T E R Y P O WERE D
S I N K W I T H E L E C T R O N I C S E N S O R
Operating Manual for Hands-Free Wall Mount Stainless Steel Sink
AC Models 707A and 707A-0.5
Battery Models 707B and 707B-0.5
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Lead-Free Compliant, ASME A112.18.1
2
COLUMBIA SPECIFICATIONS
A C O R B AT T E R Y P O W E R E D
S I N K W I T H E L E C T R O N I C S E N S O R
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
Installation Instructions
Step 1
1. Establish sink location on the wall.
2. Determine desired height for the top of the backsplash from finished floor and draw a level
line which will be the top edge of the wall mounting bracket.
3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill
holes and secure bracket to the wall as shown in illustration A. Screws are not provided.
Step 2
1. Install strainer assembly.
2. Install faucets to the sink following the instructions provided with sensor unit.
3. Attach supply tube with elbow to back of faucet.
4. Install mixing check valve and compression fitting to control box of each sensor faucet.
Step 3
1. Position the sink onto wall bracket.
2. Loosely attach support brackets under sink and push against wall then mark holes for
drilling as shown in illustration B.
3. Remove support brackets from sink and drill holes for mounting fasteners (not provided).
4. Re-mount support brackets to sink and fasten to wall.
Step 4
1. Connect waste line to strainer assembly (s).
2. Mount sensor control box at desired location on wall.
3. Connect power line from sensor to control box.
4. Attach supply tube from faucet to control box.
5. Connect hot and cold water from the source to mixing check valve (s).
6. Remove aerator from the spout assemblies and flush water system. (see step 7 sensor
installation instructions)
7. Check connections for leaks.
8. Replace aerator onto the spout (s).
9. We recommend sealing top of backsplash to wall as shown in illustration C.
Parts List
(1) Wall mount sink
(1) AC or Battery powered sensor faucet assembly
(1) Wall-mounting bracket
(2) Support brackets
(4) Support bracket mounting bolts and washers
(1) Mixing check valve
(1) Strainer assembly with basket
Tools Required
Tape measure
Adjustable wrench
Drill motor and drill bits
Pipe wrench
Level
Safety glasses
Screw drivers: phillips and standard
Pencil
Socket wrench
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Go to for more information on replacement parts and installation videos.columbiasinks.com
Illustration A
Illustration B
Illustration C
3
COLUMBIA SPECIFICATIONS
A C O R B AT T E R Y P O W E R E D
S I N K W I T H E L E C T R O N I C S E N S O R
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
10in
254mm
10in
254mm
9.5in
241.3mm
7in
178.9mm
18.828in
478.2mm
20in
508mm
2in
50.8mm
14in
355.6mm
1.5in
38.1mm
1.5in
38.1mm
17in
431.8mm
17.5in
444.5mm
Hole Configuration
.875” [22mm]
dia. hole
10in
254mm
10in
254mm
3.25in
82.6mm
4in
100mm
Front Side
Top
2”
(51mm) .875”
(22.22mm)
Back
Splash
.375”
dia. hole
Wall-mounting
bracket
6.25in
158.8mm
2.5in
63.5mm
15.5in
393.7mm
R.75in
19.1mm
.75in
19.1mm
7.087in
180mm
11in
279.4mm
14”
(355.6mm)
2” drain
hole
6in
152.4mm
R.5in
12.7mm
Wall Mounting Detail
