Seite 1/6
1

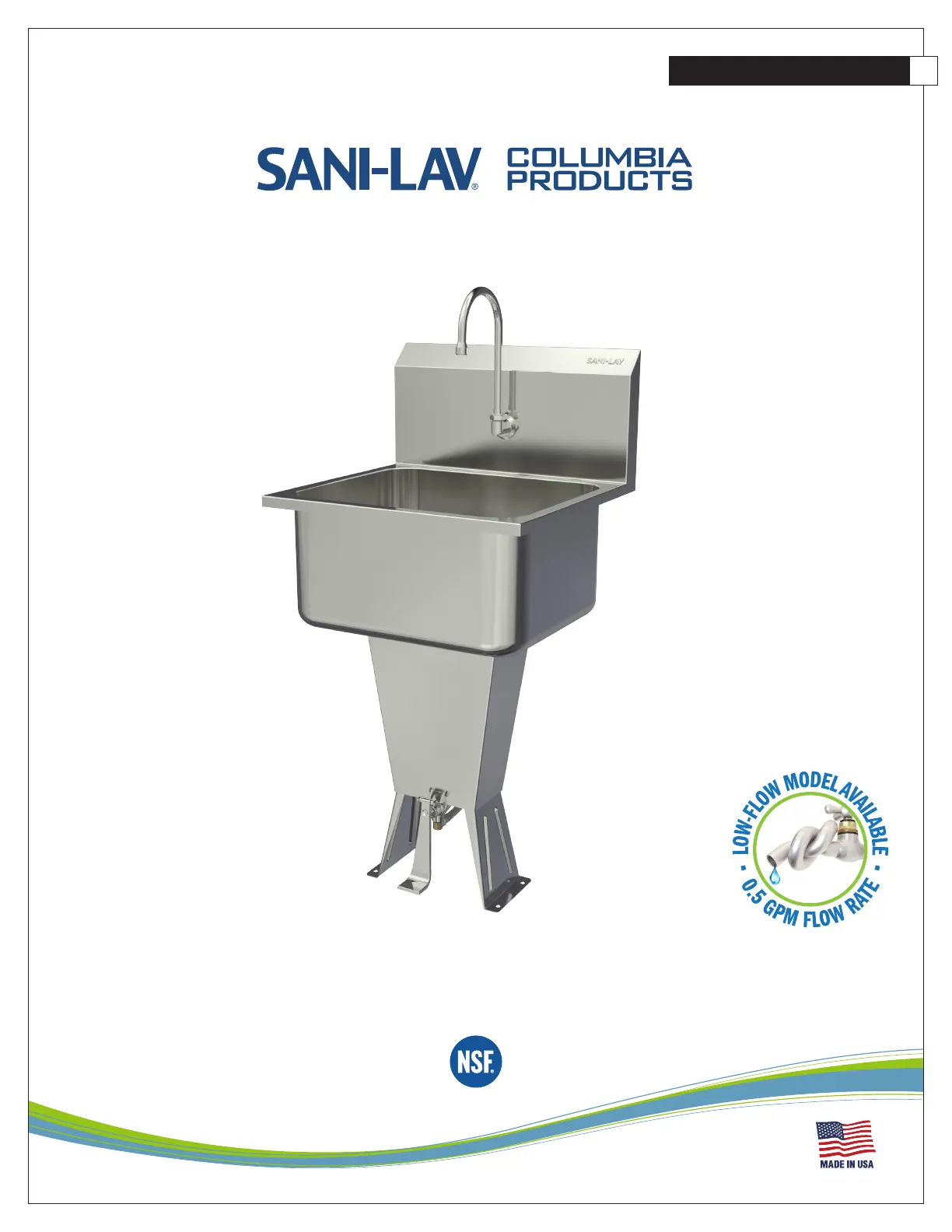

H A N D S - F R E E F L O O R M O U N T S I N K
Operating Manual for Hands-Free Floor Mount Stainless Steel Sink
Models 5211 and 5211-0.5
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead
Installation Instructions
Step 1
1. Install mixing check valve and elbow fitting to valve.
2. Set the pedestal base upside down and mount valve to base using nuts provided as shown
in illustration A.
3. Do not over tighten nuts.
Step 2
1. Install strainer assembly.
2. Attach bowl to pedestal base by slipping bolts on bowl through openings on pedestal base as
shown in illustration B.
3. Tighten the 6 nuts to the threaded bolts under bowl. Do not over-tighten. There are 6 bolts
that will securely hold the bowl in place.
Step 3
1. Place sink at the desired location.
2. Mark the floor where the four holes are at the pedestal base as shown in illustration C.
3. Drill holes as required for mounting hardware (Hardware not included).
Step 4
1. Install spout assembly to the sink.
2. Install elbow fitting (provided) to the spout assembly.
3. Connect one side of the supply line (provided) to the spout assembly.
4. Attach connecting tube from the spout to valve.
Step 5
1. Mount pedestal sink to the floor.
2. Connect waste line to strainer assembly.
3. Connect water supplies (hot and cold) to the mixing check valve.
Step 6
1. Remove aerator from the spout assembly and flush water line by pressing pedal for 30
seconds.
2. Check connections for leaks. Replace aerator onto the spout assembly.
Parts List
(1) Sink bowl
(1) Pedestal base
(6) Nuts and washers to attach bowl to pedestal base
(1) Single foot pedal valve
(2) Valve mounting nuts
(1) Swivel gooseneck spout with aerator
(1) Strainer assembly with basket
(1) Connecting tubes for valve to spout connection
(2) Fittings, brass, 0.375” male compression and 0.375” male NPT
(1) Mixing check valve
2
C O L U M B I A S P E C I F I C ATI O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
H A N D S - F R E E F L O O R M O U N T S I N K
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Tools Required
Tape measure
Adjustable wrench
Drill motor and drill bits
Pipe wrench
Level
Safety glasses
Screw drivers: phillips and standard
Pencil
Socket wrench
Go to for more information on replacement parts and installation videos.columbiasinks.com
Illustration A
Illustration B
Illustration C
Trouble Shooting Guide
Problem Possible Cause To Diagnose Remedy
Water drips from spout
or valve stem assembly.
Flat washer on the
stem/plunger is worn.
To determine if the leak source is from the hot or cold side shut
cold water source off. See if water still leaks from the spout. If
leak continues then repair hot side if not repair cold side.
We recommend installing valve repair
kit.
Water leaks from the
front of the valve.
O-Rings on the
plunger are worn out.
Visually determine whether the cold or hot side is leaking. We recommend replacing threaded
insert, plunger assembly & spring.
See illustrations below.
Valve Repair Instructions
Note: Valves are designed to be repaired without having to be disconnected from mount or
plumbing.
1. Turn off water source. Do not remove valve from sink.
2. Remove pedal assembly using a 15/16” open end wrench or socket wrench. As shown in
illustration A.
3. Using a 1” deep socket wrench remove insert assembly parts as show in illustration B.
4. Replace with new repair kit as shown on illustration C.
5. Reinstall pedal assembly and turn water source on.
3
C O L U M B I A S P E C I F I C ATI O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
H A N D S - F R E E F L O O R M O U N T S I N K
Illustration A
Illustration B
Illustration C
