1

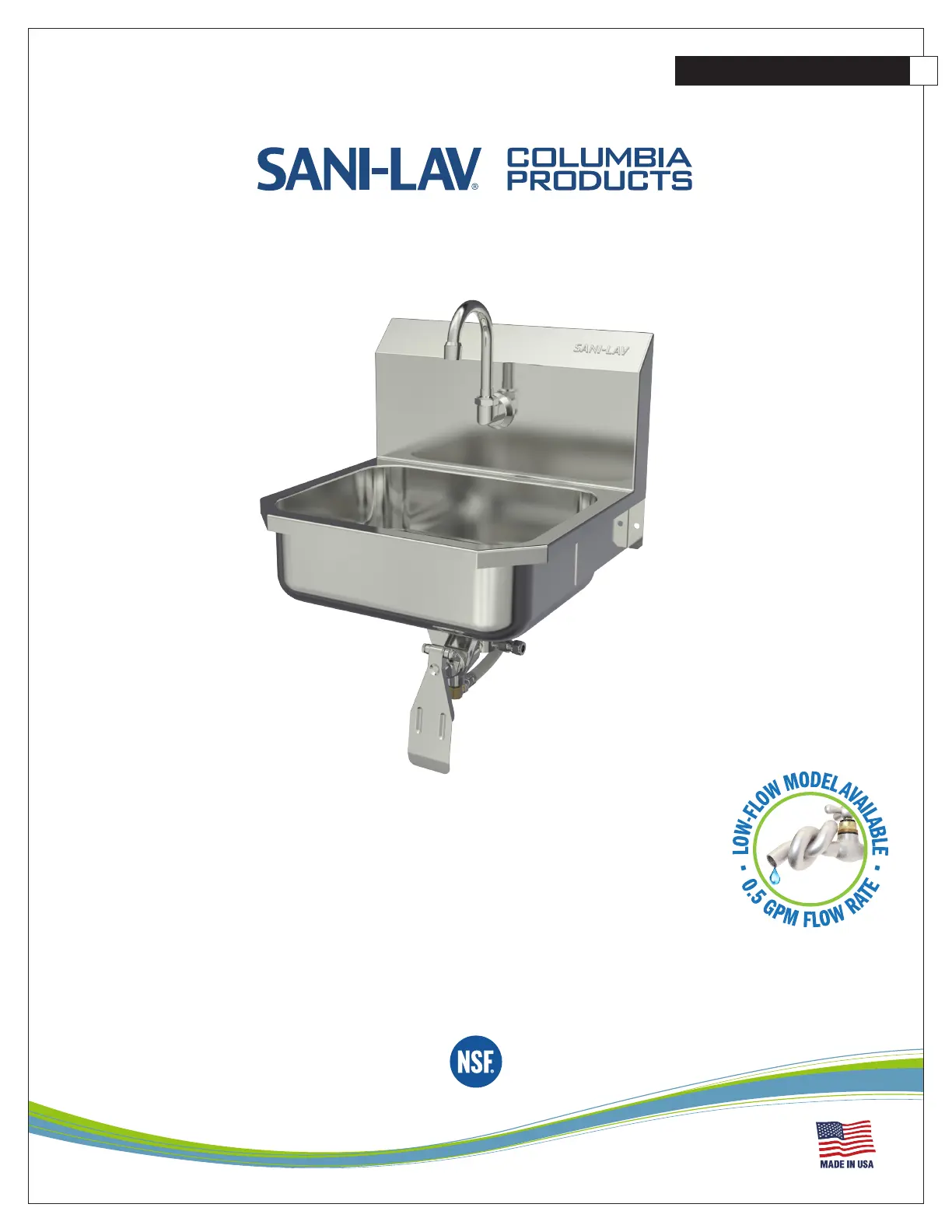

H A N D S - F R E E W A L L M O U N T S I N K
Operating Manual for Hands-Free Wall Mount Stainless Steel Sink
Models 605L and 605L-0.5
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead
2
C O L U M B I A S P E C I F I C AT I O N S H A N D S - F R E E W A L L M O U N T S I N K
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
Installation Instructions
Step 1
1. Establish sink location on the wall.
2. Determine desired height for the top of the backsplash from finished floor and draw a level
line which will be the top edge of the wall mounting bracket.
3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill
holes and secure bracket to the wall as shown in illustration A. Screws are not provided.
4. Position the sink onto wall bracket.
5. Mark holes for fastening side mounting brackets as shown in illustration B.
6. Remove sink from the wall bracket.
7. Drill holes in wall for securing sink to wall. Screws are not provided.
Step 2
1. Install strainer assembly at the drain hole.
2. Install spout assembly using mounting nut provided.
3. Attach the elbow fitting to the back of spout.
4. Attach the connecting tube to spout.
5. Secure sink to wall.
Step 3
1. Connect waste line or drain pipe to the strainer assembly.
2. Connect mixing check valve to valve inlet.
3. Mount valve under sink using mounting nuts provided.
4. Attach the elbow fitting to the bottom of the valve.
5. Attach the connecting tube from spout to valve.
6. Connect hot and cold water supply to mixing check valve.
Step 4
1. Remove aerator from the spout and flush water system.
2. Check connections for leaks.
3. Replace aerator onto the spout.
4. We recommend sealing top of backsplash to wall as shown in illustration C.
Parts List
(1) Wall mount sink
(1) Single knee pedal valve
(2) Valve mounting nuts
(1) Swivel gooseneck spout with aerator
(1) Connecting tube for valve to spout connection
(2) Fittings, brass, 0.375” male compression and 0.375” male NPT
(1) Mixing check valve
(1) Wall-mounting bracket
(1) Strainer assembly with basket
Tools Required
Tape measure
Adjustable wrench
Drill motor and drill bits
Pipe wrench
Level
Safety glasses
Screw drivers: phillips and standard
Pencil
Socket wrench
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Go to for more information on replacement parts and installation videos.columbiasinks.com
Illustration A
Illustration B
Illustration C
3
C O L U M B I A S P E C I F I C AT I O N S H A N D S - F R E E W A L L M O U N T S I N K
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
Valve Repair Instructions
Note: Valves are designed to be repaired without having to be disconnected from mount or plumbing.
1. Turn off water source. Do not remove valve from sink.
2. Remove pedal assembly using a 15/16” open end wrench or socket wrench. As shown in
illustration A.
3. Using a one inch deep socket wrench remove insert assembly parts as show in illustration B.
4. Replace with new repair kit model 1061L as shown on illustration C.
5. Reinstall pedal assembly and turn water source on.
Trouble Shooting Guide
Problem Possible Cause To Diagnose Remedy
Water drips from spout
or valve stem assembly.
Flat washer on the
stem/plunger is worn.
To determine if the leak source is from the hot or cold side shut
cold water source off. See if water still leaks from the spout. If
leak continues then repair hot side if not repair cold side
We recommend installing valve repair
kit.
Water leaks from the
front of the valve.
O-Rings on the
plunger are worn out.
Visually determine whether the cold or hot side is leaking. We recommend replacing threaded
insert, plunger assembly & spring.
See illustrations below.
Illustration A
Illustration B
Illustration C
