Seite 1/6
1

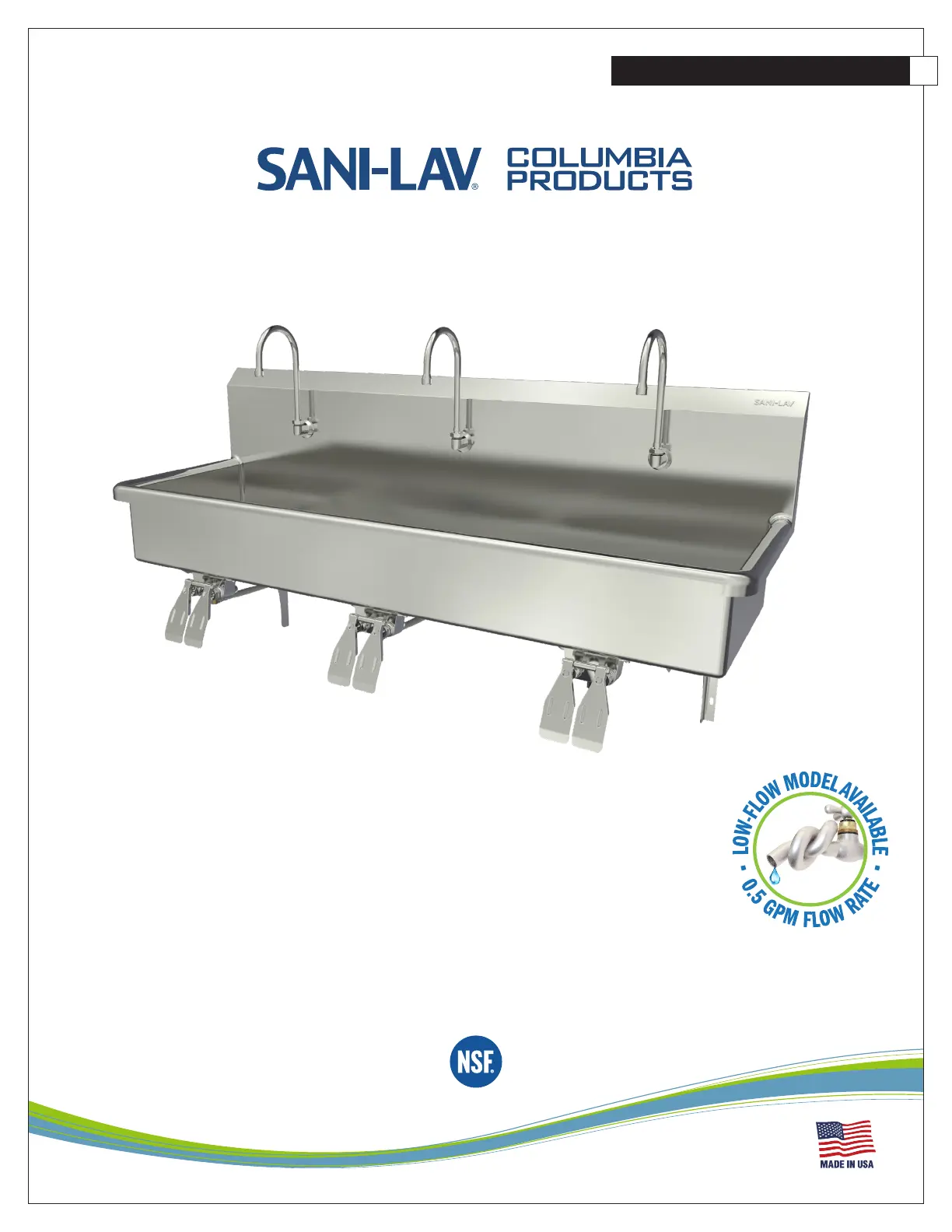

H A N D S - F R E E W A L L M O U N T WA S H S TAT I O N
Operating Manual for 3-Person Hands-Free Wall Mount
Stainless Steel Wash Station
Models 56WSL 56WSL-0.5 and
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment, NSF/ANSI 372 Low-Lead
2
C O L U M B I A S P E C I F I C AT I O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
H A N D S - F R E E W A L L M O U N T WA S H S TAT I O N
Parts List
(1) Wall mount wash station
(3) Double knee pedal valve
(6) Valve mounting nuts
(3) Swivel gooseneck spout with aerator
(3) Connecting tube for valve to spout connection
(6) Fittings, brass, 0.375” male compression and 0.375” male NPT
(2) Wall-mounting brackets
(2) Support brackets
(4) Nuts and washers for mounting sink to support brackets
(1) Strainer assembly with basket
Installation Instructions
Step 1
1. Establish Sink location on the wall.
2. Measure a recommended 45” from finished floor and draw a level line which will be the top
edge of the wall mounting bracket.
3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill
holes and secure bracket to the wall as shown in illustration A. Screws are not provided.
Step 2
1. Install spout assemblies to the sink.
2. Install elbow fitting (provided) to the spout assemblies.
3. Connect supply lines (provided) to the spout assemblies.
4. Install strainer assembly.
Step 3
1. Position Sink onto the wall bracket.
2. Mount Support Bracket to the bottom of the sink. Do not tighten.
3. Slide or push support brackets against the wall and mark holes for fastening. See illustration B.
4. Remove Support Brackets from the sink and drill holes for fastening.
5. Install fastening hardware to the drilled holes. (not included)
6. Mount support bracket to the bottom of the sink and fasten them to the wall.
Step 4
1. Install Knee Pedal valves onto the sink.
2. Install elbow fittings to the Knee Pedal valves.
3. Connect the connecting tubes from the Spouts to the Knee Pedal Valves.
Step 5
1. Connect waste line or drain pipe to the strainer assembly.
2. Connect Hot and Cold water supply line to the water source.
Step 6
1. Remove aerator from the spout assembly and flush water system. Check connections for leaks.
Replace aerator onto the spout assembly.
2. We recommend sealing top of backsplash to wall as shown in illustration C.
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Go to for more information on replacement parts and installation videos.columbiasinks.com
Tools Required
Tape measure
Adjustable wrench
Drill motor and drill bits
Pipe wrench
Level
Safety glasses
Screw drivers: phillips and standard
Pencil
Socket wrench
Illustration A
Illustration B
Illustration C
3
C O L U M B I A S P E C I F I C AT I O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
H A N D S - F R E E W A L L M O U N T WA S H S TAT I O N
Valve Repair Instructions
Note: Valves are designed to be repaired without having to be disconnected from mount or plumbing.
1. Turn off water source. Do not remove valve from sink.
2. Remove pedal assembly using a 15/16” open end wrench or socket wrench. As shown in
illustration A.
3. Using a 1” deep socket wrench or closed end wrench remove insert assembly as shown in
illustration B.
4. Replace with new repair kit as shown on illustration C.
5. Reinstall pedal assembly and turn water source on.
Trouble Shooting Guide
Problem Possible Cause To Diagnose Remedy
Water drips from spout
or valve stem assembly.
Flat washer on the
stem/plunger is worn.
To determine if the leak source is from the hot or cold side shut
cold water source off. See if water still leaks from the spout. If
leak continues then repair hot side if not repair cold side
We recommend installing valve repair
kit.
Water leaks from the
front of the valve.
O-Rings on the
plunger are worn out.
Visually determine whether the cold or hot side is leaking. We recommend replacing threaded
insert, plunger assembly & spring.
See illustrations below.
Illustration A
Illustration B
Illustration C
