Seite 1/5
1

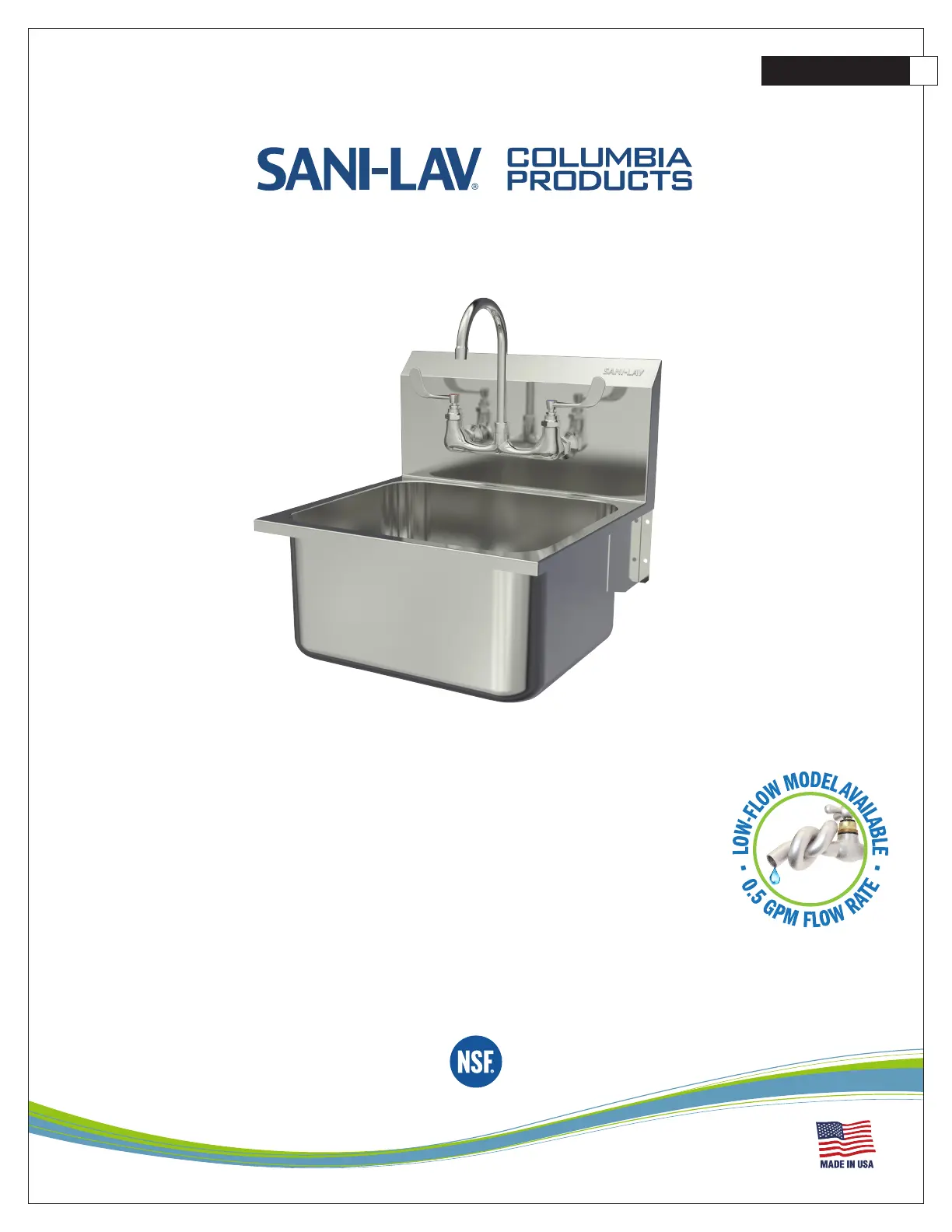

W A L L M O U N T S I N K
Operating Manual for Wall Mount Stainless Steel Sink
Models 525FL and 525FL-0.5
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment, NSF/ANSI 61, Section 9, ASME A112.18.1/CSA B125.1
2
C O L U M B I A S P E C I F I C AT I O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
W A L L M O U N T S I N K
Installation Instructions
Step 1
1. Establish sink location on the wall.
2. Measure a recommended 41.5” from finished floor and draw a level line which will be the top
edge of the wall mounting bracket.
3. Hold the wall mounting bracket against the wall and mark the wall where the holes are. Drill holes
and secure bracket to the wall as shown in illustration A. Screws are not provided.
Step 2
1. Install faucet assembly to the sink using the faucet mounting kit model SMK.
2. Install strainer assembly at the drain hole.
3. Connect hot and cold water supply (not included) to the faucet.
Step 3
1. Position the sink onto wall bracket.
2. Mark holes for fastening side mounting brackets as shown in illustration B.
3. Remove sink from the wall bracket.
4. Drill holes in wall for securing sink to wall.
5. Hang sink on the wall bracket and secure to the wall.
Step 4
1. Connect waste line or drain pipe to the strainer assembly.
2. Connect hot and cold water supply lines to the water source.
3. Remove aerator from the spout and flush water system.
4. Check connections for leaks.
5. Replace aerator onto the spout.
6. We recommend sealing top of backsplash to wall as shown in illustration C.
Illustration A
Illustration B
Parts List
(1) Wall mount sink
(1) 8” on center faucet
(1) Faucet mounting kit
(1) Wall-mounting bracket
(1) Strainer assembly with basket
Trouble Shooting Guide
Problem Possible Cause To Diagnose Remedy
Water drips from
the spout or from
under the lever.
1. Seat washer is worn
2. Seat is worn
3. O-rings are worn
Shut cold water source off.
See if water still leaks from the
spout. If leaks continues repair
hot side if not repair cold side.
Recommend
installing hot
or cold faucet
repair kit.
Tools Required
Tape measure
Adjustable wrench
Drill motor and drill bits
Pipe wrench
Level
Safety glasses
Screw drivers: phillips and standard
Pencil
Socket wrench
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Go to for more information on replacement parts and installation videos.columbiasinks.com
Illustration C
3
C O L U M B I A S P E C I F I C AT I O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
W A L L M O U N T S I N K
7.5” (191mm) 19.5”
(483mm)
24”
(610mm)
45º
6.5” (165 mm)
20” (508mm)
6.5”
(165mm) 6.5”
(165mm)
8”
(203mm)
9.5”
(241mm)
10”
(254mm)
1.25” R
32mm
.875” (22mm)
dia. hole
6” (152mm)
9.5” (241mm)
6.5” (165 mm)
21” (533mm)
19” (483mm)
20”
(508mm)
16”
(406mm)
2” (51mm)
Hole Configurations
Front Side
Top
Wall-mounting bracket
Stainless Steel Brackets
Supply Line Detail
Back Splash
1/2” Male NPT
Hot
from Wall
Cold
from Wall
1.5”
(38.1mm) .875”
(22.22mm)
Back
Splash
.25”
dia. hole
2” drain hole
Wall Mounting Detail
