Seite 1/5
1

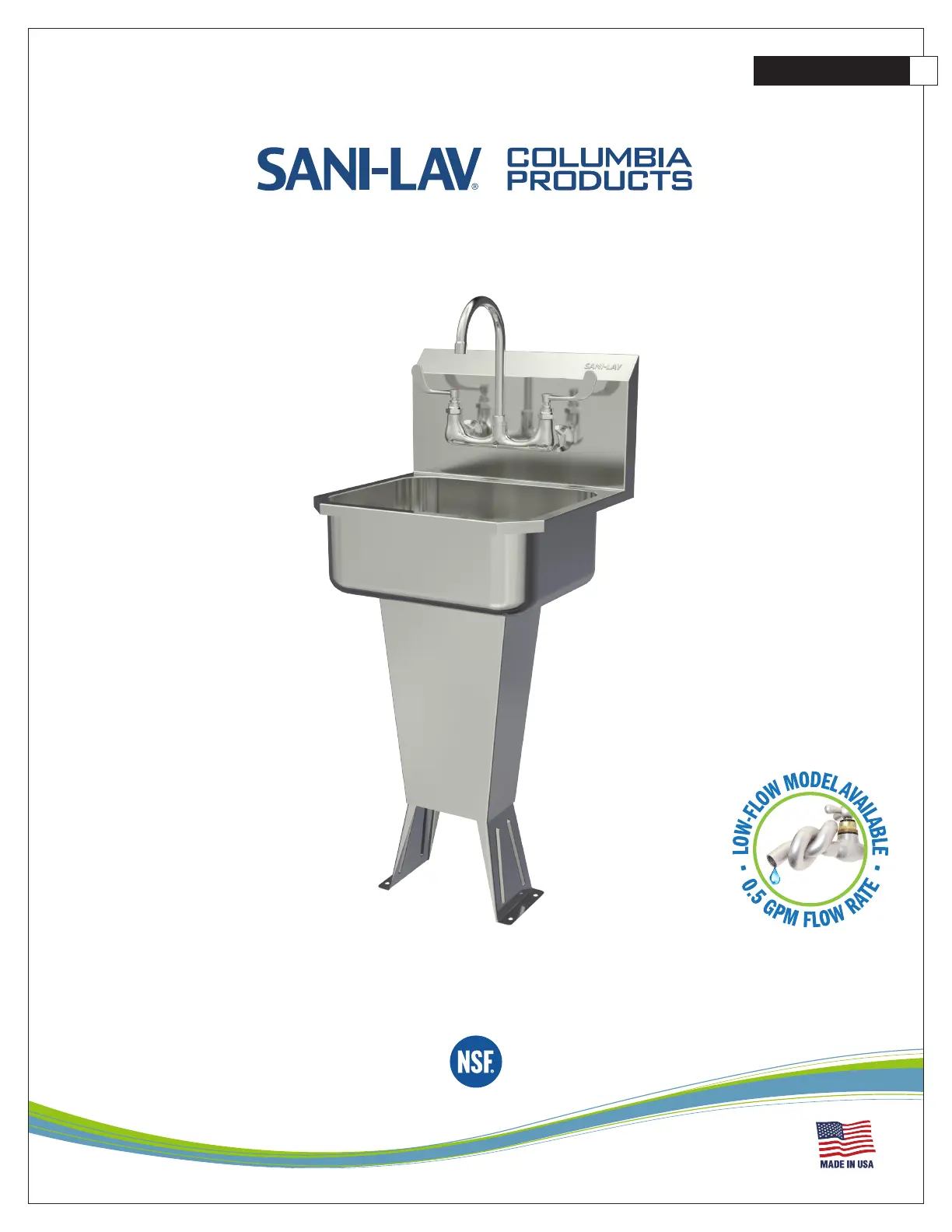

F L O O R M O U N T S I N K
Operating Manual for Floor Mount Stainless Steel Sink
Models 501FL and 501FL-0.5
of Domestic and Foreign Parts
Columbia does not recommend use with harsh chemicals.
Product Compliance
NSF/ANSI 2 Food Equipment, NSF/ANSI 61, Section 9, ASME A112.18.1/CSA B125.1
2
C O L U M B I A S P E C I F I C AT I O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
F L O O R M O U N T S I N K
Installation Instructions
Step 1
1. Attach bowl to pedestal base by slipping bolts on bowl through openings on pedestal base as
shown in illustration A.
2. Tighten the 6 nuts to the threaded bolts under bowl. Do not over-tighten. There are 6 bolts that
will securely hold the bowl in place.
Step 2
1. Place the sink at the desired location.
2. Mark the floor where the four holes are at the pedestal base as shown in illustration B.
3. Drill holes as required for mounting hardware. (Hardware not included)
Step 3
1. Install strainer assembly using plumbers putty to seal the strainer to sink.
2. Install faucet assembly to the sink back-splash.
3. Install hot and cold water lines to the back of the faucet. (not provided)
Step 4
1. Mount pedestal sink to the floor.
2. Connect waste line or drain pipe to strainer assembly. (not provided)
3. Connect hot and cold water supply lines to the water sources. (not provided)
Step 5
1. Turn water on.
2. Remove aerator from the spout and flush water system.
3. Check connections for leaks.
4. Replace aerator onto the spout.
Parts List
(1) Sink bowl
(1) Pedestal base
(6) Nuts and washers to attach bowl to pedestal base
(1) 8” on center faucet
(1) Faucet mounting kit
(1) Strainer assembly with basket
Trouble Shooting Guide
Problem Possible Cause To Diagnose Remedy
Water drips from the
spout or from under
the lever.
1. Seat washer is worn
2. Seat is worn
3. O-rings are worn
Shut cold water source off. See if water still leaks from the spout.
If leaks continues repair hot side if not repair cold side.
Recommend installing hot or cold
faucet repair kit.
WARNING: This product can expose you to chemicals including Chromium (hexavalent compounds),
Lead, and Phthalates (DEHP) which are known to the State of California to cause cancer and birth defects
or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
NOTE: Lead content originates from Brass components in valves and faucets and is certied under
NSF/ANSI 372 as containing less than 0.25% lead in wetted surfaces.
Notice for California Consumers
Tools Required
Tape measure
Adjustable wrench
Drill motor and drill bits
Pipe wrench
Level
Safety glasses
Screw drivers: phillips and standard
Pencil
Socket wrench
Go to for more information on replacement parts and installation videos.columbiasinks.com
Illustration A
Illustration B
3
C O L U M B I A S P E C I F I C AT I O N S
800.626.2117 columbiasinks.com info@columbiasinks.com
©2021 Columbia Products
F L O O R M O U N T S I N K
16.5”
(419mm)
21”
(533mm)
45º
19” (483mm)
17” (432mm)
2” drain hole
9.5”
(241mm)
7”
(197mm)
25” (635mm)
1.25” R
32mm
Front Side
Top
5.75” (146 mm)
18”
(457mm)
14”
(356mm)
2” (51mm)
7.5” (191mm)
Supply Line Detail
Back Splash
1/2” Male NPT
Hot
from Wall
Cold
from Wall
6” (152.4mm)
0.875” (22.225mm)
11.375” (288.925mm) 4.25” (107.95mm)
5.5”
(140mm)
5.5”
(140mm)
8”
(203mm)
Hole Configurations
.875” (22mm)
dia. hole
6” (152mm)
9.5” (241mm)
Floor Mounting Detail
.375” dia. Floor
Mounting Holes
4.25” on Center
