Seite 1/4

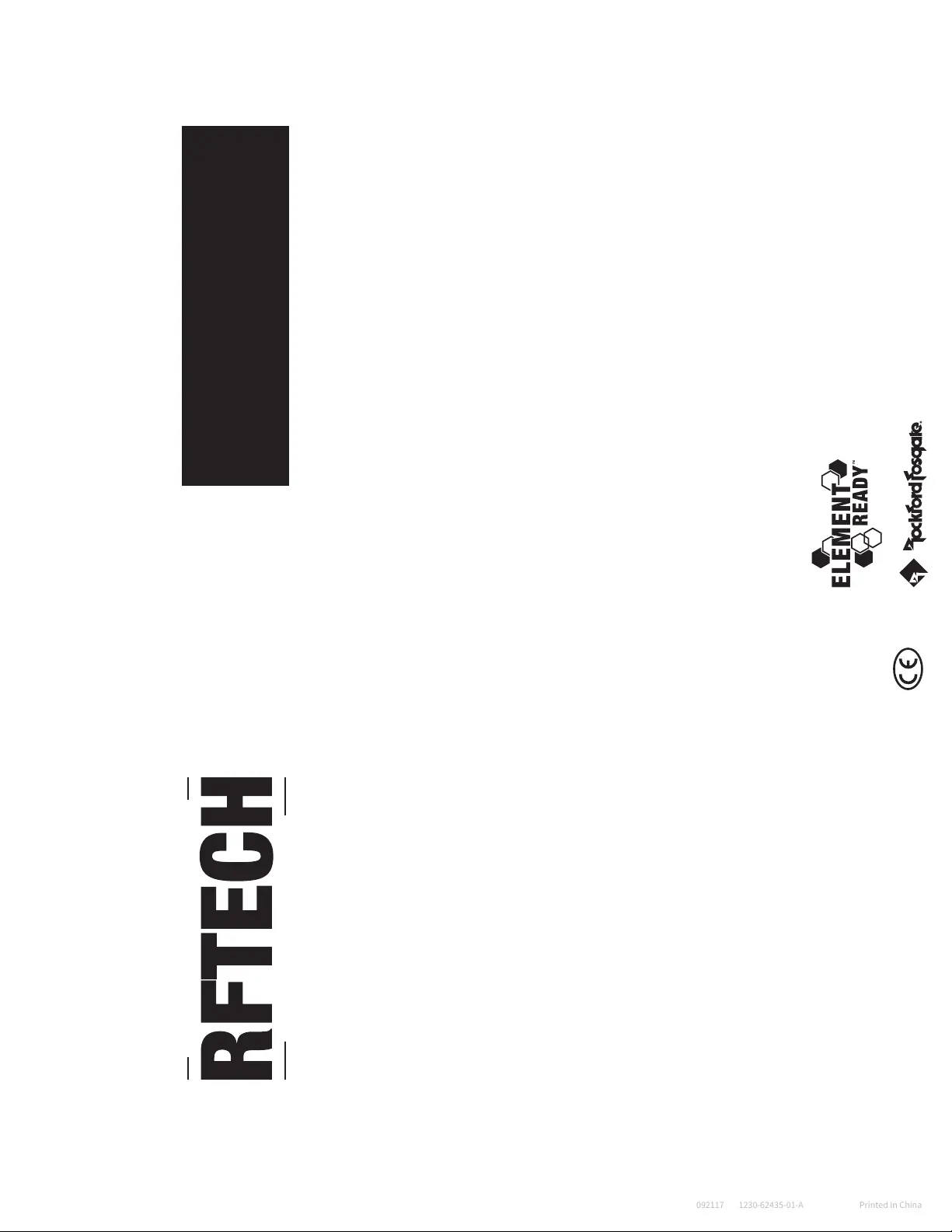

Installation & Operation
RFX3-RSW16
CAN-AM MAVERICK X3ÂŽ
REAR SPEAKER
WIRE KIT
R O C K F O R D F O S G A T E . C O M
600 South Rockford Drive • Tempe, Arizona 85281
United States
Direct: (480) 967-3565 • Toll Free: (800) 669-9899
Installation assistance available at:
www.rockfordfosgate.com/rech
2
Dear Customer,
Congratulations on your purchase of the world’s finest brand of
audio products. At Rockford Fosgate we are fanatics about musical
reproduction at its best, and we are pleased you chose our product.
Through years of engineering expertise, hand crasmanship and critical
testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new
Rockford Fosgate product installed by an Authorized Rockford Fosgate
Dealer, as we provide specialized training through Rockford Technical
Training Institute (RTTI). Please read your warranty and retain your
receipt and original carton for possible future use.
Great product and competent installations are only a piece of the puzzle
when it comes to your system. Make sure that your installer is using
100% authentic installation accessories from Rockford Fosgate in your
installation. Rockford Fosgate has everything from RCA cables and
speaker wire to power wire and battery connectors. Insist on it! Aer all,
your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order
your Rockford accessories, which include everything from T-shirts to
hats.
Visit our web site for the latest information on all Rockford products;
www.rockfordfosgate.com
or, in the U.S. call 1-800-669-9899 or FAX 1-800-398-3985. For all other
countries, call +001-480-967-3565 or FAX +001-480-966-3983.
Table of Contents
If, aer reading your manual, you still have questions regarding this
product, we recommend that you see your Rockford Fosgate dealer.
If you need further assistance, you can call us direct at 1-800-669-
9899. Be sure to have your serial number, model number and date of
purchase available when you call.
Safety
This symbol with “WARNING” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
will result in severe injury or death.
This symbol with “CAUTION” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
can result in injury or unit damage.
• To prevent injury and damage to the unit, please read and
follow the instructions in this manual. We want you to enjoy
this system, not get a headache.
• If you feel unsure about installing this system yourself, have
it installed by a qualied Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-)
terminal to prevent damage to the unit, re and/or possible
injury.
Contents
Installation Tools
The following is a list of suggested tools needed for installation:
Introduction
Š2017 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered
trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective
owners. Specications subject to change without notice.
2Introduction
3Installation
4Warranty
• Small Flat Blade Screwdriver
• T-40 Torx
• 4mm Allen Driver
• Wire Cutters
• Panel Tool
• (1) Driver’s Side Wire Harness
• (1) Passenger Side Wire
Harness
• Plastic Wire Tie Wraps
PRACTICE SAFE SOUND
Continuous exposure to sound pressure levels over 100dB
may cause permanent hearing loss. High powered auto
sound systems may produce sound pressure levels well
over 130dB. Use common sense and practice safe sound.
3
Installation Considerations
This section focuses on some considerations for installing your Can-Am
Maverick X3 rear speaker wire kit. This wire kit is designed to work in
conjunction with Rockford’s other X3 specific audio kits and parts.
If you feel unsure about installing this system yourself, have it installed
by a qualified technician.
When drilling holes, make sure you know what is on the other side. Be
sure that any electrical, fuel lines or any other important components
are free and clear from the area.
Before installation, disconnect the battery
negative (-) terminal to prevent damage to
the unit, fire and/or possible injury.
Before beginning any installation, follow
these simple rules:
Be sure to carefully read and understand the
instructions before attempting to install this
wiring kit.
• Consult your UTV’s service manual for model specific information.
Models may dier from year to year depending on factory options
and aermarket accessories added.
• This rear speaker wire kit is specifically designed to work with
Rockford Fosgate’s X3 audio kits.
• With the addition of an amplifier or source unit, be sure that your
current charging system is in proper working order.
• Visit rockfordfosgate.com for more comprehensive product
information.
• Visit our YouTube channel for comprehensive installation videos
demonstrating complete installation guides and install tips.
Installation
Applicable Models:
Can-Am Maverick X3 (2 & 4 seat models)
This rear speaker wire kit is designed to work with Rockford Fosgate’s
RFX3-K8 / RFX3-K4 amplifier kits and RFX3-PMXDK dash kit. The wire kit
can be installed in both 2-seat and 4-seat models secured to the roll
cage and run under the floor.
Step 1. Feed the white 2-pin connector through the mounting flange
leaving enough slack so you can connect the speaker to the
connector. Then assemble the mounting flange to the lower
half of the mounting clamp assembly making sure the wire
aligns with the notch in the flange to prevent pinching before
tightening.
Step 2. You will want to install the wake can bracket approximately
4-6 inches away from the top of the rear shock reservoir.
Step 3. Once the wire harness is connected to the wake can, slide the
enclosure over the mounting post and secure it with using the
security Torx wrench that came with the enclosures.
NOTE: A safety lanyard is supplied with the wake cans for additional
safety. Refer to wake can instructions for a more detailed installation
guide.
Step 4. This harness is designed to be run down the rear factory cage
with the supplied plastic wire ties.
Step 5. Continue to route the harness down the rear tube through the
cage opening. The wire harness should follow the inside of the
fender and then toward the center of the vehicle.
NOTE: Be sure the wire harness is wire tied to the chassis tube, away
from moving components and heat.
Step 6. Remove the passenger side seat to provide access to the
panels on the center console. There are (3) panels that need
to be removed.
Step 7. Once removed, route the wires down the center of the car
along the vehicles main wire harness.
NOTE: Be sure to keep away from exhaust and moving components
when routing toward the front of the vehicle.
Step 8. Feed both wires up the backside of the center console and run
up to the opening where the fuse panel is located.
Step 9. Connect the wires to the source unit harness.
Step 10. Reinstall the center dash kit.
PM-CL2B Bracket
RFX3-RSW16 Wire
Harness
Mounting Tab
Wake Can Speaker
Enclosure
