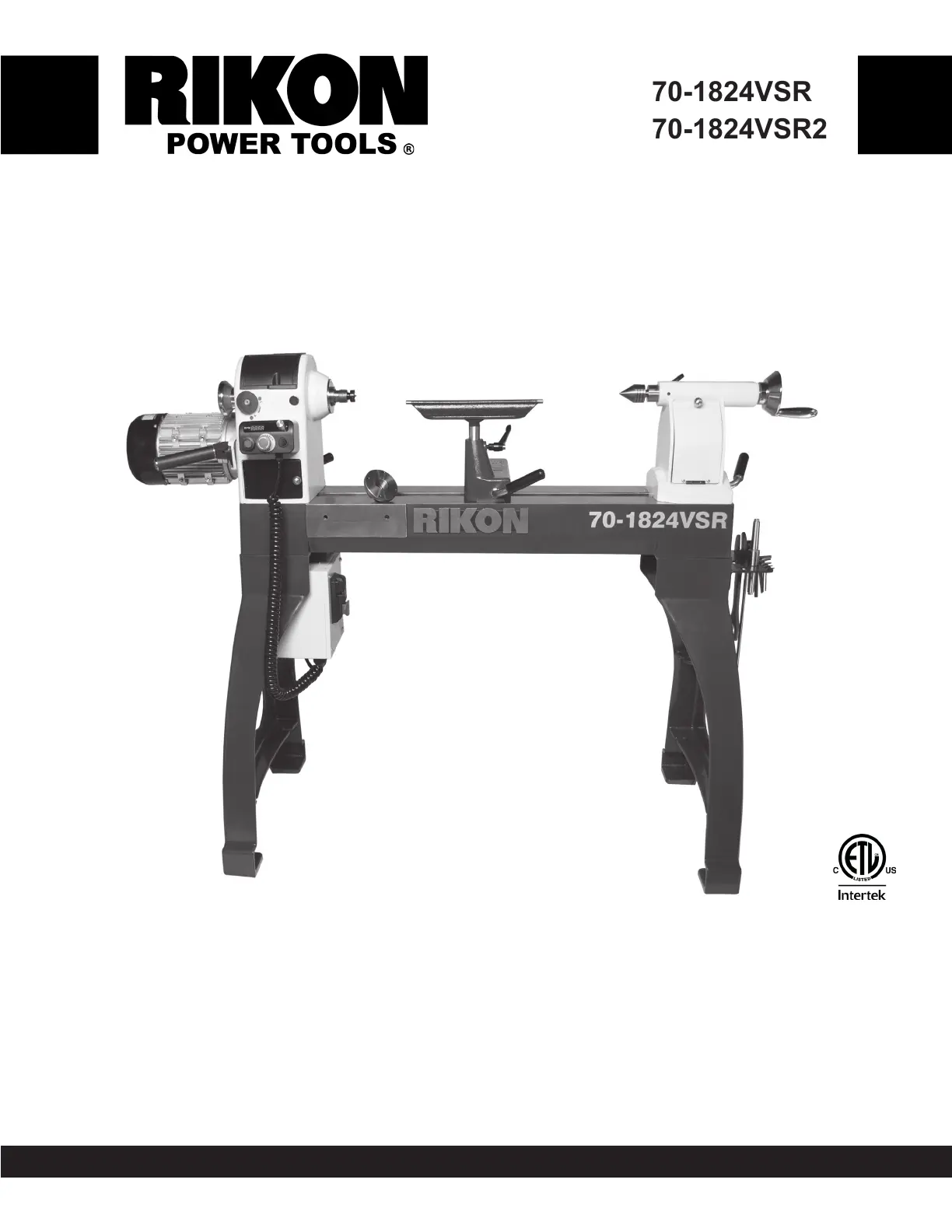

70-1824VSRM3
18” x 24” VSR Lathes
Operator’s Manual
Serial Number: _________________________ Date of purchase: _________________________
For technical support or parts questions, email techsupport@rikontools.com or call toll free at (877) 884-5167
Record the serial number and date of purchase in your manual for future reference.
The serial number can be found on the speciîšżcation label on the rear of your machine.
1.75HP, 115V and 2.5HP, 230V Models
2
TABLE OF CONTENTS
SPECIFICATIONS # 70-1824VSR & 70-1824VSR2
NOTE: The speciîšżcations, photographs, drawings and information in this manual represent the current model when the manual was
prepared. Changes and improvements may be made at any time, with no obligation on the part of RIKON Power Tools, Inc. to modify
previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with
the guidelines for the proper safety, assembly and operation of this machine.
Speciîšżcations..................................................................................................................... 2
Safety Instructions ........................................................................................................ 3 - 7
Electricals & Wiring Diagram .............................................................................. 5, 6, 24 & 25
Getting To Know Your Machine .............................................................................................. 8
Contents of Package ................................................................................................. 8 & 9
Installation ..................................................................................................................... 9
Assembly .................................................................................................................. 10 - 12
Operation .................................................................................................................. 13 - 17
Adjustments............................................................................................................... 18 - 22
Maintenance .................................................................................................................... 23
Troubleshooting ....................................................................................... 26 - 28
Notes ......................................................................................................................... 28
Parts Diagrams & Parts Lists ................................................................................. 29 - 36
Accessories ............................................................................................................ 37 & 38
Warranty .......................................................................................................................... 39
Motor TEFC ....................................................... 1.75 HP ..........................2.5 HP
Volts, Phase (Input/Output) ........................ 115 V, 3/1 Ph ................. 230 V, 3 Ph
Amps, Hertz ............................................. 16 A, 50/60 Hz .............14 A, 50/60 Hz
Motor Speed (no load) ................................................................ 1,720 RPM
Recommended Breaker Size ........................................................... 20 Amp
Spindle Rotation .............................................................. Forward/Reverse
Swing Over Bed ....................................................................... 18”(457 mm)
Swing Over Tool Rest Base............................................... 13-3/4” (350 mm)
Distance Between Centers...................................................... 24” (610 mm)
Speeds ................................................................. Variable 50 - 3,850 RPM
Speed Ranges (3) .......................... 50 - 900; 100 - 1,850; 200 - 3,850 RPM
Spindle Nose Threading.....................................................1-1/4” x 8 TPI RH
Headstock Taper .................................................................................. MT-2
Tailstock Taper ..................................................................................... MT-2
Hole Through Drive Spindle ..................................................... 3/8” (10 mm)
Hole Through Tailstock ............................................................ 3/8” (10 mm)
Tailstock RAM Travel Quill .................................................. 4-1/2" (115 mm)
Number of Indexing Positions.............................................. 24 (15 Degrees)
Headstock Rotation .................................................................. 180 Degrees
Tool Rest Post Diameter ...........................................................1” (25.4 mm)
Spindle to Floor Distance ............................................. 43-5/16“ (1100 mm)
Overall Height ................................................................. 47-3/8” (1205 mm)
Overall Length ...................................................................... 63” (1600 mm)
Overall Width .................................................................... 24-3/8” (620 mm)
Outboard Swing Over Bed Extension (optional) ............... 27-1/2” (700 mm)
Outboard Swing Over Tool Rest Base .............................. 23-1/2” (600 mm)
Outboard Swing 90° Forward Over Stand Leg ...................... 44” (1118 mm)
Base / Legs Size (LxW) ........................ 47-1/4” x 24-3/8” (1120 x 620 mm)
Net Weight ........................................................................ 373 lbs (169 kgs)
3
SAFETY SYMBOLS
IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following
instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock,
îšżre, and/or serious personal injury.
There are certain applications for which this tool was designed. We strongly recommend that this tool not be modiîšżed
and/or used for any other application other than that for which it was designed. If you have any questions about its
application, do not use the tool until you have contacted us and we have advised you.
SAFETY INSTRUCTIONS
GENERAL SAFETY
KNOW YOUR POWER TOOL. Read the owner’s manual
carefully. Learn the tool’s applications, work capabilities,
and its speciîšżc potential hazards.
BEFORE USING YOUR MACHINE
To avoid serious injury and damage to the tool, read and
follow all of the Safety and Operating Instructions before
operating the machine.
1. Some dust created by using power
tools contains chemicals known to the State of California
to cause cancer, birth defects, or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
• masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area and work
with approved safety equipment, such as those dust masks
that are specially designed to îšżlter out microscopic
particles.
2. the entire Owner’s Manual. how to use READ LEARN
the tool for its intended applications.
3. If the tool is supplied with a 3 GROUND ALL TOOLS.
prong plug, it must be plugged into a 3-contact electrical
receptacle. The 3rd prong is used to ground the tool and
provide protection against accidental electric shock. DO
NOT remove the 3rd prong. See Grounding Instructions
on the following pages.
4. AVOID A DANGEROUS WORKING ENVIRONMENT.
DO NOT use electrical tools in a damp environment or
expose them to rain.
5. use electrical tools in the presence of DO NOT
ammable liquids or gases.
6. ALWAYS keep the work area clean, well lit, and
organized. work in an environment with oor DO NOT
surfaces that are slippery from debris, grease, and wax.
7. KEEP VISITORS AND CHILDREN AWAY. DO NOT
permit people to be in the immediate work area,
especially when the electrical tool is operating.
8. to perform an operation DO NOT FORCE THE TOOL
for which it was not designed. It will do a safer and
higher quality job by only performing operations for
which the tool was intended.
9. wear loose WEAR PROPER CLOTHING. DO NOT
clothing, gloves, neckties, or jewelry. These items can
get caught in the machine during operations and pull the
operator into the moving parts. The user must wear a
protective cover on their hair, if the hair is long, to
prevent it from contacting any moving parts.
10. CHILDPROOF THE WORKSHOP AREA by
removing switch keys, unplugging tools from the
electrical receptacles, and using padlocks.
11. ALWAYS UNPLUG THE TOOL FROM THE
ELECTRICAL RECEPTACLE when making adjust-
ments, changing parts or performing any maintenance.
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. This symbol may be used
in conjunction with other symbols or pictographs.
Indicates an imminently hazardous situation, which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious
injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in minor or
moderate injury.
NOTICE: Shown without Safety Alert Symbol indicates a situation that may result in property damage.
