Seite 1/16

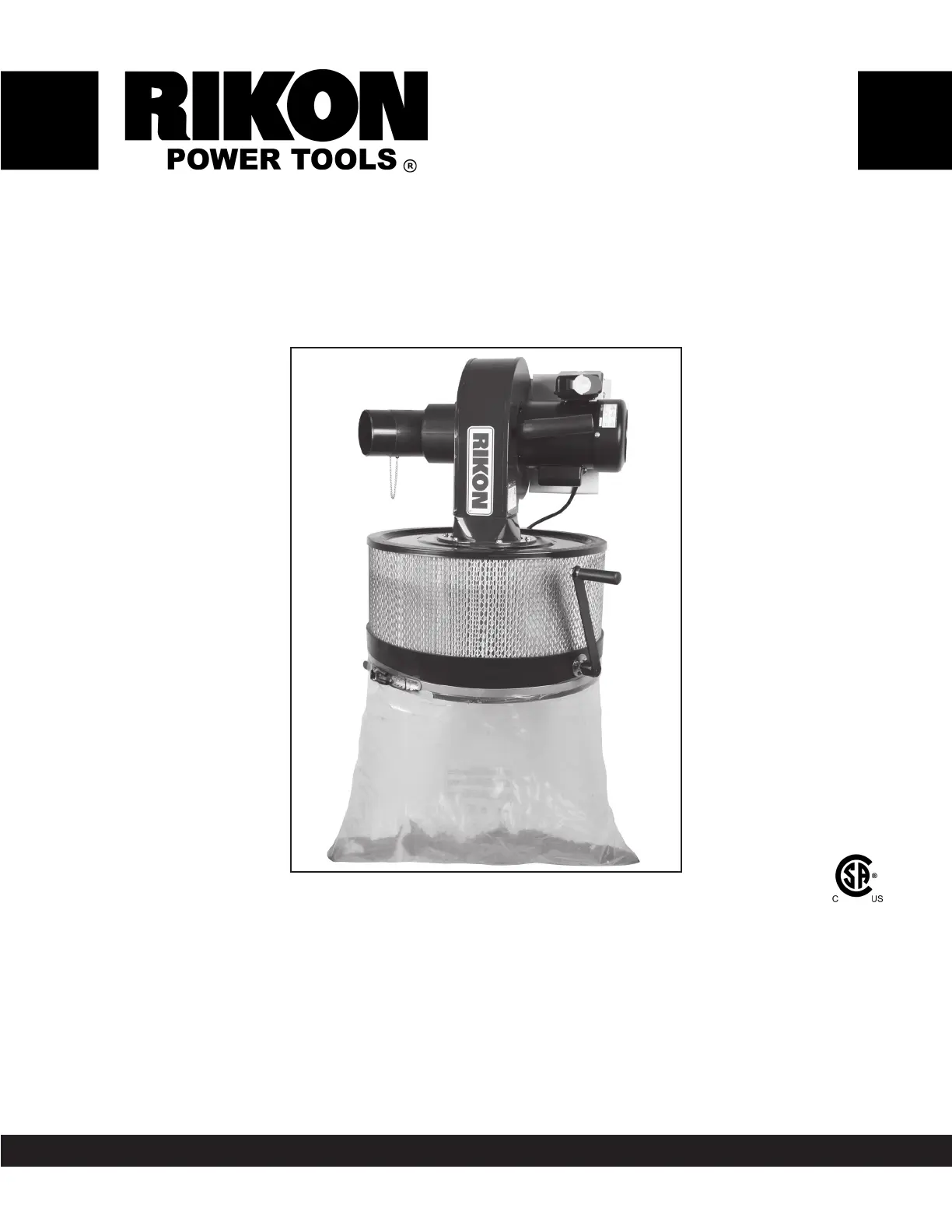

www.rikontools.com
60-101M1
Wall Mounted
1HP DUST COLLECTOR
Operator’s Manual
Serial Number: _________________________ Date of purchase: _________________________
60-101
Record the serial number and date of purchase in your manual for future reference.
The serial number can be found on the speciîšżcation label on the side of your machine.
For technical support, email techsupport@rikontools.com - For parts questions, email parts@rikontools.com
Speciîšżcations ..............................................................................................................................2
Safety Warnings.................................................................................................................3-6
Electrical Requirements ........................................................................................5, 14
Dust Collector Safety Rules ........................................................................................................6
Contents of Package ...............................................................................................................................7
Assembly .................................................................................................................8-10
Operation........................................................................................................................11
Dust Hazards and Safety....................................................................................................6, 11
Accessories .......................................................................................................11
Parts Diagram .................................................................................................................................12
Parts List ...........................................................................................................................13
Wiring Diagram............................................................................................................................14
Trouble Shooting.....................................................................................................................................14
Maintenance ....................................................................................................................15
Warranty ...................................................................................................................................15
2
NOTE: The speciîšżcations, photographs, drawings and information in this manual represent the current model
when the manual was prepared. Changes and improvements may be made at any time, with no obligation on
the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to
ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety,
assembly and operation of this machine.
Motor .....................................................................................................1HP, TEFC
Motor Speed (no load).......................................................................... 3,450 RPM
Volts ................................................................................................. 120 V / 240 V
Amps, Hertz, Phase .......................................................... 7 A / 3.5 A, 60 Hz, 1 Ph
Dust Collection Velocity CFM ................................... 800 @ 4” or 1,100 @ 5” inlet
Max. Static Pressure (at 0 CFM) ......................................................................7.2”
Blower Impeller ............................................................... 10” Diameter, Aluminum
Sound Rating @ 6 Feet ...................................................................... <86.375 dB
Canister Filtration Rating ......................................................................... 1 Micron
Canister Pleated Filter Size ............................ 19-5/8” (500mm) x 7-1/8” (180mm)
Total Pleated Filter Surface ................................................................... 13.46 sq/ft
Plastic Bag Length (installed) ........................................................................... 20”
Plastic Bag Capacity ............................................................................. 1.5 Cu. Ft.
Dust Ports / Hose Connections ....................................................... 1 @ 5”, 2@4”
Intake Funnel Size ............................................................................... 5” diameter
Overall Size (LxWxH) .............................................................. 23-1/2” x 21” x 46”
Net Weight ...................................................................................................61 lbs.
SPECIFICATIONS #60-101
TABLE OF CONTENTS
SAFETY SYMBOLS
IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following
instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock,
îšżre, and/or serious personal injury.
There are certain applications for which this tool was designed. We strongly recommend that this tool not be modiîšżed
and/or used for any other application other than that for which it was designed. If you have any questions about its
application, do not use the tool until you have contacted us and we have advised you.
SAFETY INSTRUCTIONS
GENERAL SAFETY
KNOW YOUR POWER TOOL. Read the owner’s manual
carefully. Learn the tool’s applications, work capabilities,
and its speciîšżc potential hazards.
BEFORE USING YOUR MACHINE
To avoid serious injury and damage to the tool, read and
follow all of the Safety and Operating Instructions before
operating the machine.
1. Some dust created by using power tools
contains chemicals known to the State of California to
cause cancer, birth defects, or other reproductive harm.
Some examples of these chemicals are:
• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
• masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk from these exposures varies, depending on how
often you do this type of work. To reduce your exposure to
these chemicals: work in a well ventilated area and work
with approved safety equipment, such as those dust masks
that are specially designed to îšżlter out microscopic
particles.
2. the entire Owner’s Manual. how to use READ LEARN
the tool for its intended applications.
3. If the tool is supplied with a 3 GROUND ALL TOOLS.
prong plug, it must be plugged into a 3-contact electrical
receptacle. The 3rd prong is used to ground the tool and
provide protection against accidental electric shock. DO
NOT remove the 3rd prong. See Grounding Instructions
on the following pages.
4. AVOID A DANGEROUS WORKING ENVIRONMENT.
DO NOT use electrical tools in a damp environment or
expose them to rain.
5. use electrical tools in the presence of DO NOT
ammable liquids or gases.
6. ALWAYS keep the work area clean, well lit, and
organized. work in an environment with oor DO NOT
surfaces that are slippery from debris, grease, and wax.
7. KEEP VISITORS AND CHILDREN AWAY. DO NOT
permit people to be in the immediate work area,
especially when the electrical tool is operating.
8. to perform an operation DO NOT FORCE THE TOOL
for which it was not designed. It will do a safer and
higher quality job by only performing operations for
which the tool was intended.
9. wear loose WEAR PROPER CLOTHING. DO NOT
clothing, gloves, neckties, or jewelry. These items can
get caught in the machine during operations and pull the
operator into the moving parts. The user must wear a
protective cover on their hair, if the hair is long, to
prevent it from contacting any moving parts.
10. CHILDPROOF THE WORKSHOP AREA by
removing switch keys, unplugging tools from the
electrical receptacles, and using padlocks.
11. ALWAYS UNPLUG THE TOOL FROM THE
ELECTRICAL RECEPTACLE when making adjust-
ments, changing parts or performing any maintenance.
SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. This symbol may be used
in conjunction with other symbols or pictographs.
Indicates an imminently hazardous situation, which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious
injury.
Indicates a potentially hazardous situation, which, if not avoided, could result in minor or
moderate injury.
NOTICE: Shown without Safety Alert Symbol indicates a situation that may result in property damage.
3
