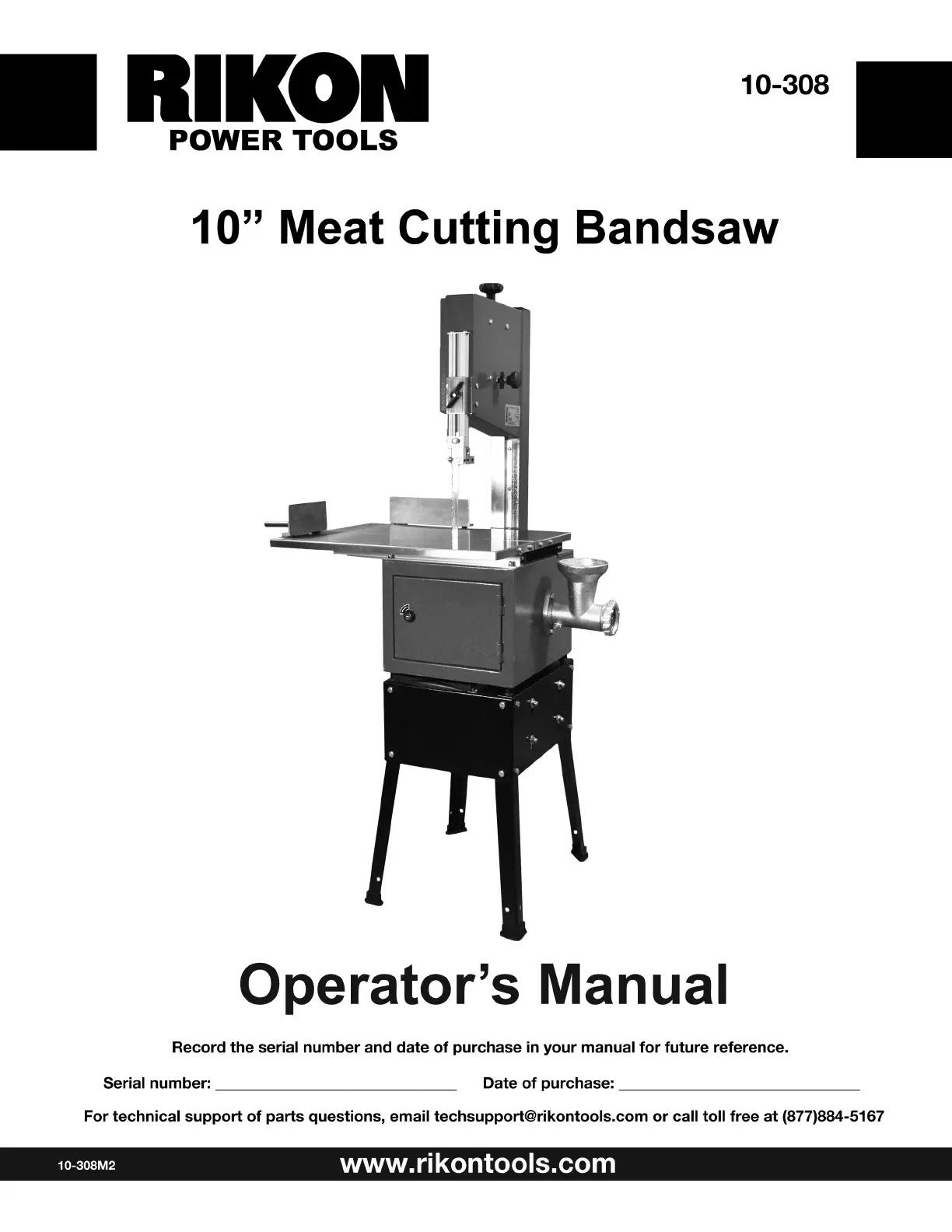

RIKON 10-308 Bedienungsanleitung
RIKON
Sägemaschine
10-308
Lesen Sie kostenlos die 📖 deutsche Bedienungsanleitung für RIKON 10-308 (20 Seiten) in der Kategorie Sägemaschine. Dieser Bedienungsanleitung war für 13 Personen hilfreich und wurde von 2 Benutzern mit durchschnittlich 4.5 Sternen bewertet
Seite 1/20
2
Specifications
Model: -308 10
Type Floor Model
Motor/Phase 1ph TEFC
Voltage/Amps 11 / 5A 5V
Horse Power 3/4 HP
Cutting Height 8- 1/2”
Cutting Width 9- 1/4”
Blade Length - 76 3/4” Stainless
Blade Width 5/8”
Blade Speed 950 FPM
Sliding Table Stroke 8”
Max Cut 8”
Fence Adj 8”
Sausage Grinder Speed 300 RPM
Die Dia 2- 1/2”
Height - 57 1/2”
Width 21”
Table Dimensions 22” x 17”
Net Weight 150 LBS
Shipping Weight 170 LBS
Carton Size 17” x 19” x 39”
Specifications........................................................................................................... 2
Safety Instructions 3 - 5, 8, 14.....................................................................................
Package Contents ............................................... ..................................................... 6
Saw Features............................................................................................................. 7
Assembly 9, 10........................................................................................ ....... .............
Adjustments 11 - 13........................................ .............................................................
Blade Changing, Tension & Tracking 11, 12................................. ...............................
Blade Guide Adjustments....................................................................................... 13
Saw Operation ................ .............................................. .................................. ....... 14
Grinder & CleaningOperation .................................................................................. 14
Parts Breakdown ....................................................................... ...................... 15 - 17
Parts List ...................................................... ...................................................... 17, 18
Warranty ................................................................. ................................................. 19
Thank you for your tool purchase. When properly assembled, wired, operated and maintained your
RIKON product will give you years of dependable service. Please read and understand the owner’s
manual completely.
Table of Contents
Electrical .................................................................................................................... 8
3
IMPORTANT REQUIRED READING! —Safety is the single most important consideration in
the operation of this equipment. The following safety instructions must be adhered to at all times.
Failure to read and understand this manual before you unpack, assemble, wire, op-
erate and maintain this machine may result in serious injury to yourself or others.
Review and understand all safety procedures and requirements. If you do not un-
derstand any content of this manual including how to assemble, wire, operate and
maintain this machine safely, do not use this machine.
Using power tools or equipment of any kind can be dangerous if safe operating procedures are not
followed. Recognizing the hazards of each tool and using them with respect and caution will con-
siderably limit the possibility of personal injury. However, if safety precautions are ignored, per-
sonal injury will likely result. Always use common sense. Your personal safety is your responsibil-
ity.
No manual can list every safety precaution or operating procedure as it pertains to a given work
area and environment. Use good judgment, think and apply safety measures before taking any ac-
tion. Failure to do so may result in serious injury, damage to equipment and surroundings and/or
give negative performance results.
There are certain applications for which this tool was designed. We strongly recommend that this
tool not be modified and/or used for any other application other than for which it was designed. If
you have any questions about its application, do not use the tool until you have contacted us and
we have advised you.
General Safety Rules & Hazards
Do not operate equipment while tired or under the influence of drugs, alcohol or medication
that causes physical or mental impairment. Full physical and mental alertness is required to
operate power tools.
Do not operate this machine until is completely assembled. Incomplete or incorrect assemblyit
can cause serious injury.
Use the right tool for the job. Do not force a tool to do something it was not designed for.
Do not make any changes or modifications to any power tool or machinery. This may cause personal
injury and even death.
Wrenches & chuck keys: Remove any wrenches, chuck keys or other tools and items from
the machine before starting the machine as they can fly and strike the operators and others in
the shop area.
Guards: Make sure all guards are in place and working correctly before operating the
machinery.
Secure work: Use proper hold downs, clamps, and vises to secure work before machining. It
will give you safer control of the work piece and better results.
Accessories: Use only recommended accessories with machinery ome made jigs, fixtures and clamps . H
may be dangerous and cause serious injury.
Maintain machinery in top working condition. This includes keeping tools clean and sharp. A well cared for
machine will be inherently safer provide longer service and give optimum results. ,
Replace damaged parts and thoroughly inspect machinery before each use ny loose, broken or mis-. A
General Safety Guidelines
WARNING
!
