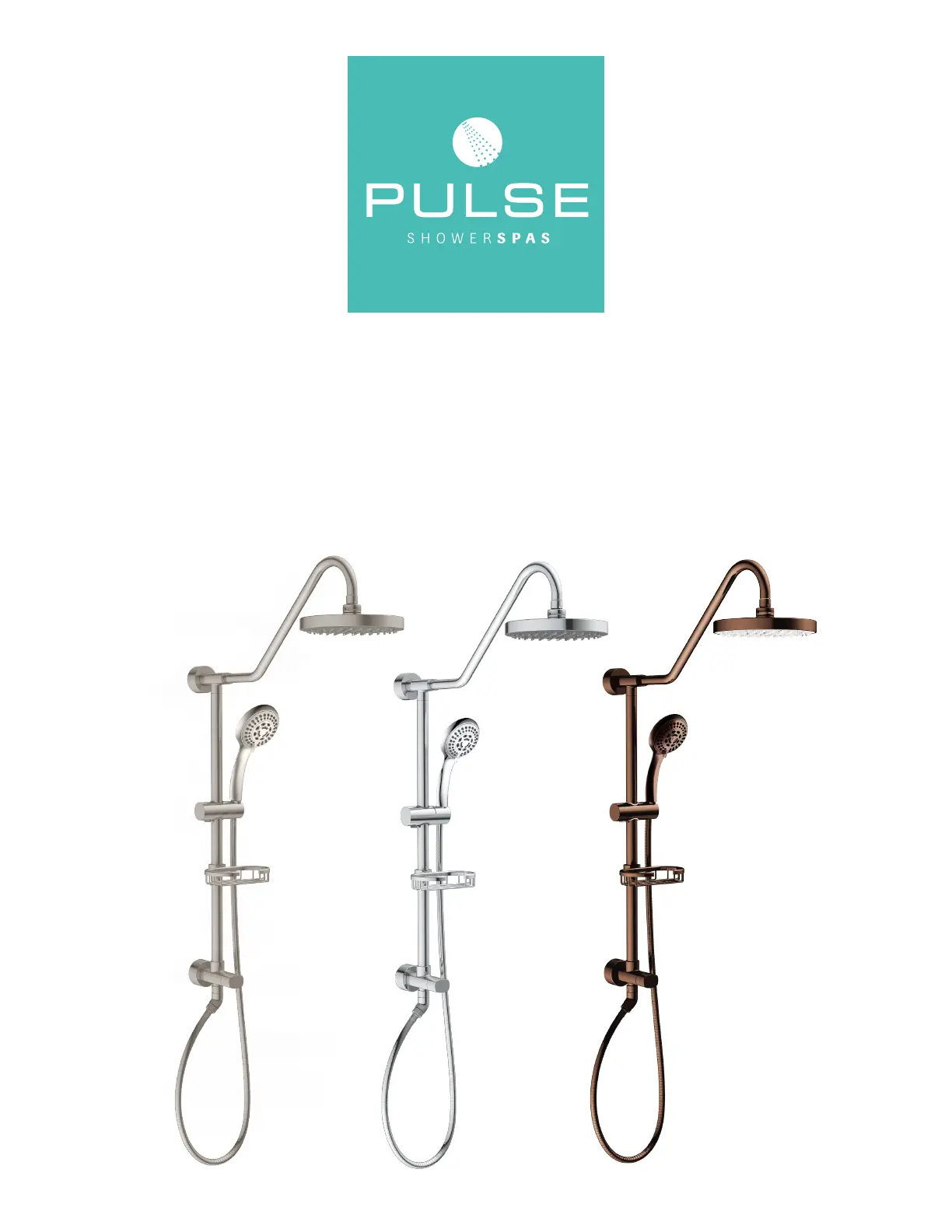

Kauai III Rain Shower System
Model #1011-BN, 1011-CH & 1011-ORB
PW-91011-1125BRN, PW-91011-1125CP, PW-91011-1125BRZ
PW-91011-1118BRN, PW-91011-1118CP, PW-91011-1118BRZ
Owner's Manual
Parts Legend
1. ½" x 2" NPT Nipple
2. Inlet Fitting
2.1 check valve/restrictor
3. Top Escutcheon
4. Top Tee
5. Shower Arm
6. Shower Head
7. Shower Pipe**
8. Soap Dish
9. Hand Shower Holder
10. Hand Shower
11. Stainless Steel Hose
12. Diverter Body
13. Bottom Escutcheon
14. Lower Mount Screw ..............(2)
15. Lower Mount (w/ 3MTape)
16. Wall Anchor ...........................(2)
17. Set Screw - 2.5mmX4mm
18. Swivel Joint
19. Check Valve
20. Set Screw - 2.5X5mm
21. Rubber Washer (3) .............
22. Diverter Handle
23. 2.5mm Hex Wrench
24. PTFE Thread Sealant Tape
25. Set Screw - 2.5X8mm*
26. Shower Pipe Nut
27. Tapered Rubber Seal
28. Diverter Cartridge
29. Glue
*D
oe s
no t
app ly
on
mo Del
1077 * *4”
shor t er
s p HOWER IPE (7)
ava i lab l e
fo r
pu r c h as e
at
www
.p
ul s e
s
ho w er
s
pa s
.
com
2
6.38
in. -
162 mm
5 in. -
127mm
**When using optional 4 inch shorter pipe.
~26
1/8 1/8 in. - 664 mm [ ~22 in. - 562 mm**]
27
5/16 5/16 [ in. - 694 mm 23 in. - 592 mm**]
33
5/16 in. - 846 mm [ 29 5/16 in. - 562 mm**]
33
5/16 5/16in. - 846 mm [ 29 ]in. - 562 mm**
16
1/4 in. - 413 mm
20
in. - 508 mm
24
in. - 610 mm
36
1/4 1/4 [ in. - 920 mm 32 in. - 819 mm**]
9
in. - 228 mm
3.62 in. -
92 mm
Finish Wall Line
3
Installation Instructions
Thank you for choosing this Shower System by PULSE ShowerSpas!
Assembly and installation of the Shower System is designed
to be quick and easy. If you have installation questions or
performance problems, visit www.pulseshowerspas.com for
customer support
Please read instructions carefully, become familiar with all parts,
installation procedures and tools required. Follow steps in order
presented to help avoid mistakes.
FOR NEW CONSTRUCTION OR
COMPLETE REMODEL
• A hot/cold mixing valve is required (NOT INCLUDED)
• Nipple should extend
1
⁄
2
" past nished wall surface.
TOOLS REQUIRED
Adjustable wrench, Phillips screwdriver, pencil, 2.5mm hex
wrench, 3mm hex wrench
ASSEMBLY
1. Determine length of brass NPT nipple (1) needed:
a. Place mark on existing shower arm at wall surface.
Unscrew shower arm from elbow in wall.
b. Measure distance from mark on shower arm to end of
shower arm threads. Add
1
⁄
2
" to this measurement, and
then round to nearest
1
⁄
2
".
Example 1: If measurement = 1
1
⁄
4
", add
1
⁄
2
" = 1
3
⁄
4
",
rounded = 2" NPT nipple—this is the length needed.
Example 2: If measurement = 1
5
⁄
8
", add
1
⁄
2
" = 2
1
⁄
8
",
rounded = 2" NPT nipple—this is the length needed.
IMPORTANT: If shower arm is located above tile/berglass
wall surface you must add distance from sheetrock to face
of tile/berglass shower wall to the above measurement.
NOTE: If supplied 2" nipple (1) is not correct length based on
above formula, you must obtain correct size NPT brass
nipple (sold separately), available at most hardware stores.
2. Apply generous amount of PTFE Thread Sealant Tape (24)
to both ends of nipple (1).
3. Hand tighten inlet tting (2) onto nipple (1), then nipple
to tting in wall. Use adjustable wrench on inlet tting to
tighten both connections simultaneously until both are
secure with no leaks.
4. Slide hand shower holder (9) o shower pipe (7).
5. Slide soap dish (8) onto shower pipe to desired position
and secure with set screw (25). For model 1077 slide soap
dish retainer onto shower pipe. Slide plastic soap dish onto
shower pipe and push soap dish down until ush
with retainer.
CAUTION—DO NOT OVERTIGHTEN
6. Reinstall hand shower hanger (9).
7. Secure swivel joint onto bottom of diverter body (12). Swivel
joint should move freely side to side.
CAUTION—DO NOT OVERTIGHTEN
8. Insert shower pipe (7) into top tee (4). Secure with set screw
(17).
9. Slide top escutcheon (3) over top tee (4).
HINT—Lubricate escutcheon o-ring; a small amount of
soapy water will do the trick.
10. Slide bottom escutcheon (13) over diverter body (12).
HINT—Lubricate escutcheon o-ring; a small amount of
soapy water will do the trick.
11. Loosen set screw (20) on diverter and slide lower mount (15)
into diverter body (12).
12. Push top tee (4) over inlet tting (2) until ush against
tting. Position diverter body (12) so shower pipe is plumb
(vertical).
13. Mark location of lower mount with pencil.
14. Wall surface must be clean of any residue and
completely dry.
OPTION 1: 3M Tape
Remove covering of 3M Tape and position mount on
marked locations.
OPTION 2: Glue
Apply glue as indicated in Fugre 1. remove covering of 3M
tape and position mount on marked location.
15. Apply pressure to mount for 30 seconds by pushing rmly
against the wall. To ensure proper adhesion, allow one hour
before using your ShowerSpa and keep area around the
mount as dry as possible for the rst 24 hours. Tape and
glue will be fully cured after 24 hours.
OPTIONAL: Secure lower mount with permanent walll anchors.
Mark hole locations in lower mount (15). Drill 1
1/4"
deep
holes using 6mm (1/4") masonry/tile drill bit. Insert wall
anchors (16) and secure lower mount with screws (14).
CAUTION —LIVE PLUMBING IN WALL
16. Position shower pipe (7) parallel to wall by sliding diverter
body (12) on lower mount (15). Secure diverter to lower
mount with set screw (20).
17. Insert rubber washer (21) into both ends of hose (11).
Connect hex head end to swivel joint (18) and tapered
end to hand shower (10). Place hand shower (10) into
adjustable hanger (9).
18. Tighten shower head (6) securely to shower arm (5).
Tape
Glue
Back of wall mount
