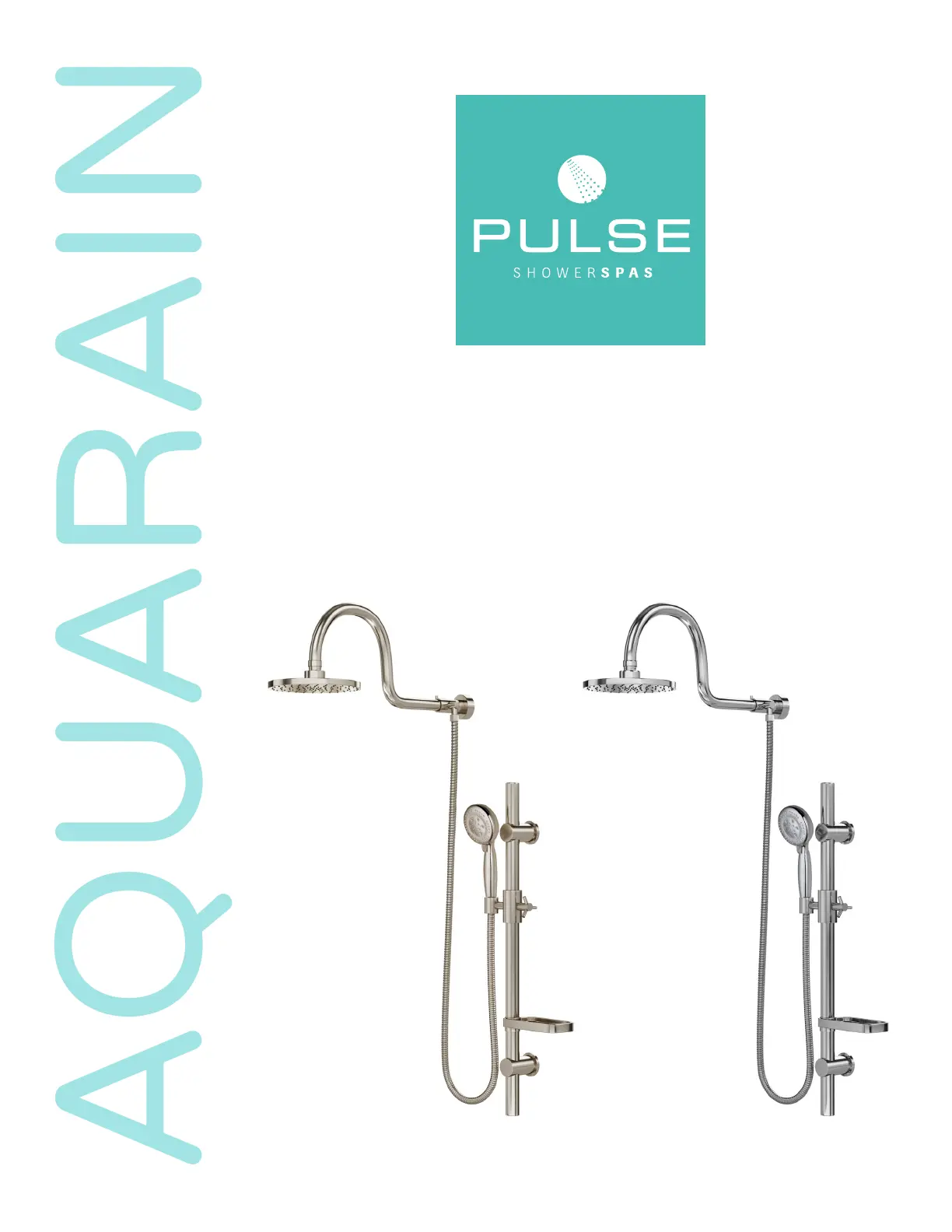

AquaRain Shower System
Model #1019-BN & 1019-CH
Owner's Manual
AQUARAIN
2
AquaRain Parts Legend
1. Shower Head
2. Screen Washer
3. AquaRain Body
4. Escutcheon
5. Set Screw
6. Slide Bar
7. Slide Bar Mounts (2) ..........
8. Screw 3.375" (2) .................
9. Mount Covers (2) .................
10. Wall Anchors (2) .................
11. Tapered Nylon Sleeve
12. Soap Dish
13. Handshower
14. Rubber Washer
15. Handshower Hose
5
4
2
3
1
14
15
12
13
11
10
10
9
9
8
8
7
7
6
3
Installation Instructions
Thank you for choosing the AquaRain Shower System by PULSE ShowerSpas!
Assembly and installation of the AquaRain Shower System is
designed to be quick and easy. If you have installation questions
or performance problems, call PULSE Customer Service toll free
at 888-785-7320 or visit www.pulseshowerspas.com.
Please read instructions carefully, become familiar with all parts,
installation procedures and tools required. Follow steps in order
presented to help avoid mistakes.
FOR NEW CONSTRUCTION OR
COMPLETE REMODEL
•
A hot/cold mixing valve is required (NOT INCLUDED)
TOOLS REQUIRED
Drill (preferably cordless), (1/4") 6mm masonry/tile drill bit,
Phillips screwdriver, pipe wrench.
ASSEMBLY
1. Remove existing shower head and shower arm.
2. WrapthreadsofshowerpipewithTeontapeand/orpipe
sealant to ensure no leaks. (Diagram A)
3. Slide escutcheon over threaded shower pipe. (Diagram B)
4. Insertthreadedpipeintofemalewallttingandtighten
securely. Use diverter body to tighten by hand or use a pipe
wrench on inlet pipe closest to wall. (Diagram C)
CAUTION
—
DO NOT USE SHOWER ARM TO TIGHTEN
5. While gently pushing up on connection between shower
arm and top tee to ensure AquaRain is level, slide escutch-
eon against wall. (Diagram E) Secure set screw. (Diagram F)
CAUTION
—
DO NOT OVER-TIGHTEN SET SCREW
6. Insert rubber washer in shower head and secure shower
head to shower arm.
7. Hold Adjustable Slide Bar (6) in desired mounting location.
Evaluate range of adjustment and potential interference of
handshower hose (15) (Diagram G).
8. Mark wall for two mounting holes. Before drilling ensure no
live plumbing can be damaged.
9. Slowly drill 1/4” (6mm) wide by 1” (25mm) deep holes 22
5/8 inch (575mm) apart. Make sure holes are plumb.
IMPORTANT:
Supplied anchors are for solid surface only
i.e.tile,marbleetc.Ifmountingtoholloworberglasswall,
adierentanchor/screwandholesizemayberequired.
10. Insertwallanchors(10)untilushwithwall.Slidetop
mount (7) over slide bar (Diagram H) and secure with screw
(8) (Diagram I). Slide plastic soap dish (12) (Diagram J) onto
slide bar followed by narrow end of tapered nylon sleeve
(11) (Diagram K). Align tab on soap dish with slot on sleeve
andpushsoapdishdownuntilush.(DiagramL)
11. Slide lower mount (7) over slide bar and secure screw (8).
12. Press covers (9) into mounts (7) (Diagram M).
13. Place washer (14) in hex head of hose (15) and connect to
diverter outlet. Place washer (14) in tapered end of hose
and connect handshower (13). Place hand shower into
holder.
