OWNER’S MANUAL
WALL SERIES
W670 • W680 • W800
Before installing your speakers, you should consider their place-
ment carefully, taking into account the location of electrical,
plumbing and other fixtures. Contact your Dealer for assistance
if you are unsure of the best location for your particular listening
environment.
Placement In Wall: When installing your speakers into the wall,
ideal sound will be achieved when the tweeters are placed at ear
level or slightly higher and the primary listening area is no closer
to the wall than the distance between the speakers themselves.
(See Diagram 1)
If the speakers are positioned far away from the primary listening
area, adjust the pivoting tweeters so they are pointed towards it.
Note: To avoid possible damage to the pivoting tweeters, read the
section entitled “SPEAKER ADJUSTMENTS” in this manual prior
to performing the tweeter adjustment.
New Construction - Unfinished Walls
A Pre-Construction Bracket, available from your Dealer, may be
installed prior to drywall application across studs (up to 24" on-
center) where a speaker will be located. After the hole is cut and
the drywall is installed, the speakers are then easily installed
following the instructions for mounting in “Finished Walls” below.
Note: If the speakers are to be mounted more than 24" on-center,
a special “Extra Long Wing” is available from your Dealer.
Finished Walls
Prior to the actual installation of the speakers, it will be necessary
to run cables to the speaker locations. See your Dealer for more
information about cable installation. After the cable has been
properly installed, you are ready to mount the speakers. Following
the simple steps listed below will result in a professional looking
installation:
1. Determine the best area to mount your speakers. This area of
the wall should be free of obstructions such as electrical con-
duit, HVAC ducts, or water lines. This can best be determined
by noting the placement of fixtures and gaining access to an
attic or crawl space for further analysis of the location of such
obstacles.
2. Find the studs nearest the desired speaker mounting loca-
tion. We highly recommend using a good stud-finder tool for
this procedure. If you are lining up the speakers to some other
object or molding in the room, make sure you consider the size
of the baffle flange which extends beyond the mounting hole on
all four sides.
3. Mark the hole. A template for setting the hole is provided in the
box (along with two paint mask inserts for use when painting).
Position the template in the desired position and pencil an
outline on the wall.
4. Cutting the hole. CAUTION: This is the most important part
of the entire installation. If you are not certain whether any
obstructions exist behind the desired mounting area, you
should start by cutting a small hole in the center of your pen-
ciled mounting hole with a drywall saw. Cut at a 45° angle
towards the inside of the hole . Cutting the small (See Diagram 2)
hole at this angle will make drywall repair much easier as the
piece cut out can be installed neatly back into the hole. Once
you have determined there aren’t any obstructions in your
desired mounting location, start cutting the finished hole at a
90 angle to the wall surface.°
5. Add insulation. If the area in the wall is not already insulated,
add an adequate amount of insulation material to fill the cavity.
If the insulation material used is faced with foil or paper, posi-
tion the foil or paper away from the speaker.
SPEAKER PLACEMENT
MOUNTING SURFACE PREPARATION

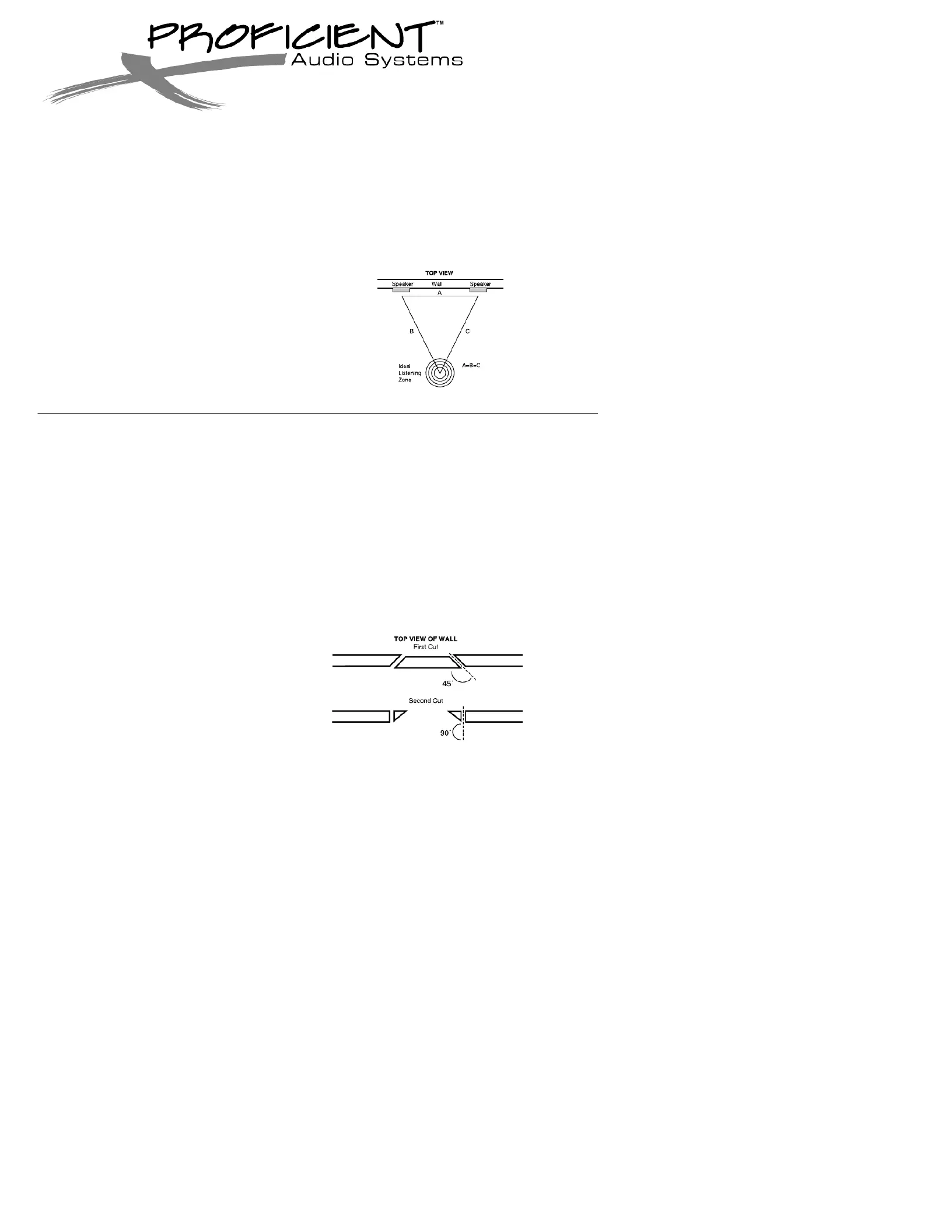

Diagram 2:
Wall Cut Out
Diagram 1:
Ideal Placement
Your Wall Series speakers come from the factory with the tweeter
facing straight out from the baffle. This will result in the overall
smoothest response. However, depending on your particular pri-
mary listening area, room acoustics, ceiling height, or personal
preference, you may find the sound more pleasing by pointing the
tweeters in a particular direction. If additional treble is desired in
the primary listening area, point the tweeter towards that area;
and if less treble is required, point the tweeter away. When used
in a home theater environment as side or rear channel speakers,
the best result will be obtained by pointing the tweeters toward an
adjacent wall. Push gently at the edge of the tweeter to point it in
the desired direction. (See Diagram 3) CAUTION: Avoid touching
metal dome tweeters, as damage may occur (W680 & W800).
Tweeter Adjustment (W680 & W800):
The switch labeled TREBLE allows for 3dB of treble adjustment.
Your speakers were shipped with the treble switch in the “-” posi-
tion, providing the most linear frequency response. If you desire
more treble, move the switch to the “+” position, and the tweeter
will play 3dB higher. To return to the neutral setting, push the
switch back to the “-” position. (See Diagram 4)
Woofer Adjustment (W680 & W800):
The switch labeled BASS allows for 3dB of bass adjustment.
Your speakers were shipped with the bass set to “-”. This setting
provides the flattest bass frequency response. If you desire more
bass, push the switch to the “+” position and the bass will play
3dB higher. To return to the neutral setting, push the switch back
to the “-” position. (See Diagram 4)
2
SPEAKER ADJUSTMENTS
The unique integral six-foot mounting system incorporated into
each Wall Series speaker allows for a quick installation by following
these easy steps:
1. Remove the grille. It may be necessary to push one or two of
the mounting screws and its attached foot towards the baffle
and against the inside surface of the grille to force the grille
out of its retaining groove.
2. Attach the speaker cable (observing the proper polarity with
your amplifier, + to + and - to -). Make sure the left channel
of the amplifier is connected to the left speaker, and the right
channel is connected to the right speaker.
3. Make sure the mounting feet are turned inward to clear the
opening, and insert the speaker into the wall. Position the
speaker into the hole.
Note: The flange of the speaker is designed to flex and con-
form to any small imperfections in the wall’s surface. Tighten
the six screws on the front of the baffle only enough to make
the flange become snug against the wall. As you tighten the
screws, the feet will automatically flip into an outward position
(See Diagram 5), thereby clamping the drywall between the feet
and the flange. CAUTION: Over-tightening may warp the
baffle, crack the ceiling, cause the flange to distort, and
make the grille difficult to install.
4. Push the grille firmly into the slot in the speaker baffle.
SPEAKER INSTALLATION
PAINTING THE SPEAKERS
Diagram 5:
Mounting Feet
Diagram 3:
Tweeter
Push Tweeter Here
Diagram 4:
Adjustment Switches
Bass Adjustment Switch
Treble Adjustment Switch
If you plan to paint your speakers, we recommend that it be done
prior to installation. If you plan to paint your speakers sometime in
the future, it is best to remove them by simply reversing the steps
for “SPEAKER INSTALLATION” on page 2.
If it is necessary to paint the speakers when they are in the wall,
the paint masks provided in the carton must be installed between
the grille and flange while they are being painted with the wall.
Before painting your speakers, remove the material under the
grilles. Once the speakers have been painted, return the material
back into place.
Great care should be taken not to clog the holes of the grille, as
this will reduce the sound quality of the speakers.
Proficient Audio Systems recommends only light spray painting
using 5 parts thinning agent to 1 part paint.
3
PAINTING THE SPEAKERS
Proficient Audio Systems warrants to the original retail purchaser
only that this product will be free from defects in materials and
workmanship for a period of ten years, provided the speaker was
purchased from a Proficient Audio Systems Authorized Dealer.
Defective products must be shipped, prepaid and insured, together
with proof of purchase, to the Proficient Audio Systems Authorized
Dealer from whom they were purchased, or to Proficient Audio
Systems at the address listed on this installation instruction manu-
al. Freight collect shipments will be refused. It is preferable to ship
this product in the original shipping container to lessen the chance
of transit damage. In any case, the risk of loss or damage in transit
is to be borne by the purchaser.
If, upon examination at the Factory or Proficient Audio Systems
Authorized Dealer, it is determined that the unit was defective
in materials or workmanship at any time during this warranty
period, Proficient Audio Systems or the Proficient Audio Systems
Authorized Dealer will, at its option, repair or replace this product
at no additional charge, except as set forth below. If this model is
no longer available and can not be repaired effectively, Proficient
Audio Systems, at its sole option, may replace the unit with a cur-
rent model of equal or greater value. In some cases where a new
model is substituted, a modification to the mounting surface may
be required. If mounting surface modification is required, Proficient
Audio Systems assumes no responsibility or liability for such
modification. All replaced parts and product become the property
of Proficient Audio Systems. Products replaced or repaired under
this Warranty will be returned to the original retail purchaser, with-
in a reasonable time, freight prepaid.
This Warranty does not include service or parts to repair damage
caused by accident, disaster, misuse, abuse, negligence, inad-
equate packing or shipping procedures, commercial use, voltage
inputs in excess of the rated maximum of the unit, or service,
repair or modification of the product which has not been autho-
rized or approved by Proficient Audio Systems. This Warranty also
excludes normal cosmetic deterioration caused by environmental
conditions. This warranty will be void if the Serial Number on the
product has been removed, tampered with or defaced.
This Warranty is in lieu of all other expressed warranties. If the
product is defective in materials or workmanship as warranted
above, the purchaser’s sole remedy shall be repair or replace-
ment as provided above. In no event will Proficient Audio Systems
be liable for any incidental or consequential damages arising out
of the use or inability to use the product, even if Proficient Audio
Systems. or a Proficient Audio Systems Authorized Dealer has
been advised of the possibility of such damages, or for any claim
by any other party. Some states do not allow the exclusion or
limitation of consequential damages, so the above limitation and
exclusion may not apply.
All implied warranties on the product are limited to the duration of
this expressed Warranty. Some states do not allow limitation on
the length of an implied warranty. If the original retail purchaser
resides in such a state, this limitation does not apply.
LIMITED TEN-YEAR WARRANTY
Produktspezifikationen
Marke: | Proficient |
Kategorie: | Speaker |
Modell: | W800 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Proficient W800 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Speaker Proficient
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
Bedienungsanleitung Speaker
- Speaker Samsung
- Speaker Infiniton
- Speaker Clatronic
- Speaker Tristar
- Speaker Anker
- Speaker Asus
- Speaker Gembird
- Speaker Genius
- Speaker Hama
- Speaker HP
- Speaker Lexibook
- Speaker Audio-Technica
- Speaker LogiLink
- Speaker Logitech
- Speaker Manhattan
- Speaker Manta
- Speaker Maxxter
- Speaker Medion
- Speaker Nedis
- Speaker NGS
- Speaker Niceboy
- Speaker Philips
- Speaker SilverCrest
- Speaker Sony
- Speaker SteelSeries
- Speaker Sweex
- Speaker Trust
- Speaker Panasonic
- Speaker LG
- Speaker Roland
- Speaker Camry
- Speaker ZyXEL
- Speaker Bosch
- Speaker AEG
- Speaker OK
- Speaker TechniSat
- Speaker Yamaha
- Speaker Neumann
- Speaker CSL
- Speaker IKEA
- Speaker Maginon
- Speaker Technaxx
- Speaker Alecto
- Speaker Denver
- Speaker König
- Speaker MarQuant
- Speaker Renkforce
- Speaker Bush
- Speaker Telefunken
- Speaker TFA
- Speaker Thomson
- Speaker Trevi
- Speaker Blaupunkt
- Speaker Grundig
- Speaker Kenwood
- Speaker Prime3
- Speaker Schneider
- Speaker Sharp
- Speaker Autotek
- Speaker Atlantic
- Speaker Worx
- Speaker Pyle
- Speaker Finlux
- Speaker Neff
- Speaker Salora
- Speaker Kaiser
- Speaker AIAIAI
- Speaker Aiwa
- Speaker ARCHOS
- Speaker AudioSonic
- Speaker Auna
- Speaker Auvisio
- Speaker Bang And Olufsen
- Speaker Beats
- Speaker DIFRNCE
- Speaker Bose
- Speaker Bowers And Wilkins
- Speaker Caliber
- Speaker Lenco
- Speaker Creative
- Speaker Denon
- Speaker Edifier
- Speaker Pioneer
- Speaker Jabra
- Speaker JBL
- Speaker JVC
- Speaker KEF
- Speaker Klipsch
- Speaker KrĂĽger And Matz
- Speaker Motorola
- Speaker Muse
- Speaker Onkyo
- Speaker PEAQ
- Speaker Sennheiser
- Speaker Skullcandy
- Speaker Soundcore
- Speaker Technics
- Speaker Teufel
- Speaker Vivanco
- Speaker Hifonics
- Speaker Akai
- Speaker Dual
- Speaker Ferguson
- Speaker GoGEN
- Speaker Hitachi
- Speaker Loewe
- Speaker Orava
- Speaker Reflexion
- Speaker Strong
- Speaker Livoo
- Speaker Imperial
- Speaker Max
- Speaker Kärcher
- Speaker Lamax
- Speaker Homedics
- Speaker Sencor
- Speaker Element
- Speaker Bigben
- Speaker Plantronics
- Speaker Fenton
- Speaker OneConcept
- Speaker TOA
- Speaker Dell
- Speaker Lenovo
- Speaker Musway
- Speaker Acme
- Speaker Audio Pro
- Speaker Boynq
- Speaker Cabasse
- Speaker Canton
- Speaker Dali
- Speaker Damson
- Speaker Enermax
- Speaker Gemini
- Speaker Harman Kardon
- Speaker Heco
- Speaker Magnat
- Speaker Marmitek
- Speaker Marshall
- Speaker Mirage
- Speaker Nikkei
- Speaker Power Dynamics
- Speaker Samson
- Speaker Skytec
- Speaker SuperTooth
- Speaker Tangent
- Speaker Vonyx
- Speaker Peavey
- Speaker ICES
- Speaker Marshall Electronics
- Speaker Leitz
- Speaker Furuno
- Speaker Karma
- Speaker Atlas
- Speaker Parrot
- Speaker EnVivo
- Speaker HK Audio
- Speaker Osprey
- Speaker Nova
- Speaker Alpine
- Speaker Bopita
- Speaker Logik
- Speaker Fender
- Speaker Adj
- Speaker Lionelo
- Speaker Genesis
- Speaker Techly
- Speaker Renegade
- Speaker Vogel's
- Speaker Vision
- Speaker Behringer
- Speaker Mackie
- Speaker Omnitronic
- Speaker MB Quart
- Speaker NEC
- Speaker Marantz
- Speaker Hercules
- Speaker Monoprice
- Speaker Arcam
- Speaker Cambridge
- Speaker Dynacord
- Speaker Ecler
- Speaker Monacor
- Speaker Rockford Fosgate
- Speaker TEAC
- Speaker Crunch
- Speaker Alesis
- Speaker Aplic
- Speaker Titanwolf
- Speaker Eizo
- Speaker Pure
- Speaker Paulmann
- Speaker Nest
- Speaker V-TAC
- Speaker Revox
- Speaker Sherwood
- Speaker Jamo
- Speaker AXTON
- Speaker Clarion
- Speaker Mac Audio
- Speaker Kogan
- Speaker GPO
- Speaker Energy Sistem
- Speaker Conceptronic
- Speaker Audizio
- Speaker Sylvania
- Speaker ESX
- Speaker Reloop
- Speaker Altec Lansing
- Speaker Sonoro
- Speaker AVID
- Speaker Nubert
- Speaker ION
- Speaker Rega
- Speaker Amazon
- Speaker Insignia
- Speaker Majority
- Speaker Speaka
- Speaker Crosley
- Speaker Digitus
- Speaker SereneLife
- Speaker Audison
- Speaker Xblitz
- Speaker RCF
- Speaker Electro-Voice
- Speaker Mr Handsfree
- Speaker Viking
- Speaker JAZ Audio
- Speaker Tracer
- Speaker Yorkville
- Speaker Eden
- Speaker Deltaco
- Speaker Boss
- Speaker Foscam
- Speaker Fresh 'n Rebel
- Speaker American Audio
- Speaker Alto
- Speaker Genelec
- Speaker Chord
- Speaker Kramer
- Speaker Tivoli Audio
- Speaker Hertz
- Speaker Pro-Ject
- Speaker Galaxy Audio
- Speaker RCA
- Speaker Ibiza Sound
- Speaker Kicker
- Speaker Polk
- Speaker Speed-Link
- Speaker Bogen
- Speaker Oppo
- Speaker Sonus Faber
- Speaker McIntosh
- Speaker Sonance
- Speaker Jensen
- Speaker Anchor Audio
- Speaker House Of Marley
- Speaker ELAC
- Speaker Furrion
- Speaker Sven
- Speaker Fostex
- Speaker JL Audio
- Speaker Pyle Pro
- Speaker PreSonus
- Speaker Qtx
- Speaker Hartke
- Speaker Oregon Scientific
- Speaker Deaf Bonce
- Speaker LD Systems
- Speaker IK Multimedia
- Speaker Boompods
- Speaker Urbanista
- Speaker Victrola
- Speaker Bluesound
- Speaker Ruark Audio
- Speaker BlueAnt
- Speaker Avante
- Speaker Avantone Pro
- Speaker DAP
- Speaker DAP Audio
- Speaker Definitive Technology
- Speaker Devialet
- Speaker Ematic
- Speaker Energy
- Speaker Focal
- Speaker Fusion
- Speaker Geneva
- Speaker Ground Zero
- Speaker Hammond
- Speaker Helix
- Speaker HMDX
- Speaker IDance
- Speaker IHome
- Speaker ILive
- Speaker Iluv
- Speaker Infinity
- Speaker Jam
- Speaker Jawbone
- Speaker JB Systems
- Speaker Karcher Audio
- Speaker LaCie
- Speaker Lanzar
- Speaker M-Audio
- Speaker Martin
- Speaker Medeli
- Speaker Media-tech
- Speaker Meridian
- Speaker Mission
- Speaker MiTone
- Speaker Monitor Audio
- Speaker Mtx Audio
- Speaker Naxa
- Speaker Numan
- Speaker Paradigm
- Speaker Phoenix Gold
- Speaker Platinet
- Speaker Provision ISR
- Speaker Q Acoustics
- Speaker Quadral
- Speaker Raymarine
- Speaker Rel
- Speaker REL Acoustics
- Speaker Roku
- Speaker Roth
- Speaker Sharper Image
- Speaker Sirius
- Speaker Sitecom
- Speaker Standard Horizon
- Speaker Sunstech
- Speaker Tannoy
- Speaker Veho
- Speaker Vifa
- Speaker Vizio
- Speaker Voxx
- Speaker Wharfedale
- Speaker X4-Tech
- Speaker Zvox
- Speaker SpeakerCraft
- Speaker Acoustic Energy
- Speaker Epcom
- Speaker Adastra
- Speaker Antec
- Speaker AudioControl
- Speaker Martin Audio
- Speaker APart
- Speaker Kraun
- Speaker Fun Generation
- Speaker TWF
- Speaker QSC
- Speaker RetroSound
- Speaker Monster
- Speaker Celly
- Speaker Proel
- Speaker Martin Logan
- Speaker Metra
- Speaker ModeCom
- Speaker Kanto
- Speaker Speco Technologies
- Speaker Gefen
- Speaker Fluance
- Speaker Russound
- Speaker Aluratek
- Speaker IMG Stage Line
- Speaker Legrand
- Speaker Atlas Sound
- Speaker FBT
- Speaker TC Electronic
- Speaker Sound2Go
- Speaker DB Technologies
- Speaker Lenoxx
- Speaker Turbosound
- Speaker Argon
- Speaker Laney
- Speaker Morel
- Speaker SVS
- Speaker Citronic
- Speaker Crest Audio
- Speaker System Sensor
- Speaker Cygnett
- Speaker Brigmton
- Speaker Axis
- Speaker Natec
- Speaker MEE Audio
- Speaker Wet Sounds
- Speaker Lilliput
- Speaker Pyramid
- Speaker Premier Mounts
- Speaker Black Hydra
- Speaker GoldenEar Technology
- Speaker Linn
- Speaker Roswell
- Speaker Penton
- Speaker Music Hall
- Speaker Audac
- Speaker OSD Audio
- Speaker Indiana Line
- Speaker SunBriteTV
- Speaker Match
- Speaker Audioengine
- Speaker SOUNDBOKS
- Speaker JAYS
- Speaker DreamGEAR
- Speaker Crestron
- Speaker PowerBass
- Speaker The Box
- Speaker Kurzweil
- Speaker MusicMan
- Speaker Dynaudio
- Speaker GOgroove
- Speaker Avantree
- Speaker PSB
- Speaker KLH Audio
- Speaker Extron
- Speaker Dcybel
- Speaker Bazooka
- Speaker Tema
- Speaker Artsound
- Speaker Bigben Interactive
- Speaker SSV Works
- Speaker Sonifex
- Speaker Advance Acoustic
- Speaker Leviton
- Speaker Revel
- Speaker Nxg
- Speaker R-MUSIC
- Speaker Etekcity
- Speaker Klark Teknik
- Speaker ANT
- Speaker GMB Audio
- Speaker KRK
- Speaker Xcellon
- Speaker HEDD
- Speaker Soundfreaq
- Speaker Cerwin-Vega
- Speaker Sound Ordnance
- Speaker Markbass
- Speaker BSS Audio
- Speaker AmpliVox
- Speaker Memphis Audio
- Speaker Andover
- Speaker FiveO
- Speaker Aquatic AV
- Speaker UGo
- Speaker Ashly
- Speaker Poly-Planar
- Speaker Kreafunk
- Speaker CyberData Systems
- Speaker Sunfire
- Speaker WHD
- Speaker Soundsation
- Speaker NUVO
- Speaker Audiofrog
- Speaker Microlab
- Speaker EARISE
- Speaker Triangle
- Speaker Ikegami
- Speaker N-Gear
- Speaker Fluid
- Speaker Rocketfish
- Speaker Klip Xtreme
- Speaker JobSite
- Speaker Moonki
- Speaker Audibax
- Speaker Eve Audio
- Speaker C2G
- Speaker Aperion
- Speaker Soundsphere
- Speaker Elipson
- Speaker Advance
- Speaker Airpulse
- Speaker Transparent
- Speaker Aton
- Speaker Escape
- Speaker Wavemaster
- Speaker Rebeltec
- Speaker Moki
- Speaker BASSBOSS
- Speaker Mount-It!
- Speaker Weather X
- Speaker BMB
- Speaker Valcom
- Speaker Posh
- Speaker Amina
- Speaker Emphasys
- Speaker Micro Innovations
- Speaker Audica
- Speaker Clarity
- Speaker SoundCast
- Speaker Ministry Of Sound
- Speaker MONDO
- Speaker Wonky Monkey
- Speaker EarFun
- Speaker B&W
- Speaker Lithe Audio
- Speaker AwoX Striim
- Speaker TIC
- Speaker VIETA PRO
- Speaker Thiel
- Speaker Speakal
- Speaker Bem
- Speaker Lowell
- Speaker Mad Dog
- Speaker AudioSource
- Speaker Algo
- Speaker LOG Professional
- Speaker Barefoot Sound
- Speaker Quad
- Speaker Auratone
- Speaker Iharmonix
- Speaker X JUMP
- Speaker Trettitre
- Speaker Inter-M
- Speaker Audiovector
- Speaker Party Light & Sound
- Speaker Real-El
- Speaker Potter
- Speaker PulseAudio
- Speaker HuddleCamHD
- Speaker Blue Tees
- Speaker Bearware
- Speaker OWI
- Speaker Aconatic
- Speaker GoldenEar
- Speaker FoneStar
- Speaker AXESS
- Speaker Glemm
- Speaker MyDJ
Neueste Bedienungsanleitung fĂĽr -Kategorien-
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
