Before installing your LCR Ceiling Series speakers, you
should consider their placement carefully, taking into account
the location of electrical, plumbing and other fixtures. Contact
your Dealer for assistance if you are unsure of the best
location for your particular listening environment.
Placement In Ceiling: When placing your speakers into the
ceiling, they should be located so that the fixed 15˚ angle
woofer is pointed towards the primary listening area.
If the speakers are positioned far away from the primary
listening area, simply adjust the pivoting tweeters so they are
pointed towards it.
Note: To avoid possible damage to the pivoting tweeters, read
the section entitled “SPEAKER ADJUSTMENTS” in this manual
prior to performing the tweeter adjustment.
In a very large room with low ceilings, it may be necessary to
place additional speakers throughout the room. Contact your
Proficient Audio Systems Dealer for assistance.
New Construction - Unfinished Ceilings
A Pre-Construction Bracket, available from your Dealer, may
be installed prior to drywall application across joists (up to 24"
on-center) where a speaker will be located. After the hole is
cut and the drywall is installed, the speakers are then easily
installed following the instructions for mounting in “Finished
Ceilings” below. If the speakers are to be mounted more Note:
than 24" on-center, a special “Extra Long Wing” is available
from your Dealer.
Finished Ceilings
Prior to the actual installation of the speakers, it will be neces-
sary to run cables to the speaker locations. See your Dealer
for more information about cable installation. After the cable
has been properly installed, you are ready to mount the
speakers. Following the simple steps listed below will result in
a professional looking installation:
1. Determine the best area to mount your speakers. This area
of the ceiling should be free of obstructions such as electri-
cal conduit, HVAC ducts, or water lines. This can best be
determined by noting the placement of fixtures and gaining
access to an attic or crawl space for further analysis of the
location of such obstacles.
2. Find the joists nearest the desired speaker mounting loca-
tion. We highly recommend using a good stud-finder tool
for this procedure. If you are lining up the speakers to some
other object or molding in the room, make sure you con-
sider the size of the baffle flange which extends beyond the
mounting hole.
3. Mark the hole. A template for setting the hole is provided
in the box (along with two paint mask inserts for use when
painting). Position the template in the desired position and
pencil an outline on the ceiling.
4. Cutting the hole. CAUTION: This is the most important
part of the entire installation. If you are not certain
whether any obstructions exist behind the desired mounting
area, you should start by cutting a small hole in the center
of your penciled mounting hole with a drywall saw, cutting
at a 45° angle towards the inside of the hole. (See Diagram 1)
Cutting the small hole at this angle will make drywall repair
much easier, using the piece cut out. Once you have deter-
mined that there aren’t any obstructions in your desired
mounting location, start cutting the finished hole at a 90°
angle to the ceiling surface.
5. Add insulation. If the area in the ceiling is not already insu-
lated, add an adequate amount insulation material to loosely
cover the back of the speaker. If the insulation material used
is faced with foil or paper, position the foil or paper away
from the speaker.
SPEAKER PLACEMENT
MOUNTING SURFACE PREPARATION

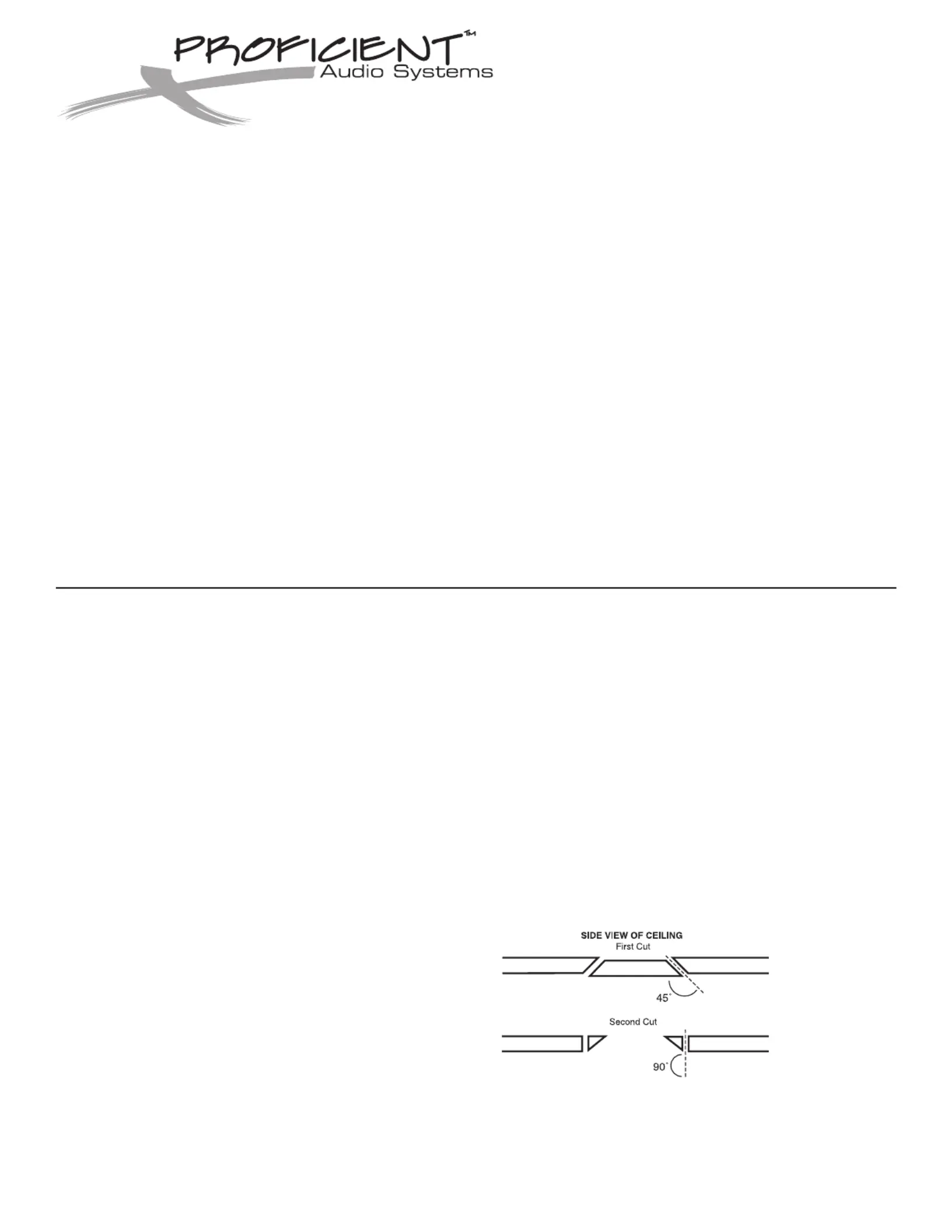

Diagram 1:
Ceiling Cut Out
OWNER’S MANUAL
LCR CEILING SERIES
C870 • C660 • C650
The LCR Ceiling Series speakers come from the factory with
the tweeter facing straight out from the baffle. This will result
in the overall smoothest response. However, depending on
your particular primary listening area, room acoustics, ceiling
height, or personal preference, you may find the sound more
pleasing by pointing the tweeters in a particular direction. If
additional treble is desired in the primary listening area, point
the tweeter towards that area; and if less treble is required,
point the tweeter away. Push gently at the edge of the tweeter
to point it in the desired direction. (See Diagram 3)
CAUTION:
Avoid touching metal dome tweeters, as damage may
occur (C870 & C660).
The unique integral four-foot mounting system incorporated
into each LCR Ceiling Series speaker allows for a quick
installation by following these easy steps:
1. Remove the grille. It may be necessary to push one or two
of the mounting screws and its attached foot towards the
baffle and against the inside surface of the grille to force
the grille out of its retaining groove.
2. Attach the speaker cable (observing the proper polarity
with your amplifier, + to + and – to –). Make sure the left
channel of the amplifier is connected to the left speaker,
the right channel is connected to the right speaker, etc.
3. Make sure the mounting feet are turned inward to clear the
opening, and insert the speaker into the ceiling. Position
the speaker into the hole.
Note: The flange of the speaker is designed to flex and
conform to any small imperfections in the ceiling’s sur-
face. Tighten the four screws on the front of the baffle only
enough to make the flange become snug against the ceiling.
As you tighten the screws, the feet will automatically flip into
an outward position (See Diagram 2), thereby clamping the
drywall between the feet and the flange. CAUTION: Over-
tightening may warp the baffle, crack the ceiling, cause
the flange to distort, and make the grille difficult to
install.
4. Push the grille firmly into the slot in the speaker baffle.
2
SPEAKER ADJUSTMENTS
SPEAKER INSTALLATION
Push Tweeter Here
Diagram 3:
Tweeter
Diagram 2:
Mounting Feet
Tweeter Adjustment :(C870 Only)
The switch labeled TREBLE allows for ±3dB of treble adjust-
ment. Your speakers were shipped with the treble switch in the
middle position, providing the most linear frequency response.
If you desire more treble, move the switch to the “+” position,
and the tweeter will play 3dB higher. If you desire less treble,
move the switch to the “–” position, and the tweeter will play
3dB lower. To return to the neutral setting, push the switch
back to the middle position. (See Diagram 4)
Woofer Adjustment (C870 Only):
The switch labeled BASS allows for ±3dB of bass adjustment.
Your speakers were shipped with the bass set to the middle
position. This setting provides the flattest bass frequency
response. If you desire more bass, push the switch to the “+”
position and the bass will play 3dB higher. If you desire less
bass, push the switch to the “–” position and the bass will play
3dB lower. This setting provides a more linear bass frequency
response. To return to the neutral setting, push the switch back
to the middle position. (See Diagram 4)
Bass Adjustment Switch
Treble Adjustment Switch
Diagram 4:
Adjustment Switches
3
If you plan to paint your speakers, we recommend that it be
done prior to installation. If you plan to paint your speakers
sometime in the future, it is best to remove them by simply
reversing the steps for “SPEAKER INSTALLATION” above.
If it is necessary to paint the speakers when they are in
the ceiling, the paint masks provided in the carton must be
installed between the grille and flange while they are being
painted with the ceiling.
Before painting your speakers, remove the material under
the grilles. Once the speakers have been painted, return the
material back into place.
Great care should be taken not to clog the holes of the grille,
as this will reduce the sound quality of the speakers.
Proficient Audio Systems recommends only light spray painting
using 5 parts thinning agent to 1 part paint.
PAINTING THE SPEAKERS
Proficient Audio Systems warrants to the original retail pur-
chaser that this product will be free from defects in only
materials and workmanship for a period of ten years, provided
the speaker was purchased from a Proficient Audio Systems
Authorized Dealer.
Defective products must be shipped, prepaid and insured,
together with proof of purchase, to the Proficient Audio
Systems Authorized Dealer from whom they were purchased,
or to Proficient Audio Systems at the address listed on this
installation instruction manual. Freight collect shipments will
be refused. It is preferable to ship this product in the original
shipping container to lessen the chance of transit damage. In
any case, the risk of loss or damage in transit is to be borne
by the purchaser.
If, upon examination at the Factory or Proficient Audio
Systems Authorized Dealer, it is determined that the unit was
defective in materials or workmanship at any time during this
warranty period, Proficient Audio Systems or the Proficient
Audio Systems Authorized Dealer will, at its option, repair or
replace this product at no additional charge, except as set
forth below. If this model is no longer available and can not
be repaired effectively, Proficient Audio Systems, at its sole
option, may replace the unit with a current model of equal or
greater value. In some cases where a new model is substi-
tuted, a modification to the mounting surface may be required.
If mounting surface modification is required, Proficient Audio
Systems assumes no responsibility or liability for such modifi-
cation. All replaced parts and product become the property of
Proficient Audio Systems. Products replaced or repaired under
this Warranty will be returned to the original retail purchaser,
within a reasonable time, freight prepaid.
This Warranty does not include service or parts to repair dam-
age caused by accident, disaster, misuse, abuse, negligence,
inadequate packing or shipping procedures, commercial use,
voltage inputs in excess of the rated maximum of the unit, or
service, repair or modification of the product which has not
been authorized or approved by Proficient Audio Systems. This
Warranty also excludes normal cosmetic deterioration caused
by environmental conditions. This warranty will be void if the
Serial Number on the product has been removed, tampered
with or defaced.
This Warranty is in lieu of all other expressed warranties. If the
product is defective in materials or workmanship as warranted
above, the purchaser’s sole remedy shall be repair or replace-
ment as provided above. In no event will Proficient Audio
Systems be liable for any incidental or consequential dam-
ages arising out of the use or inability to use the product, even
if Proficient Audio Systems. or a Proficient Audio Systems
Authorized Dealer has been advised of the possibility of such
damages, or for any claim by any other party. Some states do
not allow the exclusion or limitation of consequential damages,
so the above limitation and exclusion may not apply.
All implied warranties on the product are limited to the duration
of this expressed Warranty. Some states do not allow limitation
on the length of an implied warranty. If the original retail pur-
chaser resides in such a state, this limitation does not apply.
LIMITED TEN-YEAR WARRANTY
Produktspezifikationen
Marke: | Proficient |
Kategorie: | Speaker |
Modell: | C605 |
Brauchst du Hilfe?
Wenn Sie Hilfe mit Proficient C605 benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten
Bedienungsanleitung Speaker Proficient
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
31 August 2024
Bedienungsanleitung Speaker
- Speaker Samsung
- Speaker Infiniton
- Speaker Clatronic
- Speaker Tristar
- Speaker Anker
- Speaker Asus
- Speaker Gembird
- Speaker Genius
- Speaker Hama
- Speaker HP
- Speaker Lexibook
- Speaker Audio-Technica
- Speaker LogiLink
- Speaker Logitech
- Speaker Manhattan
- Speaker Manta
- Speaker Maxxter
- Speaker Medion
- Speaker Nedis
- Speaker NGS
- Speaker Niceboy
- Speaker Philips
- Speaker SilverCrest
- Speaker Sony
- Speaker SteelSeries
- Speaker Sweex
- Speaker Trust
- Speaker Panasonic
- Speaker LG
- Speaker Roland
- Speaker Camry
- Speaker ZyXEL
- Speaker Bosch
- Speaker AEG
- Speaker OK
- Speaker TechniSat
- Speaker Yamaha
- Speaker Neumann
- Speaker CSL
- Speaker IKEA
- Speaker Maginon
- Speaker Technaxx
- Speaker Alecto
- Speaker Denver
- Speaker König
- Speaker MarQuant
- Speaker Renkforce
- Speaker Bush
- Speaker Telefunken
- Speaker TFA
- Speaker Thomson
- Speaker Trevi
- Speaker Blaupunkt
- Speaker Grundig
- Speaker Kenwood
- Speaker Prime3
- Speaker Schneider
- Speaker Sharp
- Speaker Autotek
- Speaker Atlantic
- Speaker Worx
- Speaker Pyle
- Speaker Finlux
- Speaker Neff
- Speaker Salora
- Speaker Kaiser
- Speaker AIAIAI
- Speaker Aiwa
- Speaker ARCHOS
- Speaker AudioSonic
- Speaker Auna
- Speaker Auvisio
- Speaker Bang And Olufsen
- Speaker Beats
- Speaker DIFRNCE
- Speaker Bose
- Speaker Bowers And Wilkins
- Speaker Caliber
- Speaker Lenco
- Speaker Creative
- Speaker Denon
- Speaker Edifier
- Speaker Pioneer
- Speaker Jabra
- Speaker JBL
- Speaker JVC
- Speaker KEF
- Speaker Klipsch
- Speaker Krüger And Matz
- Speaker Motorola
- Speaker Muse
- Speaker Onkyo
- Speaker PEAQ
- Speaker Sennheiser
- Speaker Skullcandy
- Speaker Soundcore
- Speaker Technics
- Speaker Teufel
- Speaker Vivanco
- Speaker Hifonics
- Speaker Akai
- Speaker Dual
- Speaker Ferguson
- Speaker GoGEN
- Speaker Hitachi
- Speaker Loewe
- Speaker Orava
- Speaker Reflexion
- Speaker Strong
- Speaker Livoo
- Speaker Imperial
- Speaker Max
- Speaker Kärcher
- Speaker Lamax
- Speaker Homedics
- Speaker Sencor
- Speaker Element
- Speaker Bigben
- Speaker Plantronics
- Speaker Fenton
- Speaker OneConcept
- Speaker TOA
- Speaker Dell
- Speaker Lenovo
- Speaker Musway
- Speaker Acme
- Speaker Audio Pro
- Speaker Boynq
- Speaker Cabasse
- Speaker Canton
- Speaker Dali
- Speaker Damson
- Speaker Enermax
- Speaker Gemini
- Speaker Harman Kardon
- Speaker Heco
- Speaker Magnat
- Speaker Marmitek
- Speaker Marshall
- Speaker Mirage
- Speaker Nikkei
- Speaker Power Dynamics
- Speaker Samson
- Speaker Skytec
- Speaker SuperTooth
- Speaker Tangent
- Speaker Vonyx
- Speaker Peavey
- Speaker ICES
- Speaker Marshall Electronics
- Speaker Leitz
- Speaker Furuno
- Speaker Karma
- Speaker Atlas
- Speaker Parrot
- Speaker EnVivo
- Speaker HK Audio
- Speaker Osprey
- Speaker Nova
- Speaker Alpine
- Speaker Bopita
- Speaker Logik
- Speaker Fender
- Speaker Adj
- Speaker Lionelo
- Speaker Genesis
- Speaker Techly
- Speaker Renegade
- Speaker Vogel's
- Speaker Vision
- Speaker Behringer
- Speaker Mackie
- Speaker Omnitronic
- Speaker MB Quart
- Speaker NEC
- Speaker Marantz
- Speaker Hercules
- Speaker Monoprice
- Speaker Arcam
- Speaker Cambridge
- Speaker Dynacord
- Speaker Ecler
- Speaker Monacor
- Speaker Rockford Fosgate
- Speaker TEAC
- Speaker Crunch
- Speaker Alesis
- Speaker Aplic
- Speaker Titanwolf
- Speaker Eizo
- Speaker Pure
- Speaker Paulmann
- Speaker Nest
- Speaker V-TAC
- Speaker Revox
- Speaker Sherwood
- Speaker Jamo
- Speaker AXTON
- Speaker Clarion
- Speaker Mac Audio
- Speaker Kogan
- Speaker GPO
- Speaker Energy Sistem
- Speaker Conceptronic
- Speaker Audizio
- Speaker Sylvania
- Speaker ESX
- Speaker Reloop
- Speaker Altec Lansing
- Speaker Sonoro
- Speaker AVID
- Speaker Nubert
- Speaker ION
- Speaker Rega
- Speaker Amazon
- Speaker Insignia
- Speaker Majority
- Speaker Speaka
- Speaker Crosley
- Speaker Digitus
- Speaker SereneLife
- Speaker Audison
- Speaker Xblitz
- Speaker RCF
- Speaker Electro-Voice
- Speaker Mr Handsfree
- Speaker Viking
- Speaker JAZ Audio
- Speaker Tracer
- Speaker Yorkville
- Speaker Eden
- Speaker Deltaco
- Speaker Boss
- Speaker Foscam
- Speaker Fresh 'n Rebel
- Speaker American Audio
- Speaker Alto
- Speaker Genelec
- Speaker Chord
- Speaker Kramer
- Speaker Tivoli Audio
- Speaker Hertz
- Speaker Pro-Ject
- Speaker Galaxy Audio
- Speaker RCA
- Speaker Ibiza Sound
- Speaker Kicker
- Speaker Polk
- Speaker Speed-Link
- Speaker Bogen
- Speaker Oppo
- Speaker Sonus Faber
- Speaker McIntosh
- Speaker Sonance
- Speaker Jensen
- Speaker Anchor Audio
- Speaker House Of Marley
- Speaker ELAC
- Speaker Furrion
- Speaker Sven
- Speaker Fostex
- Speaker JL Audio
- Speaker Pyle Pro
- Speaker PreSonus
- Speaker Qtx
- Speaker Hartke
- Speaker Oregon Scientific
- Speaker Deaf Bonce
- Speaker LD Systems
- Speaker IK Multimedia
- Speaker Boompods
- Speaker Urbanista
- Speaker Victrola
- Speaker Bluesound
- Speaker Ruark Audio
- Speaker BlueAnt
- Speaker Avante
- Speaker Avantone Pro
- Speaker DAP
- Speaker DAP Audio
- Speaker Definitive Technology
- Speaker Devialet
- Speaker Ematic
- Speaker Energy
- Speaker Focal
- Speaker Fusion
- Speaker Geneva
- Speaker Ground Zero
- Speaker Hammond
- Speaker Helix
- Speaker HMDX
- Speaker IDance
- Speaker IHome
- Speaker ILive
- Speaker Iluv
- Speaker Infinity
- Speaker Jam
- Speaker Jawbone
- Speaker JB Systems
- Speaker Karcher Audio
- Speaker LaCie
- Speaker Lanzar
- Speaker M-Audio
- Speaker Martin
- Speaker Medeli
- Speaker Media-tech
- Speaker Meridian
- Speaker Mission
- Speaker MiTone
- Speaker Monitor Audio
- Speaker Mtx Audio
- Speaker Naxa
- Speaker Numan
- Speaker Paradigm
- Speaker Phoenix Gold
- Speaker Platinet
- Speaker Provision ISR
- Speaker Q Acoustics
- Speaker Quadral
- Speaker Raymarine
- Speaker Rel
- Speaker REL Acoustics
- Speaker Roku
- Speaker Roth
- Speaker Sharper Image
- Speaker Sirius
- Speaker Sitecom
- Speaker Standard Horizon
- Speaker Sunstech
- Speaker Tannoy
- Speaker Veho
- Speaker Vifa
- Speaker Vizio
- Speaker Voxx
- Speaker Wharfedale
- Speaker X4-Tech
- Speaker Zvox
- Speaker SpeakerCraft
- Speaker Acoustic Energy
- Speaker Epcom
- Speaker Adastra
- Speaker Antec
- Speaker AudioControl
- Speaker Martin Audio
- Speaker APart
- Speaker Kraun
- Speaker Fun Generation
- Speaker TWF
- Speaker QSC
- Speaker RetroSound
- Speaker Monster
- Speaker Celly
- Speaker Proel
- Speaker Martin Logan
- Speaker Metra
- Speaker ModeCom
- Speaker Kanto
- Speaker Speco Technologies
- Speaker Gefen
- Speaker Fluance
- Speaker Russound
- Speaker Aluratek
- Speaker IMG Stage Line
- Speaker Legrand
- Speaker Atlas Sound
- Speaker FBT
- Speaker TC Electronic
- Speaker Sound2Go
- Speaker DB Technologies
- Speaker Lenoxx
- Speaker Turbosound
- Speaker Argon
- Speaker Laney
- Speaker Morel
- Speaker SVS
- Speaker Citronic
- Speaker Crest Audio
- Speaker System Sensor
- Speaker Cygnett
- Speaker Brigmton
- Speaker Axis
- Speaker Natec
- Speaker MEE Audio
- Speaker Wet Sounds
- Speaker Lilliput
- Speaker Pyramid
- Speaker Premier Mounts
- Speaker Black Hydra
- Speaker GoldenEar Technology
- Speaker Linn
- Speaker Roswell
- Speaker Penton
- Speaker Music Hall
- Speaker Audac
- Speaker OSD Audio
- Speaker Indiana Line
- Speaker SunBriteTV
- Speaker Match
- Speaker Audioengine
- Speaker SOUNDBOKS
- Speaker JAYS
- Speaker DreamGEAR
- Speaker Crestron
- Speaker PowerBass
- Speaker The Box
- Speaker Kurzweil
- Speaker MusicMan
- Speaker Dynaudio
- Speaker GOgroove
- Speaker Avantree
- Speaker PSB
- Speaker KLH Audio
- Speaker Extron
- Speaker Dcybel
- Speaker Bazooka
- Speaker Tema
- Speaker Artsound
- Speaker Bigben Interactive
- Speaker SSV Works
- Speaker Sonifex
- Speaker Advance Acoustic
- Speaker Leviton
- Speaker Revel
- Speaker Nxg
- Speaker R-MUSIC
- Speaker Etekcity
- Speaker Klark Teknik
- Speaker ANT
- Speaker GMB Audio
- Speaker KRK
- Speaker Xcellon
- Speaker HEDD
- Speaker Soundfreaq
- Speaker Cerwin-Vega
- Speaker Sound Ordnance
- Speaker Markbass
- Speaker BSS Audio
- Speaker AmpliVox
- Speaker Memphis Audio
- Speaker Andover
- Speaker FiveO
- Speaker Aquatic AV
- Speaker UGo
- Speaker Ashly
- Speaker Poly-Planar
- Speaker Kreafunk
- Speaker CyberData Systems
- Speaker Sunfire
- Speaker WHD
- Speaker Soundsation
- Speaker NUVO
- Speaker Audiofrog
- Speaker Microlab
- Speaker EARISE
- Speaker Triangle
- Speaker Ikegami
- Speaker N-Gear
- Speaker Fluid
- Speaker Rocketfish
- Speaker Klip Xtreme
- Speaker JobSite
- Speaker Moonki
- Speaker Audibax
- Speaker Eve Audio
- Speaker C2G
- Speaker Aperion
- Speaker Soundsphere
- Speaker Elipson
- Speaker Advance
- Speaker Airpulse
- Speaker Transparent
- Speaker Aton
- Speaker Escape
- Speaker Wavemaster
- Speaker Rebeltec
- Speaker Moki
- Speaker BASSBOSS
- Speaker Mount-It!
- Speaker Weather X
- Speaker BMB
- Speaker Valcom
- Speaker Posh
- Speaker Amina
- Speaker Emphasys
- Speaker Micro Innovations
- Speaker Audica
- Speaker Clarity
- Speaker SoundCast
- Speaker Ministry Of Sound
- Speaker MONDO
- Speaker Wonky Monkey
- Speaker EarFun
- Speaker B&W
- Speaker Lithe Audio
- Speaker AwoX Striim
- Speaker TIC
- Speaker VIETA PRO
- Speaker Thiel
- Speaker Speakal
- Speaker Bem
- Speaker Lowell
- Speaker Mad Dog
- Speaker AudioSource
- Speaker Algo
- Speaker LOG Professional
- Speaker Barefoot Sound
- Speaker Quad
- Speaker Auratone
- Speaker Iharmonix
- Speaker X JUMP
- Speaker Trettitre
- Speaker Inter-M
- Speaker Audiovector
- Speaker Party Light & Sound
- Speaker Real-El
- Speaker Potter
- Speaker PulseAudio
- Speaker HuddleCamHD
- Speaker Blue Tees
- Speaker Bearware
- Speaker OWI
- Speaker Aconatic
- Speaker GoldenEar
- Speaker FoneStar
- Speaker AXESS
- Speaker Glemm
- Speaker MyDJ
Neueste Bedienungsanleitung für -Kategorien-
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
19 September 2024
