OWNER’S MANUAL
INDOOR / OUTDOOR SPEAKERS
AW400blk/wht • AW525blk/wht • AW650blk/wht • AW830blk/wht

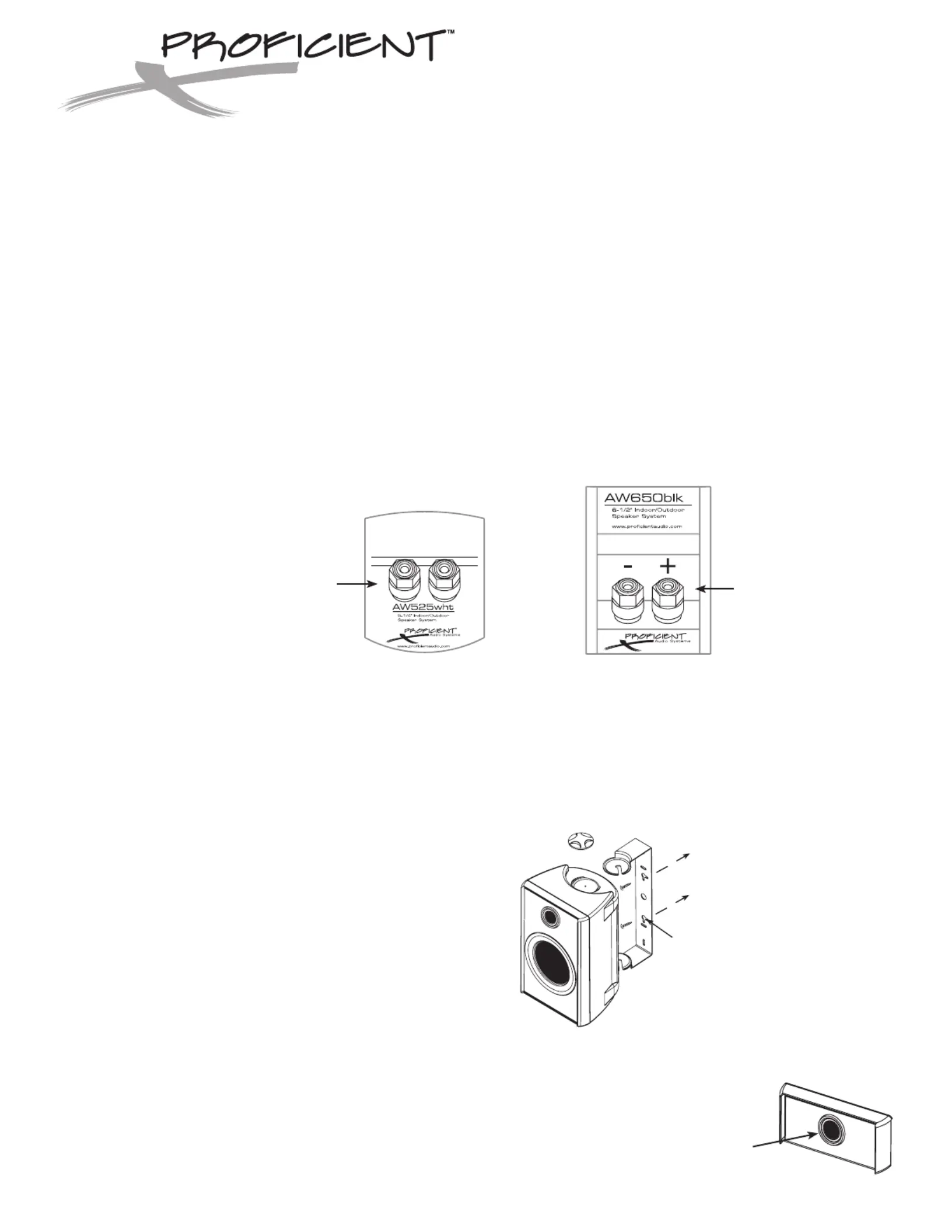

Please use below to familiarize yourself with the rear panel of your outdoor speaker.Diagram 1
WIRING
Placement Under Eaves and Outdoors
When mounting your speakers outdoors, the eaves of the roof
provide an ideal location. They reduce the exposure of constant
direct sunlight, salt spray, and precipitation. If installing speak-
ers on a boat, the wheelhouse provides the best location for the
same reasons. Following these suggestions will help to ensure
that your speakers will last a lifetime.
Placement on a Wall or Bookshelf
When placing your speakers on a wall or bookshelf, optimal
sound will be achieved if they are mounted at ear level or slightly
higher. The usual listening area should be no closer to the speak-
ers than the distance between the speakers themselves.
PLACEMENT
Diagram 2:
Installing Mounting Bracket
Diagram 1:
Speaker Cable Terminals
AW400blk/wht
AW525blk/wht
Speaker Cable Terminal
(Red = +, Black = –)
Speaker Cable
Terminal
AW650blk/wht
AW830blk/wht
Depending upon your listening area, you may nd the sound
more pleasing by pointing the tweeter in a particular direction. If
additional treble is desired, simply point the tweeter towards that
area; if less treble is required, point the tweeter away.
ADJUSTING THE PIVOTING TWEETER
Push gently at the edge
of the tweeter to point
the tweeter in the desired
direction. Do not touch
tweeter dome.
Diagram 3:
Pivoting Tweeter
Screw mounting bracket to wall
either horizontally or vertically
Secure speaker to mounting
bracket by tightening knobs
AW400blk/wht • AW525blk/wht • AW650blk/wht • AW830blk/wht: Attach the speaker cable to the speaker cable terminals,
observing the proper polarity with your amplier, + to + (red) and – to – (black). Make sure to connect the right channel to the
right speaker and the left channel to the left speaker.
Should you have any questions regarding this, or any other Procient Audio Systems product, please call our service hotline at 877.888.9004.
We are available to assist you every weekday, except holidays, between the hours of 7:00 a.m. and 5:00 p.m. PST.
SPEAKER SPECIFICATIONS
Features and specications are subject to change without notice.
Procient Audio Systems warrants to the original retail purchaser only
that this product will be free from defects in materials and workmanship
for a period of ten years, provided the speaker was purchased from a
Procient Audio Systems Authorized Dealer.
Defective products must be shipped, prepaid and insured, together with
proof of purchase, to the Procient Audio Systems Authorized Dealer
from whom they were purchased, or to Procient Audio Systems at the
address listed on this installation instruction manual. Freight collect ship-
ments will be refused. It is preferable to ship this product in the original
shipping container to lessen the chance of transit damage. In any case,
the risk of loss or damage in transit is to be borne by the purchaser.
If, upon examination at the Factory or Procient Audio Systems Authorized
Dealer, it is determined that the unit was defective in materials or work-
manship at any time during this warranty period, Procient Audio Systems
or the Procient Audio Systems Authorized Dealer will, at its option, repair
or replace this product at no additional charge, except as set forth below.
If this model is no longer available and can not be repaired eectively,
Procient Audio Systems, at its sole option, may replace the unit with a
current model of equal or greater value. In some cases where a new model
is substituted, a modication to the mounting surface may be required.
If mounting surface modication is required, Procient Audio Systems
assumes no responsibility or liability for such modication. All replaced
parts and product become the property of Procient Audio Systems.
Products replaced or repaired under this Warranty will be returned to the
original retail purchaser, within a reasonable time, freight prepaid.
This Warranty does not include service or parts to repair damage caused
by accident, disaster, misuse, abuse, negligence, inadequate packing or
shipping procedures, commercial use, voltage inputs in excess of the rated
maximum of the unit, or service, repair or modication of the product
which has not been authorized or approved by Procient Audio Systems.
This Warranty also excludes normal cosmetic deterioration caused by
environmental conditions. This warranty will be void if the Serial Number
on the product has been removed, tampered with or defaced.
This Warranty is in lieu of all other expressed warranties. If the product
is defective in materials or workmanship as warranted above, the pur-
chaser’s sole remedy shall be repair or replacement as provided above.
In no event will Procient Audio Systems be liable for any incidental
or consequential damages arising out of the use or inability to use the
product, even if Procient Audio Systems. or a Procient Audio Systems
Authorized Dealer has been advised of the possibility of such damages,
or for any claim by any other party. Some states do not allow the exclu-
sion or limitation of consequential damages, so the above limitation and
exclusion may not apply.
All implied warranties on the product are limited to the duration of this
expressed Warranty. Some states do not allow limitation on the length of
an implied warranty. If the original retail purchaser resides in such a state,
this limitation does not apply.
LIMITED TEN-YEAR WARRANTY
1300-41000 (rev6)
Audio Systems
940 Columbia Avenue, Riverside, CA 92507
877.888.9004 • Fax 951.787.8747 • proficientaudio.com
AW400blk/wht AW525blk/wht
2-Way Stereo Pair 2-Way Stereo Pair
4" Polypropylene Cone 51⁄4" Polypropylene Cone
1" Soft Dome Pivoting 1" Soft Dome
8Ω 8Ω
87dB 1W/1m 88dB 1W/1m
55Hz - 20kHz 45Hz - 20kHz
100 watts 125 watts
73⁄4" x 51⁄2" x 51⁄2" 93⁄16" x 61⁄2" x 63⁄8"
AW650blk/wht
2-Way Stereo Pair
61⁄ " Polypropylene Cone2
N/A
Pivoting 1" Soft Dome
4Ω
89dB 1W/1m
37Hz - 20kHz
150 watts
11" x 7" x 61⁄ "4
Type:
Woofer:
Midrange:
Tweeter:
Impedance:
Sensitivity:
Frequency Response:
Power Handling:
Dimensions (H x W x D):
AW830blk/wht
2-Way Stereo Pair
8" Polypropylene Cone
3" Graphite
Pivoting 1" Soft Dome
4Ω
89dB 1W/1m
35Hz - 20kHz
175 watts
153
⁄ " x 843⁄ " x 843⁄ " 4
Type:
Woofer:
Tweeter:
Impedance:
Sensitivity:
Frequency Response:
Power Handling:
Dimensions (H x W x D):
