Seite 1/3

What s In The Box’

Please inspect the contents of your shipped package to ensure you have received everything that

is listed below.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo copying, recording, or otherwise, except as may be expressly permied by the applicable copyright -

statutes or in wring by the Publisher.

 Top Shelf

 Boom Shelf

 4x Pneumac Wheels

 4x Rods

 2x Cross Bars

 2x Handles

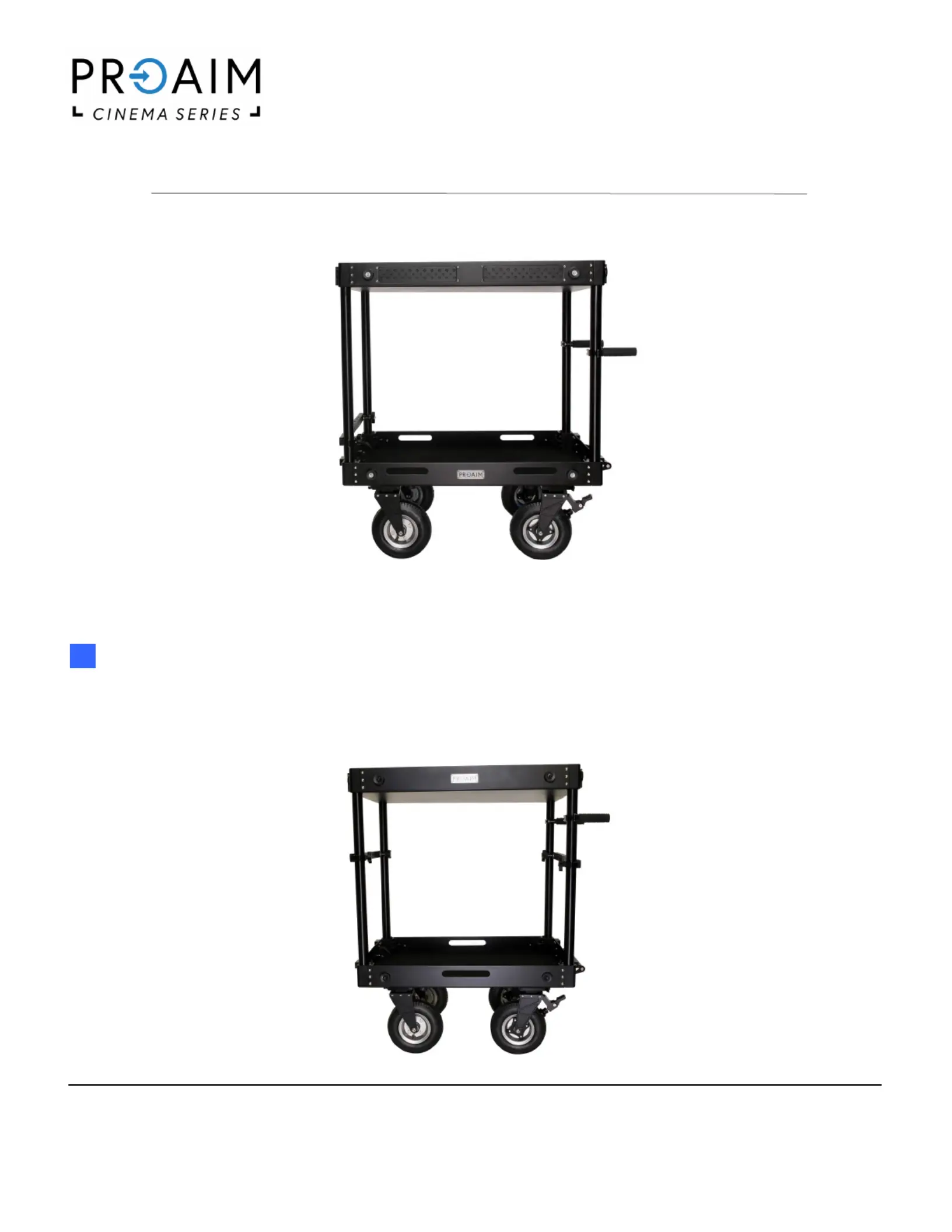

Victor V1.1 Video Producon Cart (VCTR )-V1

A s s e m b l y M a n u a l

Available Sizes: 32”, 36”

 Open all the 4 locks of Trolley to take out all

the parts, as shown in image.

 Aer sliding the wheels, lock them with the

knob on top.

 Unlock 4 Pneumac Wheels and slide onto

Trolley s Boom Shelf, as shown in image. ’

Victor Cart Setup

NOTE: To keep the dolly in stac posion, lock

the wheels by pushing down the lever.

 Now insert all the 4 Rods into 4 corners of

Boom Shelf. Tighten the knobs properly to

secure them.

 Finally, mount Top Shelf of Trolley onto Rods

and ghten the knobs accurately, as shown in

image.

 Insert the crossbar and secure with provided

knob.

 Insert the handle onto the rods, Set the

desired height posion as shown in image.

YOUR PROAIM VICTOR V1.1 VIDEO PRODUCTION CAMERA CART

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn t cover transportaon costs nor does it ’

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon

and evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.

Produktspezifikationen

Marke:	Proaim
Kategorie:	Flat panel steun
Modell:	VCTR-V1-32
