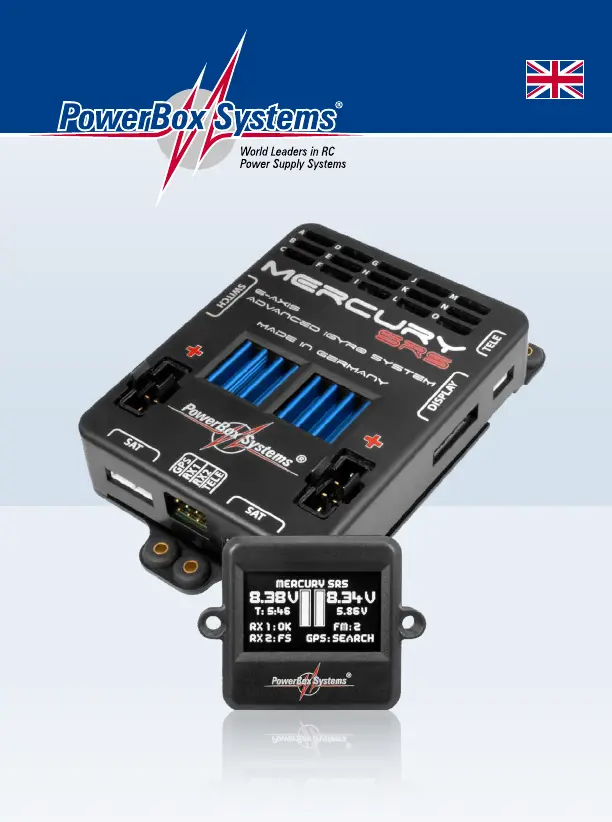

Instruction Manual
mErcury SrS
2PowerBox-Systems − World Leaders in RC Power Supply Systems
Dear customer,
We are delighted that you have decided to purchase the PowerBox Mercury SRS
power supply from our range.
We hope you have many hours of pleasure and great success with your PowerBox
Mercury SRS.
Product description
The PowerBox Mercury SRS is a new power management system which combines
all the experience and findings we have gained over the last few years, together with
customer requests, in a single compact unit. Never before has so much functionality
been crammed into such a small space! The is ideal for any applicaMercury SRS -
tion requiring an airborne system which provides an uncompromising level of high
performance. Integral , dual battery, dual receiving system, telemetry, door seiGyro -
quencer and servo matching are just a few of the highlights which this small, light-
weight device provides.
Introduction
These instructions explain how to install the Mercury SRS in the model and set it up
with the help of the Assistants. Working through the individual steps in the Assistants
completes most of the programming for the model; all that remains is to set up the
auxiliary functions and fine-tune the servos using the servo-match function. Natu-
rally it is also possible to set up all the functions of the manually, i.e. Mercury SRS
without using the Setup Assistant. All the menu points are explained individually in
the latter part of these instructions.
1. USING THE UNIT FOR THE FIRST TIME
Any pilot who has experience using a will immediately feel ‘at home’ with PowerBox
the method of operating the . The device is operated in the usual way Mercury SRS
with the help of a menu system displayed on the OLED screen, and the ON / OFF
switch.
www.powerbox-systems.com 3
1.1. Installing the Mercury SRS in the model
The Mercury SRS must be screwed to a hard surface in the model, otherwise it is
possible that the integral will not work properly. If the mounting plate is large, iGyro
it must be stiffened by the addition of cross-struts. Please note that the Mercury
SRS must always be installed in the model at right-angles to the fuselage centreline.
The actual orientation of the is unimportant: it can be installed in any Mercury SRS
location which is at 90° to the direction of flight. The actual installed position is auto-
matically detected later when the Assistant is invoked.
The switch is mounted on the fuselage side. As is usual, the inside of the switch
opening should be stiffened by adding a hardwood doubler to prevent serious vibra-
tion from reaching the switch; this is particularly important if the fuselage is made
of GRP. In the case of scale models it is often undesirable to have an exposed switch
on the outside, and for such applications we offer the or the MagSensor Magic Jeti
Switch (only Jeti TX) as alternative methods of switching. Please note, however: the
SensorSwitch is essential for programming the unit, and should always be acces-
sible.
The OLED screen can be installed in any location where it is clearly visible. If the stan-
dard cable (50 cm) is not long enough, we can supply extension leads.
1.2. Connections
The first step in operating the is to connect two batteries to it; the two PowerBox
packs should be of the same type and capacity. Connect the switch, the screen, both
receivers (Spektrum system: four satellites) and the optional sensor using GPS II
the patch-leads supplied in the set. The batteries can be either 2S LiPo, 2S LiIon, 2S
LiFePo or 5S NiMH types. We recommend the use of PowerBox Batteries, which
include integral electronic charge circuitry. If you intend to make up your own battery
packs, please note that correct polarity is vital, as the unit does not include reverse
polarity protection in order to avoid power losses.
Connecting a battery with reversed polarity - no matter how briefly - will instant-
ly destroy the voltage regulators in the PowerBox.
