Selecting A Preset

NOTE: If none of the parameters are flashing, clicking either the plus or minus Value button will

immediately begin to change the Preset value as it is the first editable parameter.

Changing The Drop / Capo Transposition

Changing The Concert A Reference

Changing The Preset Display Color

Changing The Tuning Pitch Notation ( When Available )

Resetting All Parameters of Active Preset to Default Values

To quickly reset all parameters of your active Preset to default values, press and hold the Menu down

and Value minus buttons together for around 2 seconds. The Mute LED will flash once and the Concert

A Reference, Drop / Capo Transposition and Preset Display Color will return to default values.

If the active Sweetener Preset or Guided Tuning Preset contains

String Number information, clicking either the up or down Menu

button will reveal the Tuning Pitch Notation option. The large tuning

pitch character in the center of the display will begin to flash and

either "Note" for traditional note names or "Str" for string numbers

will display in the lower right corner of your display. Use the plus or

minus Value button to select one of these options.

For example, GTR ( a common Peterson Sweetener for 6-String

Guitar ), contains string number information and can be toggled from

displaying E-A-D-G-B-E to string numbers 6-5-4-3-2-1.

Click either the up or down Menu button until the Palette Icon

flashes. Use the plus or minus value button to select 1 of 10

predefined colors. The Preset Display Color can be useful for quickly

identifying your presets on stage when the Preset name may be

harder to see. To quickly set your Preset Display Color back to the

default Orange color, click either the up or down Menu button until

the Palette Icon flashes. Then, press and hold the Menu up and

Value plus buttons together for around a half of a second.

NOTE: Changing the Preset Display Color only affects the

display color of the ACTIVE or CURRENT Preset. To change the

display color of all presets and settings, see Global Display

Color below the Settings Screen section.

Click either the up or down Menu button until the Concert A

Reference value flashes. Use the plus or minus Value button to

select a value from 390-490Hz. Clicking the plus or minus Value

button increments or decrements the Concert A Reference by 0.1Hz.

Pressing and holding either the plus or minus Value button will

quickly increment or decrement the Concert A Reference by 1Hz

respectively.

The Concert A Reference can be used to shift the entire tuning of

your preset to match that of a desired historic tuning standard or a

fixed-tuning instrument that cannot be adjusted. To quickly set your

Concert A Reference back to the default of 440Hz, click either the up

or down Menu button until the Concert A Reference value flashes.

Then press and hold the Menu up and Value plus buttons together

for around a half of a second.

Click either the up or down Menu button until the Drop / Capo

Transposition value flashes. Use the plus or minus Value button to

select a value from -6 to +5. To quickly set your Drop / Capo

Transposition back to the default value of 0, click either the up or

down Menu button until the Drop / Capo Transposition value

flashes. Then, press and hold the Menu up and Value plus buttons

together for around a half of a second.

Transposition settings change the note that is displayed on your

tuner when tuning. This is useful for string players who wish to tune

‘down’ by a number of steps or raise the pitch of the instrument with

the use of a capo. Setting the drop or capo transposition allows you

to tune using the standard note name of each string without

needing to calculate the transposed note name.

Click either the up or down Menu button until the 3-letter Preset name

flashes. Use the plus or minus Value button to select one of over 130

built-in Presets. Press either Menu button to exit or allow the active

parameter to time-out. To quickly set your selected Preset back to the

default ( EQU ), click either the up or down Menu button until the

3-letter Preset name flashes. Then, press and hold the Menu up and

Value plus buttons together for around a half of a second.

By default, the Presets you use the most will re-position to the top of

the Preset list, allowing you to access your most recently used

presets with just a few button pushes.

General Navigation and Parameter Adjustment

Any adjustment of the default settings of your StroboStomp HD can be performed using the 4 buttons

located on either side of your tuner. Two Menu buttons, up and down, are located on the left side while

two Value buttons, plus and minus, are located on the right side.

StroboStomp HD™ Tune Screen

Your StroboStomp HD has two screens of operation in which parameters can be adjusted. For basic

use, only the Tune Screen will be used. The Strobe Image and Tuning Note is displayed on the Tune

Screen. This is the default screen that the StroboStomp HD displays when powering on.

Sweetener™ & Guided Tuning Presets

Your StroboStomp HD contains over 130 built-in presets that cater to specific instruments. The majority

of these presets are considered “Sweetener Presets” because they make an instrument sound

“sweeter” by slightly adjusting each note to compensate for common tuning problems specific to an

instrument type. Many of these adjustments are so small that they can only be measured with the

incredible 1/10th cent accuracy of your Peterson Strobe Tuner. When a preset contains a sweetener,

the "Sweetener" label will show above the preset name.

Over 60 "Guided Tuning Presets" are also included. Guided Tuning Presets greatly simplify tuning for

common stringed instruments like guitar and bass. Guided Tuning Presets ignore all other chromatic

notes and only listen for the exact pitches to which your strings should be tuned. You can choose to

display note names or string numbers ( default ).

NOTE: Guided Tuning Presets are hidden by default but can be made visible in the Settings

Screen ( see Changing The Visibility of Presets ).

Sweetener & Guided Tuning Presets also carry the other three adjustable parameters of the tune

screen. When the Drop / Capo Transposition, Concert A Reference or Preset Display Color is changed,

those parameters will save with the Sweetener or Guided Tuning Preset that is currently visible and

active. Selecting another Preset will change your Concert A Reference, Drop / Capo Transposition and

Preset Display Color to those specified by the newly selected Preset. You can specify and save a

different Concert A Reference, Drop / Capo Transposition or Preset Display Color for each Sweetener

or Guided Tuning Preset. When any of the parameters of a preset are set to their default value, as

shown below, the default value will NOT be displayed.

The default preset, ( Equal Temperament ), is neither a Sweetener nor a Guided Tuning. It does EQU

not apply any tunings adjustments and should be used when you wish for your StroboStomp HD to

operate as a non-instrument-specific, highly accurate chromatic tuner.

Default Preset Settings / Values

* Only available when the Sweetener Preset or Guided Tuning Preset offers String Number option.

Default Value

EQU ( Equal )

440.0 ( Hz )

Orange

Note Name

Parameter

Preset

Drop / Capo Transposition

Concert A Reference

Preset Display Color

Tuning Pitch Notation*

Meaning

Momentarily fully depressing and immediately releasing a button

Fully depressing a button without releasing for an extended period of time,

usually until the desired effect is achieved as noted by this manual

Term

Click

Press & Hold

Momentary presses, or 'clicking', of the up and down Menu

buttons will navigate to the parameter which you'd like to

adjust. These parameters will flash as you pass through them.

Once you arrive at the desired parameter, clicking the plus or

minus Value buttons will increment or decrement the value of

that parameter. 'Pressing and holding' either of the Value buttons

will continuously and rapidly increment or decrement the value

respectively until released. After adjusting a parameter value, the

next press of either the up or down Menu button will end flashing

or, inaction will end the parameter flashing within a few seconds.

If no changes have been made to the flashing parameter value by

use of the Value buttons, the parameter will continue to flash for

slightly longer before ending.

When an adjustable parameter is flashing, pressing and holding

both the Menu up and value Plus buttons together for around

1/2 second will reset that parameter to its default value.

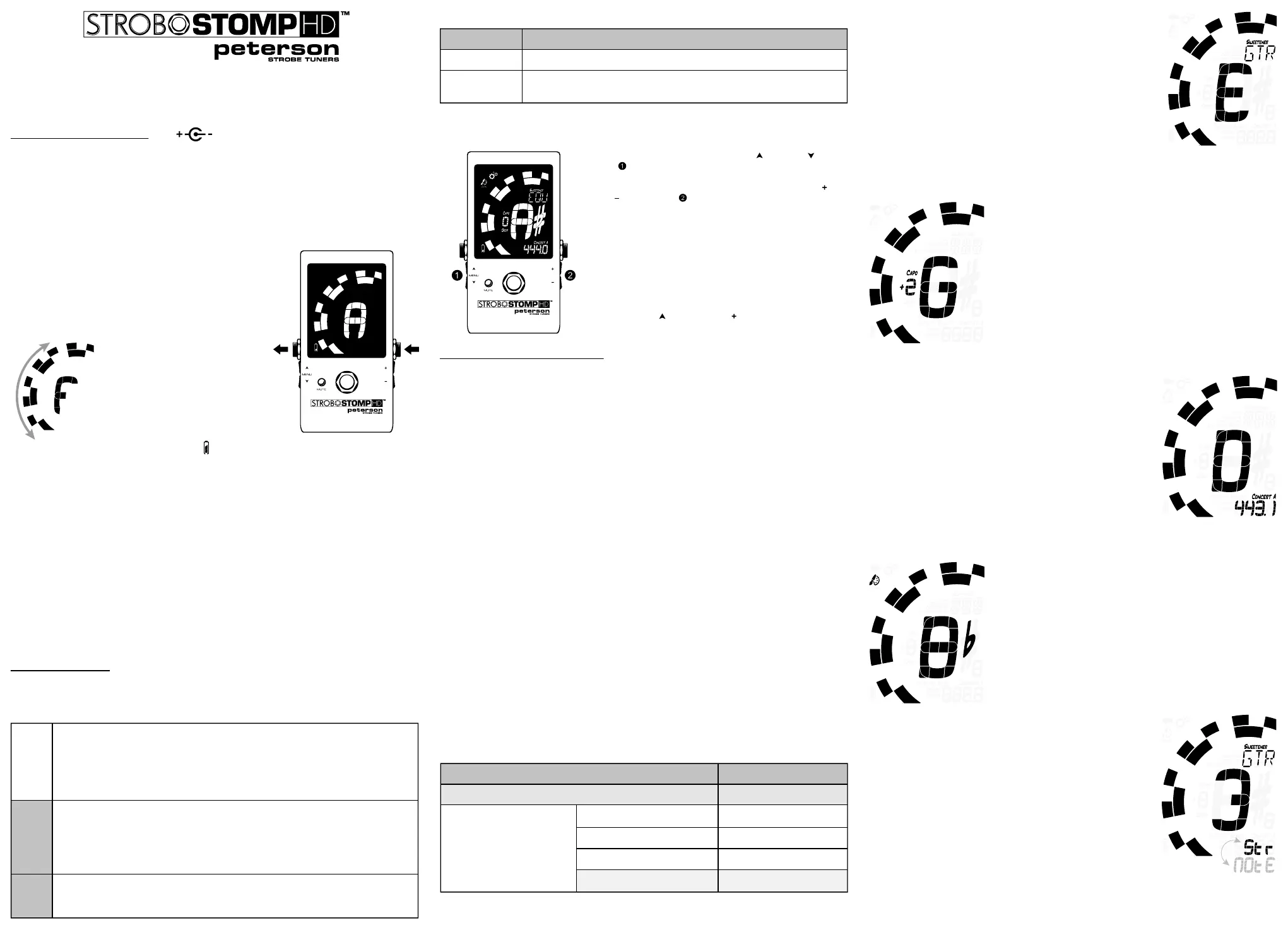

StroboStomp HD™ Owner’s Instruction Manual v1.0 EN

Congratulations on your purchase of the Peterson StroboStomp HD™. Please read through this

manual and use the tuner as directed.

Getting Started / Basic Use

Your new StroboStomp HD pedal tuner can be powered by either a 9V battery or regulated 9V DC

power supply. To change or access the battery, open the battery door on the bottom of the tuner and

carefully remove the battery clip. For best results always use a high quality Alkaline battery. Using a

regulated 9VDC adapter connected to the StroboStomp2’s DC Input jack, you can power additional

pedals from its DC Output jack ( please observe the correct polarity and output capacity of your

adapter).

WARNING: USING A WALL TRANSFORMER WITH THE INCORRECT POLARITY OR VOLTAGE MAY CAUSE PERMANENT

DAMAGE TO THE TUNER!!

When operating on battery power, a battery icon will show the battery level in the following scenarios:

• During the first few seconds after powering on or entering the Tune Screen, regardless of battery

level

• When battery level is low

• When viewing the settings screen, regardless of battery level

Strobe Newbie?

If you are new to strobe tuners, you will notice that they are much more sensitive and accurate than

your previous tuners. It’s OK if the strobe image doesn’t completely stop. It may shift slightly due to the

‘real-time’ feedback of a strobe tuner. For stringed instruments, it helps to use your finger or thumb to

gently pluck the string instead of a plectrum.

For more information on Strobe Tuning and why it's the best way to tune your instrument, we invite you

to visit https://www.petersontuners.com/whyPeterson

You can also find helpful quick-start video versions of this instruction manual on the Peterson Strobe

Tuners website at https://www.petersontuners.com/products/strobostompHD

Beyond The Basics

The Peterson StroboStomp HD can be set up in three ways by means of a three position mechanical

switch located inside the battery compartment just under the battery door.

100% True Bypass Operation

In this position, the instrument signal flows through the tuner circuits only when muted

by the stomp switch to enable silent tuning. When the tuner is bypassed or un-muted,

both the input and the output are physically disconnected from the tuner circuit and the

tuner is switched off. This allows the instrument signal to flow freely from input to output

without any physical or electronic contact with the tuner’s internal circuits.

Buffered Bypass

In this position, the instrument signal flows through the tuner circuits only when muted

by the stomp switch to enable silent tuning. When the tuner is bypassed or un-muted,

the output is driven by a preamp (buffered) with a low impedance active driver. This

prevents down-stream cables from affecting the signal (AKA: Tone Sucking), or other

devices that might load and distort the signal.

Buffered Bypass / Monitor Mode ( Default )

In this position, the output is driven exactly as in Buffered Bypass Mode but the tuner

display remains active when un-muted to monitor tuning while playing.

The note being tuned appears in

the center part of the screen. The

strobe bands scroll counter-clockwise ( left )

if your instrument is of the displayed note flat

and clockwise ( right ) if your instrument is

sharp of the displayed note. When the image

is stabilized or “caged”, your instrument is in

tune to 0.1 cent accuracy (1/10th of one cent)

of the displayed note.

For normal operation, the tuner can be used out of the box; no special

adjustment is needed. After installing the battery, simply activate the

StroboStomp HD by inserting a guitar cable into the input jack of the

tuner located on the right side. The output jack located on the left side

of the tuner can be used to connect the tuner to the input of an

amplifier or another effects pedal. Use the Stomp Foot-Switch to mute

the instrument’s signal and proceed to tune. When finished, use the

stomp switch to return to playing.

OUTPUT INPUT

9V DC Regulated 85mA

Peterson Connect is a free software interface that can be used to customize your StroboStomp HD.

Through the use of Peterson Connect™, you are able to:

• Update Firmware

• Design your own Sweetened & Guided Tunings

• Configure Sweetener or Guided Tuning Presets

• Re-order, minimize or expand your on-board Presets list

• Adjust various display settings

The majority of users will be able to make all needed adjustment to their StroboStomp HD without the

need for Peterson Connect. However, some users may wish to experiment with this free utility to

further customize their StroboStomp HD. A data-capable micro USB cable ( not included ) is required to

connect the StroboStomp HD to your computer.

https://www.petersontuners.com/connect

NOTE: Not all micro USB cables are capable of transferring data. Products that are not intended

to connect to a computer but require charging of a lithium-ion battery often include charge-only

micro USB cables. In order for Peterson Connect to communicate with your StroboStomp HD,

your computer's operating system must first be able to detect it.

Specifications

• True Strobe 0.1 Cent Accuracy

• Pop-less, 100% True Bypass Mode

• Pure Buffered Output Mode

• High-Definition LCD Display with LED Backlight

• User-Configurable Display Backlight Color

• Easily Visible in Direct Sunlight or Stage Lighting

• Over 100 Sweetened and Guided Tunings

• 390Hz - 490Hz Concert A Reference

• -6 - +5 Drop and Capo Transposition

• Firmware Updateable

• Micro USB

• Peterson Connect™ Compatible

• 9V Battery Powered or Optional ( 9VDC Negative Center Pin )

• 5.1in L x 2.6in W x 2.1in H ( with Stomp Switch )

• 129mm L x 66mm W x 53mm H ( with Stomp Switch )

• 14oz ( 400g )

Warranty

We warrant this product to be free of defects in materials or workmanship for a period of 3 years after

delivery to the original purchaser. Our obligation under this warranty is limited to the replacement or

repair of any part or parts which prove upon our examination to be defective.

This warranty does not apply to damage resulting from transportation, misuse, abuse, or alteration.

The complete unit must be returned to our factory, transportation charges prepaid. In order to speed

the return of the unit to you, it is recommended that for all repairs, other than those required as a result

of shipping damage, you deal directly with our factory. In case of damage in shipment, a claim should

be filed with the carrier. Be sure to include a brief description of the difficulty you are experiencing and

your return address. The above warranty is contingent upon registration within 10 days of the date of

receipt of the product by the original purchaser. The warranty conveys specific legal rights to the

purchaser, other rights vary from state to state and internationally.

Request help at: www.petersontuners.com/support

Peterson Electro-Musical Products, Inc. 11601 S. Mayfield Ave. Alsip, IL 60803 USA 708.388.3311

“Sweetener“, “Peterson Connect” and the linear & concentric strobe patterns are trademarks of:

Peterson Electro-Musical Products, Inc.- U.S. Patent # 6,580,024

9V DC Regulated

85mA

Changing The Accidentals Setting

Changing The Configuration

To quickly set your selected Configuration back to 'dEF' ( Default ) configuration, click either the up or

down Menu button until Configuration flashes. Then, press and hold the Menu up and Value plus

buttons together for around a half of a second.

NOTE: Changing the Configuration is NOT a Full Factory Reset.

Resetting The Configuration

To reset ALL user-adjustable parameters of your selected Configuration back to their default values,

click either the up or down Menu button until Configuration flashes. Then, press and hold the Menu

down and Value minus buttons together for around a half of a second. This will reset all of the settings

and presets of your active configuration back to their default values.

Changing The Auto-Order Presets Setting

Viewing the Hardware and Firmware Versions

Full Factory Reset

Factory Reset returns your StroboStomp HD to a complete

'out-of-the-box' state. All Presets are reset, adjusted Settings Screen

parameters are set back to default and any additional user

configuration data that has been added is erased. Click either the up

or down Menu button until the Factory Reset Label flashes. Click either

the plus or minus Value button to initiate a Factory Reset.

A timer will begin counting down and the Mute LED will flash with the

timer. Clicking any of the 4 buttons will cancel the Factory Reset.

When inside the Settings Screen, the Firmware Version will always

show in the lower right corner of the screen unless you choose to

view the Hardware Version instead. Click either the up or down

Menu button until the Hardware Version is visible. Continuing to

click either the up or down Menu button will again reveal the

Firmware Version.

Click either the up or down Menu button until the Auto-Order Presets

Setting flashes. Use the plus or minus Value button to select ON or

OFF. The Auto-Order Presets Setting changes whether or not your

StroboStomp HD re-orders your Presets based on those which you

have most recently used.

To quickly set your Auto-Order Presets Setting back to the default

( ON ), click either the up or down Menu button until the Auto-Order

Presets Setting flashes. Then, press and hold the Menu up and Value

plus buttons together for around a half of a second.

A Configuration is a collection of all the user-adjustable parameters

that affect how your StroboStomp HD functions. This collection

includes the parameters accessible in your settings screen as well

as all of your Presets. Out of the box, there is only one selectable

configuration named 'dEF' ( Default ). You can add an additional

configuration via the use of Peterson Connect ( see below ).

To change your Configuration, click either the up or down Menu

button until Configuration flashes. Use the plus or minus Value

button to select from 'dEF' ( Default ) or the three letter name of a

custom configuration that you may have downloaded from the

Peterson website via the use of Peterson Connect, commonly 'USR'

( User ).

Click either the up or down Menu button until the Accidentals Setting

flashes. Use the plus or minus Value button to select from 'SHP'

( Sharps ), 'FLT' ( Flats ) or 'bTH' which is a combination of

commonly used enharmonic equivalents. The Accidentals Setting

changes how the accidental is displayed beside the Note Name on

the Tune Screen. To quickly set your Accidentals Setting back to the

default ( 'SHP' Sharps ), click either the up or down Menu button

until the Accidentals Setting flashes. Then, press and hold the Menu

up and Value plus buttons together for around a half of a second.

NOTE: If you have designed a custom sweetened or guided

tuning through the use of Peterson Connect, you may have

chosen an Accidentals Setting specifically for that tuning. Any

accidental settings specific to a custom tuning override the

global setting.

StroboStomp HD™ Settings Screen

Your StroboStomp HD has two screens of operation in which parameters can be adjusted. The

Settings Screen allows for more detailed adjustment as well as system information. The Settings

Screen will always display battery level and firmware version.

To enter the Settings Screen, click either the up or down Menu button until the Gears Icon flashes.

Then, click either the plus or minus Value button.

When viewing the Settings Screen, inaction will eventually revert back to the Tune Screen. However,

after adjusting a parameter using the Value plus and minus buttons, inaction for just a few seconds will

revert back to the Tune Screen. To actively return to the Tune Screen, click either the up or down

Menu button until the Back Arrow Icon flashes. Then, click either the plus or minus Value button.

Within the Settings Screen, the following parameters

are adjustable:

* Some factory presets may be switched to OFF by default.

In addition to the above parameters, you can view both the firmware

and hardware version of your StroboStomp HD, as well as initiate a

complete factory reset of your tuner.

To adjust the following parameters, you must first be within the Settings Screen.

Changing The Global Display Color

Changing The Visibility of Presets

For example, if you only ever use EQU, GTR and ACU, you could first turn ALL presets OFF and then

toggle these 3 back ON individually.

NOTE: At least one preset must be set to ON. If you would like to hide EQU, set another preset

to ON before doing so.

Changing The Octave Display Setting

Default Value

Orange

ON*

OFF

SHP ( Sharp )

DEF ( Default )

Parameter

Global Display Color

Individual Preset Visibility

Octave Display

Accidentals

Configuration

Auto-Order Presets

Click either the up or down Menu button until the Octave Display

Setting flashes. Use the plus or minus Value button to select ON or

OFF. The Octave Display Setting shows or hides the Tuning Note

Octave Number on the Tune Screen. To quickly set your Octave

Display Setting back to the default ( OFF ), click either the up or

down Menu button until the Octave Display Setting flashes. Then,

press and hold the Menu up and Value plus buttons together for

around a half of a second.

Individual presets can be shown or hidden in order to narrow the

preset selection list. This allows you to customize your StroboStomp

HD to only display presets that are relevant to you in order to avoid

scrolling through over 130 Sweetener or Guided Tuning Presets.

Click either the up or down Menu button until the 3 Character Preset

Name Display flashes. Use the plus or minus Value button to select

the name of the preset of which you would like to show or hide.

Depressing the stomp switch will toggle the preset to ON or OFF.

To toggle ALL presets ON, press and hold the Menu up and Value

plus buttons together for around a half of a second. To toggle ALL

presets OFF ( except for EQU ), press and hold the Menu down and

Value minus buttons together for around a half of a second.

Click either the up or down Menu button until the Palette Icon flashes.

The word 'Global' will appear below the Palette Icon to denote that

you are editing the Global Display Color. Use the plus or minus Value

button to select 1 of 10 predefined colors. The Global Display Color

will become the default Preset Display Color of ALL Presets that have

not been previously adjusted. Future adjustment of the Preset Display

Color of individual Presets via the Tune Screen will override the

Global Display Color for that Preset.

To quickly set your Global Display Color back to the default Orange

color, click either the up or down Menu button until the Palette Icon

flashes. Then, press and hold the Menu up and Value plus buttons

together for around a half of a second.

Produktspezifikationen

Marke:	Peterson
Kategorie:	Nicht kategorisiert
Modell:	StroboStomp HD

Brauchst du Hilfe?

Wenn Sie Hilfe mit Peterson StroboStomp HD benötigen, stellen Sie unten eine Frage und andere Benutzer werden Ihnen antworten

Ihren Namen*

Deine E-Mail*

Schreiben Sie hier Ihre Frage

Bedienungsanleitung Nicht kategorisiert Peterson

Peterson StroboStomp Mini Bedienungsanleitung

22 August 2024

Peterson StroboStomp HD Bedienungsanleitung

22 August 2024

Peterson StroboPLUS HDC Bedienungsanleitung

22 August 2024

Peterson StroboClip HD Bedienungsanleitung

22 August 2024

Peterson StroboStomp LE Bedienungsanleitung

22 August 2024

Peterson BodyBeat Sync Bedienungsanleitung

9 April 2024

Bedienungsanleitung Nicht kategorisiert

Neueste Bedienungsanleitung für -Kategorien-

DAS Audio AX-112-5 Bedienungsanleitung

16 Oktober 2024

Ferplast Ergocomfort Freetime Bedienungsanleitung

16 Oktober 2024

AEG MECK52 Bedienungsanleitung

16 Oktober 2024

Makita UR012G Bedienungsanleitung

16 Oktober 2024

Stihl HT 70 Bedienungsanleitung

16 Oktober 2024

Ernesto H14270 Bedienungsanleitung

16 Oktober 2024

IFM AC901S Bedienungsanleitung

16 Oktober 2024

Nedis RFPOM120FBK Bedienungsanleitung

16 Oktober 2024

AEG E9KLCS01 Bedienungsanleitung

16 Oktober 2024

ART ProChannel II Bedienungsanleitung

16 Oktober 2024
