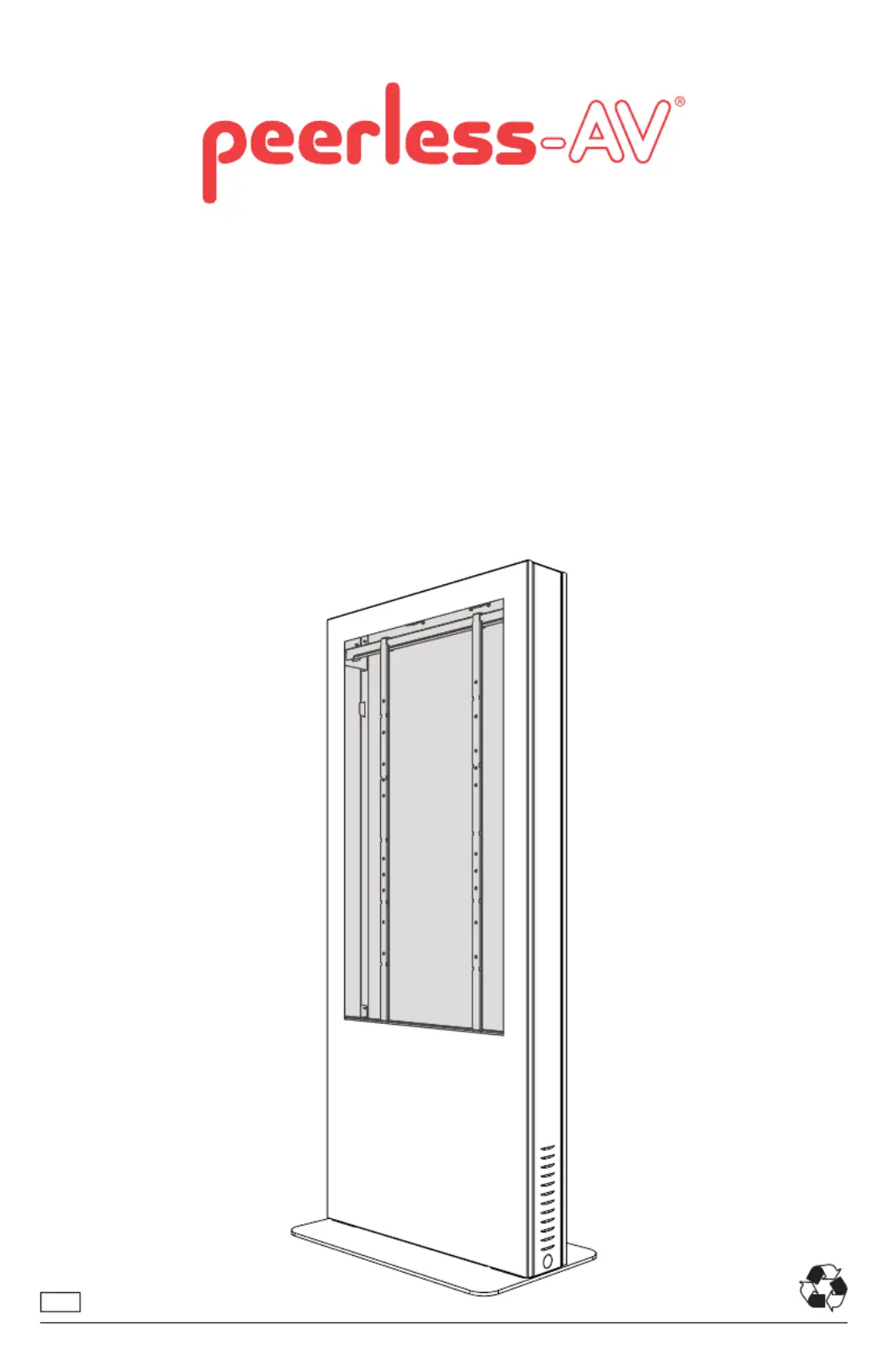

1(2013-08-09 ) #:150-9006-7 (2014-07-11 )
ENG
KIP540, KIP540-S,
KIP542, KIP542-S,
KIP546, KIP546-S,
KIP547, KIP547-S,
KIP555, KIP555-S
2(2013-08-09 ) #:150-9006-7 (2014-07-11 )
ENG - Do not begin to install product until you have read and understood the instructions and warnings
contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position
equipment. This product must be installed onto at, hard, level surface to prevent tipping. This product is
intended for indoor use only. Use of this product outdoors could lead to product failure or personal injury. To
reduce the risk of electric shock or re, do not expose product to water or moisture. Be sure power cord is routed
so that it will not be tripped on, stepped on, or pinched by heavy items. Avoid overloading electrical outlets or
extension cords. Always disconnect the power cord from the power outlet when installing, servicing, or not using
the product for an extended period of time. Do not block ventilation slots or fan exhaust on product. Blocking
air ow could damage product. Arrange product to allow air to ow freely around product. Keep product away
from direct sunlight or any source of heat. For support please call 800-4-SIGNAGE.
WARNING
Symbols
ENG
WARNING
ENG #
Skip to step.
ENG
x3
Screws must get at least three
full turns and t snug.
ENG
Front of mount.
ENG
F
Do not overtighten screws.
ENG
Tools Needed for Assembly.ENG
7/16"
(11mm)
3(2013-08-09 ) #:150-9006-7 (2014-07-11 )
Parts (Before beginning, make sure you have all parts shown below).
ENG
A (1)
kiosk
J (2)
key
B (4)
M5 x 12 mm
C (4)
M5 x 25 mm
D (4)
M6 x 12 mm
E (4)
M6 x 25 mm
M5/M4/M6 washer
H (4)
M8 x 12 mm
F (4)
M8 x 25 mm
G (4)
spacer
I (4)
K (1)
t- wrench
Parts List
KIP540
KIP540-S
Part #
KIP542
KIP542-S
Part #
KIP546
KIP546-S
Part #
KIP547
KIP547-S
Part #
KIP555
KIP555-S
Part #
Description Qty
Akiosk BLK
kiosk SLV
1 150-P1065
150-4065
150-P1068
150-4068
150-P1058
150-4058
150-P1060
150-4060
150-P1061
150-4061
BM5 x 12mm 4 520-1027 520-1027 520-1027 520-1027 520-1027
CM5 X 25mm 4 520-9543 520-9543 520-9543 520-9543 520-9543
DM6 x 12mm 4 520-1128 520-1128 520-1128 520-1128 520-1128
EM6 x 25mm 4 520-1208 520-1208 520-1208 520-1208 520-1208
FM8 x 12mm 4 520-9571 520-9571 520-9571 520-9571 520-9571
GM8 x 25mm 4 520-1031 520-1031 520-1031 520-1031 520-1031
HM5/M4/M6 multi washer 4 580-1398 580-1398 580-1398 580-1398 580-1398
Ispacer 4 540-1059 540-1059 540-1059 540-1059 540-1059
Jkey 2 565-0049A 565-0049A 565-0049A 565-0049A 565-0049A
Kt-wrench 1 560-1718 560-1718 560-1718 560-1718 560-1718
Lplug adatper 1 N/A N/A N/A N/A N/A
plug adapter
L (1)
