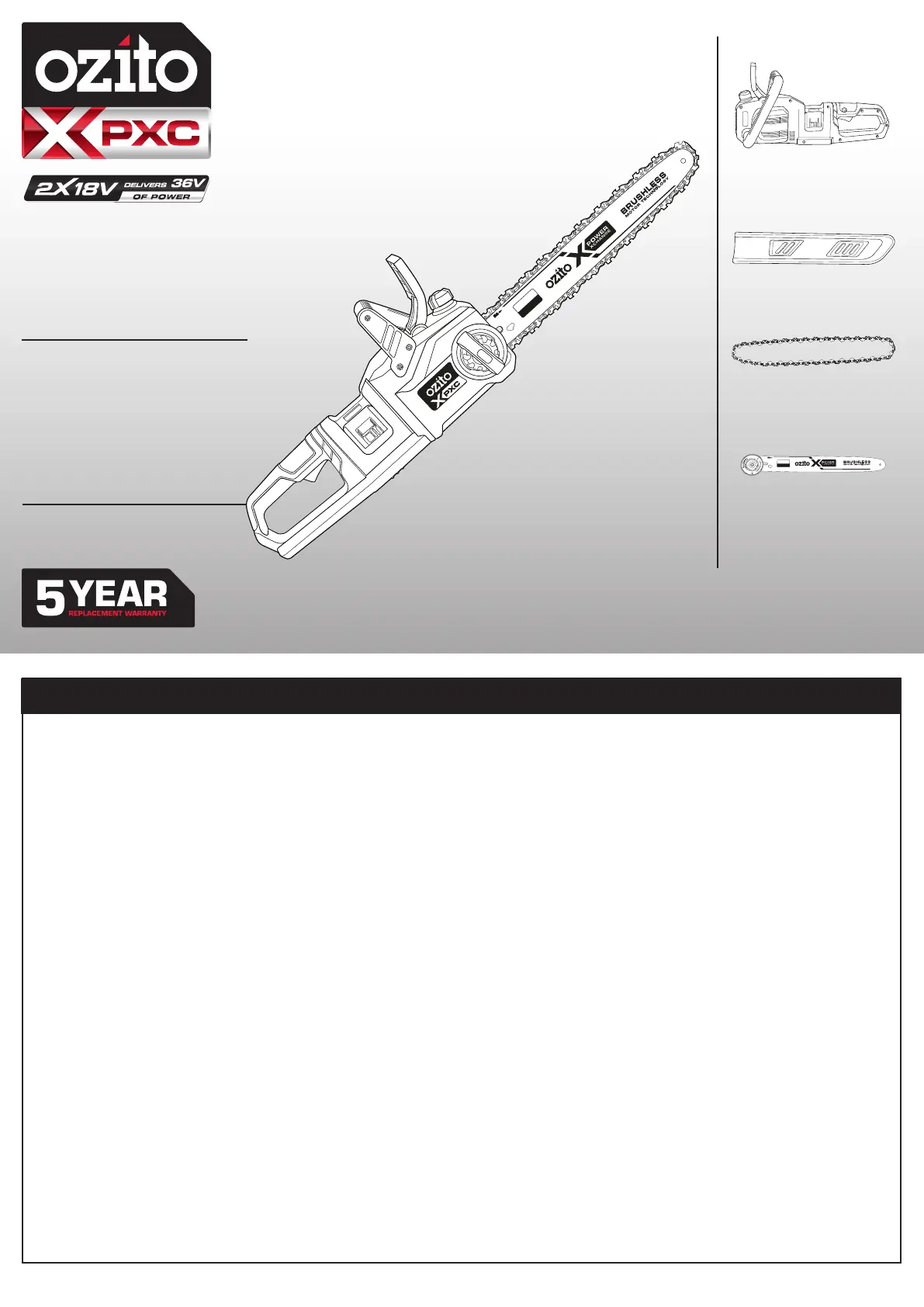

SPECIFICATIONS
Input: 18V x 2
Bar Length: 356mm (14”)
Cutting Length: 330mm max.
Chain Speed: 15m/s max.
Chain Pitch: 9.53mm (3/8”)
Chain Gauge: 1.1mm (0.043”)
Oil Tank: 115ml max.
Weight: 4.1kg
STANDARD EQUIPMENT
Brushless Chainsaw
BRUSHLESS
CHAINSAW
INSTRUCTION MANUAL
ozito.com.au
Guide Bar Cover
Guide Bar
Chain
.
PXCCSS-0182
WARRANTY
0922
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty. Warranty excludes consumable parts, for example: guide bar, chain
and included accessories.
356
mm
3/8” LP
52
14
in
14
in
356
mm
3/8” LP
52
OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, Victoria 3175 Australia
The benets provided under this warranty are in addition to other rights and
remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded at law. You are entitled to
a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods
repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
Generally you will be responsible for all costs associated with a claim under this
warranty, however, where you have suffered any additional direct loss as a result of
a defective product you may be able to claim such expenses by contacting our
customer service helpline above.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU
MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS
WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO
RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE
OUR CUSTOMER SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND
ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE
WARRANTY POLICY OR PROCEDURE.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other than that specied
on the tool.
• If the tool shows signs of damage or defects caused by or resulting from
abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
• Professional, industrial or high frequency use.
WARNING!: ALWAYS WEAR GLOVES WHEN HANDLING
THE CHAIN AS IT IS VERY SHARP AND CAN CUT YOU
WHEN IT IS NOT MOVING.
WARNING! ENSURE THE CHAINSAW IS SWITCHED
OFF AND BATTERIES ARE DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
14
in
356
mm
3/8” LP
52
KNOW YOUR PRODUCT SETUP & PREPARATION
1. ASSEMBLY
1. Rear Handle
2. Trigger Switch
3. Battery Seating
4. Front Handle
5. Guide Bar Lock Knob
6. Chain Brake
7. Chain Oil Tank Cap
8. Guide Bar
9. Chain
10. Bucking Spikes
11. Oil Level Window
12. Side Cover
13. Chain Tension Adjustment
Dial
14. Motor Cover
15. Lock-Off Button
BRUSHLESS CHAINSAW
1 2 3 4 5 6 7 8
BATTERY & CHARGER
This tool is compatible with all battery and chargers
from the Ozito PXC Range.
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to the
online manual.
ACCESSORIES
16. Guide Bar Cover
15
16
10 11 12 13 14
9
14
in
356
mm
3/8” LP
52
AB
14
in
356
mm
3/8” LP
52
Fitting the chain and bar
1. Completely unscrew the
guide bar lock knob,
in a counter clockwise
direction.
2. Remove the side cover.
3. Fit the chain over the
guide bar, making sure
that the cutters are facing
in the direction of rotation.
IMPORTANT: IF THE CHAIN IS INSTALLED BACKWARDS
(CHAIN CUTTERS ARE FACING IN THE OPPOSITE DIRECTION
OF ROTATION) THE CHAINSAW WILL VIBRATE EXCESSIVELY
AND NOT CUT.
14
in
356
mm
3/8” LP
52
4. Place the guide bar
and chain in position,
ensuring that the
chain is around
sprocket wheel (A).
Also ensure that the
threaded pin
(B) fits into
the guide bar
tension dial.
If it does not
fit, it can be
adjusted slightly
by turning the dial.
5. Attach the side cover and secure it
with the side cover lock. Do not fully
tighten the guide bar lock knob until
after adjusting the chain tension.
CAUTION: IF YOU TRY TO ROTATE THE CHAIN TENSIONING
ADJUSTMENT DIAL WHILST THE CHAIN COVER LOCK IS
TIGHT, IT WILL RESULT IN THE CHAIN NOT LOOSENING AND
POSSIBLE DAMAGE TO THE MECHANISM.
2. OIL
3/8” LP
52
WARNING!: ALWAYS WEAR APPROPRIATE PERSONAL
PROTECTIVE EQUIPMENT (PPE) WHEN USING THE
CHAINSAW, SUCH AS STURDY NON-SLIP FOOTWEAR,
LONG TROUSERS, LEATHER GLOVES, SAFETY GLASSES,
HEAD AND EAR PROTECTION. NEVER USE THE EQUIPMENT
BAREFOOT OR IN SANDALS.
WARNING! DO NOT OPERATE THIS APPLIANCE WITH
LONG LOOSE HAIR OR LOOSE FITTING JEWELLERY. TIE
LONG LOOSE HAIR BACK AND REMOVE LOOSE FITTING
JEWELLERY.
Note: Chain bar oil may leak if the chainsaw is left for long
periods. This is normal. If the machine is to be left unused
for an extended time, drain the oil from the chainsaw. Refill
before use.
5. To check the lubricating
system, switch on the
chainsaw and hold it with
the guide bar and chain
above some light coloured
paper such as newspaper.
A steadily increasing stain
caused by oil spray shows
the lubricating system is
working.
2. Fill the tank with chain bar
oil. The capacity of the
chain oil tank is 115ml. Do
not over fill.
4. Always fill the oil tank when
the oil level is below the
minimum mark on the oil
level window.
WARNING!: NEVER START WORK UNLESS THE CHAIN
AND BAR ARE LUBRICATED.
1. Remove the chain bar oil
cap.
3. Refit cap and clean any oil
spillage.
IMPORTANT: ONLY USE OIL THAT IS EXPRESSLY LABELLED
“CHAIN BAR OIL”.
356
mm
3/8” LP
52
14
in
Adjusting the chain tension
1. Loosen the guide bar lock
knob slightly, by rotating
it in an anti clockwise
direction.
2. Adjust the chain tension
with the chain tensioning
adjustment dial. Turning the
dial CLOCKWISE increases
the chain tension, turning
it COUNTER-CLOCKWISE
decreases the chain tension.
For the correct chain tension,
firmly pull up on the chain at
the middle of the top of the
exposed guide bar. When
the chain is pulled up to its
highest point, the bottom tip
of the links should only just
stay in the track [middle of
the guide bar].
3 - 4mm ga s p i
the ideal tens nio
3. After the chain has been accurately
tensioned, lock the guide bar in place
with the guide bar lock knob.
IMPORTANT: IT IS VITAL FOR THE PROPER AND SAFE
OPERATION OF THE CHAINSAW THAT THE CHAIN IS
TENSIONED CORRECTLY.
