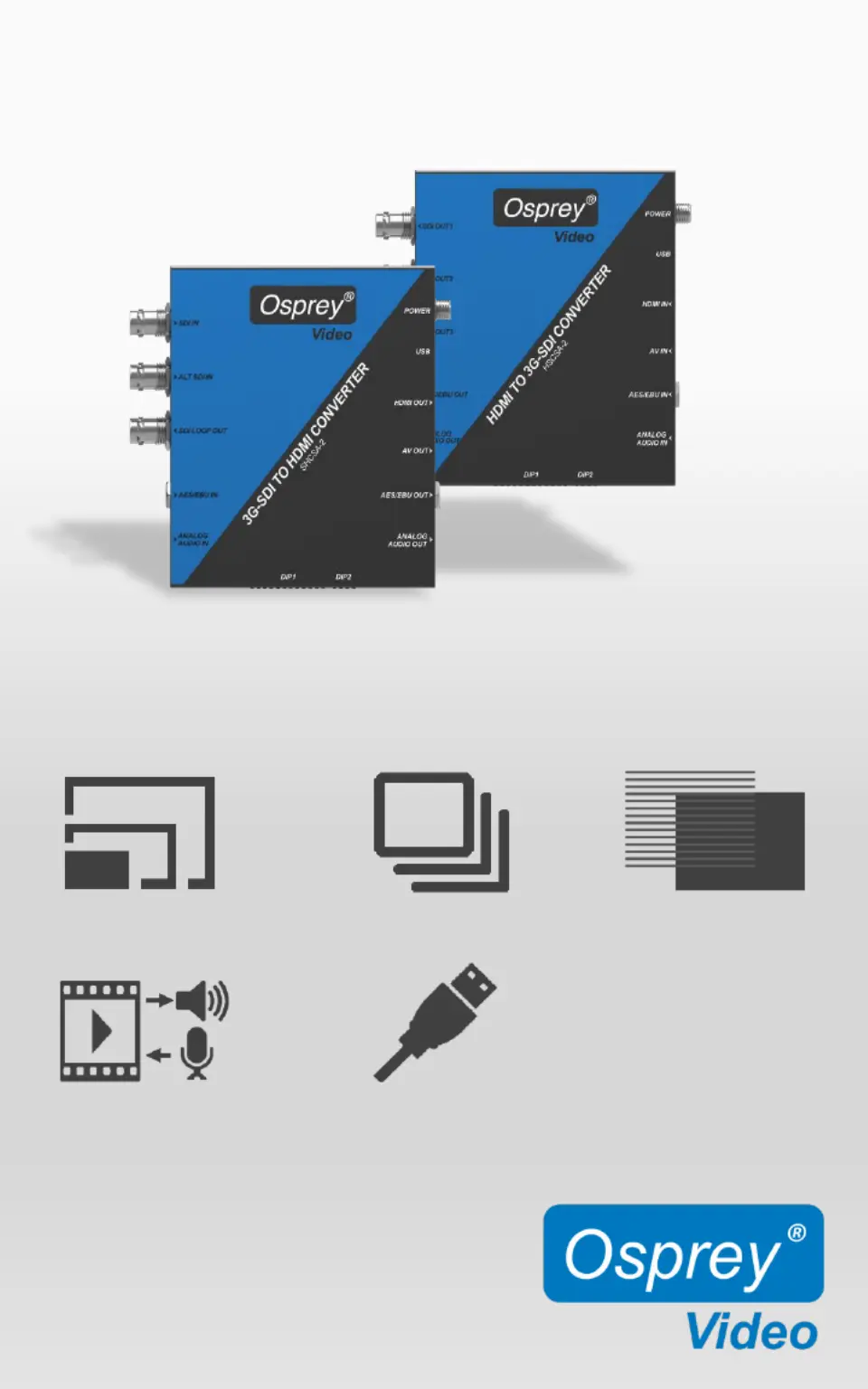

SHCSA-2 (SDI to HDMI) and HSCSA-2 (HDMI to SDI)
SCALING CONVERTERS
All logos and trademarks are the property of their respective owners
Quick Start Guide
SCALING FRAME RATE
CONVERSION
INTERLACING
DE-
INTERLACING
AUDIO
FEATURES
USB CONTROLS
USER INTERFACE
_____________________________________________________
The device settings changed either Dip-Switchescan be by
(Settings Table printed the back the unit) with aon of or USB
Control Software that downloadedcan be here
The Control Panel Software exposes additional features which are
not accessible the DIP Switches. also allows the user createby It to
custom settings profiles which saved laterand can be and
accessed DIP Switch.by
Features only accessible the Control Panel are:by
- Image Flip SHCSA-2 only. HSCSA-2 Dip Switches foron has
Image Flip
- OSD (On Screen Display) location (SHCSA-2 and HSCSA-2). The
software allows you place the text overlay for Videoto
Information anywhere within the active screen area. The DIP
Switches only let you turn OSD OFFON or
SDI to HDMI and CVBS Converter (SHCSA-2)
______________________________________________
Video Input Features:
1. The device accepts SDI Video input Signals 3G data rateup to
2. “ALT IN” “SDI IN”SDI is ina fail over input case signal lossof at
3. “SDI LOOPOUT” is for the primary input only“SDI IN”
Audio Input Features:
1. Up to 8 Stereo Pairs embedded SDI Audioof
2. AES/EBU Audio 6. barrel connectorby 35mm
3. Unbalanced Analog Audio 3.5 barrel connectorby mm
Video Output Features:
1. 60HDMI parallel CVBS Output. HDMI Pand up to 1080 , CVBS
either i NTSC i PAL480 or 576
2. SDI Loopout inputof “SDI IN”
3. 444 444HDMI Color Space selection eitherof RGB , YUV , YUV422
or onDVI (no embedded AudioRGB444 DVI setting)
Audio Output Features:
1. Up to 4 Stereo Pairs embedded HDMI Audioof
2. AES/EBU Audio 6. barrel connectorby 35mm
3. Unbalanced Analog Audio 3.5 barrel connectorby mm
