WARNING
IMPORTANT SAFETY
INSTRUCTIONS
READ ALL INSTRUCTIONS
BEFORE USING
1. Do not leave appliance when plugged in. Unplug
from outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow to be used as a toy. Close attention
is necessary when used by or near children.
4. Use only as described in this manual. Use only
manufacturer’s recommended attachments.
5. Do not handle plug or appliance with wet hands.
6. Do not put any object into openings. Do not use
with any openings blocked, keep free of dust,
lint, hair, and anything that may reduce air flow.
7. Keep hair, loose clothing, fingers, and all parts of
body away from openings and moving parts.
Product specifications subject to change without notice.
Madison and Red Bank Roads, Cincinnati, Ohio 45227
Printed in Canada, Rev. 1/01, Part No. 88611
®
®
Save These Instructions

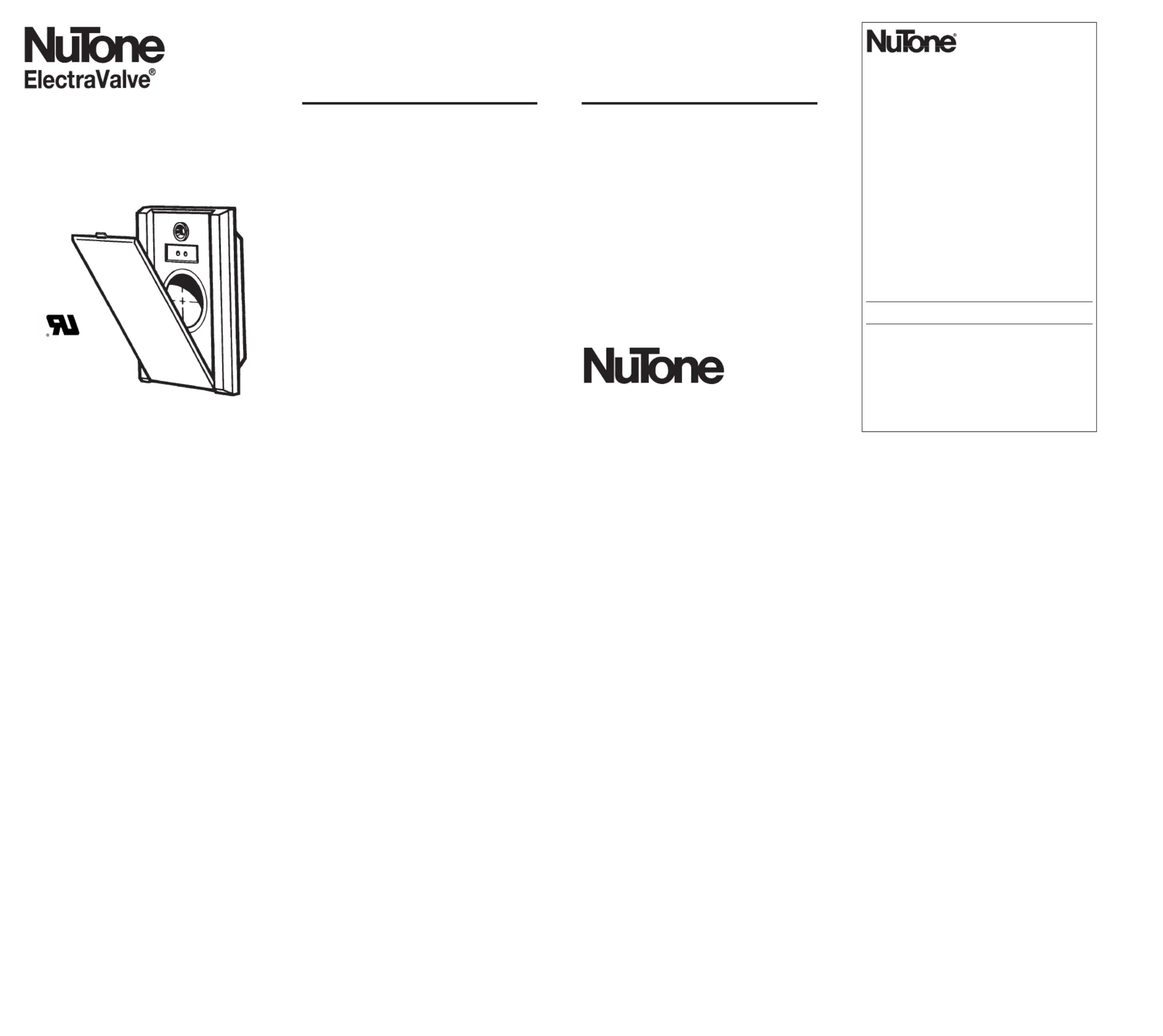

ELECTRIFIED INLET
Models: CI-390, CI-395
Installation Instructions
For use with NuTone CH610, CH615 or
CH620 Central Cleaning System Hoses.
UL Listed Assembly
E150280
One Year
Limited Warranty
WARRANTY OWNER: NuTone warrants to the original consumer purchaser of its products
that such products will be free from defects in materials or workmanship for a period of one (1)
year from the date of original purchase. THERE ARE NO OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MER-
CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
During this one year period, NuTone will, at its option, repair or replace, without charge, any
product or part which is found to be defective under normal use and service. THIS WARRAN-
TY DOES NOT EXTEND TO FLUORESCENT LAMP STARTERS OR TUBES, FILTERS,
DUCT, ROOF CAPS, WALL CAPS AND OTHER ACCESSORIES FOR DUCTING. This war-
ranty does not cover (a) normal maintenance and service or (b) any products or parts which
have been subject to misuse, negligence, accident, improper maintenance or repair (other
than by NuTone), faulty installation or installation contrary to recommended installation instruc-
tions.
The duration of any implied warranty is limited to the one year period as specified for the
express warranty. Some states do not allow limitation on how long an implied warranty lasts,
so the above limitation may not apply to you.
NUTONE’S OBLIGATION TO REPAIR OR REPLACE, AT NUTONE’S OPTION, SHALL BE
THE PURCHASER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY.
NUTONE SHALL NOT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL
DAMAGES ARISING OUT OF OR IN CONNECTION WITH PRODUCT USE OR PERFOR-
MANCE. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights, which vary from state to state. This
warranty supersedes all prior warranties.
WARRANTY SERVICE: To qualify for warranty service, you must (a) notify NuTone at
the address stated below or telephone 1/800-543-8687, (b) give the model number and
part identification and (c) describe the nature of any defect in the product or part. At the
time of requesting warranty service, you must present evidence of the original pur-
chase date.
Date of Installation Builder or Installer
Model No. and Product Description
IF YOU NEED ASSISTANCE OR SERVICE:
For the location of your nearest NuTone Independent
Authorized Service Center:
Residents of the contiguous United States Dial Free 1-800-543-8687
Please be prepared to provide:
Product model number • Date and Proof of purchase
• The nature of the difficulty
Residents of Alaska or Hawaii should write to: NuTone Inc. Attn: Department of National
Field Service, Madison and Red Bank Roads, Cincinnati Ohio 45227-1599.
Residents of Canada should write to: Broan-NuTone Canada,
6300 Tomken Road,Mississauga, Ontario, Canada L5T 1H9. Rev. 01/2000
8. Do not use to pick up flammable or combustible
liquids such as gasoline or use in areas where
they may be present.
9. Connect only to NuTone current carrying hose
models CH610, CH615 or CH620.
10. Do not install a wall valve outdoors.
11. Do not use with a damaged hose. Return hose to
an authorized NuTone service center.
12. To unplug, grasp and pull on the hose connec-
ton. Do not unplug by pulling the hose.
13. Do not handle the hose or connector with wet
hands.
Electrified Inlet (with 12 AWG Wire)
NEW HOME INSTALLATION
INSTRUCTIONS
(For Household Use)
1. Fasten the mounting plate to a stud within three
studs (48") of an electrical outlet box. Measure
and mark the wire 10" from the plug (A), Feed
the wire through the top hole in the mounting
plate (Just above the circular opening). Snap the
molded plug into the mounting plate as pictured
(B). This will keep it secure and out of harm’s
way during drywalling and finishing. Line up the
wire at the previously measured 10" mark with
the strain relief channel on the back of the
mounting plate. Secure it in place with the sup-
plied wire tie (C).
2. Run the inlet wire to the adjacent electric box. If
you must run wire through a stud, drill directly
through the center of the stud (D).
3. Place the exposed ends of the two wires into the
electrical box through a strain relief channel (E).
Tighten the strain relief (do not overtighten) on
the white sheathing leaving 1/2" of this sheathing
exposed inside the outlet box.
Fold the 6" of black and white wire into the outlet
box. Leave the wires to be connected by the elec-
trician when plug receptacles are being installed.
(Attention: Power tools such as routers are not
recommended for use with the inlet installation, as
removal of drywall with these devices may cause
damage to the mounting plate and/or inlet plug.)
4. Once drywall and finishing processes have been
completed, remove molded plug from mounting
plate (with the aid of a slot screwdriver) and snap
it into the wing slot at the back of the inlet (F).
(Please note: molded plug fits one way only, with
the narrow opening at the top.) Insert inlet into
mounting plate and secure inlet to mounting plate
with screws provided.
NOTE: All electrical devices such as the electri-
fied inlet should be reported to the construction
electrician for listing on the inspection report for
building inspection purposes.
NOTE: Plumb inlet to tubing using NuTone
Model 382-S 90° Ell fitting.
®
E
D
