Seite 1/23

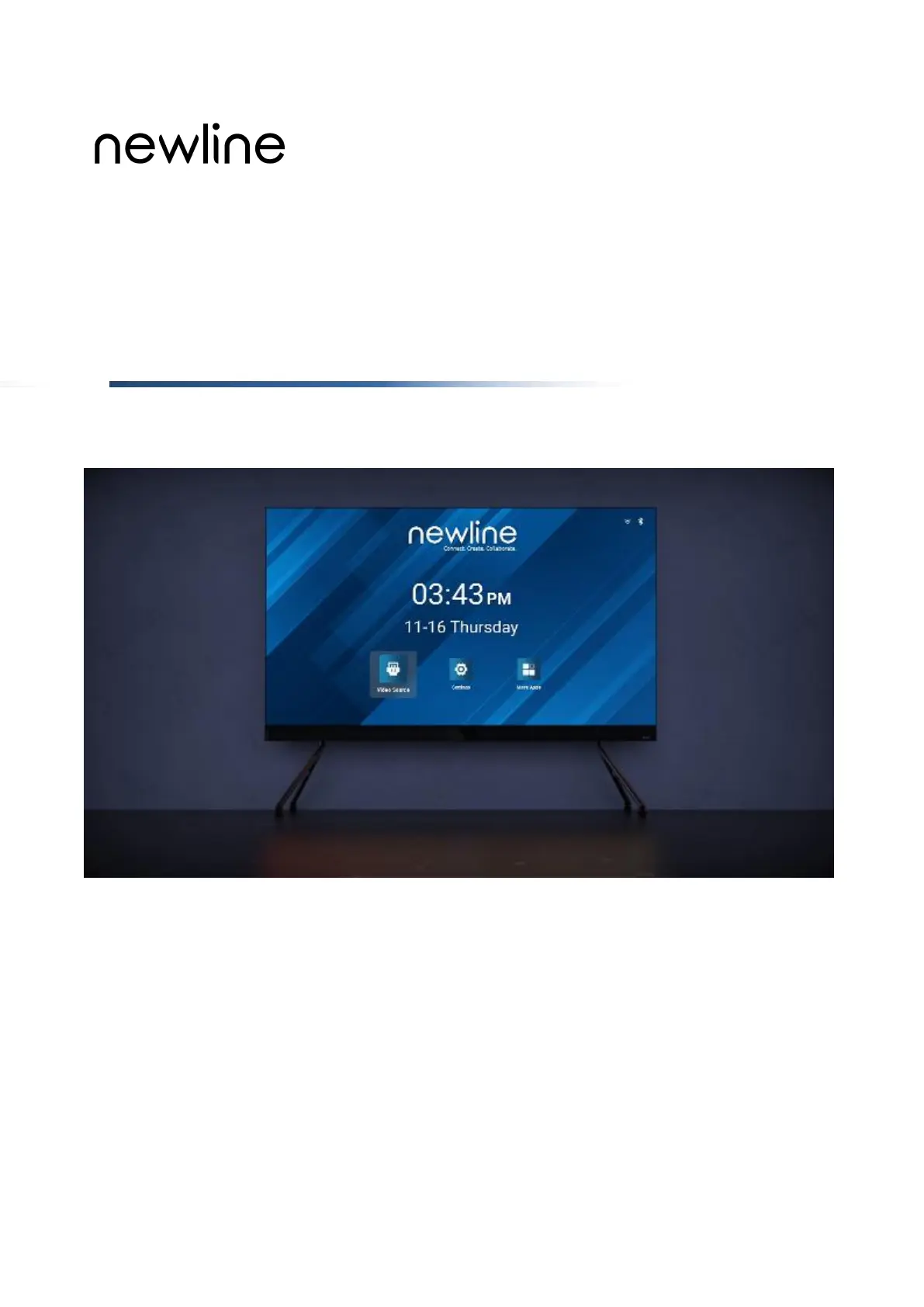

Newline DV Series
MANUAL
0 1
03
04
05
05
05
06
06
06
06
07
07
07
08
29
29
29
31
33
09
09
10
11
11
35
37
37
38
42
42
42
43
44
Contents
Safety guides
Important warnings
Copyright
warning & caution
Qualified professional
Safety regulations
Document description
Agreement
Description
01
02
03
1. Overview
1.1 Features
1.2 Product and accessories
1.3 Product introduction
2 Installation guide
2.1 Precautions
2.2 Installation dimensions
2.3 Installation steps
2.3.1 Base-installation
25
2.3.2 Wall-mounted installation
27
2.4 Segment gap adjustment of display module
3. Maintenance
3.1 Precautions
3.2 Display maintenance
3.3 Cleaning
3.4 Troubleshooting
04
05
06
4. Packing
5. Control system(optional)
5.1
5.2
Interface
Software
6. Transportation and delivery
6.1 Transportation
6.2 Storage
6.3 Unpacking
CONTENTS
07 7. Warranty
03/04
IMPORTANT WARNINGS
SAFETY GUIDES
High Voltage Danger, non-professional personnel is forbidden to open the rear cover. Forbid
hot plugging and/or unplugging.
Make sure to take appropriate protective measures to avoid accidents when working at
height.
Keep the display away from flammable and/or explosive material.
Notice: Power on Regularly.
When it is not used for a long time, the power supply of the display should be turned on regularly
(the LED display cannot be turned off for a long time). If the display has not been used for more
than 3 days under the condition of high ambient humidity, it is necessary to check whether there is
moisture on the surface before lighting up; if there is moisture, ventilation or dehumidification is
required. Pre-heating light-up is required to light up the display: keep the black screen for 2 hours
after power-on, preheat the display at 10-20% brightness for 4-8 hours, and then adjust it to normal
brightness (40% - 80%) to light up the display to eliminate moisture, so as to avoid any abnormality
during use (the brightness can be manually adjusted by the user according to the use environment).
Notice: Class I equipment, which is requested to be grounded.
The display is requested to be grounded.
Notice: Power Supply.
When wiring power supply, please pay attention to load balance, overload is strictly prohibit
ed. Before installation, please ensure that the operating voltage of the display is suitable for
the local grid voltage.
Please read this manual carefully and follow the instructions before using the product.
Please follow the installation method in the user manual to complete the installation.
Please cut off the power of the screen body during installation and maintenance to prevent
electric shock and injury, and avoid short circuit of the live parts of the PCB board against the
metal frame.
DO NOT place the product face down on an irregular surface to avoid permanent damage to
the display surface of the product.
DO NOT place the product on the tilted or unstable table or card, if not, the product may fall
or topple, which will cause permanent damage to the product.
DO NOT place any heavy object on the power cord to avoid damaging the cord and causing
electric shock or fire.
DO NOT repeatedly bend or move the power cord or data line frequently to avoid damaging
the cord and causing electric shock or fire.
Please connect the power cord and/or the network cable as recommended by .Newline
Please arrange, tie and the power cord and network cable orderly after the installation, fix
and separate the strong and weak current.
This product is fixed installation product; please consult customer service in advance for sp-
ecial needs. For instance, a special cable should be replaced with for the need of moving the
display to avoid cable damage and electric shock or fire.
Please use soft, non-corrosive and non-staining material to clean the display regularly. If
there is any question about cleaning products, please contact the customer service staff.
Please use in a well-ventilated environment.
DO NOT contact the product for a long time or expose it to the environment with a lot of dust,
strong acid and/or strong alkaline substances, if not, the product may be damaged perm -a
nently.
DO NOT place fire or any device that gives off high heat around the display.
Please use original accessories; please contact the customer service staff for using self-
purchased accessories if necessary.
Arrange professionals to inspect the display regularly.
Warning: Electrical Shock Hazard.
Warning: Personal Injury and/or Death Danger.
Warning: Keep away from flammable and/or explosive material.
Keep away from the air outlet of the air conditioner and keep the screen dry.
Warning: Keep the screen dry.
