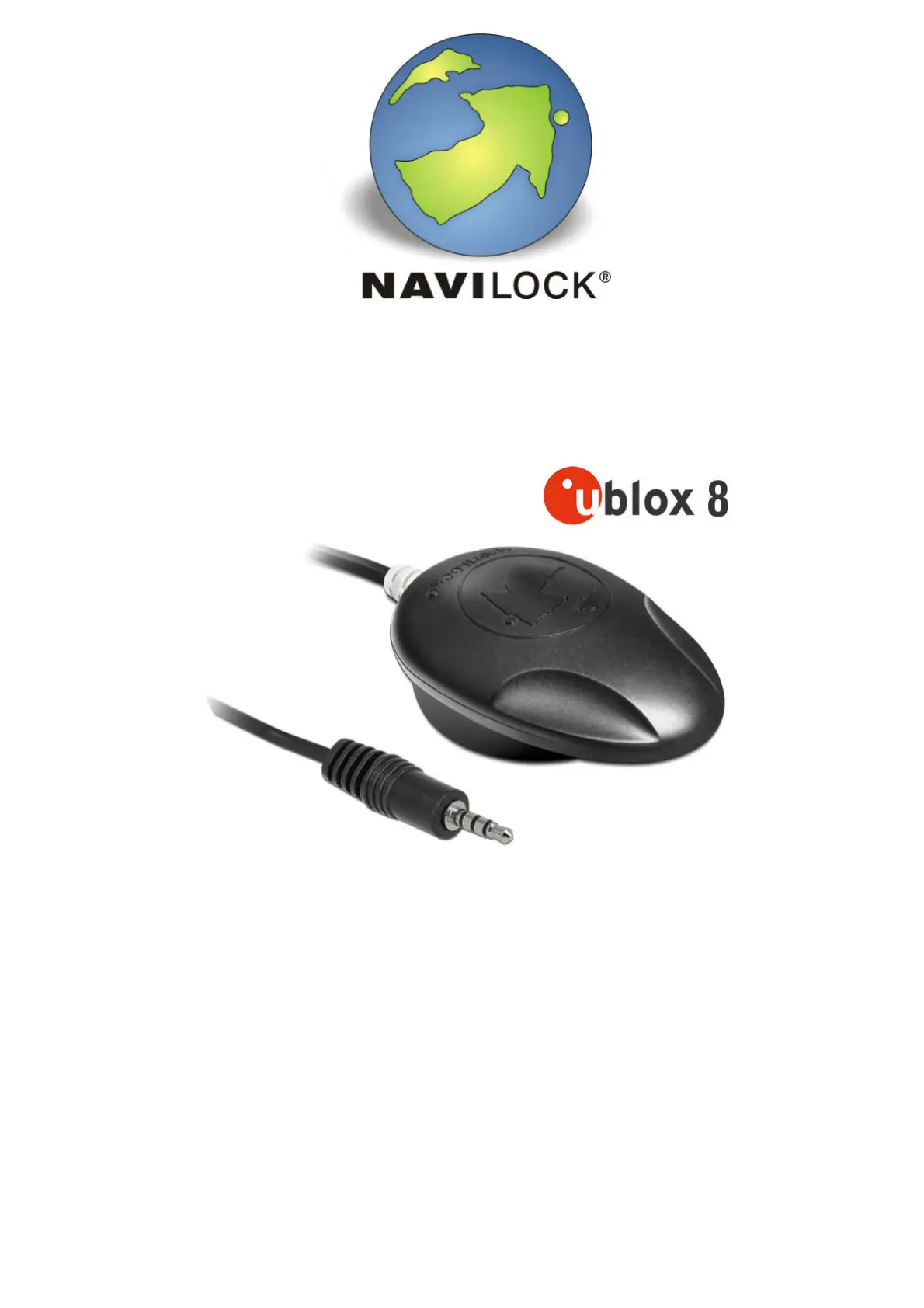

NL-8008T u-blox 8 multi GNSS 4 pin stereo jack TRRS TTL receiver 1.50 m
Operation manual (62586)
1. Introduction
The NL-8008T is a TTL GNSS receiver with an internal antenna and a u-blox 8 multi GNSS
chipset. The TTL port enables the connection to your microcontroller.
Thanks to its compact design and its high sensitive chipset, it is the ideal companion at work and
at leisure.
The flanged thread enables safe and waterproof attachment eg on the vehicle roof.
1.1. Contents*
1x Navilock NL-8008T
1x 8cm CD ROM including operation manual
* Before using the device, please make sure that all the parts are included in the package. If any
parts are missing or damaged, please contact your dealer immediately.
Important health and safety information
When using this product, take the following precautions in order to avoid possible damages and legal consequences. Always
follow all safety and operation manuals exactly and keep them for future reference. Observe all warnings in the operation manual
and on the product. In order to avoid injuries, electrocution, fire and damages to the product, observe the following precautions:
ELECTRIC SECURITY
This product is designed for operation with power supply via the USB port. Any other operation mode can be dangerous and may
void the warranty claims for this product. This unit contains an internal back-up battery.
NOTE: RECYCLE OR DISPOSE OF USED BATTERIES OR RECHARGEABLE BATTERIES IN
ACCORDANCE WITH ALL APPLICABLE REGULATIONS AND THE INSTRUCTIONS
INCLUDED WITH THE PRODUCT.
PRECAUTIONS REGARDING DIRECT SUNLIGHT
Make sure the unit is not exposed to very high humidity and temperatures. Never leave the unit, the battery or the rechargeable
battery for an extended period in a vehicle or plate, where the temperature can increase to over 60°C (140°F), for example on the
dashboard of a car, the window sill or behind a pane of glass, which is directly exposed to the sun or very strong UV light.
Otherwise the unit or the vehicle may be damaged, and the battery or the rechargeable battery may overheat.
Damages requiring repairs
Disconnect the unit from the AC supply in the following cases; also disconnect the rechargeable battery and contact an
authorized repair man or your dealer.
• Liquid or an object has entered the product.
• The product has fallen down or was damaged.
• There are visible signs of overheating.
• When operated normally, the product does not function flawlessly.
Avoid using the unit directly after strong temperature changes.
If the unit is exposed to strong temperature and humidity fluctuations, condensation can form in the unit. In order to avoid damage
to the unit, please wait until the condensation has dried off before using the unit.
NOTE: If you bring the unit from a cold to a warm environment, or vice versa, first let it get
accustomed to the new temperature before turning it on.
2. LED indicator
This GNSS receiver does have LED indicator!
White lights: connection on
White flashes: GNSS satfix
3. Application environment
The NL-8008T is designed for your specific implementations. The TTL 3.3V interface connects
directly to your microcontroller or CPU.
4. Functional test and GNSS system selection with u-center 8.xx in MS Windows
1. Load u-center software from:
http://www.navilock.de/produkte/G_62586/software.html?setLanguage=en. Install the
software on your unit. Select the version suitable for your system. U-center is a pure test
program and cannot be used for navigation or orientation. It must always be closed after the
test. It blocks the COM port and does not allow any access of the navigation or route
software to the COM port. It also serves for updating the Assist GNSS data and other
configuration switches as SBAS properties.
If the NMEA protocol is displayed in u-center, but you cannot find a receiver in the application
software, the connection problem is not with the receiver, but with the selected software setting.
In this case, the software manufacturer support center may be able to help you.
