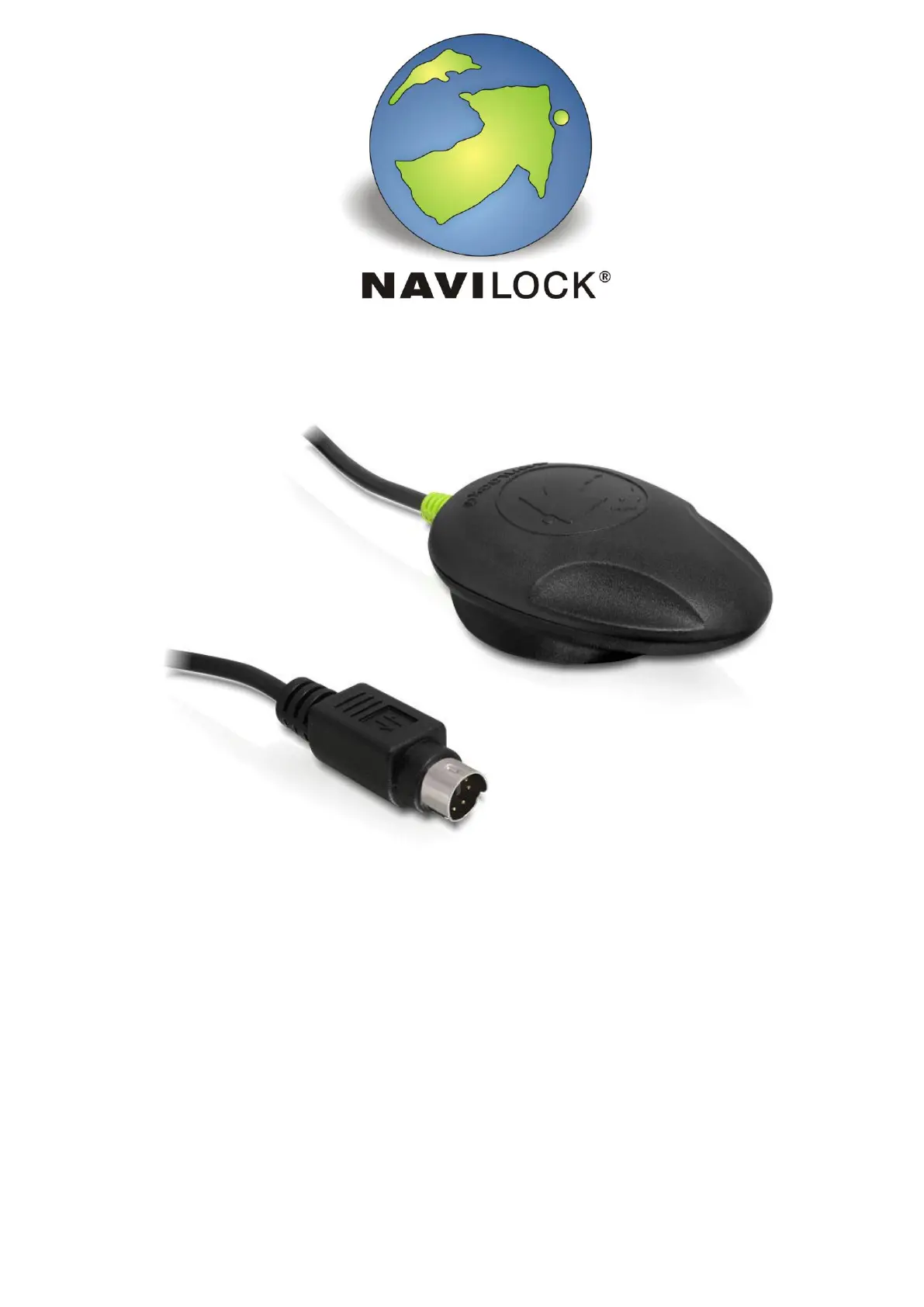

NL-6 03P
Operation manual (61841)
1. Introduction
The GPS Receiver based on u-blox 6 SuperSence® chipset has a built-in antenna for high
sensitivity. Besides GPS, this u-blox 6 chipset enables you in future to receive also Galileo, the
european navigationsystem.
The MD6 universal connector enables the connection of optional USB or serial connecting
cables. You can use this GPS Receiver with a Car PC or a Notebook and a suitable routing
software for navigation.
1.1. Contents*
1x Navilock NL- P 603
1x Operation manual on CD ROM
* Before using the device, please make sure that all the parts are included in the package. If any
parts are missing or damaged, please contact your dealer immediately.
Important health and safety information
When using this product, take the following precautions in order to avoid possible damages and legal consequences. Always
follow all safety and operation manuals exactly and keep them for future reference. Observe all warnings in the operation manual
and on the product. In order to avoid injuries, electrocution, re and damages to the product, observe the following precautions:
ELECTRIC SECURITY
This product is designed for operation with power supply via the USB port. Any other operation mode can be dangerous and may
void the warranty claims for this product. This unit contains an internal back-up battery.
NOTE: RECYCLE OR DISPOSE OF USED BATTERIES OR RECHARGEABLE BATTERIES IN
ACCORDANCE WITH ALL APPLICABLE REGULATIONS AND THE INSTRUCTIONS
INCLUDED WITH THE PRODUCT.
PRECAUTIONS REGARDING DIRECT SUNLIGHT
Make sure the unit is not exposed to very high humidity and temperatures. Never leave the unit, the battery or the rechargeable
battery for an extended period in a vehicle or plate, where the temperature can increase to over 60°C (140°F), for example on the
dashboard of a car, the window sill or behind a pane of glass, which is directly exposed to the sun or very strong UV light.
Otherwise the unit or the vehicle may be damaged, and the battery or the rechargeable battery may overheat.
Damages requiring repairs
Disconnect the unit from the AC supply in the following cases; also disconnect the rechargeable battery and contact an
authorized repair man or your dealer . if
• Liquid or an object has entered the product.
• The product has fallen down or was damaged.
• There are visible signs of overheating.
• When operated normally, the product does not function flawlessly.
Avoid using the unit directly after strong temperature changes.
If the unit is exposed to strong temperature and humidity î‹Šuctuations, condensation can form in the unit. In order to avoid
damages to the unit, please wait until the condensation has dried o before using the unit.
NOTE: If you bring the unit from a cold to a warm environment, or vice versa, rst let it get
accustomed to the new temperature before turning it on.
2. Starting operation, e.g. with an USB adapter cable (article number 61264)
2.1. Plug the USB cable in a free USB port on your notebook etc., and connect it with the NL-
603P. The NL-603P will be recognized by your Windows operating system, which will attempt
to install a driver. Abort this process, and start “ublox5_install.exe” from the CD-ROM, or
download the driver from the Navilock website. Follow the installation instructions. After the
installation is complete, re-start your computer. Then the GPS COM port will be available in
the Device Manager under Connections. Set this port in your navigation or route planner
software. Do not use another progra that accesses this port at the same time.m
3. LED indicator
Flashes, with Satx
Lights, without Satx
3. Application environment
The NL-603P can be used as a serial GPS receiver under Windows 2000/XP/Vista/7, Linux CE/
ex Kernel 2.6.x. Corresponding adapter cables can be found in the catalog on the CD-ROM and
under www.navilock.com.
4. Functional test with u-Center 6
1. Install the u-Center software on your unit. Select the version suitable for your system. U-
Center is a pure test program and cannot be used for navigation or orientation. It must
always be closed after the test. It blocks the COM port and does not allow any access of
the navigation or route software to the COM port. It also serves for updating the Assist
GPS data and switching to EGNOS.
If the NMEA protocol is displayed in u-Center, but you cannot nd a receiver in the application
software, the connection problem is not with the receiver, but with the selected software setting.
In this case, the software manufacturer support center may be able to help you.
