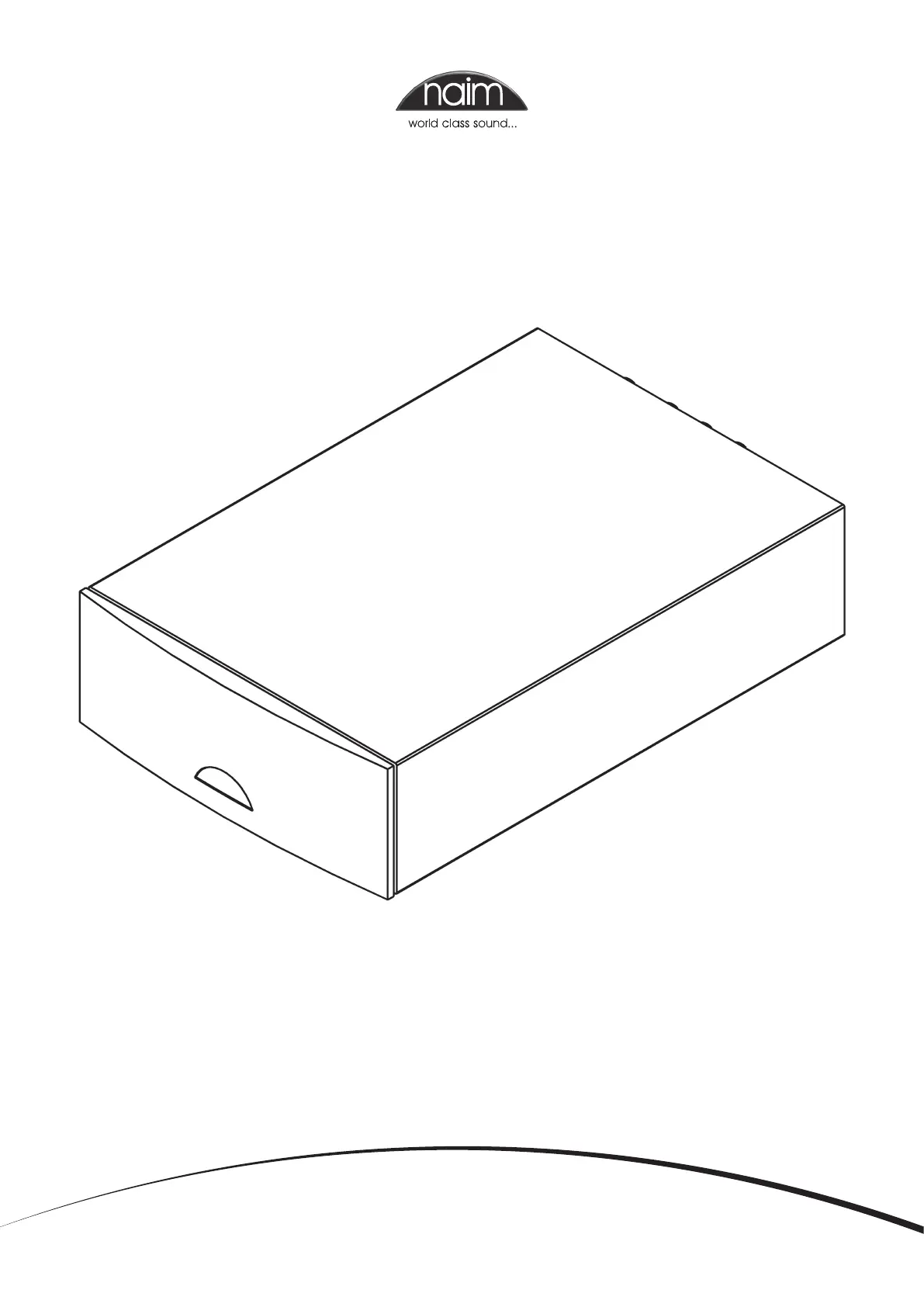

O W N E R S M A N U A L
S u p e r L i n e
E N G L I S H D E U T S C H F R A N Ç A I S I T A L I A N 0
Introduction
Naim Audio products are conceived with performance as the top priority. Careful
installation will help ensure that their full potential is achieved. This manual covers
the SuperLine phono amplifier. It begins with some general installation notes. Product
specific information begins in Section 3.
1 Connections
It is important for both safety and performance that
any standard cables supplied with Naim Audio
products are not modified.
1.1 Interconnect Cab les
Interconnect plugs and sockets should be kept clean
and free from corrosion. The easiest way to clean them
is to switch off the equipment, pull the plugs out of their
sockets, and push them back in again. Contact cleaners
and “enhancers” should not be used as the film they
deposit may degrade the sound.
2 General Installation
Naim equipment is designed to offer the finest
performance possible avoiding compromise
wherever practical. This can lead to circumstances
that may be unfamiliar. The notes that follow contain
advice specifically related to Naim equipment as
well as more general warnings about the use of
domestic audio products. Please read them carefully.
2.1 Siting The Equipm ent
In order to reduce the risk of hum audible from the
loudspeakers, power supplies and power amplifiers
should be located a reasonable distance away from
other equipment. The maximum separation distance for
connected equipment is that allowed by the standard
interconnect lead.
2.2 Switching On
Source components and power supplies should be
switched on before power amplifiers. Always switch
amplifiers off and wait a minute before connecting or
disconnecting any leads. Always use the power switch on
the product rather than a mains outlet switch.
2.3 Running In
Naim equipment takes a considerable time to run in
before it performs at its best. The duration varies, but under
some conditions the sound may continue to improve for
over a month. Better and more consistent performance
will be achieved if the system is left switched on for long
periods. It is worth remembering however that equipment
left connected to the mains can be damaged by
lightning.
2.4 Radio Interference
In some circumstances, depending on where you live
and the earthing arrangements in your home, you may
experience radio frequency interference. Controls on
broadcasting in some territories allow very high levels of
radio frequency radiation and both the choice and exact
siting of equipment may be critical. Susceptibility to radio
frequency interference is related to the wide internal
bandwidth necessary for high sound quality. A radio
frequency filter kit is available for some Naim equipment
but sound quality will be progressively compromised as
more elements of the kit are fitted. In situations of extreme
radio interference Naim equipment may be unsuitable.
2.5 Lightning Prec a utions
Your Naim hi-fi system can be damaged by lightning and
should be turned off and disconnected from the mains
when there is risk of lightning strike.
2.6 Problem s?
Consumer protection varies from country to country. In
most territories a retailer must be prepared to take back
any equipment he has sold if it cannot be made to work
satisfactorily. A problem may be due to a fault in the
system or its installation so it is essential to make full use of
your dealer’s diagnostic skills. Please contact your local
distributor, or Naim Audio directly, if any difficulties cannot
be resolved.
Some Naim equipment is made in special versions for
different territories and this makes it impracticable to
arrange international guarantees. Please establish the
local guarantee arrangements with your retailer. Contact
Naim Audio directly for help and advice if necessary.
2.7 Service a nd Upda tes
It is essential that repairs and updates are only carried
out by an authorised Naim retailer or at the factory by
Naim itself. Many components are custom made, tested
or matched and appropriate replacements are often
unobtainable from other sources.
Direct contact to Naim for service or update information
should be made initially through Customer Services:
Tel: +44 (0)1722 426600
Email: info@naimaudio.com
Please quote the product serial number (found on its rear
panel) in all correspondence.
1
SuperLine Installation
3 SuperLine Insta llation
The SuperLine moving coil phono amplifier is designed to extract the best possible musical
performance from vinyl disc replay. It should be mounted horizontally on an equipment
stand intended for the purpose. It is important to ensure that it is level.
The SuperLine contains no internal power supply and must be connected either to a Naim
amplifier incorporating an appropriate power supply output, or to a dedicated Naim
power supply. SuperLine output is muted for 2 minutes following switch-on to allow its
circuitry to reach optimal status.
Cartridge loading resistance and capacitance can be adjusted by inserting combinations
of resistive and capacitive “load plugs” into sockets on the SuperLine rear panel.
The SuperLine incorporates a suspension system to isolate its sensitive components from
vibrational energy. The suspension system is protected during shipping by two transit
screws. The transit screws must be removed before use. Once the transit screws are
removed the SuperLine must not be inverted. Transit screw removal is best carried out
once the SuperLine is installed in its final location and all connections are made.
3.1 Transit S crews
Two transit screws must be removed from the underside of
the SuperLine before use and replaced if it is to be carried
any distance, packed or shipped. Transit screw removal is
illustrated in Diagram 3.2. SuperLine transit screws must not
be used with any other Naim product.
Damage may result if the SuperLine is inverted either
during or after transit screw removal.
To gain access to the transit screws, position one end
of the SuperLine over the edge of a table, remove (or
replace) the screw that becomes accessible and then
repeat with the other end.
3.2 Transit S crew Remova l
3.3 Connecting SuperLine
3.3.1 Power Supply
The SuperLine must be connected to a dedicated
Supercap, Hi-Cap or Flatcap power supply (option
one) or a Naim preamplifier or integrated amplifier that
incorporates an appropriate power supply output (option
two).
If option one is chosen, connect the SuperLine to the
dedicated power supply using, in the case of a Hi-Cap
or Flatcap, a Naim SNAIC interconnect cable, and in the
case of a Supercap, the appropriate Naim Burndy cable.
In either case take care to connect with the correct cable
orientation.
If option two is chosen, connect the SuperLine to the
preamplifier or integrated amplifier’s 5 pin DIN aux input/
power output socket using a Naim SNAIC interconnect
cable. Take care to connect with the correct cable
orientation.
Note: If the SuperLine’s Burndy power supply socket is
not used the supplied Burndy link plug must be inserted.
Similarly, if the SuperLine’s DIN power supply socket is not
used the supplied dust cover should be fitted.
3.3.2 Signal Input
Connect the output cable of the pick-up arm to either
the BNC or phono input sockets. Only one option, phono
or BNC, should be connected at any time. Take care to
ensure that the left and right channels are connected to
the appropriate sockets.
Connect the pick-up arm earth lead to the rear panel
ground terminal.
3.3.3 Signal Output
The SuperLine output signal is carried on the power supply
cable either directly to the preamplifier or via an optional
power supply.
front transit
screw
rear transit
screw
