Seite 1/12

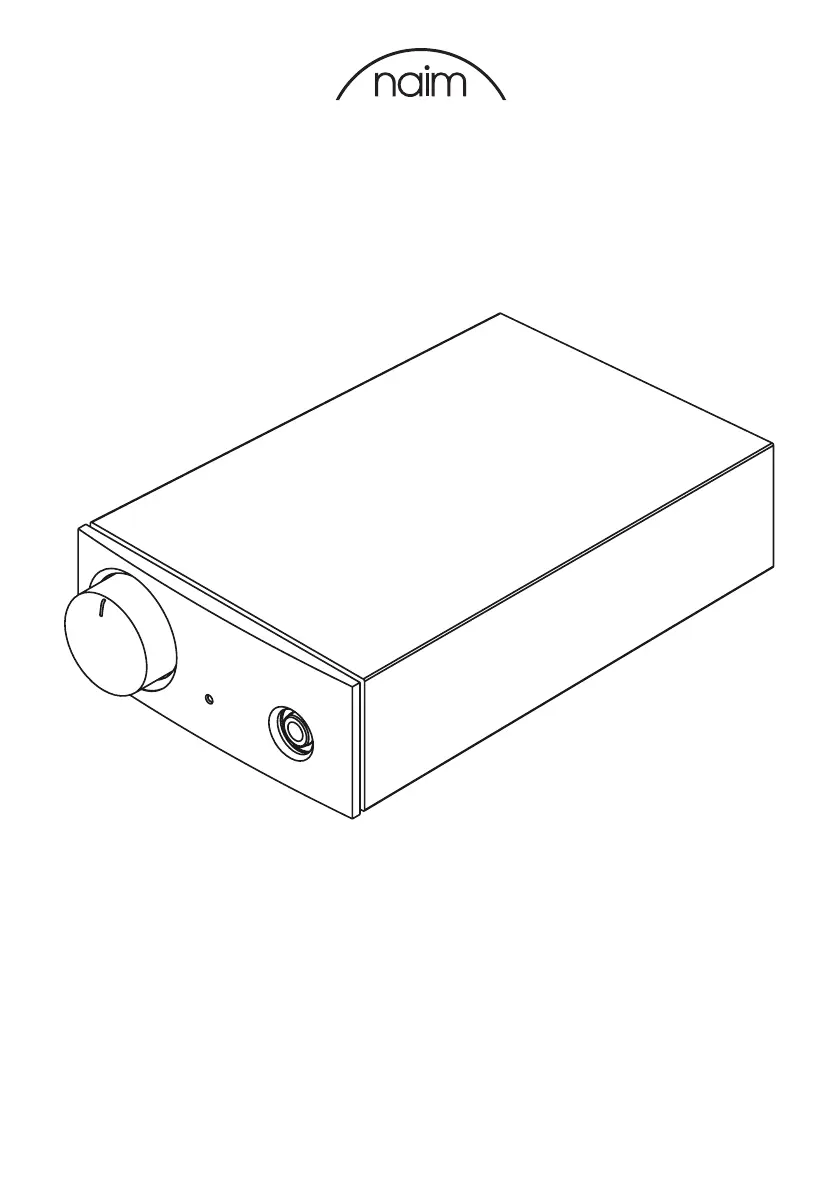

NAPSC, i-SUPPLY, STAGELINE, HEADLINE
owNErS mANUAL
ENGLISH
SAFETY INSTRUCTIONS
In order to comply with current European
safety regulations it is essential that the
Naim loudspeaker connectors supplied
with amplifiers and loudspeakers are
used.
Do not under any circumstances
allow anyone to modify your Naim
equipment without first checking with the
factory, your retailer, or your distributor.
Unauthorised modifications will invalidate
your guarantee.
Equipment must not be exposed to
dripping or splashing and no objects
filled with liquid, such as vases, should be
placed on the equipment.
For your own safety do not under any
circumstances open Naim equipment
without first disconnecting it from the
mains.
Warning: an apparatus with CLASS I
construction shall be connected to a
mains socket outlet with a protective
earthing connection.
Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain
readily operable. To disconnect the
equipment from the mains remove the
mains plug from the mains outlet.
The following label is attached to the
NAPSC:
This equipment has been tested and
found to comply with the relevant EMC
and Safety Standards, and, where
applicable, also complies with the limits
for a class B digital device, pursuant to
Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses and
wa r n i n g
This apparaTus
musT be earThed
Page Section
1 1 Connections
2 Mains Power
2 3 General Installation
4 4 Product Introduction
5 NAPSC
5 6 i-Supply
7 Headline
6 8 Stageline
8 9 Declaration of Conformity
can radiate radio frequency and, if not
installed and used in accordance with
the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving
antenna.
• Increase the separation between the
equipment and the receiver.
• Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
• Consult your Naim retailer or an
experienced radio/TV technician for
help.
Contents
1
Naim Audio products are conceived with
performance as the top priority. Careful
installation will help ensure that their full
potential is achieved. This manual covers
the NAPSC and i-Supply power supplies,
Headline headphone amplifier and Stageline
phono amplifier. It begins with general
installation notes and statutory safety
warnings. Product specific information
begins in Section 5.
1 Connections
It is important for both safety and
performance that any standard cables
supplied are not modified.
1.1 Analogue Audio
Interconnect Cables
If options are available with your equipment
and installation, DIN interconnect sockets
should be used in preference to Phono
sockets. One end of each Naim audio
interconnect cable is marked with a band
to establish its correct orientation. The band
denotes the end that connects to the signal
source. Naim Hi-Line interconnect cables will
provide the best results.
Audio interconnect plugs and sockets should
be kept clean and free from corrosion. The
easiest way to clean them is to switch off
the equipment, pull the plugs out of their
sockets, and push them back in again.
Contact cleaners and “enhancers” should
not be used as the film they deposit may
degrade the sound.
2 Mains Power
Where fused plugs are used 13 amp fuses
should be fitted (i-Supply 3 amp). Fuses of
a lower rating will fail after a period of use.
Do not wire voltage dependent resistors or
noise suppressors into mains plugs. They
degrade the mains supply and the sound.
2.1 M a ins Plug W iring
In some territories a mains plug may need to
be fitted to the supplied mains lead. As the
colours of the wires in the mains lead may
not correspond with the coloured markings
identifying the terminals in the plug proceed
as follows:
The wire coloured GREEN and YELLOW must
be connected to the terminal in the plug
marked by the letter or by the safety earth E
symbol or coloured or GREEN GREEN and
YELLOW.
The wire coloured BLUE must be connected
to the terminal in the plug marked with the
letter or coloured N BLACK.
The wire coloured must be BROWN
connected to the terminal in the plug
marked with the letter or coloured L RED.
2.2 Equip m ent Fuses
Mains powered Naim Audio equipment is
fitted with a mains fuse on the rear panel
adjacent to the mains input socket (not
i-Supply). Replace it if necessary only with
the spare fuse supplied or with an identical
fuse. Repeated failure of the fuse points to
a fault that should be investigated by your
retailer or Naim Audio.
2.3 Non-rewirable Mains
Plugs
If a non-rewirable plug is cut from a mains
lead (for whatever purpose) the plug MUST
be disposed of in a way to render it totally
useless. Considerable shock hazard exists
if the cut-off plug is inserted into a mains
outlet.
2.4 Mains Circuits a nd
Cab les
A hi-fi system usually shares a mains circuit
with other household equipment, some of
which can cause distortion of the mains
Accessories
