Seite 1/1
Precautions
PLEASE READ CAREFULLY BEFORE PROCEEDING
Interference with other electrical devices and Cleaning
Radios and televisions placed nearby may experience reception interference.
Operate this unit at a suitable distance from radios and televisions.
Clean only with a soft, dry cloth.
Power Supply
Please connect the designated AC adapter to an AC outlet of the correct voltage.
Please be sure to use only an AC adapter which supplies 9V DC, ,center
negative. Unplug the AC power adapter when not in use or during electrical storms.
Handling
Do not apply excessive force to the switches or controls.
Do not let paper, metal, or other objects into this unit.
Take care not to drop the unit, and do not subject it to shock or excessive pressure.
FCC certification
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference
that may cause undesired operation.
Connections
Always turn off the power and all other equipment before connecting or
disconnecting. This will help prevent malfunction and damage to any of the devices.
Make sure to unplug all connection cables and power cords before moving this unit.
To avoid deformation, discoloration, or other serious damage,
do not expose this unit to the following conditions:
Direct sunlight
Magnetic fields
Excessively dusty or dirty location
Strong vibration or shock
Extreme temperature or humidity
High humidity or moisture
Heat sources
MICRO PREAMP
Connections
*Notes Any specifications update will not be amended in this manual.
Overview
These micro preamps are sonically accurate digital recreations of the preamp
sections of popular tube amps. We have developed these by directly analyzing
real tube amplifiers using a brand new technology to capture their sound,
dynamics and response. Please ensure to use a clean 9v power supply and a high
quality power amp to get the best results. Each Micro Preamp comes complete
with dual channels, integrated speaker cabinet simulation and dual operating
modes to suit the needs of all users.

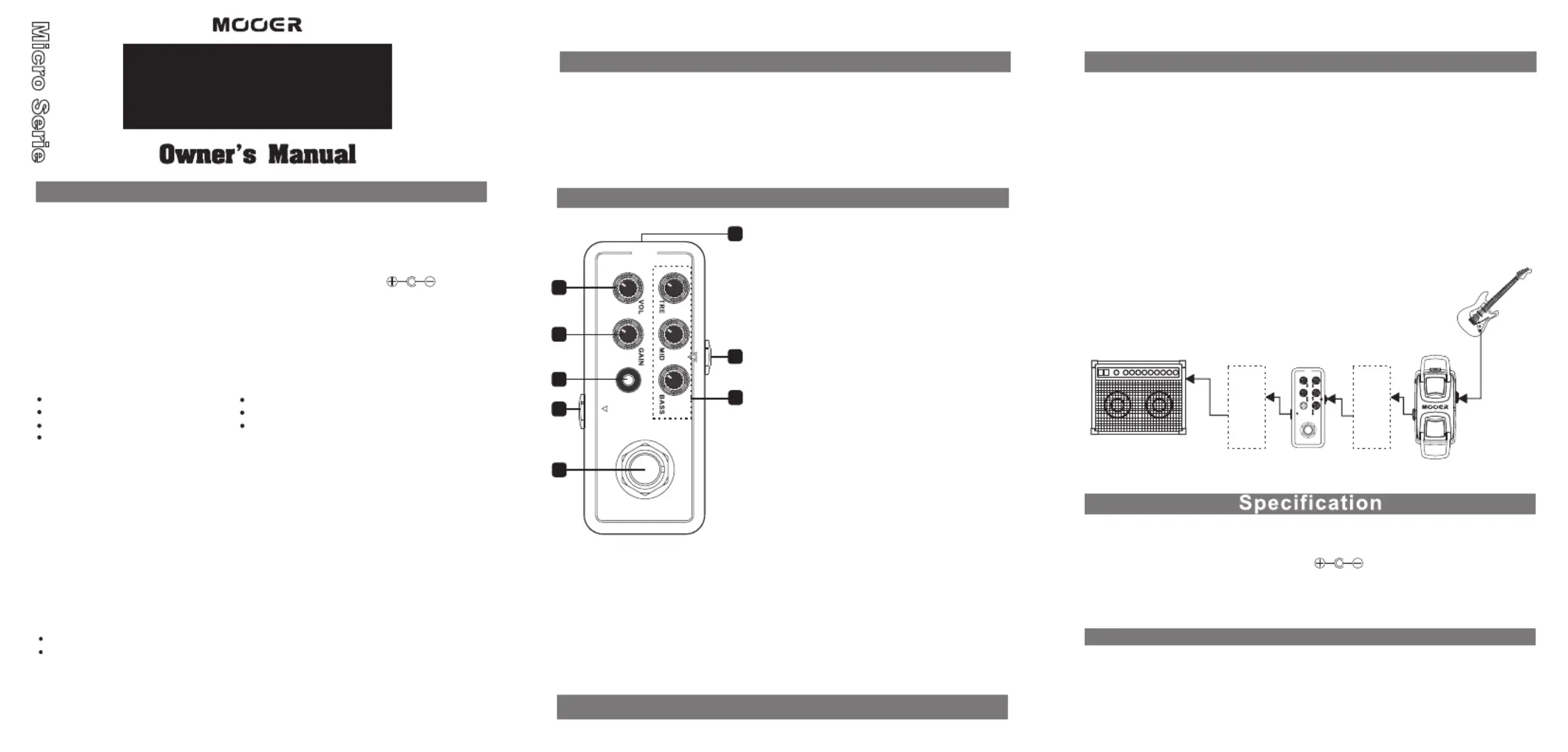

Pedal layout
2.Input
Connect instrument
3.Output
Connect to power amp or effects return
4.TRE, MID, BASS
Standard tone stack. When all 3 of these
controls are at 12 o'clock the preamp is
closest to the original amplifier we
analyzed. Clockwise will boost
frequencies and counterclockwise will
cut them. The frequencies which the EQ
controls adjust, vary depending on the
preamp model.
5.GAIN
Adjusts the input gain
6.VOL
Adjusts the output volume of the
micro preamp
DC 9V
CH/CAB
08
07
02
03
05
06
04
01 1. DCIN
Connect a DC 9V 220mA centre pin
negative power supply
8.FOOTSWITCH
The footswitch has 2 modes of operation
1.Toggles the preamp on/off
2.Switch between channel A/B (The micro preamp will be permanently on in mode 2)
7.LED BUTTON
Press once to switch between channel A/B (Blue/Red)
Press and hold for 2 seconds to switch Cab simulation on/off
When Cab simulation is active the LED BUTTON will flash
To change footswitch mode, press and hold the footswitch for two seconds.
The LED BUTTON will flash twice to confirm the mode has changed.
Note: All EQ, gain and volume settings will be automatically stored separately for
each channel.
1.DCIN
Connect a DC 9V 220mA centre pin negative power supply
2.INPUT
Connect your instrument directly or the output of your pre, pre-amp effects like
Overdrive, distortion, etc.
3.OUTPUT
Connect to a power amp or your amplifiers effects return.
(Highly recommend using a tube amplifier)
Different power amplifiers will affect the outcome of the final tone.
You can also connect directly to a sound card and activate the speaker cab
simulation for recording purposes
Note: You can connect your "fx loop" effects, like modulation and time based
effects, in between the MOOER preamps output and the input of the power amp
(fx return)
Input: ( 1/4” mono audio jack. Impedance: 1 meg Ohms
Output: ( 1/4” mono audio jack Impedance: 100 Ohms
Power requirements: AC adapter 9V DC , center negative.
Current Draw:300mA
Dimensions:93.5mm(D) x 42mm(W) x 52mm(H)
Weight:160g
Accessories:Owners Manual
MICRO
PREAMP
CH/CA B
OD/Dist
Delay
Reverb
AMP
effects return
Part No:620010622
DC 9V
CH/CA B
