Max Load Capacity: 125 lbs (57kg)
INSTALLATION GUIDE

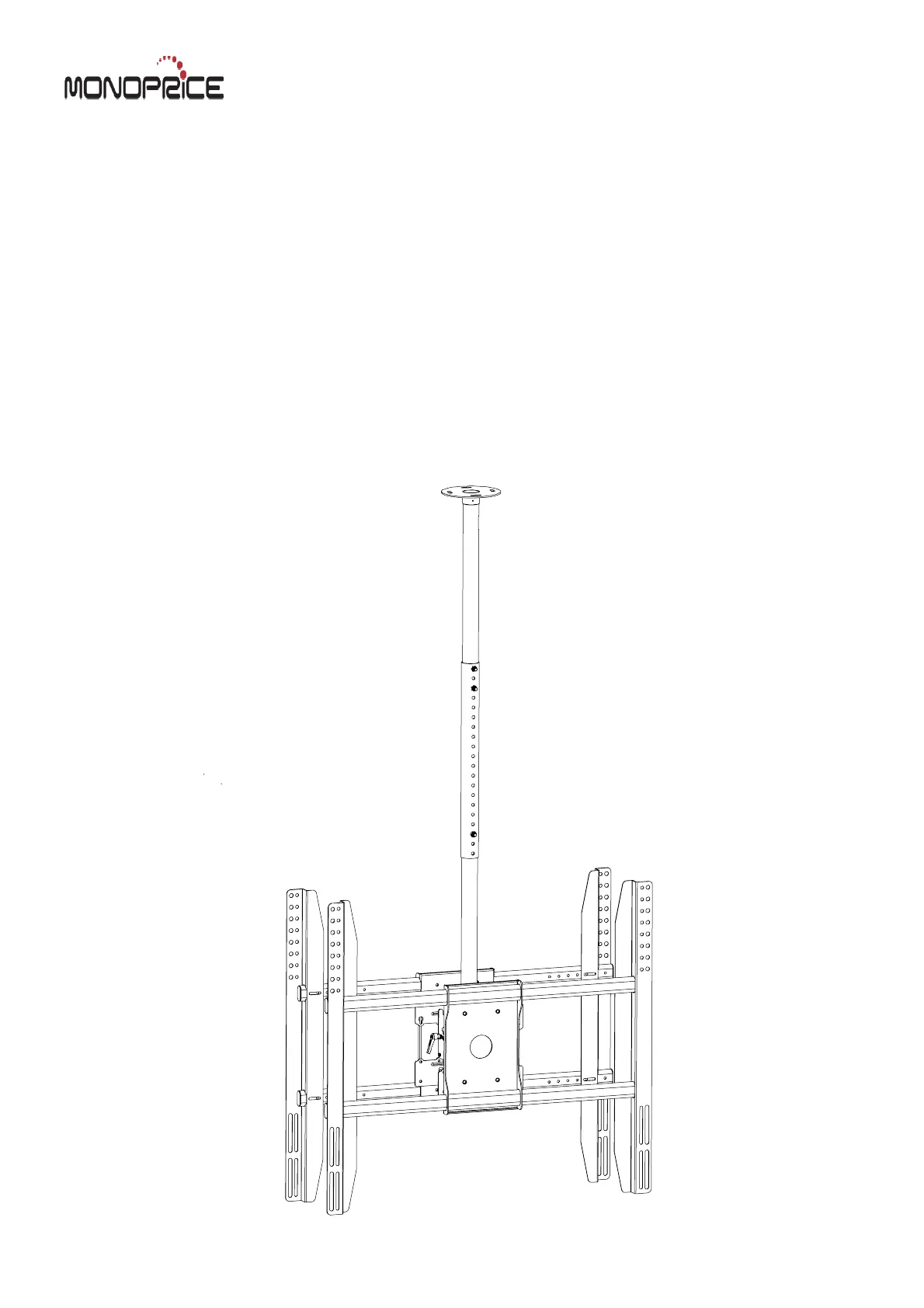

Ceiling TV Mount
MHP-52
2 of 8
Note: Read entire instruction sheet before you start installation and assembly.
Tools Needed for Assembly
stud finder ("edge to edge" stud finder is recommended)
phillips screwdriver
drill with 1/4", 3/8", and 5/32" drill bits
Table of Contents
Parts List .............................................................................................................................................................................. 3
Installation to Wood Joist Ceiling .......................................................................................................................................... 4
Installation to Concrete Ceiling ............................................................................................................................................. 5
Installation of Extension Column ........................................................................................................................................... 6
Mounting the Assembly Adapter plate to screen ........................................................................................ ......................... 7
Attach Assembly Adapter plate to Assembly Arm ...................................................................................... ......................... 8
Tilt Adjustment and cord Cord Coves and Wire Managment ............................................................................................. 8
WARNING
Be sure to read this entire manual thoroughly and you fully understand all the instructions and warning before
attempting to begin your installation.
This product should only be installed by someone who has a basic knowledge of buiding construction,in stallations
and fully understands these instructions.
Make sure that the supporting surface will safely support the combined load of the mount, the display and all
attached hardware and components.
The maximum load capacity is 125 pounds.
If mounting to a wall of wood stud construction, be sure that mounting bolts are anchored to the center of the
studs.
Always have someone assist you to lift and position your equipment.
Tighten screws and bolts firmly, but do not over tighten. Over tightening can damage the items and greatly reduce
their ability to hold. Please refer to suggested torque values where applicable in these instructions.
3 of 8
A
A
C
D E F G H
H I J K L
M N plate (x1)
AA (x1) BB (x1)
CC (x1)
adapter plate
EE (x2)
DD (x1)
A
C
D
4
2
8
8
8
8
8
8
8
D
M8x60
Ø6xØ13x1.2
Ø8.2xØ1.5x16
M4x30
M5x16
M5x30
M6x16
M6x30
M4x16
M4x3
M6x12
M8x45
B8
Hexagon fillister head screw
B8
philips pan head screw
washer
washer
washer
hex bolt screw
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
philips pan head screw
A4
nonskid nut
E
E
F
F
G
allen cap screw
allen cap screw
square spacer
spacer
spacer
allen wrench
allen wrench
concrete anchor
8
H
8
8
8
8
1
1
4
4
4
M8x15
M8x50
M8x50
25.65x25.65x2.5
Ø12.7xØ6.0x12.7
Ø19xØ8.2x19.6
Ø8.2xØ16x2.0
M6
M5
H
I
J
K
L
L
M
N
N
with your product.
Parts may appear slightly different than illustrated.
Before you begin, make sure all parts shown are included
Parts List
Description
BB
