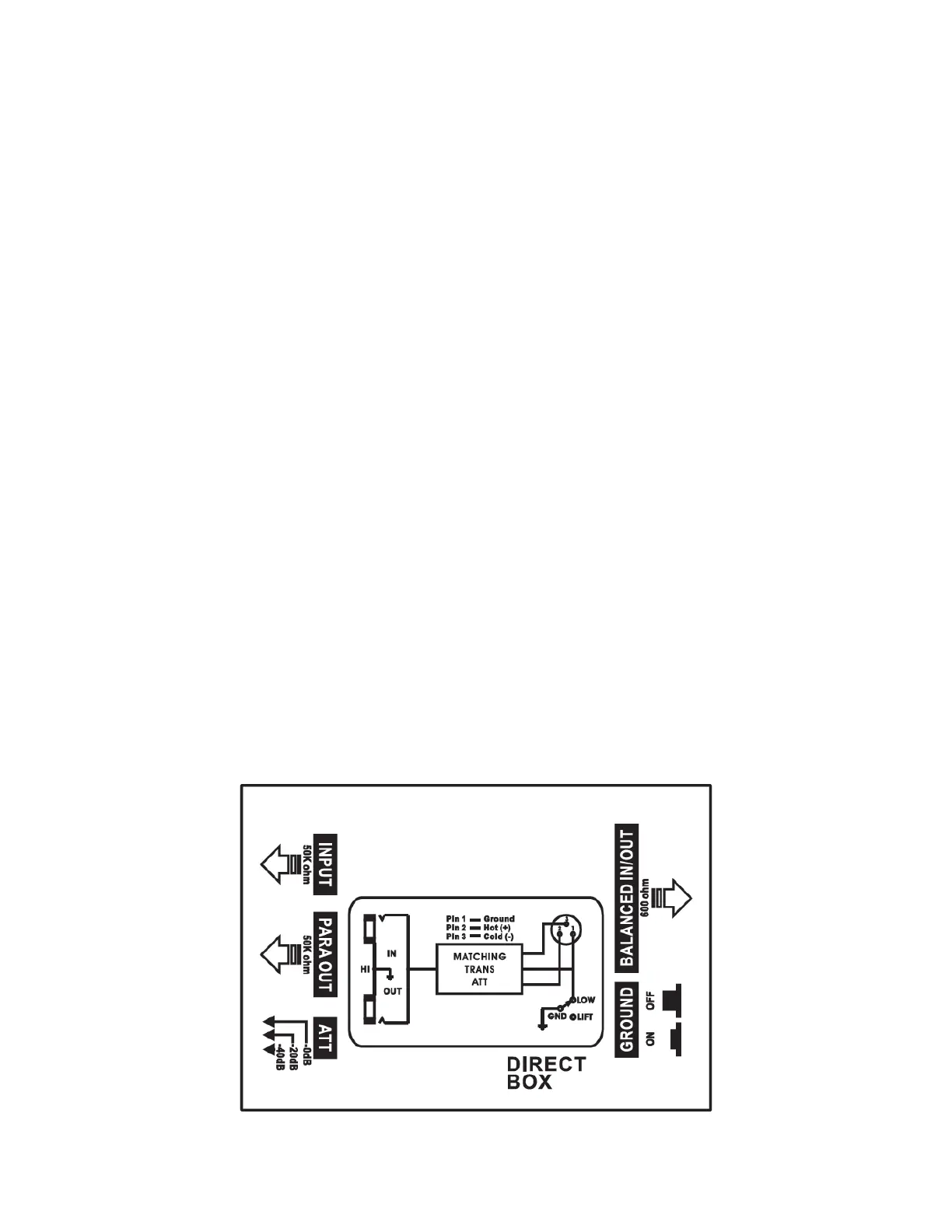

1
MONOPRICE
MONOPRICE
MONOPRICE
MONOPRICEMONOPRICE
Sound Bloc
Sound Bloc
Sound Bloc
Sound BlocSound Block Passiv
k Passiv
k Passiv
k Passivk Passive Direct
e Direct
e Direct
e Directe Direct Box with
Box with
Box with
Box with Box with Ground Lift
Ground Lift
Ground Lift
Ground Lift Ground Lift and Att
and Att
and Att
and Att and Attenuator
enuator
enuator
enuatorenuator
P/N 600125
User's
User's
User's
User'sUser's Manual
Manual
Manual
Manual Manual
INTRODU
INTRODU
INTRODU
INTRODUINTRODUCTION TO
CTION TO
CTION TO
CTION TOCTION TO DI
DI
DI
DI DI
• DI has many names, including Direct Input, Direct Injection, Direct Induction, and most
commonly, Direct Interface.
• More than a simple 1/4" to XLR adapter, a DI box also matches level and impedance to
minimize noise in professional live and studio sound systems.
• It converts an unbalanced signal into a balanced signal.
• It converts a High Impedance (Hi-Z) signal to a Low Impedance (Lo-Z) signal. in
• It reduces high level outputs from Digital Pianos, Active Acoustic Guitars, and even Low
Power Speaker Outputs (up to 50 watts).
• It isolates the sound system from the equipment on stage.
• It provides a parallel output, so performers retain local control of their instruments. can
2
OPERATI
OPERATI
OPERATI
OPERATIOPERATION
ON
ON
ON ON
1. Ensure that the volume levels of your instrument and sound system are set to the minimum.
2. Plug a balanced XLR connector into your mixing console or stage snake, then plug the other
end into the XLR Output jack on the sound block.
3. (Optional) Plug one end of a 1/4" cable into the 1/4" input on your amp, then plug the other
end into the 1/4" Parallel (Link) Output on the sound block.
4. Plug a 1/4" TS cable into the 1/4" Input on the sound block, then plug the other end into any
unbalanced sound source (e.g., instrument).
5. Increase the volume level of your sound source (e.g., instrument) to the 50% ~ 75% range.
6. Increase the volume on your sound system to the desired level.
7. If there is a buzz in the system originating from your instrument, use the Ground Lift Switch
to isolate your instrument from the sound system.
8. If there is distortion from the input of the sound system, use the Attenuator Switch to
reduce the instrument's level by -20dB or -40dB.
SPECIFIC
SPECIFIC
SPECIFIC
SPECIFICSPECIFICATIONS
ATIONS
ATIONS
ATIONS ATIONS
Instrument Input
1/4" unbalanced TS jack
Input Impedance
50 kilohms
Main Output
Balanced XLR jack
Main Output Impedance
600 ohms
Parallel (Link) Output
1/4" unbalanced TS jack
Parallel Output Impedance
50 kilohms
Input Attenuation
Switchable (0dB, -20dB, -40dB)
Ground Lift
Switchable
Construction
Steel
Dimensions
4.7" x 3.0" x 1.8" (120 x 76 x 45 mm)
