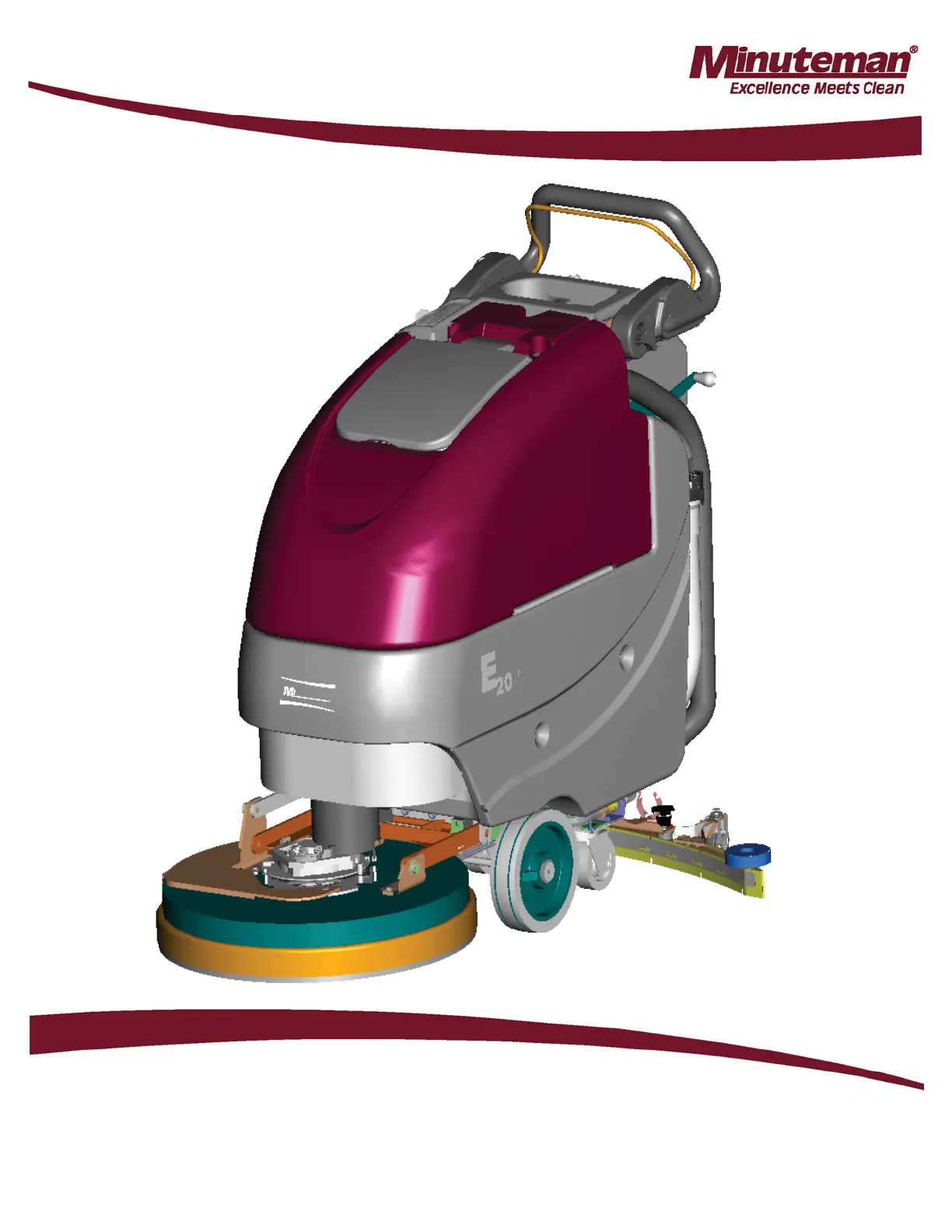

Parts Manual
E17/E20/H20 Floor Scrubber
Disc Brush Drive
Page 2
E17/E20/H20 Floor Scrubber - Brush Drive
PREFACE
Thank you for your purchase of the new industry standard for scrubbers. Minuteman International
takes great pride in off ering the most dependable, reliable and best value in industrial power
sweepers and sweeper / scrubbers. We set the standard.
Our Customer Service Department would like to hear from you. If you see any errors, omissions
or something that needs clarifi cation in this Parts Catalog please let us know. We are working hard
towards continually improving our processes to bring you the best you deserve. Please copy the form
below, fi ll out and comment on how you found our catalog.
Thank you!
The Minuteman International Team
Name: ______________________________________________________________________
Title: ______________________________________________________________________
Company Name: _____________________________________________________________
Address: ____________________________________________________________________
Country: ____________________________________________________________________
Type of equipment or model number: ______________________________________________
Comments: __________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
____________________________________________________________________________
Please return to:
Customer Service Manager
Minuteman International, Inc.
14N845 U.S. Route 20
Pingree Grove, Illinois 60140 USA
Phone: (800) 323-9420
Email: tech@minutemanintl.com
• Stop on level surface.
• Disconnect the power to the machine by pulling the red Battery Connector located under the recovery tank near the batteries.
• Avoid moving parts. Do not wear loose jackets, shirts, or sleeves when working on machine.
• Avoid contact with battery acid. Battery acid can cause burns. When working on or around batteries, wear protective clothing and
safety glasses. Remove metal jewelry. Do not lay tools or metal objects on top of batteries.
• Do not clean machine with a pressure washer.
• Authorized personnel must perform repairs and maintenance. Use Minuteman supplied replacement parts.
For Safety When Servicing or Maintaining Machine
E17/E20/H20 Floor Scrubber - Brush Drive
Model E17 / E20 / H20
All Models Beginning with: E17BD / E20BD / H20BD
E20BD / H20BD
32 amps
69 dBA / 65.5 dBA
20 in (51 cm)
34 in (86 cm)
20,000 ft2 /hr ( 1,858 m2)
2.3 mph (3.7 km per hr)
24 volts
65 cfm (110 m3/hr)
45 inches (112mbar) / 46 INCHES (115mbar)
.60 HP (450 W)
Disc
3/4 HP (560W)
1
180 RPM
Available
12 Gal (45 liters)
13 Gal (49 liters)
2%
313 lbs (142 kg)
203lbs (92 kg)
47.4 x 21.3 x 42.3 (120.4 x 54.1 107.4 cm)
E17BD
32 amps
69 dBA
17 in (43 cm)
30 in (76 cm)
17,000 ft2 /hr ( 1,579 m2)
2.3 mph (3.7 km per hr)
24 volts
65 cfm (110 m3/hr)
45 inches ( 112mbar)
.60 HP (450 W)
Disc
3/4 HP (560W)
1
180 RPM
Available
12Gal (45 liters)
13 Gal (49 liters)
2%
306 lbs (139 kg)
196 lbs (89 kg)
44.4 x 18.8 x 42.3 (112.8 x 47.8 x 107.4 cm)
Current (Max)
Sound Level
Cleaning path width
Squeegee width
Theoretical productivity
Working speed
Rated voltage
Vacuum fl ow
Vacuum waterlift
Vacuum power
Brush type
Brush motor(s) power
Number of brushes
Brush RPM
Aqua-Stop equipped
Solution capacity
Recovery capacity
Working Grade
Weight with batteries
Weight without batteries
Dimensions (LxWxH)
Technical Specifi cations
