7, 10.1 and 15.6 Tablet and 10.1 Vue
Wall Box Installation Manual
MWB-7-MCT/MWB-10-MCT/MWB-156-MCT/MWB-10-VUE/ MWB-10-BSBI
Specically designed to t
our products seamlessly.

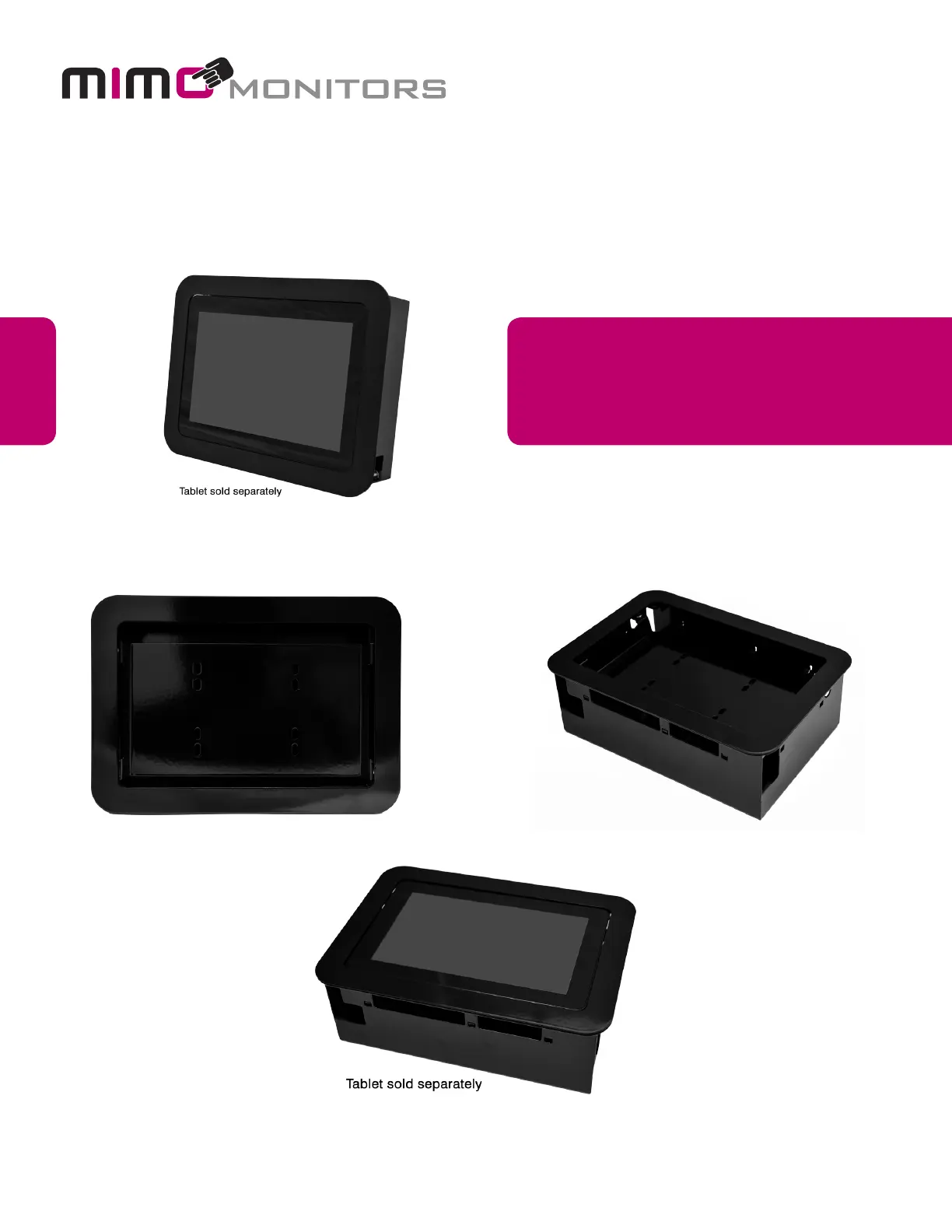

Parts (Before beginning, make sure you have all parts shown below)
A (1)
in-wall box
B (4)
Mounting Plate
E (2)
Screws
F (2)
Screws
D (2)
Drywall Clips
C (2)
Front Bezel
Parts List
ytQnoitpircseD
Axob llaw-ni
BTablet/Display Mounting Plate
CFront Bezel
DDry Wall Clips (Installed)
EDry Wall Clip Screws (Installed)
FM4 x 6mm Screws
1
1
1
4
4
8
Tools
1-1
Use Stud Finder to locate and
mark edge of studs.
1-2a
Using dimensions shown, draw outline for in-wall box. Make sure lines are level before removing drywall.
1-3
The Mimo Monitor In-Wall Enclosure is designed to fit between studs in the vertical or horizontal direction. The 15.6"
In-Wall Box in landscape mode will not fit between two 16" studs unless the studs are notched, see 1-2b below for
details. So, it is advised to locate the studs in the area you are planning on installing the enclosure before you cut the
drywall so you do not expose a stud by accident. Once you have located the studs on the left and right of where you
are going to install the enclosure, cut the necessary hole in the drywall where you want the enclosure installed. Use
the chart below to determine the size of the hole needed for the enclosure you are installing.
A
B
Insert wall box into hole in drywall with the clips on
the inside of the box.
Drywall Hole Size to Cut
Landscape Mode
1-2b
When installing the 15.6" Wall Box in landscape mode in a 16" on center stud wall, both studs will have to be notched
out .875" (half of the 1.5" stud) by 11" (the height of the box) in order for the box to fit.
