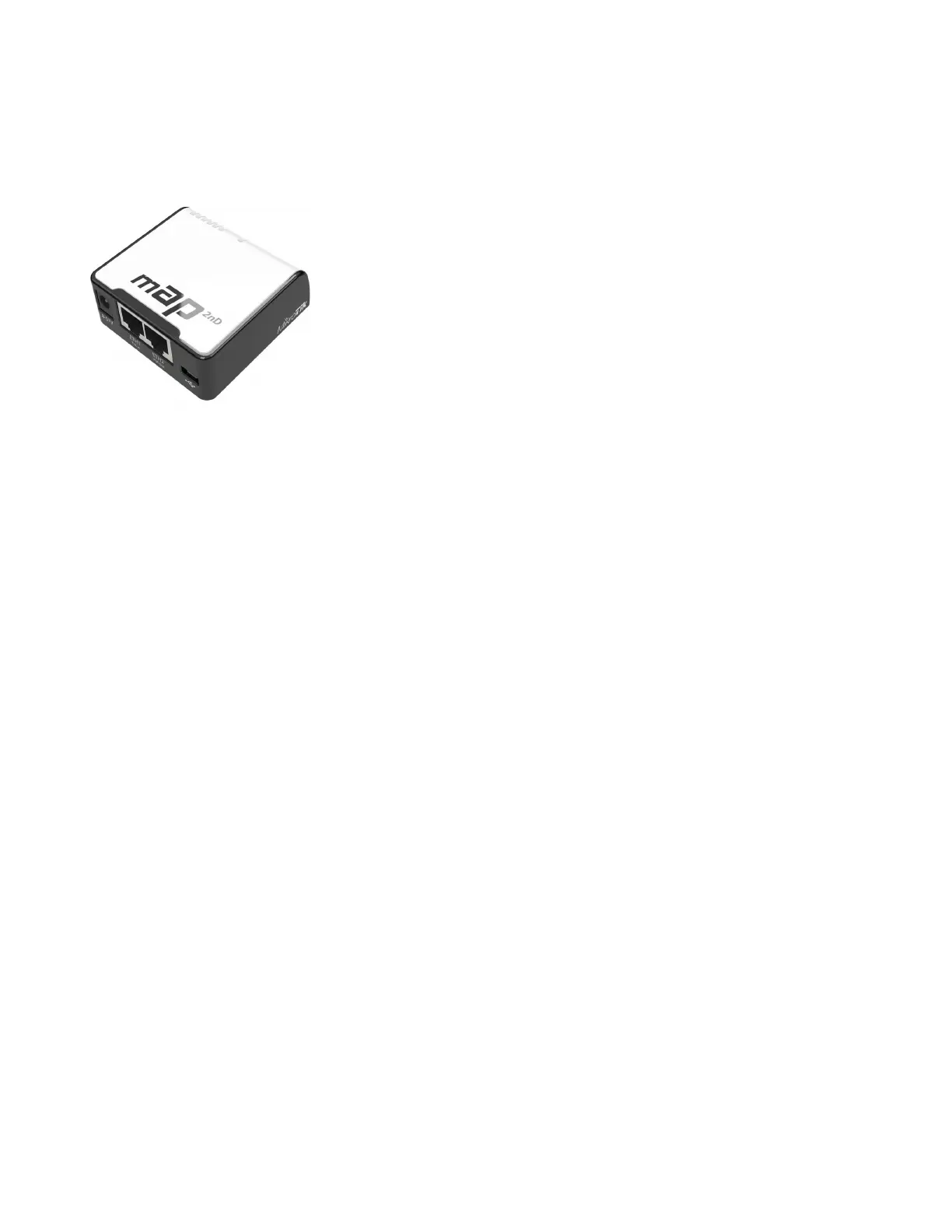

The mAP 2nD is a small wireless AP device with 2 Ethernet ports, Ether1 supports powering by PoE, Ether2 supports PoE output for powering another

device. Depending on software configuration, it can function as a wireless client, an access point or a repeater.

Safety Warnings

Before you work on any equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing

accidents.

Ultimate disposal of this product should be handled according to all national laws and regulations.

The Installation of the equipment must comply with local and national electrical codes.

This unit is intended to be installed in the rackmount. Please read the mounting instructions carefully before beginning installation. Failure to use the

correct hardware or to follow the correct procedures could result in a hazardous situation to people and damage to the system.

This product is intended to be installed indoors. Keep this product away from water, fire, humidity or hot environments.

Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.

Read the installation instructions before connecting the system to the power source.

We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your

own risk!

In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power plug from the power outlet.

It is the customer's responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling

requirements, and Dynamic Frequency Selection (DFS) requirements. All Mikrotik radio devices must be professionally installed.

Exposure to Radio Frequency Radiation:

Exposure to Radio Frequency Radiation: Exposure to Radio Frequency Radiation: This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an

uncontrolled environment.This MikroTik device should be installed and operated no closer than 20 centimeters from your body, occupational user, or the

general public.

Quick Start

Connect your Internet cable to Ether1, and your PC to Ether2. If using the mAP to power another router using the PoE output feature, connect the

router to Ether2, and use the built-in wireless AP to configure the mAP.

Set computer/router IP configuration to (DHCP).

automatic

Wireless AP mode is enabled by default, you can connect to the SSID "MikroTik". Log into your router from your web browser by opening

192.168.88.1 in the address bar user admin and no password .(or, for some models, check user and wireless passwords on the sticker) .

We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best

performance and stability.

Choose your country, to apply country regulation settings, and set up your password on the screen that loads.

The Ether2 port supports PoE output, with the auto-detection feature. This means you can connect Laptops and other non-PoE devices without

damaging them. The PoE on Ether2 outputs approximately 2V below input voltage and supports up to 0.5 A (So provided 24V PSU will provide 22

V / 0.5 A output to the Ether2 PoE port).

Powering

The device accepts power from the power jack or the first Ethernet port (Passive PoE):

DC power jack (5.5 mm outside and 2 mm inside diameter, female, pin positive plug) accepts 8-57 V DC .

The first Ethernet port accepts passive Power over Ethernet 11-57 V DC .

The mAP can also be powered with the built-in micro USB port, using the USB 5 V power.

Under maximum load, the power consumption of this device is 4W (when not using PoE output)

Connecting to a PoE Adapter:

Connect the Ethernet cable from the device to the PoE+DATA port of the PoE adapter.

Connect an Ethernet cable from your local network (LAN) to the PoE adapter.

Connect the power cord to the adapter, and then plug the power cord into a power outlet.

MikroTik mobile app

Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for your MikroTik home access point.

Scan QR code and choose your preferred OS.

Install and open application.

By default, the IP address and user name will be already entered.

Click Connect to establish a connection to your device through a wireless network.

Choose Quick setup and application will guide you through all basic configuration settings in a couple of easy steps.

An advanced menu is available to fully configure all necessary settings.

Booting process

RouterOS includes many configuration options in addition to what is described in this document. We suggest starting here to get yourself accustomed to

the possibilities: https://mt.lv/help

In case IP connection is not available, the Winbox tool ( ) can be used to connect to the MAC address of the device from the LAN side https://mt.lv/winbox

(all access is blocked from the internet port by default). For recovery purposes, it is possible to boot the device for reinstallation network, see section

Buttons and jumpers

Extension Slots and Ports

Two 10/100 Ethernet ports, supporting automatic cross/straight cable connection (Auto MDI/X), so you can use either straight or cross-over

cables for connecting to other network devices.

One Integrated Wireless 2.4GHz 802.11b/g/n 2x2 dual chain MIMO, Onboard PIF antennas, max gain 1.2dBi.

One micro USB 2.0 port.

Mounting

The device is designed to be used indoors and placed on a flat surface with all needed cables connecting to the front of the unit.

We recommend using Cat6 shielded cables.

Warning! This equipment should be installed and operated with a minimum distance of 20 cm between the device and your body. Operation of this

equipment in the residential environment could cause radio interference.

Buttons and jumpers

RouterBOOT reset button has the following functions:

Hold this button during boot time until LED light starts flashing, release the button to reset RouterOS configuration (total 5 seconds).

Keep holding for 5 more seconds, LED turns solid, release now to turn on CAP mode. The device will now look for a CAPsMAN server (total 10

seconds).

Or Keep holding the button for 5 more seconds until LED turns off, then release it to make the RouterBOARD look for Netinstall servers (total 15

seconds).

Regardless of the above option used, the system will load the backup RouterBOOT loader if the button is pressed before power is applied to the device.

Useful for RouterBOOT debugging and recovery.

Operating system support

The device supports RouterOS software version 6. The specific factory-installed version number is indicated in the RouterOS menu /system resource.

Other operating systems have not been tested.

Notice

The Frequency band 5.470-5.725 GHz isn’t allowed for commercial use.

In case WLAN devices work with different ranges than the above regulations, then a customized firmware version from the manufacturer/supplier

is required to be applied to the end-user equipment and also prevent the end-user from reconfiguration.

For Outdoor Usage: End-user requires approval/license from the NTRA.

Datasheet for any device is available on the official manufacturer website.

Products with the letters “EG” at the end of their serial number have their wireless frequency range limited to 2.400 – 2.4835 GHz, the TX power is

limited to 20dBm (EIRP).

Products with the letters “EG” at the end of their serial number have their wireless frequency range limited to 5.150 – 5.250 GHz, the TX power is

limited to 23dBm (EIRP).

Products with the letters “EG” at the end of their serial number have their wireless frequency range limited to 5.250 – 5.350 GHz, the TX power is

limited to 20dBm (EIRP).

Federal Communication Commission Interference Statement

FCC ID: TV7RBMAP2ND

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Please make sure the device has a lock package (firmware version from the manufacturer) which is required to be applied to the end-user
