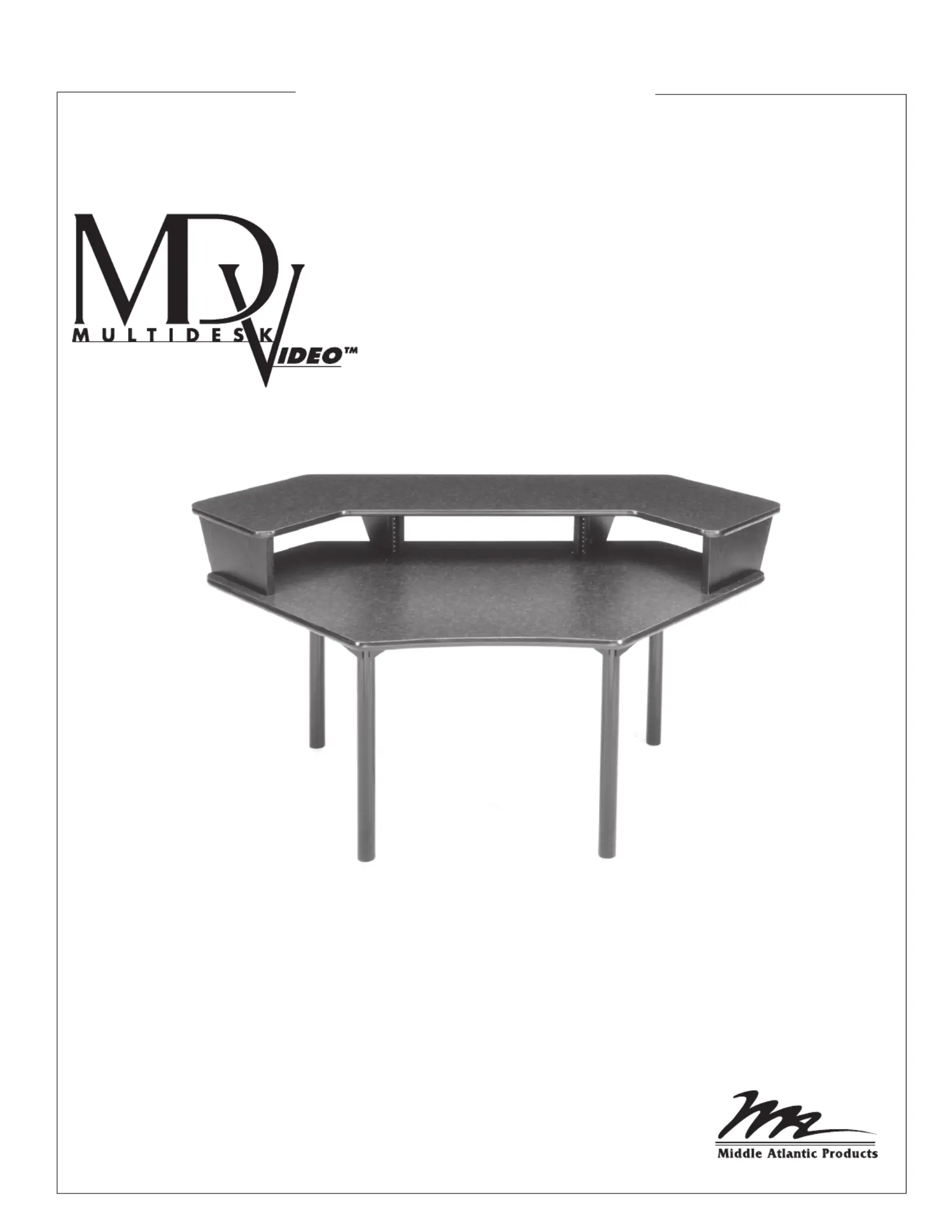

Seite 1/4
I-02351 Rev I
THANK YOU
Thank you for purchasing the MDV-CNR1 Corner Desk with Overbridge. Please read these
instructions thoroughly before assembling this product.
PRODUCT FEATURES
- Attractive corner desk features a durable graphite top.
- Designed for installations in conjunction with the MultiDesk Video
side bay rack.
- Configurable overbridge provides up to 4 rackspace
mounting locations.
Page 2
RACKRAIL
RACK
RAIL
RACK
RAIL
"B"
(ONE RACKBAY
IN CENTER)
TOOLS REQUIRED
#2 Phillips Head Driver
ASSEMBLY
1) Attach the brackets to the desk as shown
using the large screws (7 screws per leg).
(FIGURE A)
2) Insert the legs into the brackets, aligning the set the
screw opening in the leg with the opening in the
bracket. (FIGURE A)
3) Tighten all brackets using the enclosed hex key
by turning the set screw 3/4 turn clockwise.
NOTE: Do not overtighten.
4) Select the overbridge configuration that best suits
your application.
FIGURE A
ADJUST LEVELING
FEET AS NEEDED
SETSCREW
OPENING
LEG
BRACKET
OPENING IN
BRACKET
SETSCREW
(4 PLACES)
OVERBRIDGE
"C"
(TWO RACKBAYS,
ONE LEFT, ONE RIGHT)
“A”
(NO RACKBAY)
NOTE: Rackrail is a user installed option
on "B" and "C" configurations.
5) If rackbay(s) are needed, attach
the rackrail to the risers as shown using
flat head screws. (FIGURE B)
6) Install the 1/2 turn fasteners into the riser
(4) fasteners per riser. (FIGURE B)
FIGURE B
RISER
1/2 TURN FASTENERS
SLOPED EDGE
RACKRAIL
Page 3
7) Install the studs into the desktop
holes for the overbridge configuration
desired. (FIGURE C)
NOTE: The arrow points toward the stud.
(Indicates unlocked position)
NOTE: The black plastic hole plugs are
provided to fill the open holes.
8) Install the studs in the overbridge
bottom for the desired overbridge
configuration. (FIGURE D)
FIGURE C
FIGURE D
FIGURE E
FIGURE F
9) Install the four risers to the desktop
studs with the sloped edge of the
risers facing toward the back of the
desktop, then install the overbridge bottom
studs to the risers. (FIGURE E)
10) Tighten all 1/2 turn fasteners to the
lock position. (FIGURE F)
NOTE: The arrow points to the
lock position.
STUD
DESKTOP
BACK
OVERBRIDGE
BOTTOM
STUD
OVERBRIDGE
RISER
BACK
DESKTOP STUDS
DESKTOP
1/2 TURN FASTENER
(4 PER RISER)
RISER
ASSEMBLY (Continued)
