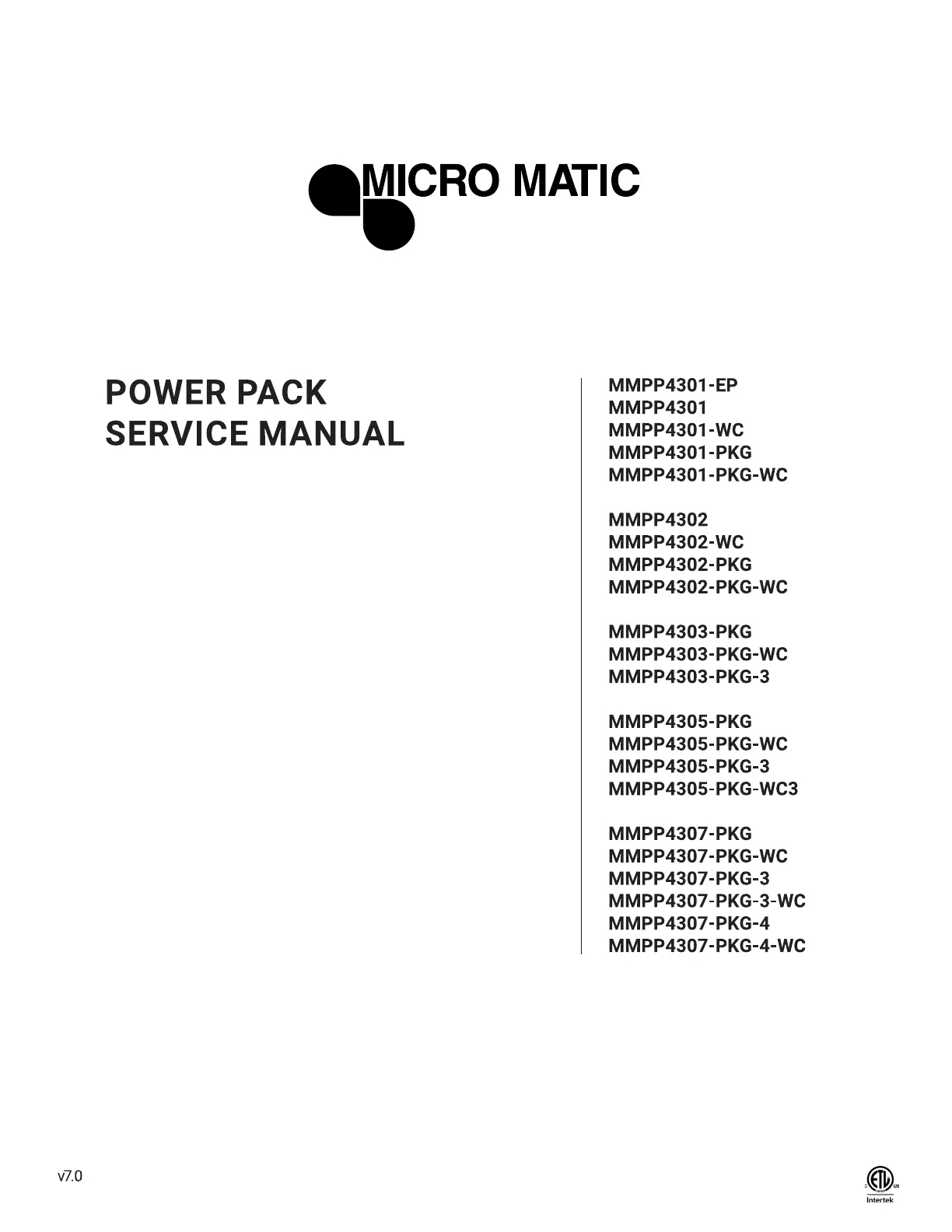

MMPP4301-EP
MMPP4301
MMPP4301-WC
MMPP4301-PKG
MMPP4301-PKG-WC
MMPP4302
MMPP4302-WC
MMPP4302-PKG
MMPP4302-PKG-WC
MMPP4303-PKG
MMPP4303-PKG-WC
MMPP4303-PKG-3
MMPP4305-PKG
MMPP4305-PKG-WC
MMPP4305-PKG-3
MMPP4305-PKG-WC3
MMPP4307-PKG
MMPP4307-PKG-3
MMPP4307-PKG-4
Power Pack Service Manual
2www.micromatic.com
TABLE OF CONTENTS
Equipment Speciîšżcations .................................................................................................................. 3
Installation and Operation .................................................................................................................. 6
75' Unit 6 ...................................................................................................................................
125', 250', 350', 500' and 750’ Units ...................................................................................... 7
Maintenance ....................................................................................................................................... 7
Electronic Temperature Control with Display ..................................................................................... 8
Changing a Glycol Pump .................................................................................................................... 9
Replacing Motor ............................................................................................................................... 10
Replacing Thermostat ...................................................................................................................... 10
Troubleshooting ............................................................................................................................... 11
Typical Spare Parts .......................................................................................................................... 12
Wiring Diagrams ............................................................................................................................... 13
Warranty .......................................................................................................................................... 20
3www.micromatic.com
EQUIPMENT SPECIFICATIONS
Air Cooled MMPP4301-EP MMPP4301 MMPP4301-PKG MMPP4302 MMPP4302-PKG
Water Cooled MMPP4301-WC MMPP4301-PKG-WC MMPP4302-WC MMPP4302-PKG-WC
Cooling Distance 75' 125' 125' 250' 250'
Compressor HP 1/3 1/3 1/3 1/2 1/2
Glycol Pumps 1 1 2 1 2
Pump Type Vertical Procon (Vane) Procon (Vane) Procon (Vane) Procon (Vane)
Pump GPH 240 80 80 80 80
Pump Motor HP 1/3 1/3 1/3 1/3 1/3
Voltage 115 115 115 115 115
Plug Type 5-15P 5-15P L5-30P 5-20P L5-30P
Amps (Running) 7.0 11.5 17.5 15.3 21.1
11.5 15.5
Refrigerant R134a R134a R134a R134a R134a
Charge (oz.) 10 12 12 16 16
Refrigerant
Running Pressures
18 (low)
140 (high)
18 (low)
140 (high)
18 (low)
140 (high)
18 (low)
140 (high)
18 (low)
140 (high)
BTUs/H* 2,300 2,300 2,300 3,600 3,600
Dimensions
L x W x H Including
pump(s) and motor(s)
26" x 17 3/8" x
22 1/4" 29" x 18" x 27 1/2" 29” x 18" x 27 1/2" 29" x 18" x 30" 29” x 18” x 30”
Weight (lbs) 90 130 130 170110
Bath Capacity (gal) 5 11.5 11.5 11.5 11.5
Bath Insulation
Thickness 1.5" 1.5" 1.5" 1.5" 1.5"
Approval ETL Listed ETL Listed ETL Listed ETL Listed ETL Listed
Micro Matic reserves the right to change speciîšżcations without notice.
* Rated at 20ÂşF evaporator temperature and 90ÂşF ambient temperature.
