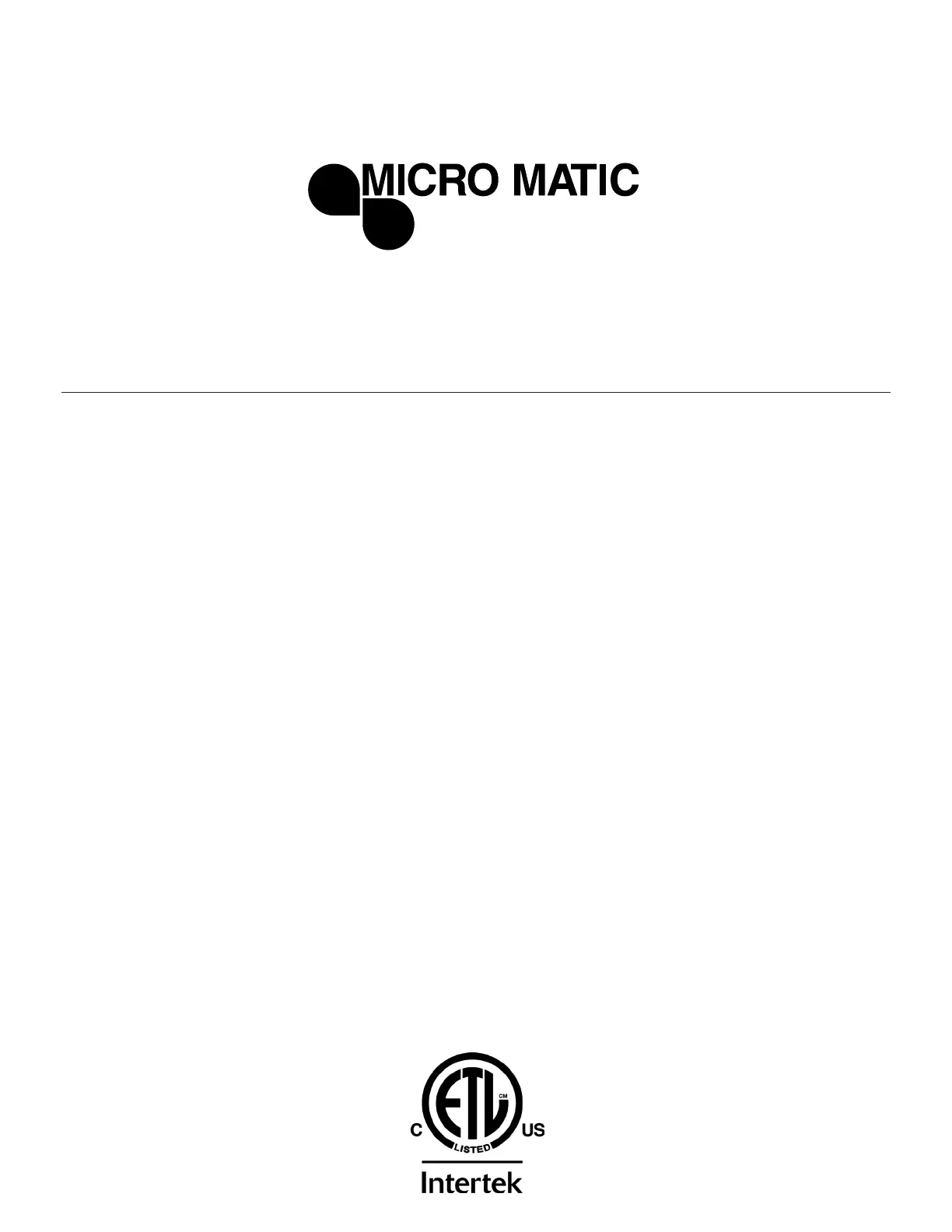

Power Pack Service Manual
MMPP4301-EP
MMPP4301
MMPP4301-WC
MMPP4301-PKG
MMPP4301-PKG-WC
MMPP4302
MMPP4302-WC
MMPP4302-PKG
MMPP4302-PKG-WC
MMPP4303-PKG
MMPP4303-PKG-WC
MMPP4303-PKG-3
MMPP4305-PKG
MMPP4305-PKG-WC
MMPP4305-PKG-3
www.micromatic.com1
TABLE OF CONTENTS
Equipment Speciîšżcations .................................................................................................................. 2
Installation and Operation .................................................................................................................. 3
75' Unit 3 ...................................................................................................................................
125', 250', 350' and 500' Units ............................................................................................... 4
Maintenance 4 .......................................................................................................................................
Electronic Temperature Control with Display ..................................................................................... 5
Changing a Glycol Pump .................................................................................................................... 6
Replacing Motor ................................................................................................................................. 7
Replacing Thermostat ........................................................................................................................ 7
Troubleshooting ................................................................................................................................. 8
Typical Spare Parts ............................................................................................................................ 9
Wiring Diagrams ............................................................................................................................... 10
Warranty .......................................................................................................................................... 15
2
EQUIPMENT SPECIFICATIONS
Air Cooled MMPP4301-EP MMPP4301 MMPP4301-PKG MMPP4302 MMPP4302-PKG MMPP4303-PKG MMPP4303-PKG-3 MMPP4305-PKG MMPP4305-PKG-3
Water Cooled MMPP4301-WC MMPP4301-PKG-WC MMPP4302-WC MMPP4302-PKG-WC MMPP4303-PKG-WC MMPP4305-PKG-WC
Cooling Distance 75' 125' 125' 250' 250' 350' 350' 500' 500'
Glycol Pumps 1 1 2 1 2 2 3 2 3
Pump Type Vertical Procon (Vane) Procon (Vane) Procon (Vane) Procon (Vane) Procon (Vane) Procon (Vane) Procon (Vane) Procon (Vane)
Pump GPH 240 80 80 80 80 80 80 80 80
Motor HP 1/3 1/3 1/3 1/2 1/2 3/4 3/4 1 1
Voltage 115 115 115 115 115 220 220 220 220
Plug Type 5-15P 5-15P L5-30P 5-20P L5-30P 6-15P 6-20P 6-15P 6-20P
Amps (Running) 7.0 11.5 17.5 15.3 21.1 10.6 10.6 11.0 14
11.5 15.5
Refrigerant R134a R134a R134a R134a R134a R134a R134a R134a R134a
Charge (oz.) 10 12 12 16 16 16 16 48 48
Refrigeration
Pressure
185 (low)
235 (high)
185 (low)
235 (high)
185 (low)
235 (high)
185 (low)
235 (high)
185 (low)
235 (high)
185 (low)
235 (high)
185 (low)
235 (high)
185 (low)
235 (high)
185 (low)
235 (high)
BTUs/H 2,300 2,600 2,600 3,400 3,400 5,000 5,000 7,000 7,000
Dimensions
H x W x D Including
pump(s) and motor(s)
19" x 17" x 26" 30" x 18" x
26" 30” x 18" x 26" 30" x 18" x
26" 30” x 18” x 26” 30” x 18” x 26” 30” x 25” x 26” 30” x 18” x 26” 30" x 25" x 26"
Weight (lbs) 90 130 130 170 170 170 190 205110
Bath Capacity (gal) 5 11.5 11.5 11.5 11.5 11.5 11.5 11.5 11.5
Bath Insulation
Thickness 1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5" 1.5"
Approval ETL Listed ETL Listed ETL Listed ETL Listed ETL Listed ETL Listed ETL Listed ETL Listed ETL Listed
Micro Matic reserves the right to change speciîšżcations without notice.
